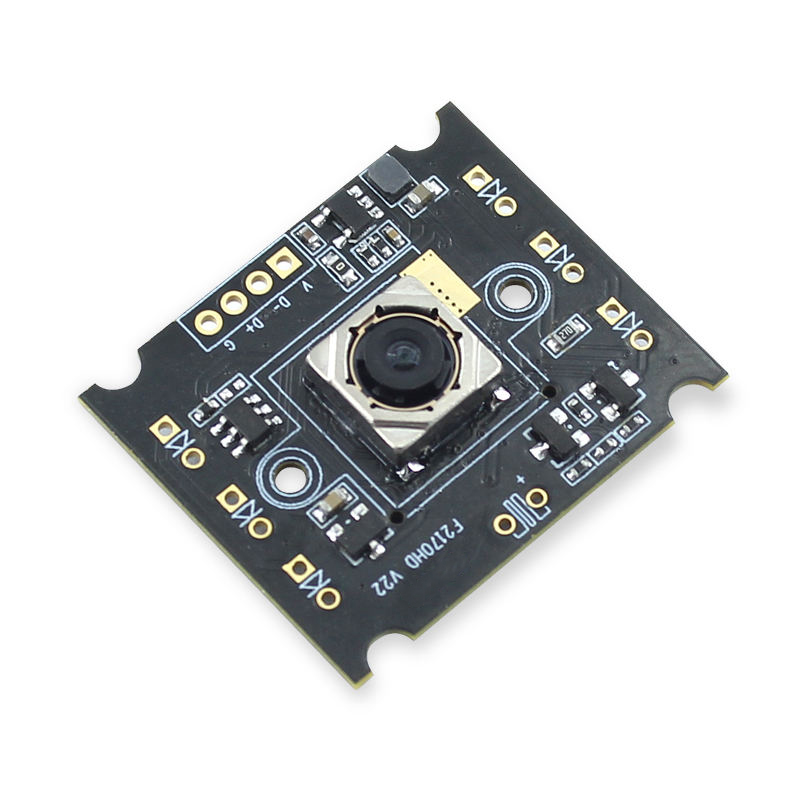

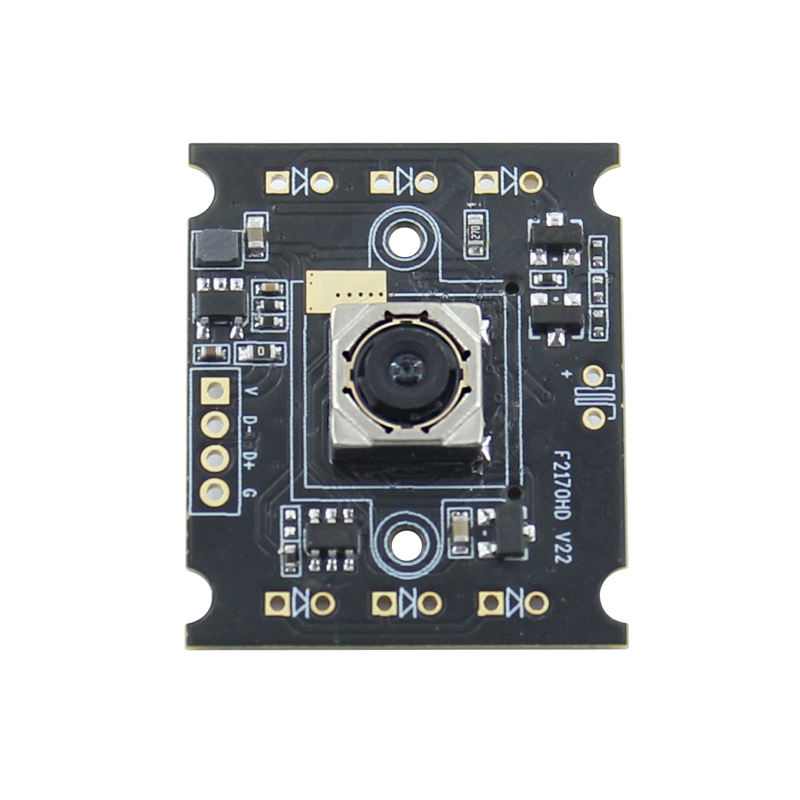

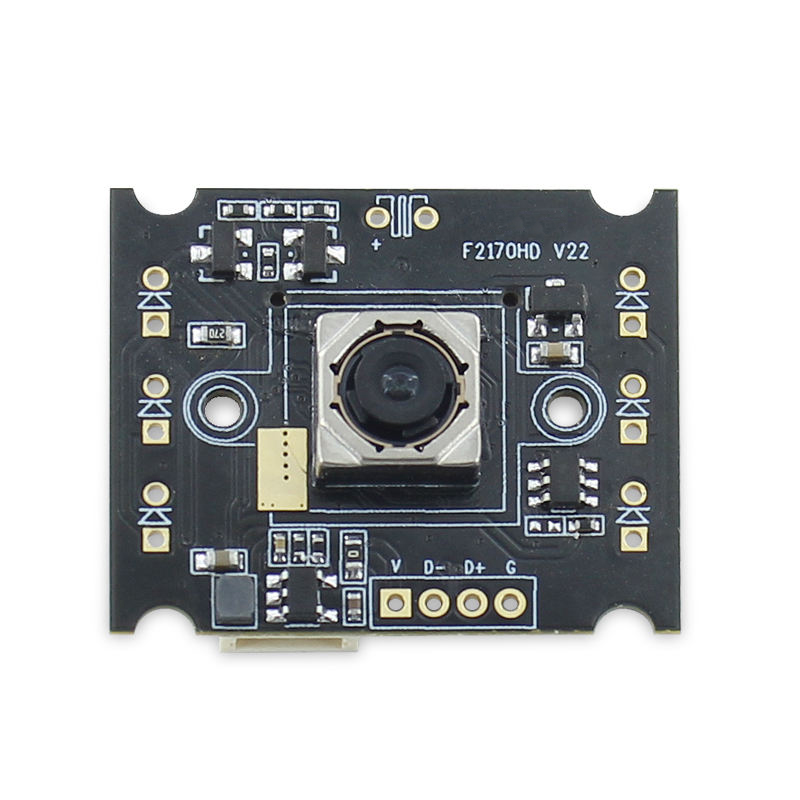

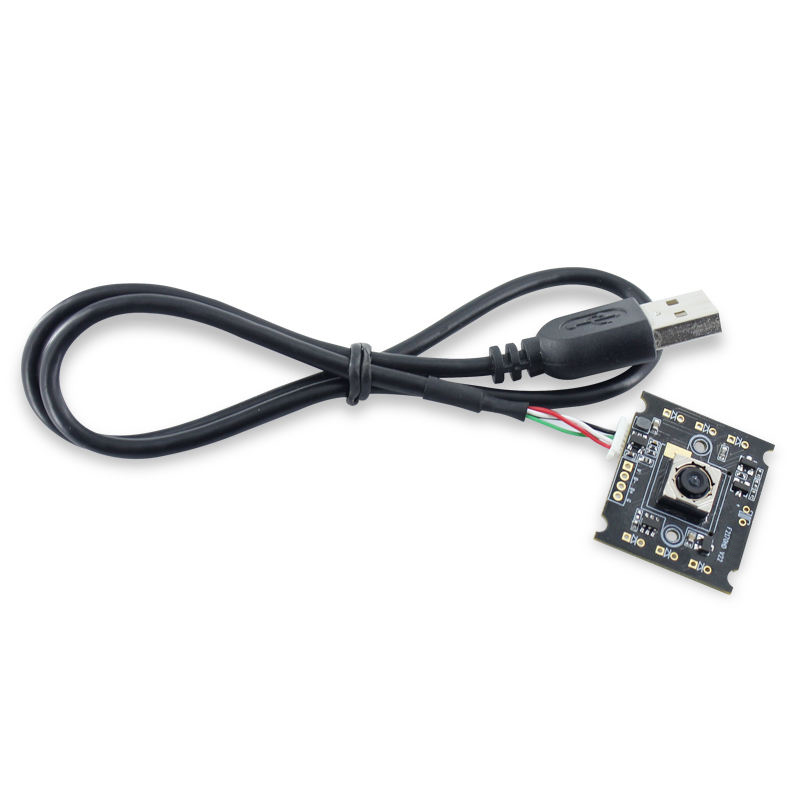

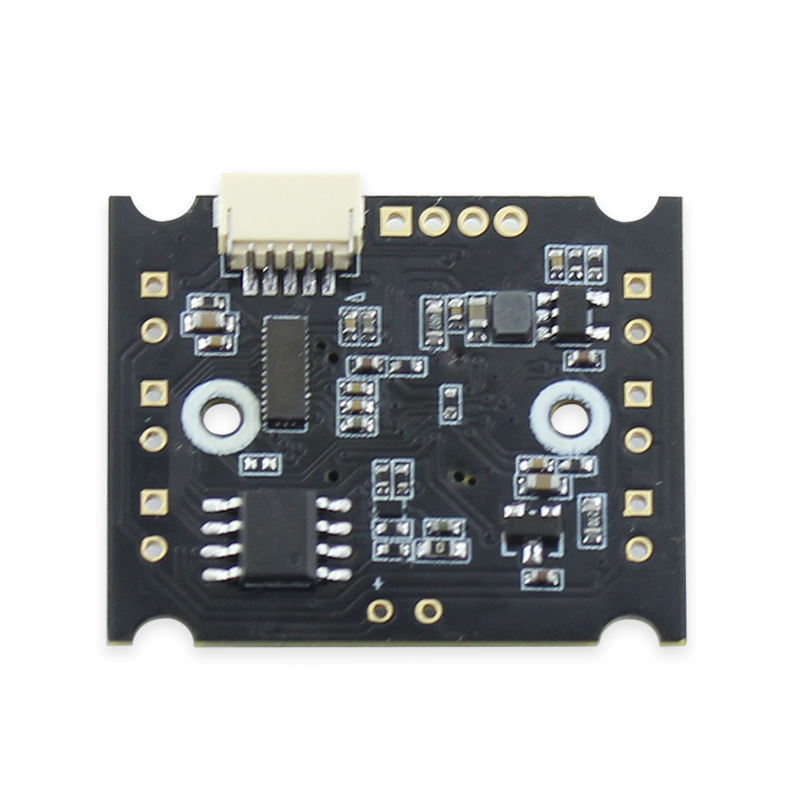

2MP Auto Focus Camera Module 1080P HD PC Device Embedded Built-in Camera Module
$9.60
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product name | 2 MP 1080P high-definition PC, device embedded built-in auto-focus camera module | ||
| Module No. | BMF2170HD V22 | ||

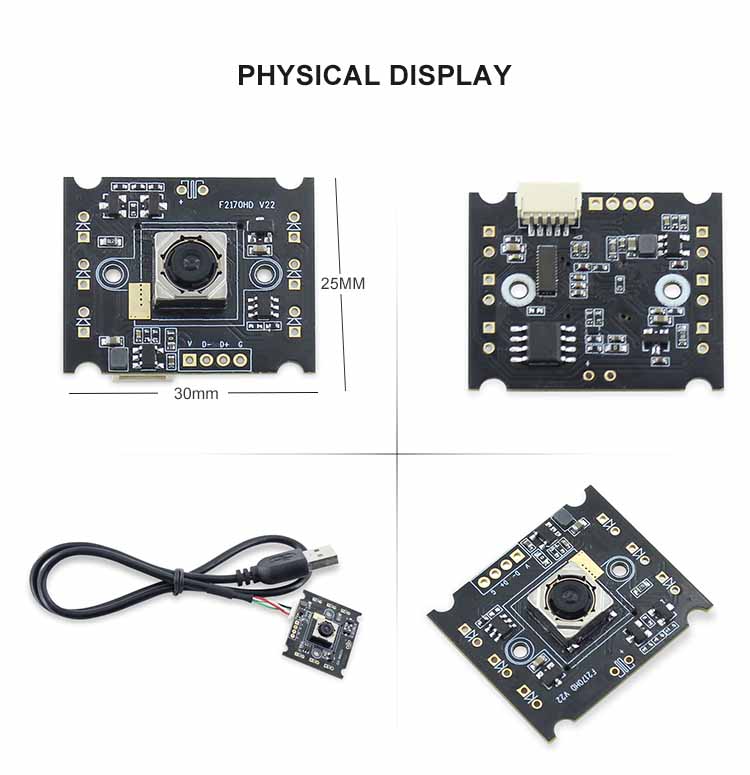

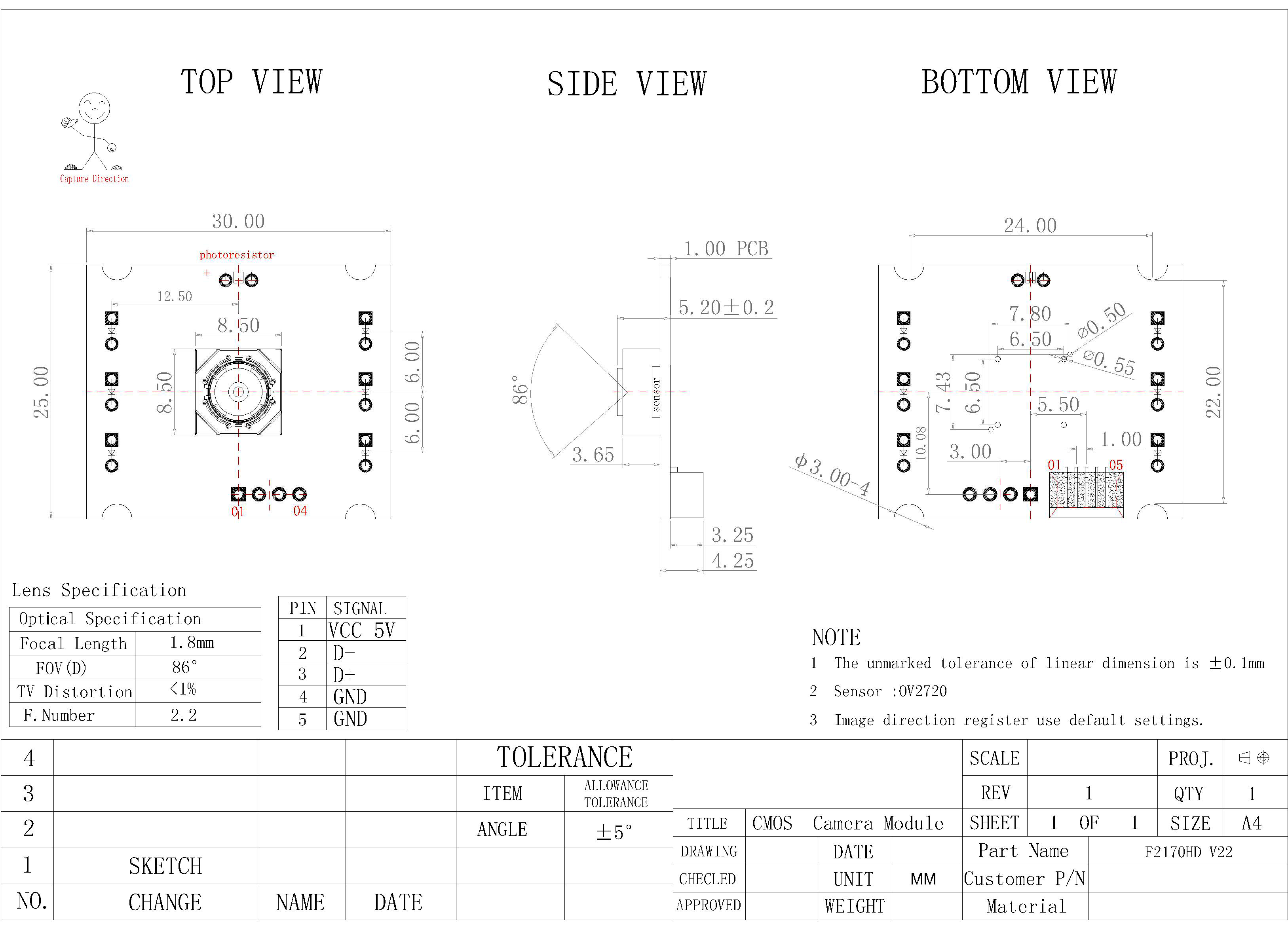

| Module Size | 30mm × 25mm × 5.2mm±0.2MM | ||
| Temperature (Operation) | -30°C to 70°C | ||
| Temperature (Stable Image) | 0°C to 50°C | ||
| Assembly technique | SMT (ROSH) | ||
| Focus | Aout | ||
| Object distance | 30CM-infinity | ||
| Resolution | 600LW/PH (Center) | ||
| PCB printing ink | Black | ||

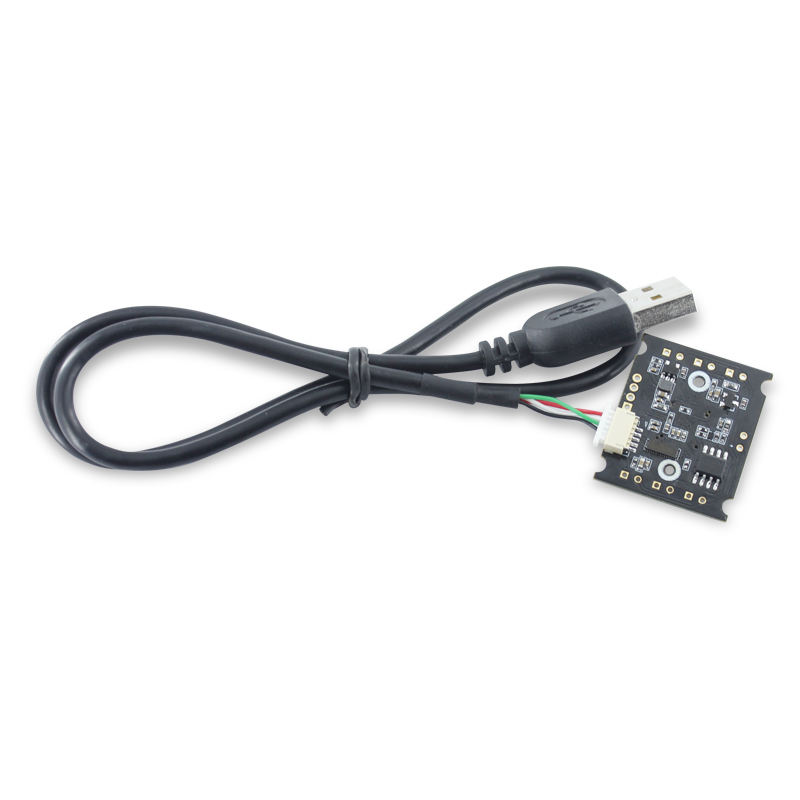

| interface | USB 2.0 | ||
| Power suuply | USB bus power | ||
| supply voltage | DC 5V±5% | ||
| Maximum Power consumption | 590mW | ||
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc | ||
| Sensor | OV2720 (1/5.8" ) | ||
| Seneor Package | CSP,Bare Die | ||
| Maximum resolution | 1920*1080 | ||
| Sensitivity | 650mV /(lux-sec) | ||
| Pixel Size | 1.4µm x 1.4µm | ||
| Maximum Image Transfer Rate | MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 30FPS / YUY2 800x600 10FPS
| ||
| S/N Ratio | 35 db | ||
| Max Dynamic Range | 68 db | ||
| Shutter type | Electronic rolling shutter | ||
| AGC/AEC/Whiter balance | Auto | ||
| Output Formats | YUY2/MJPEG | ||
| Microphone | NC | ||
| Lens Construction | 5P | ||
| F/No | 2.2 | ||
| EFL | 1.8mm | ||
| FOV | 86° | ||
| TV Distortion | <1% | ||
| Relative Illumination (Sensor) | 70% | ||
| IR Filter | 650±10nm | ||
| Module Package | Anti-electrostatic tray | ||
| Certifications | FCC/CE/ROSH |
