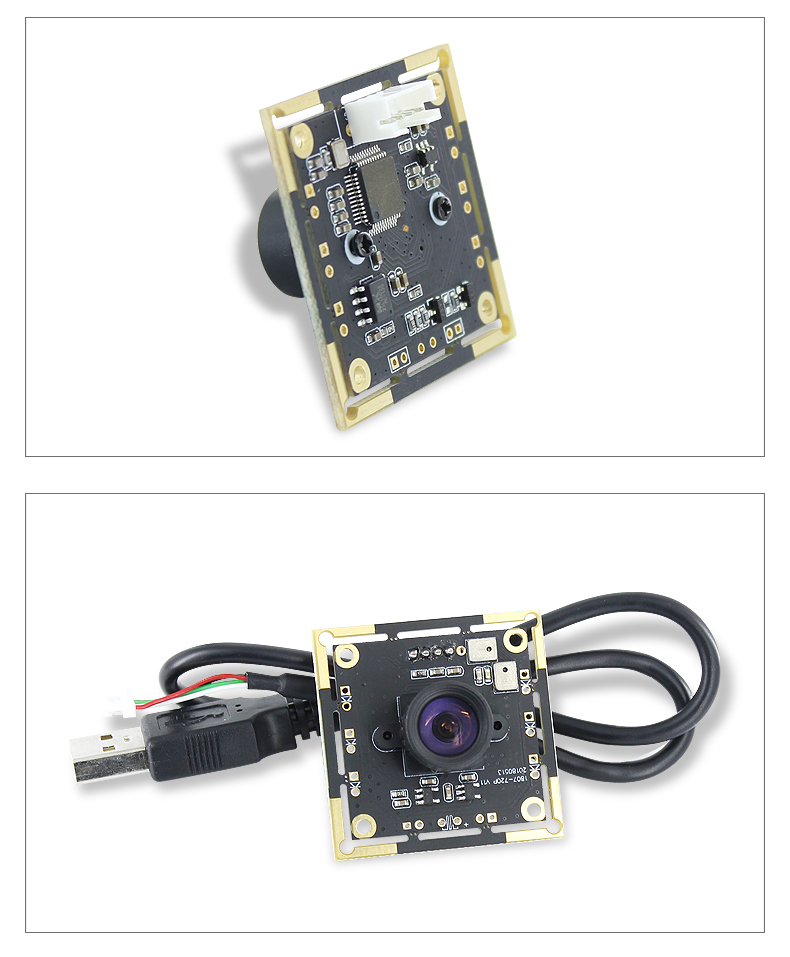

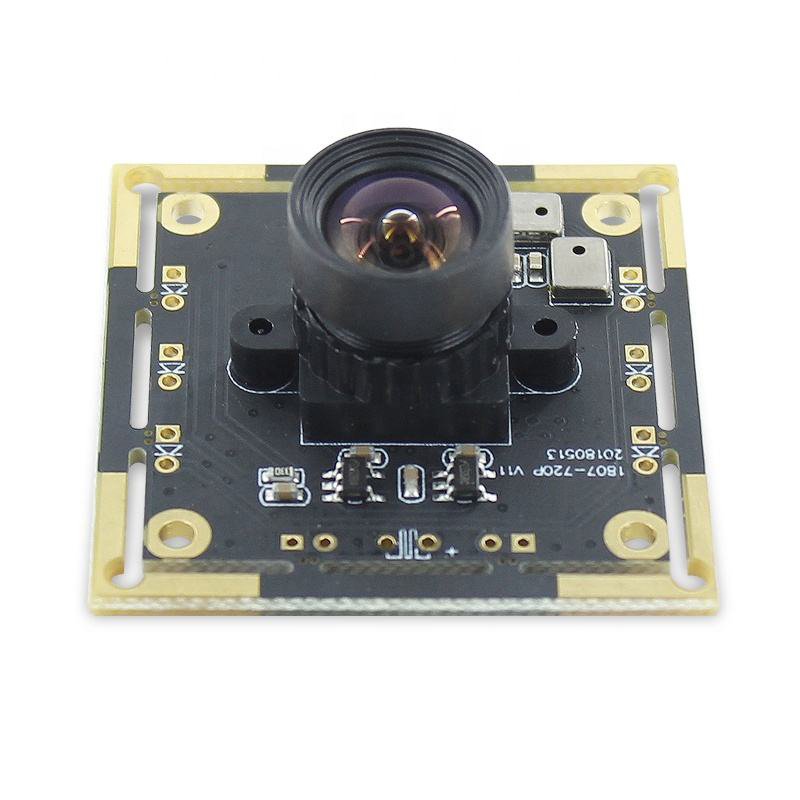

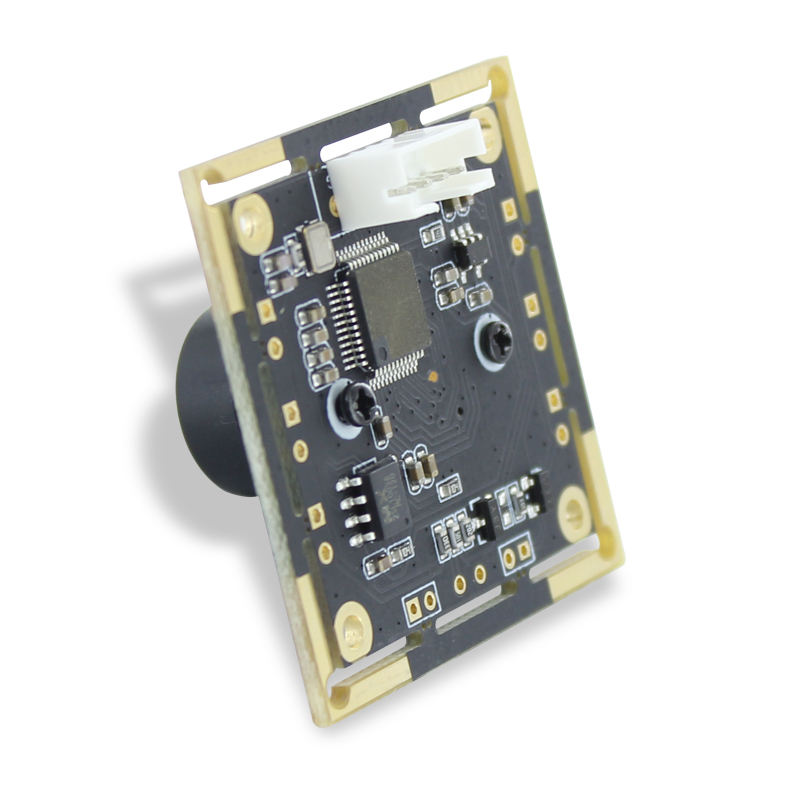

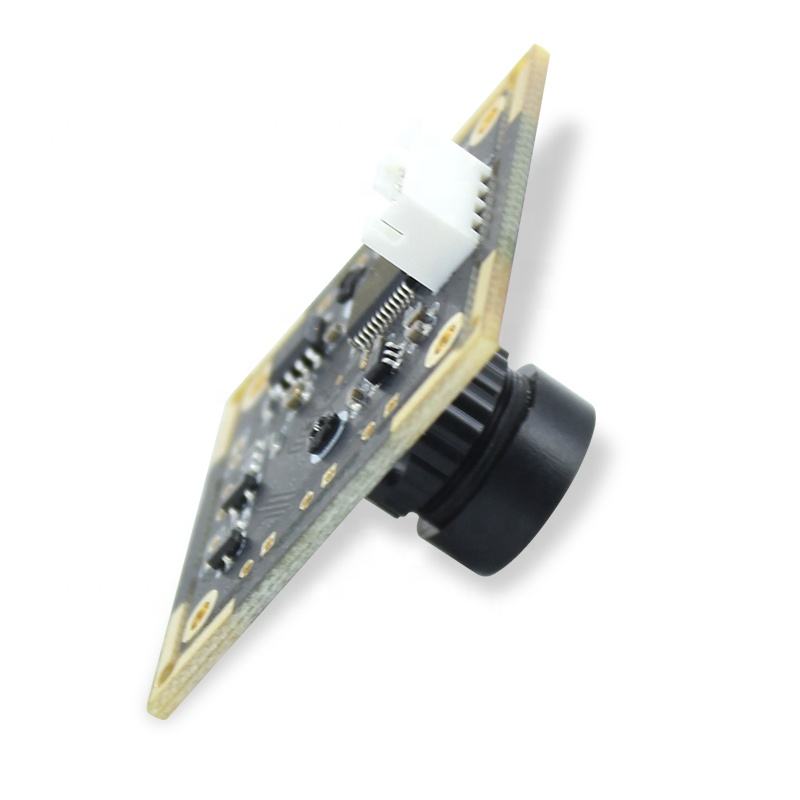

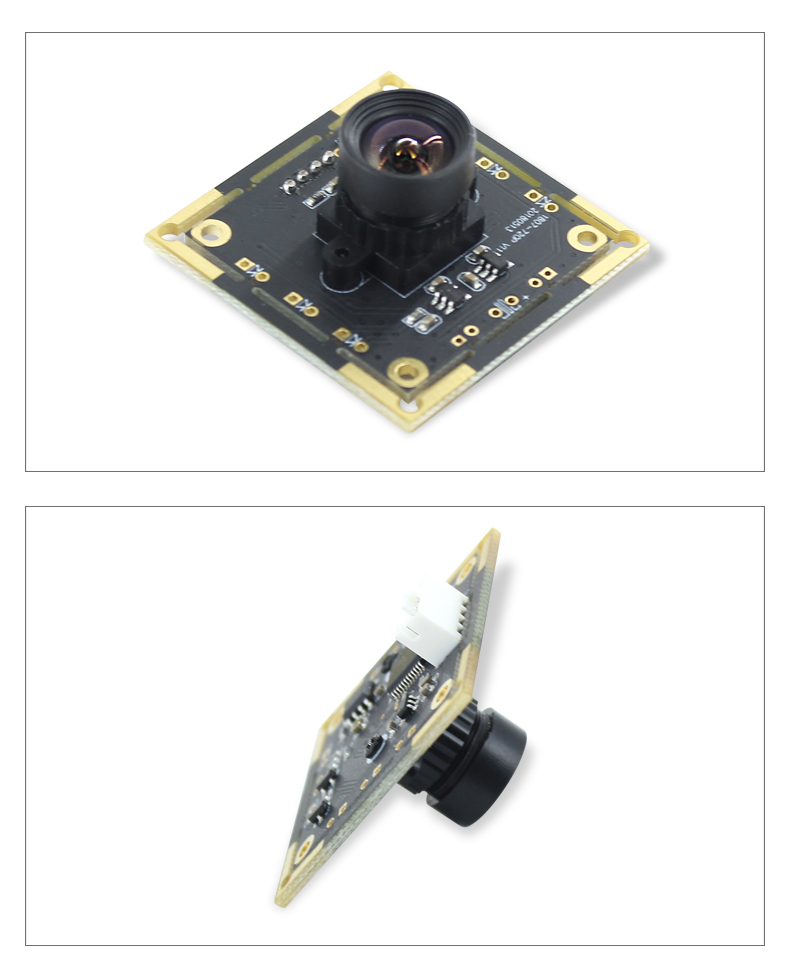

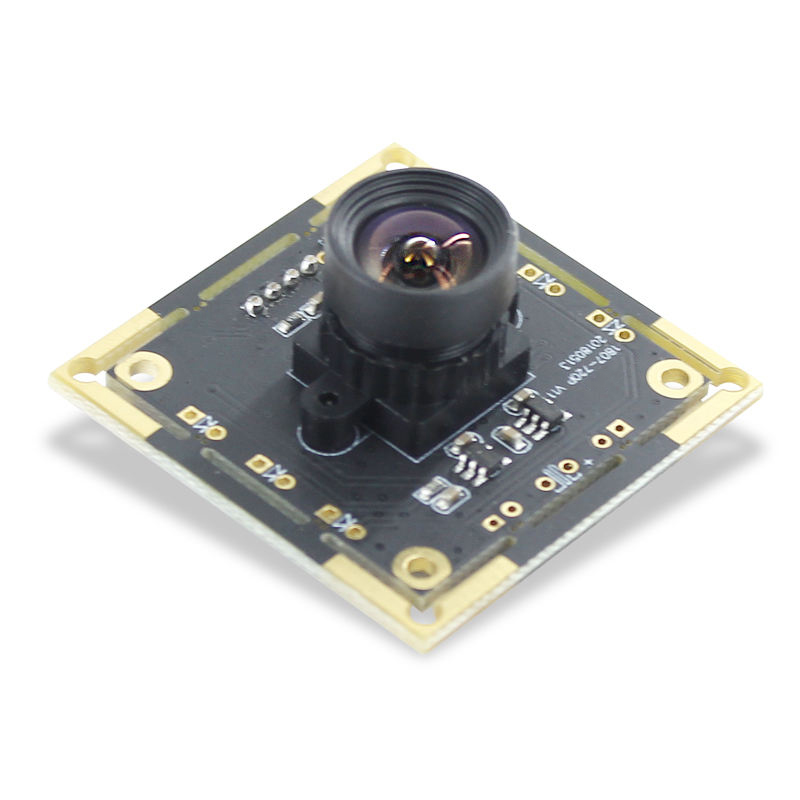

1mp100 degree lens micro cmos OV9732 sensor camera module without distortion
$15.60
Availability:
In stock
Out of stock
Variations
Product Description
Product Descripiton
1mp 160 degree fisheye lens micro mini cmos OV9712 sensor camera module
| Model No. | BM1807-720P V11 |
| Model Size | 38MM(L)*38MM(W)*24MM(H) |
| Sensor | OV9732 |
| Resolution | 640*480 |
| Optical Format | 1/4 inch |
| Pixel Size | 3um*3um |
| Image Area | 3888um*2208um |
| Object distance | 30-infinity |
| Interface | 4PIN USB2.0 |
| DFOV | 100degree |
| Operating system | Free driver for Windows 2000\ Windows XP\Windows 7 / Linux and Android system with Standard UVC Protocol |
| Video Format | MJPG |
| Format output and FPS | 640*360(default)30fps 640*480 30fps 800*600 30fps 1280*720 30fps |
| Video Format | YUY2 |
| Automatic white balance | √ |
| Exposure | √ |
| Focus | Fixed Focus |
| USB cable | 40CM 1M 2M 3M |
| 1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding | |
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function.
Most of our usb cameras support OTG function.
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player

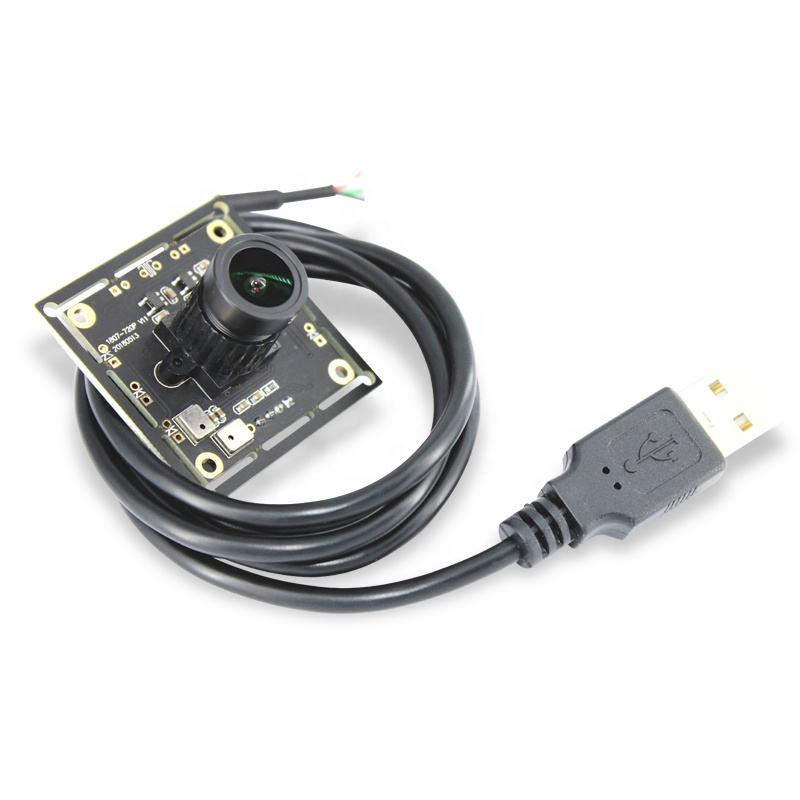

♦Can you supply the USB cable together with camera?
Yes, we supply 40cm/1M usb cable for sample testing. if you need longer usb cable, we can customize it for you. welcome to contact us in advance.
