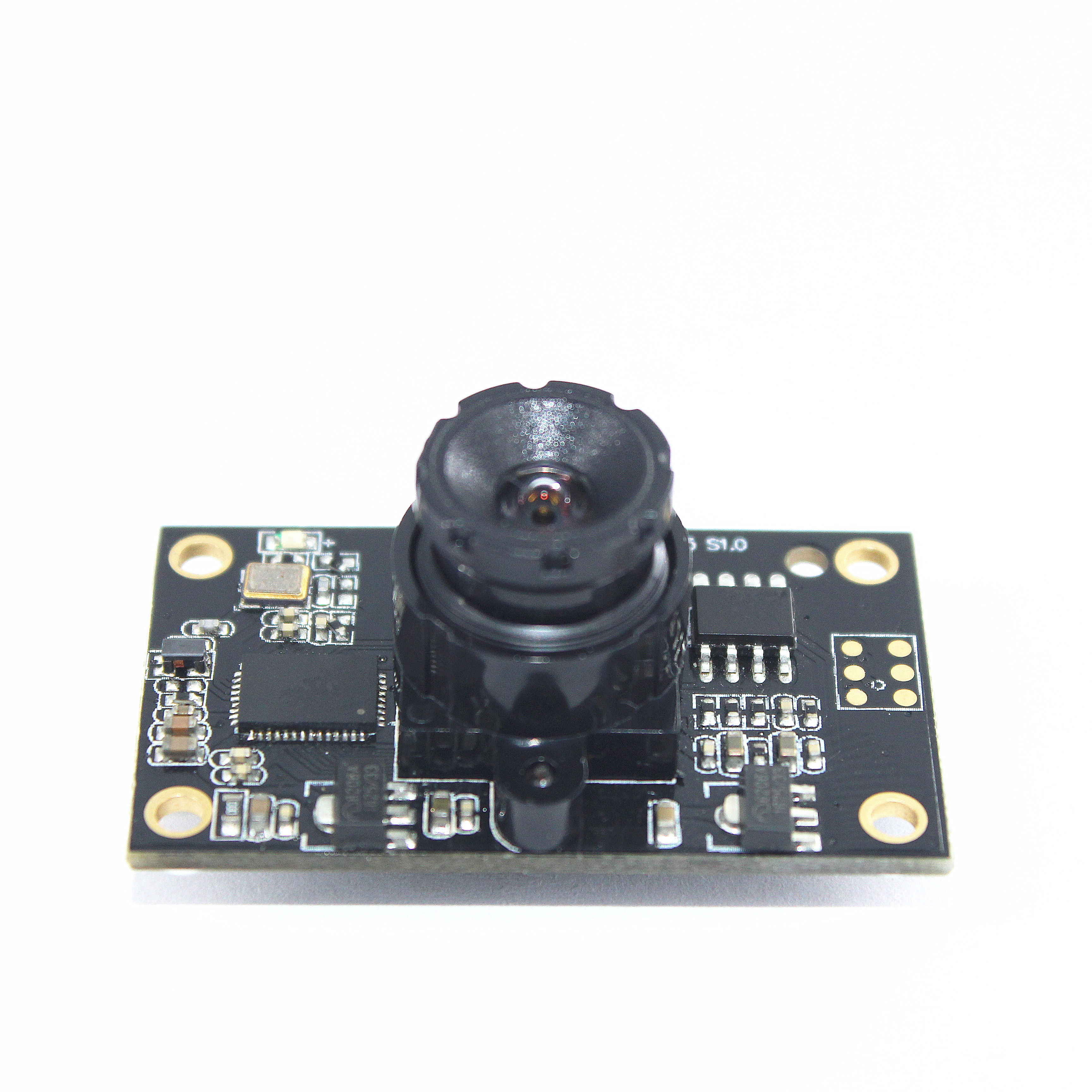

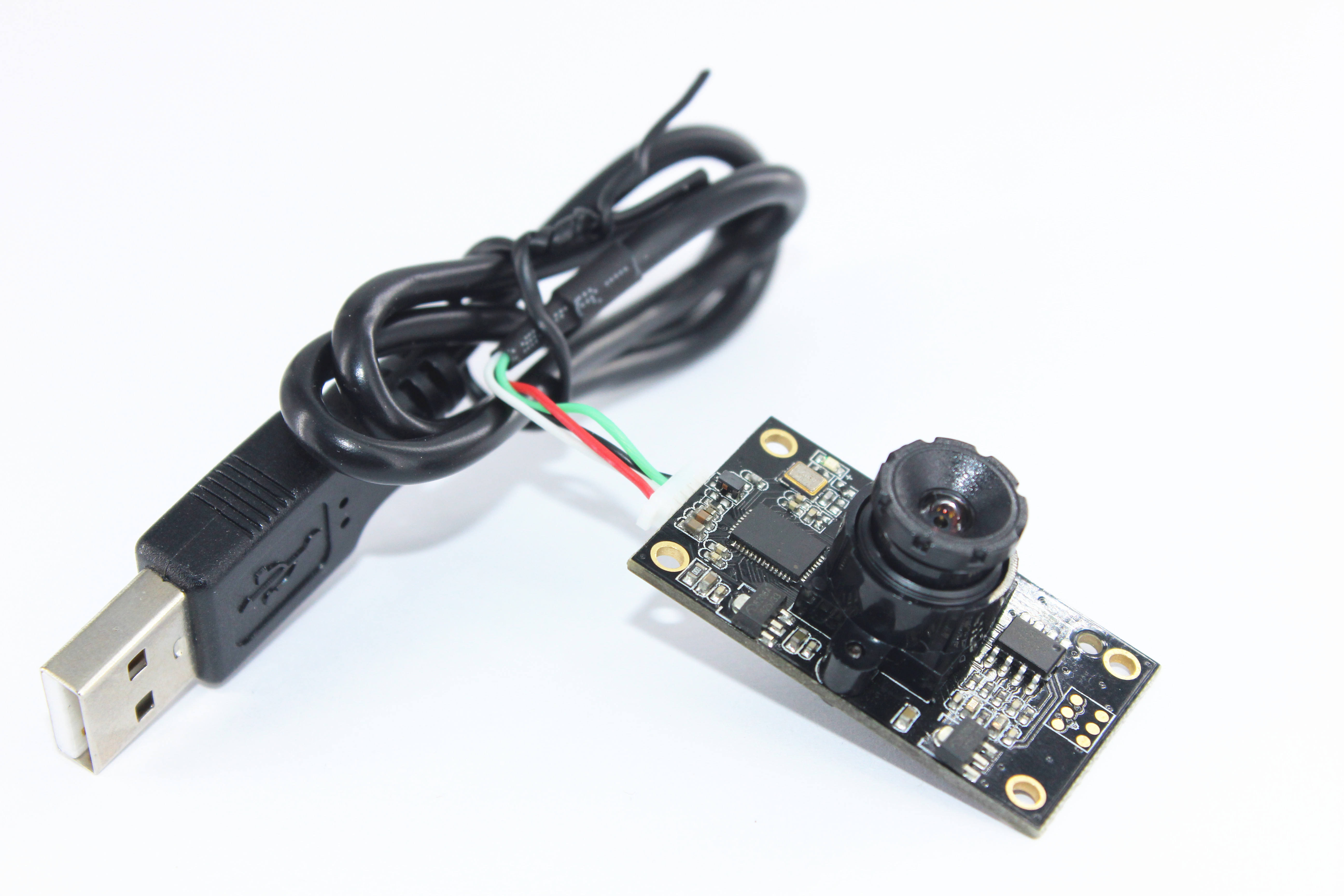

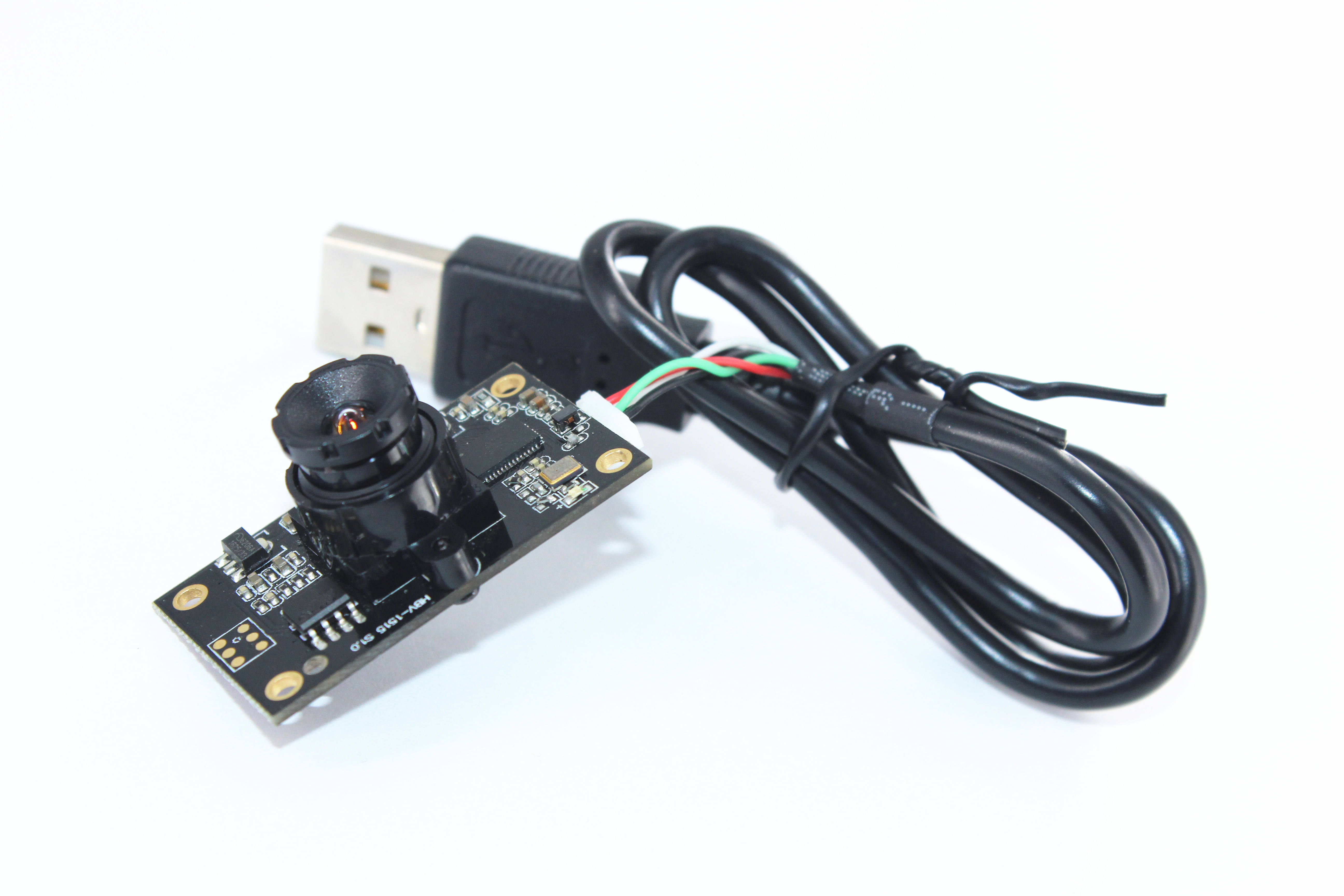

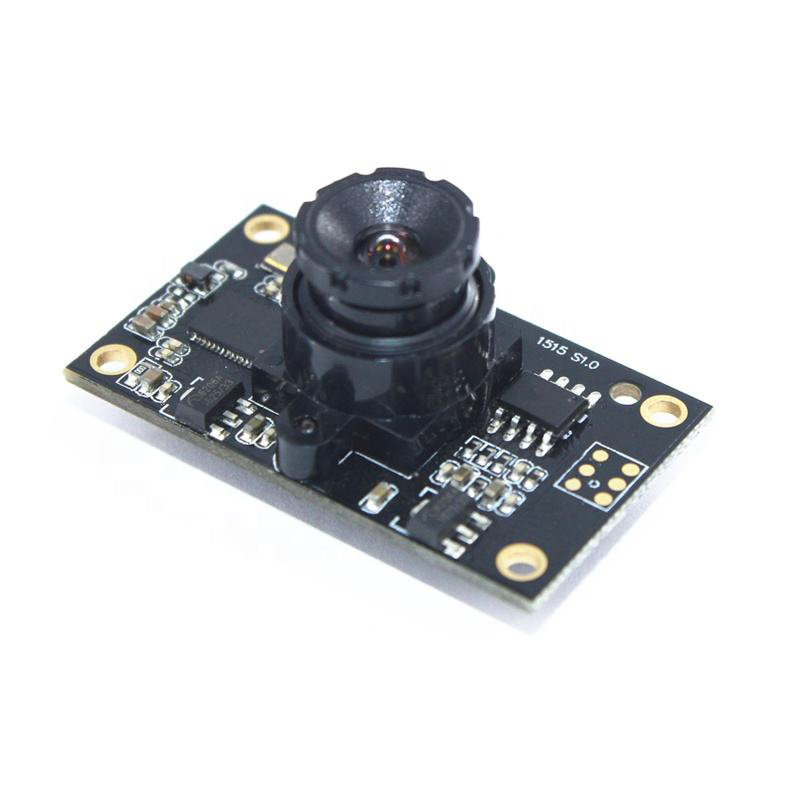

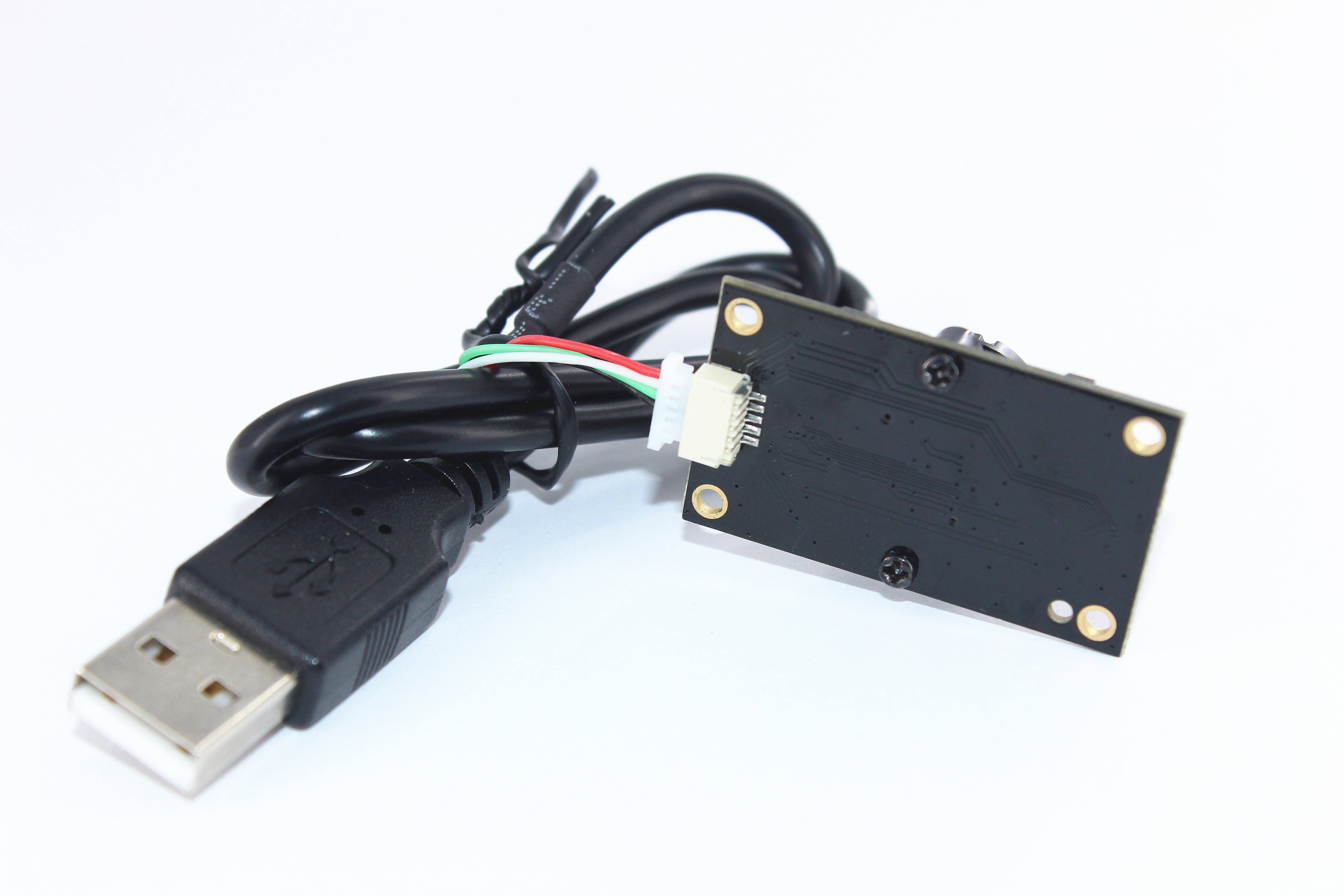

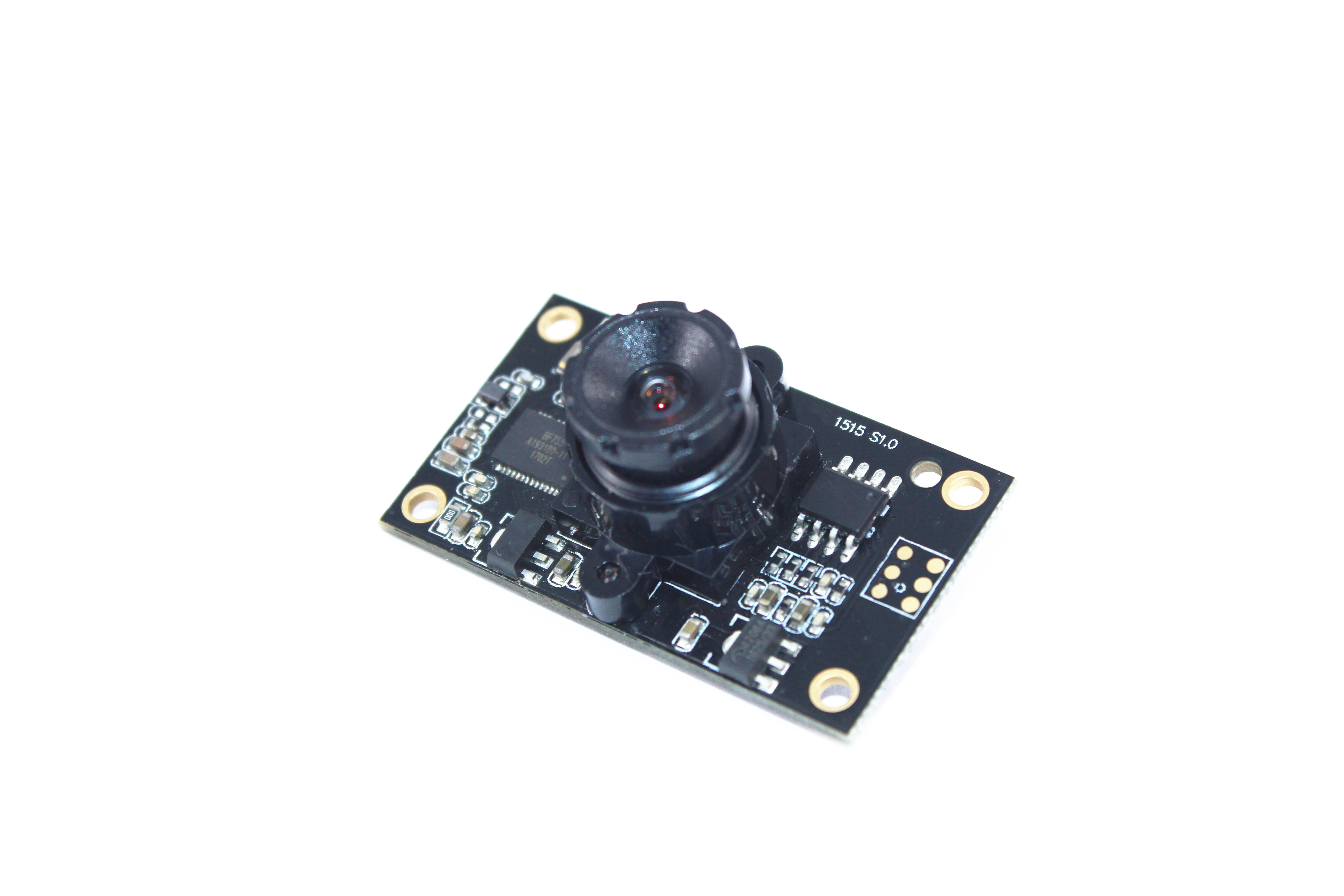

Custom 1Mp Hd Cmos Small Camera Module Can be equipped with a microphone
$16.80
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
| Module No. | BM1515 V33 |
| Module Size | 38mm × 22mm × 14.85mm±0.3MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 500 mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | NT99141 (1/4" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1280*720 |
| Sensitivity | 3300mV /(lux-sec) |
| Pixel Size | 3.0µm x 3.0µm |
| Maximum Image Transfer Rate | MJPEG 640x480 30FPS / YUY2 320x240 30FPS |
| MJPEG 1280x720 30FPS / YUY2 352x288 30FPS | |
| YUY2 640x480 30FPS | |
| YUY2 1280x720 10FPS | |
| S/N Ratio | 38db |
| Max Dynamic Range | 69db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 2G2P |
| F/No | 2.4 |
| EFL | 2.54 mm |
| FOV | 82° |
| TV Distortion | <-7.49% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |

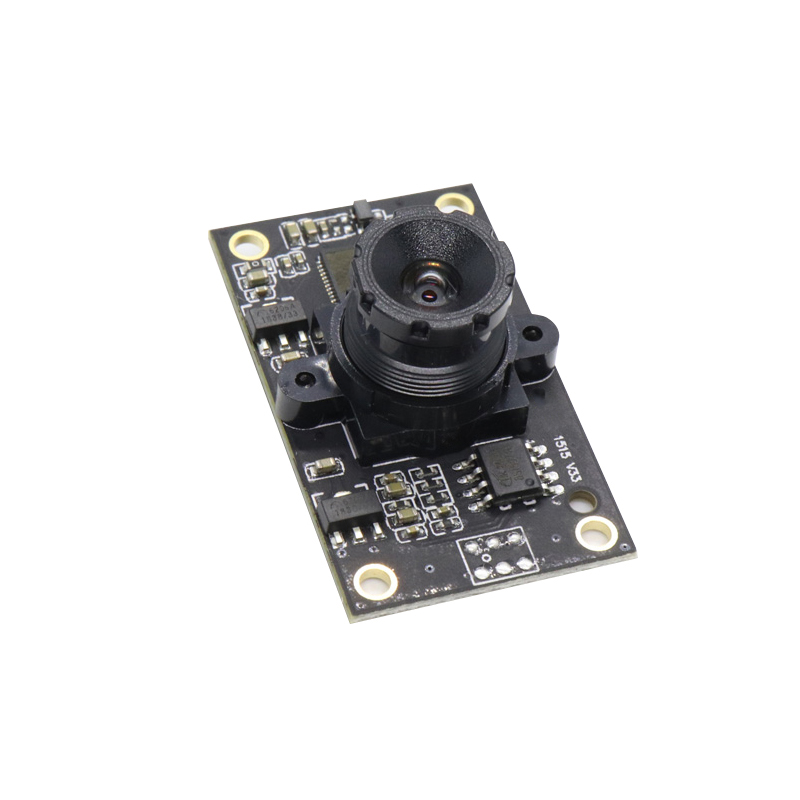

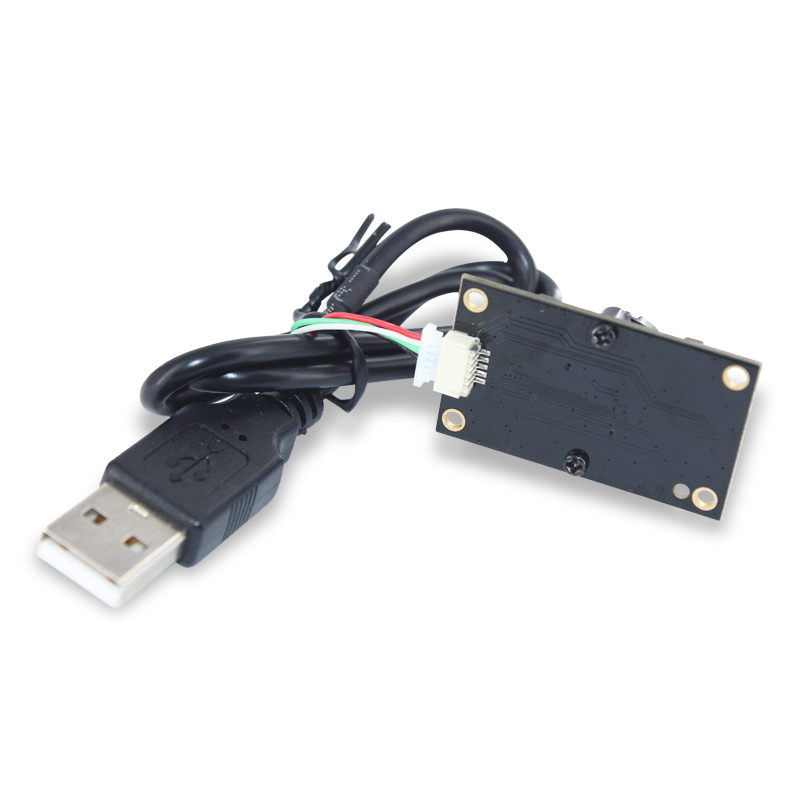

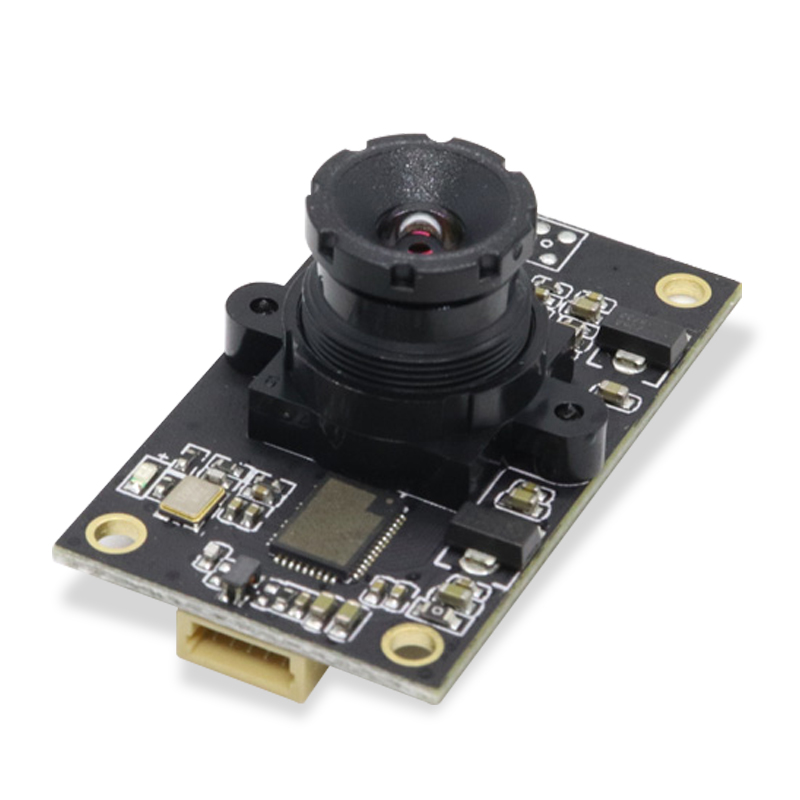

Detailed Images
