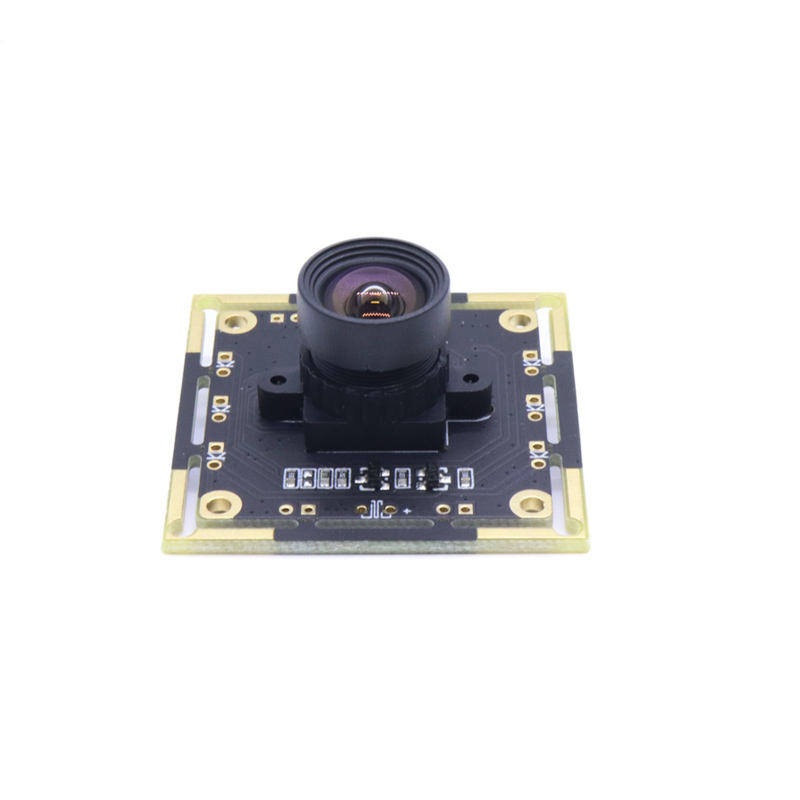

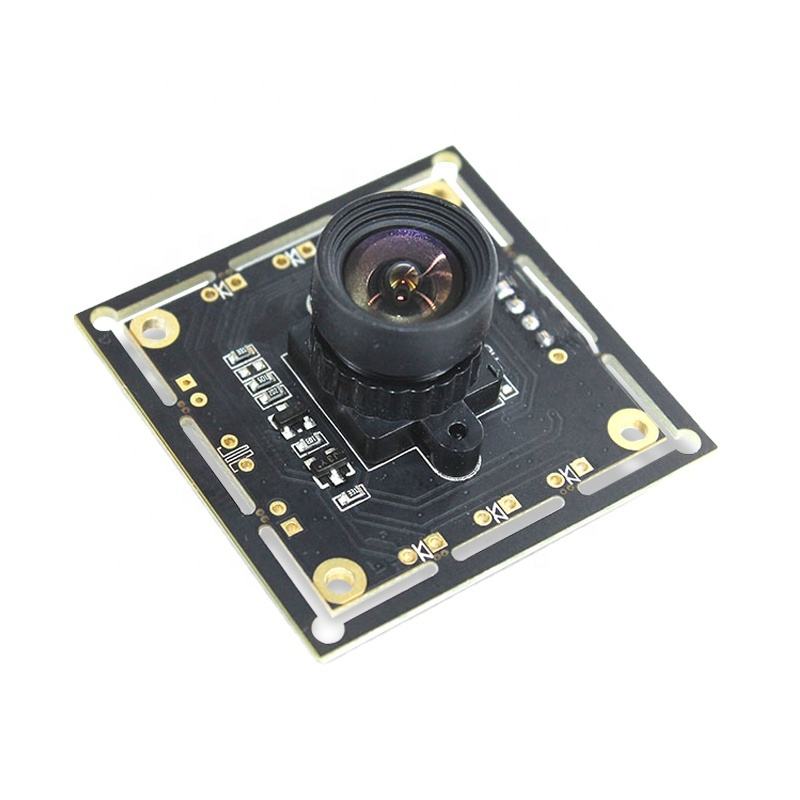

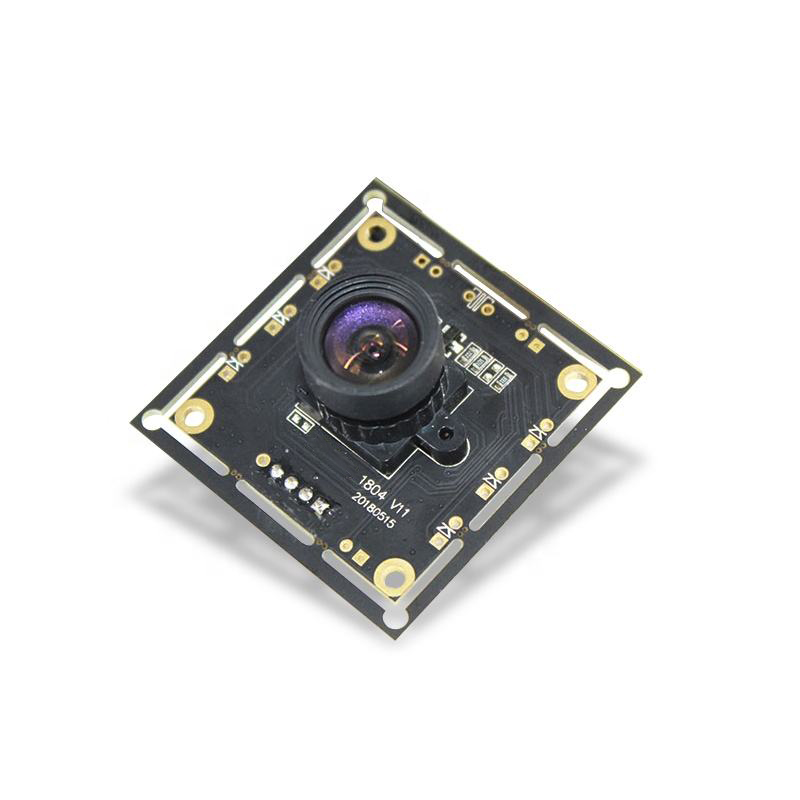

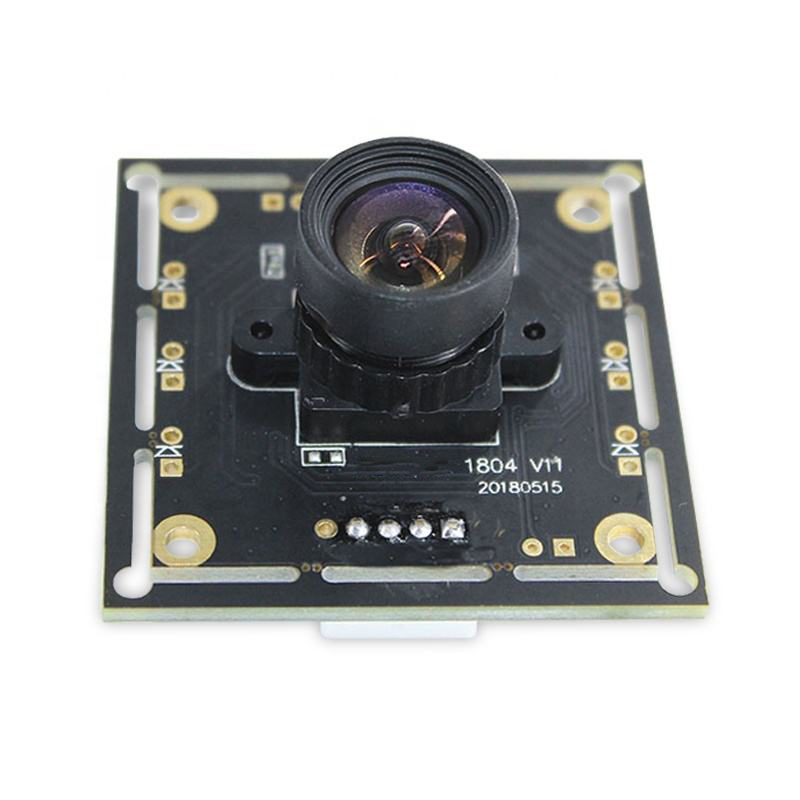

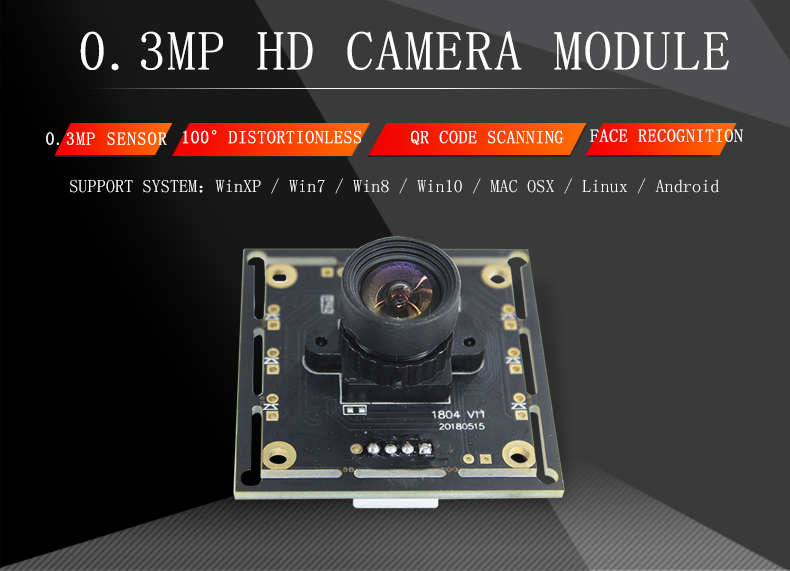

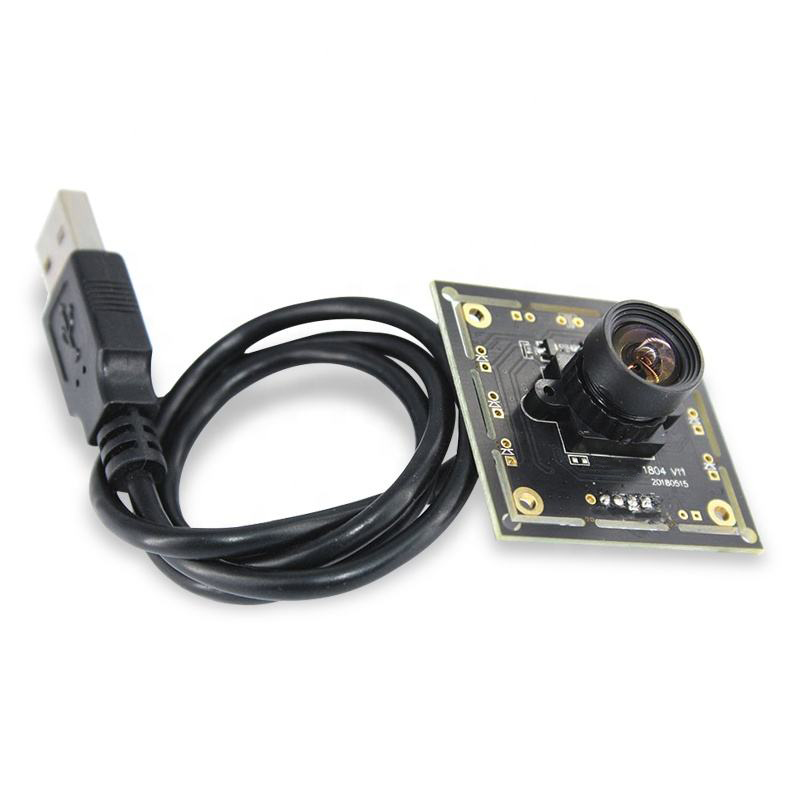

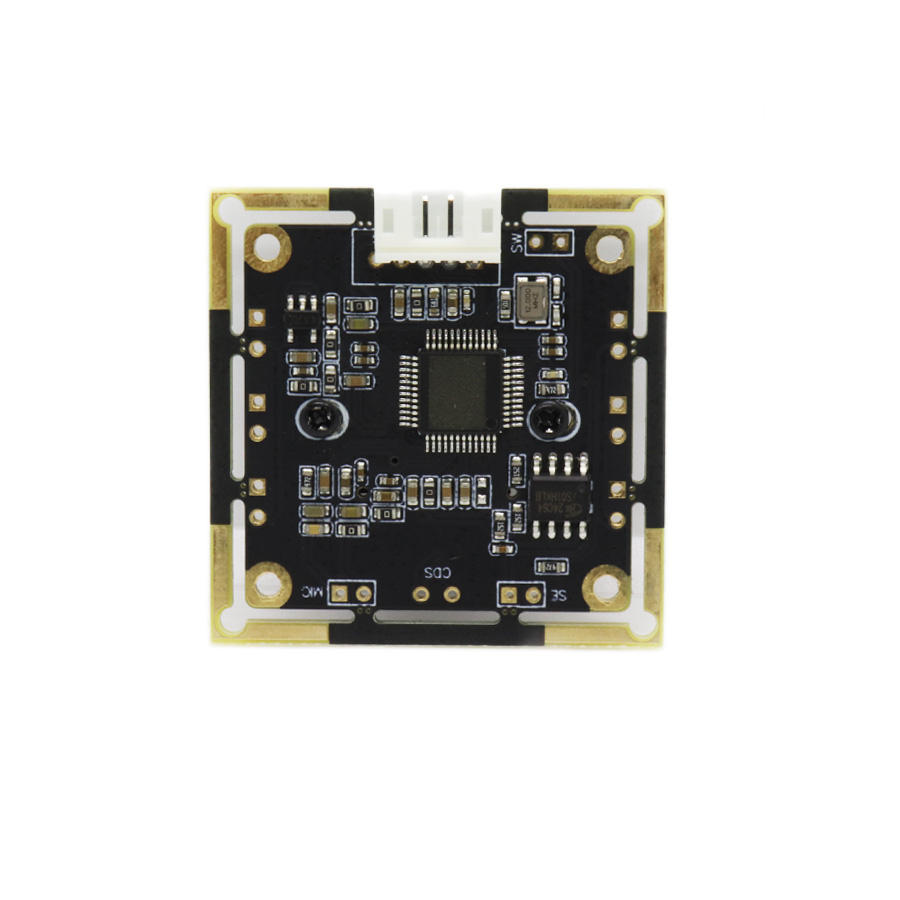

0.3MP HD BF3005(1/4 ) Sensor micro usb camera module
$14.40
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Descripiton
0.3MP HD BF3005(1/4 ) Sensor micro mini usb camera module
| Model No. | BM1804 V11 |

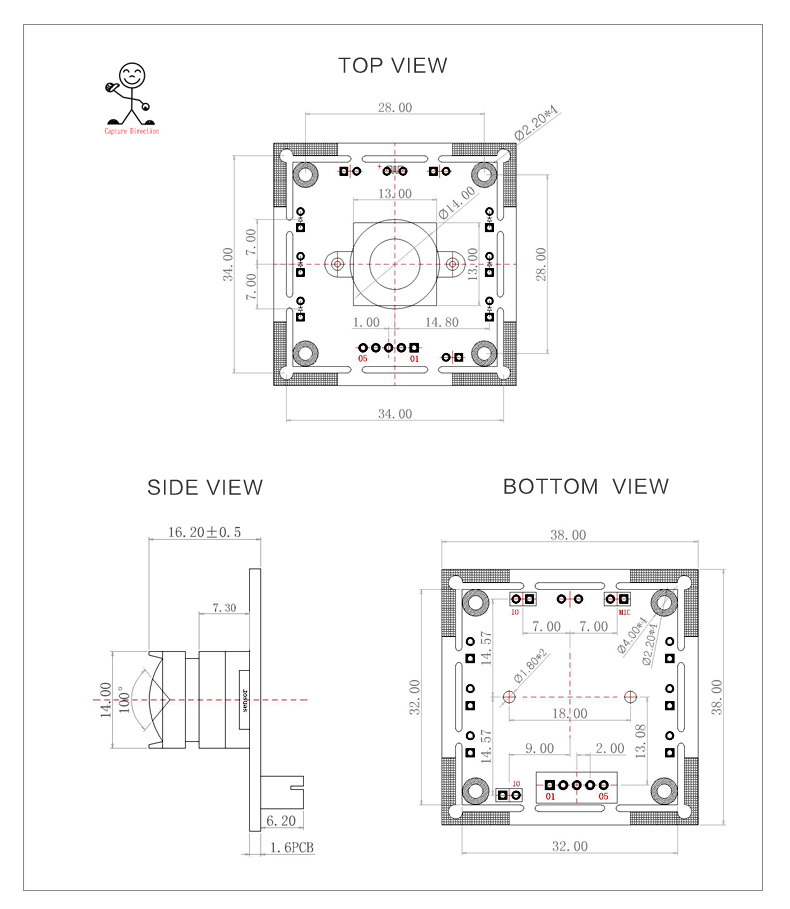

| Model Size | 38MM*38MM*17MM |
| Resolution | 640*480 |
| Optical Format | 1/4 inch |
| Sensitivity | 10V/Lux-sec |
| S/N Ratio | 45dB |
| Dynamic Range | 65dB |
| Pixel Size | 6.0um*6.0um |
| Image Area | 3984um*2952um |
| Object distance | 30-infinity |
| Interface | 4PIN USB2.0 |
| DFOV | 100degree |
| HFOV | 83degree |
| VFOV | 67degree |
| Operating system | Free driver for Windows 2000\ Windows XP\Windows 7 / Linux and Android system with Standard UVC Protocol |
| Video Format | MJPG |
| Format output and FPS | 1280*720(default)25fps 160*120 60fps 176*144 60fps 320*240 60fps 352*288 30fps 640*480 60fps 1280*960 1fps 800*600 30fps |
| Video Format | YUY2 |
| Format output and FPS | 1280*720(default) 6fps 160*120 60fps 176*144 60fps 320*240 60fps 352*288 25fps 640*480 25fps 1280*960 1fps 800*600 12fps |
| Automatic white balance | √ |
| Exposure | √ |
| Focus | Fixed Focus |

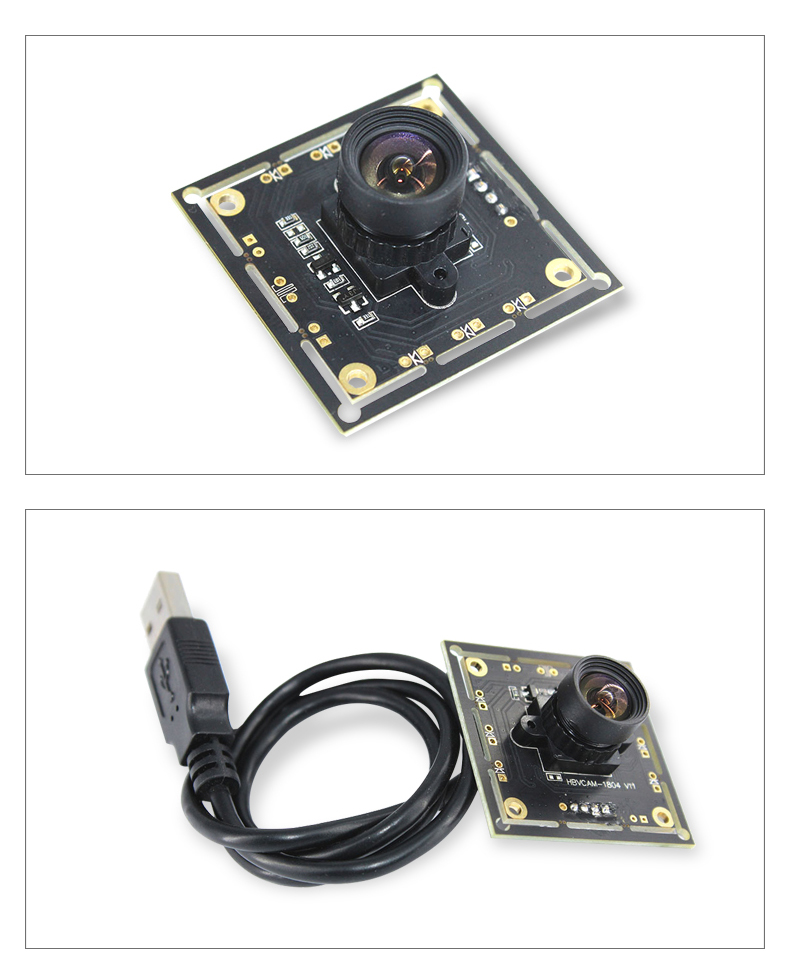

| USB cable | 40CM 1M 2M 3M |
| 1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding | |
