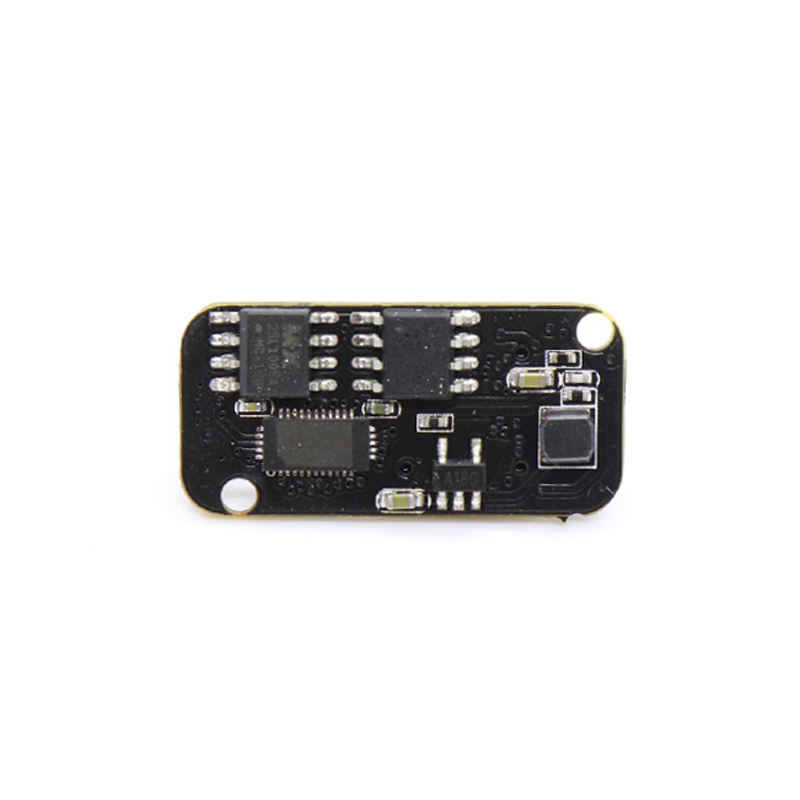

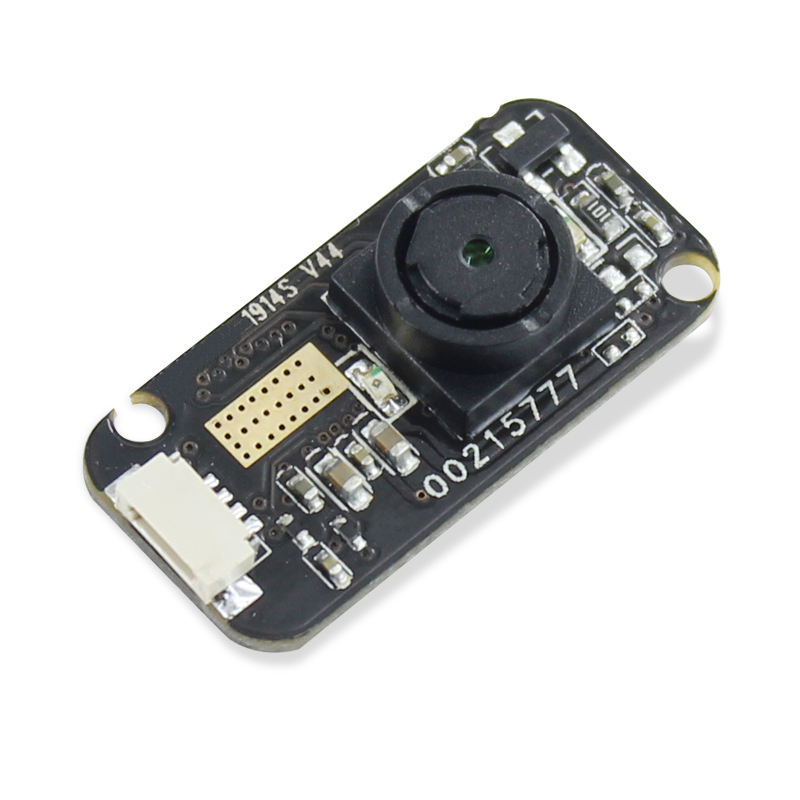

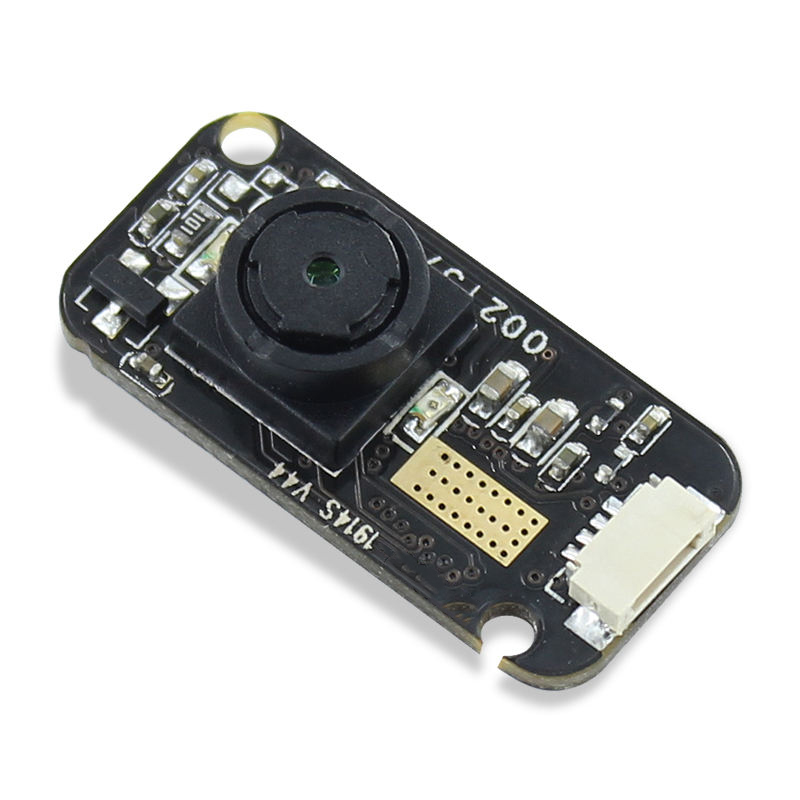

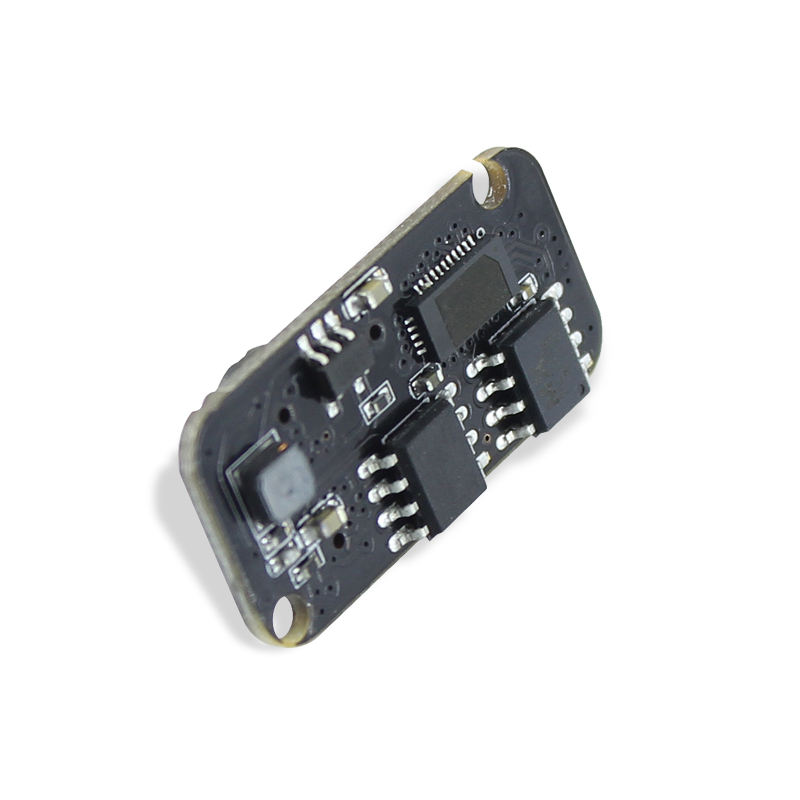

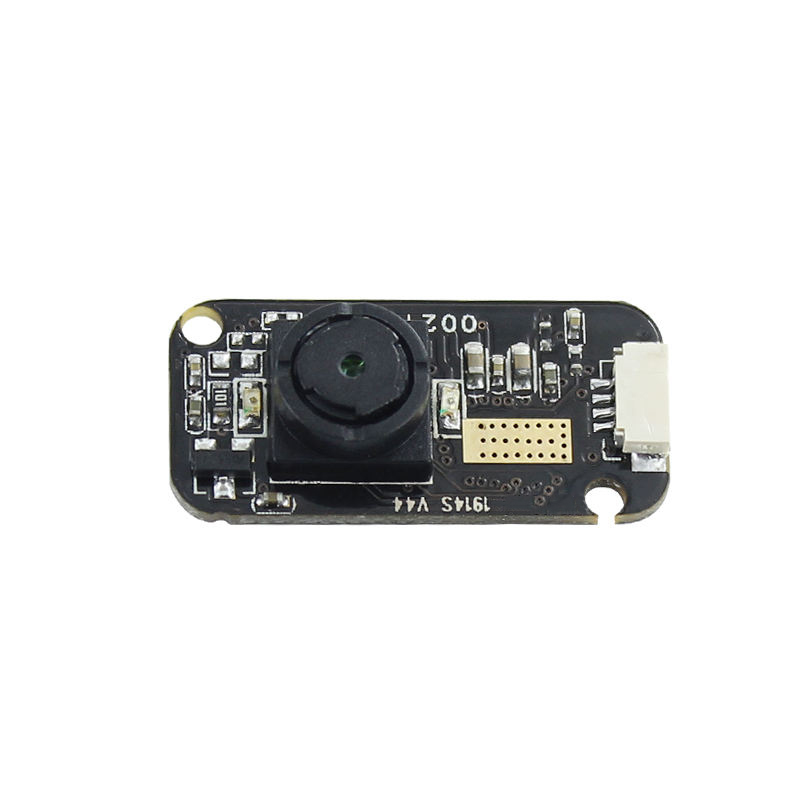

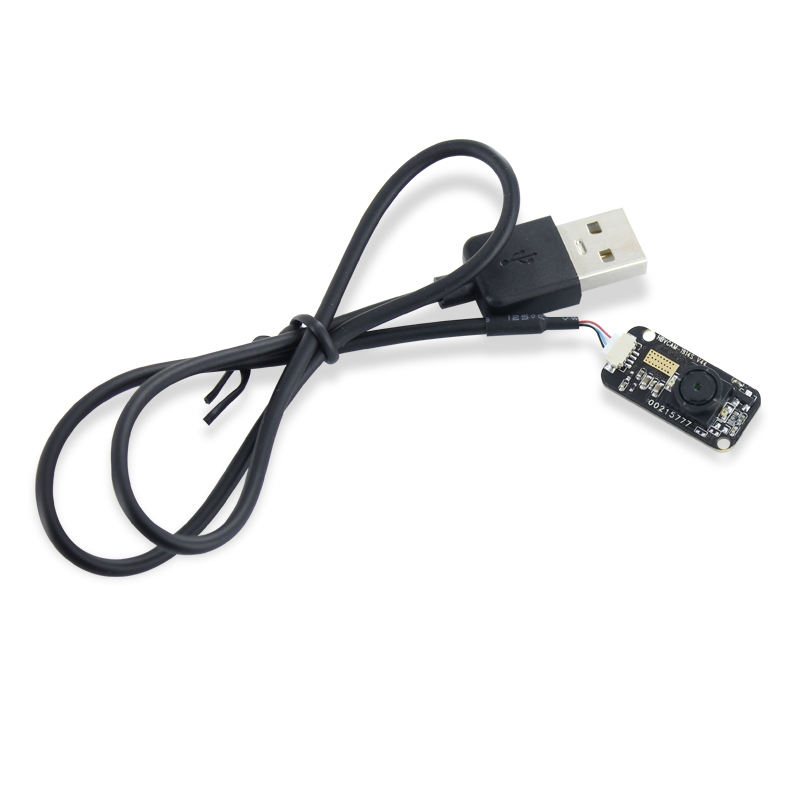

0.3MP Mini Built-In Macro Infrared Camera Module High Speed 120Fps Night Vision Module Camera
$10.80
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
| Product name | 0.3MP mini built-in macro infrared camera module | ||
| Module No. | BM1914S V44 | ||
| Module Size | 25mm × 12mm × 6mm±0.2MM | ||
| Features | 1. Small size, with YUV/MJPEG format, high frame rate 320x240-120fps
| ||
| Temperature (Operation) | -30°C to 70°C | ||
| Temperature (Stable Image) | 0°C to 50°C | ||
| Assembly technique | SMT (ROSH) | ||
| Focus | Fixed | ||
| Object distance | 30CM-infinity | ||
| Resolution | 600LW/PH (Center) | ||
| PCB printing ink | Black | ||
| interface | USB 2.0 | ||
| Power suuply | USB bus power | ||
| supply voltage | DC 5V±5% | ||
| Maximum Power consumption | 500mW | ||
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc | ||
| Sensor | GC0308 (1/6.5" ) | ||
| Seneor Package | CSP,Bare Die | ||
| Maximum resolution | 640*480 | ||
| Sensitivity | 3.0mv /(lux-sec) | ||
| Pixel Size | 3.4µm x 3.4µm | ||
| Maximum Image Transfer Rate | MJPEG 160x120 30FPS / YUY2 160x120 30FPS MJPEG 320x240 128FPS / YUY2 320x240 128FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS | ||
| S/N Ratio | 42 db | ||
| Max Dynamic Range | 58 db | ||
| Shutter type | Electronic rolling shutter | ||
| AGC/AEC/Whiter balance | Auto | ||
| Output Formats | YUY2/MJPEG | ||
| Microphone | NO | ||
| Lens Construction | 4P | ||
| F/No | 2.8 | ||
| EFL | 2.6mm | ||
| FOV | 46° | ||
| TV Distortion | <1.8% | ||
| Relative Illumination (Sensor) | 70% | ||
| IR Filter | 850±10nm | ||
| Module Package | Anti-electrostatic tray | ||
| Certifications | FCC/CE/ROSH |
