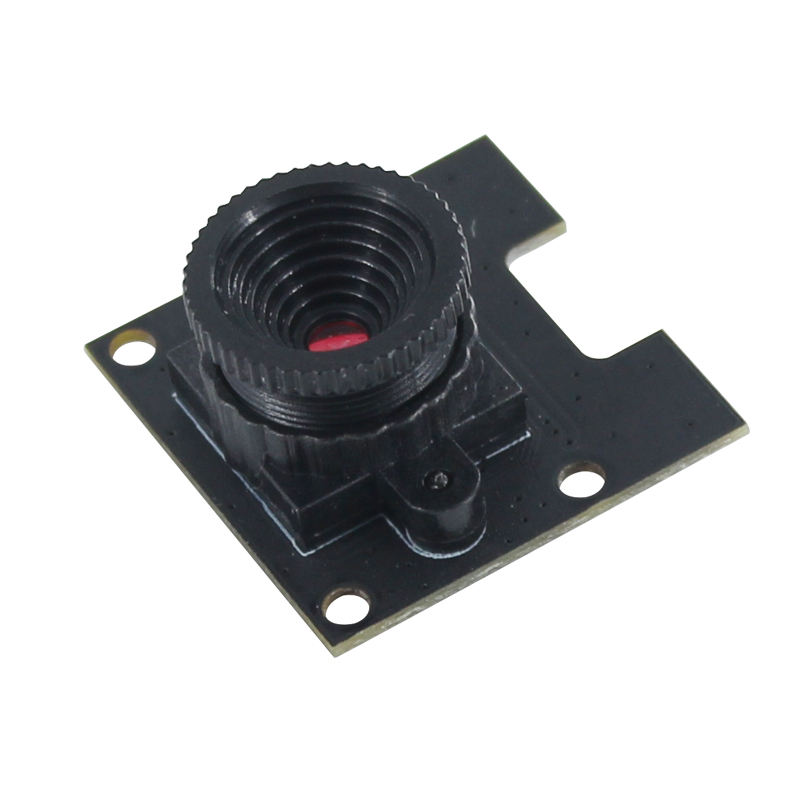

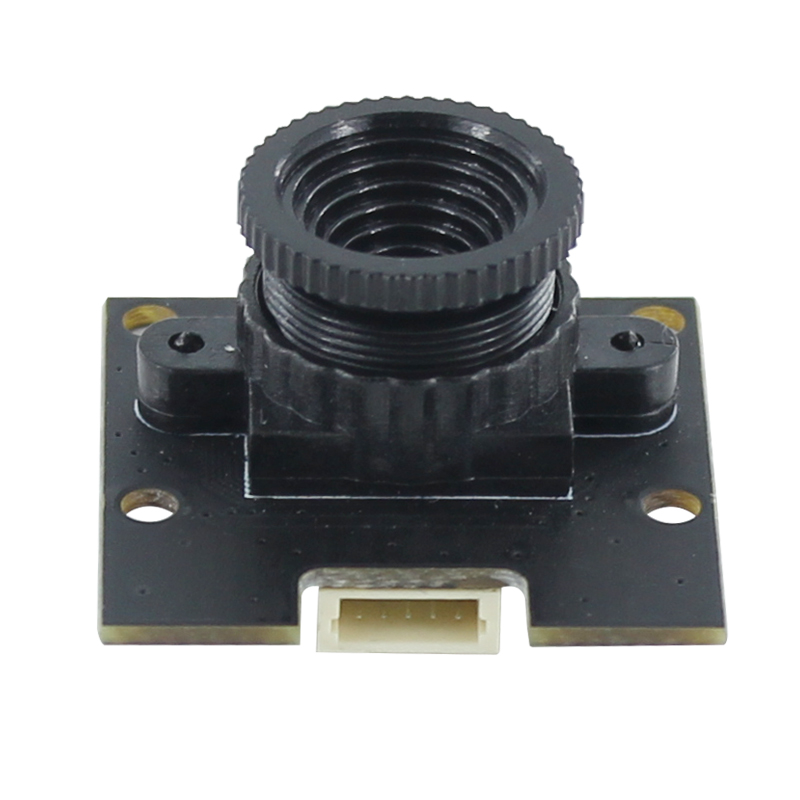

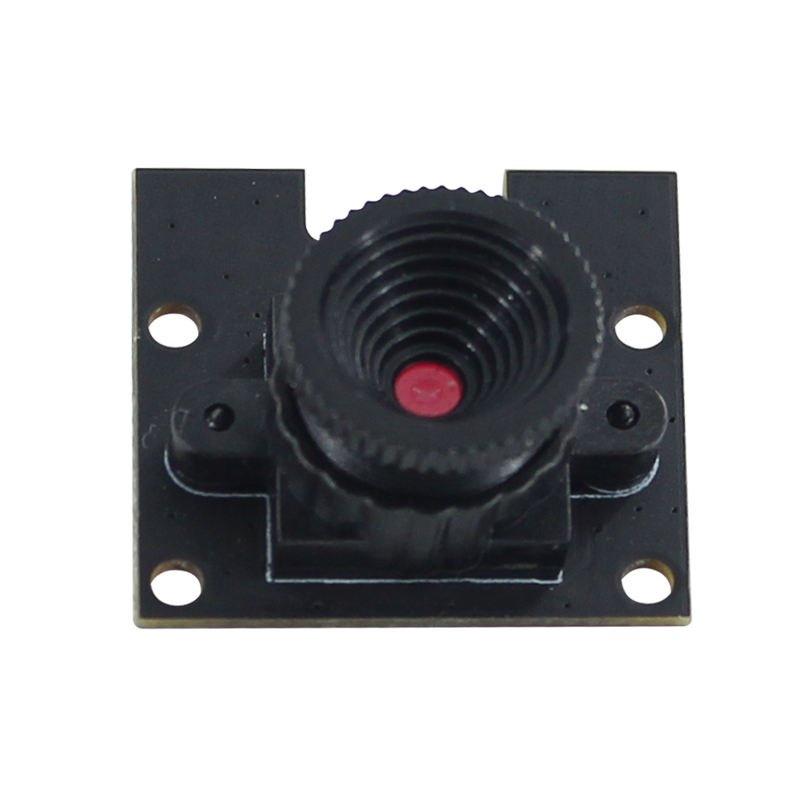

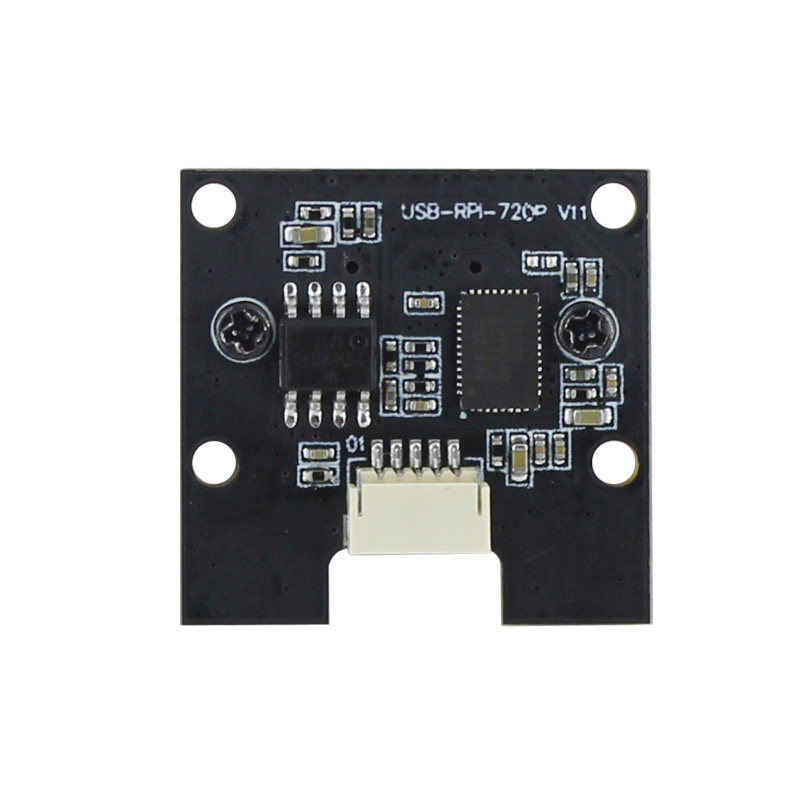

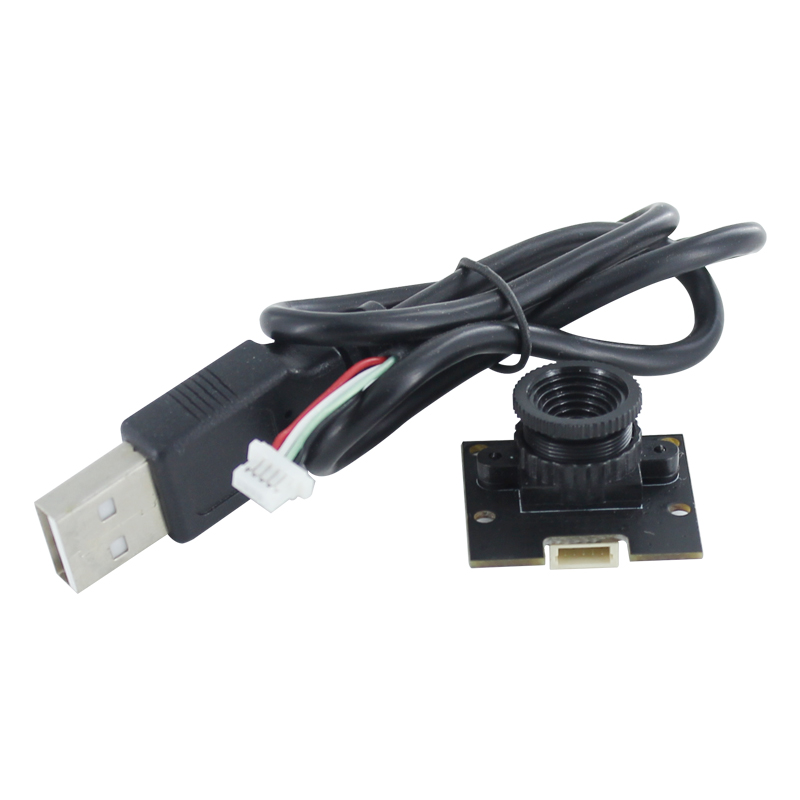

1MP HD USB-RPI camera module mini usb camera module
$15.60
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Parameter
| Product Name | 1MP PRI-720P camera module |
| Module No | BMUSB-PRI-720P V11-73.2 |

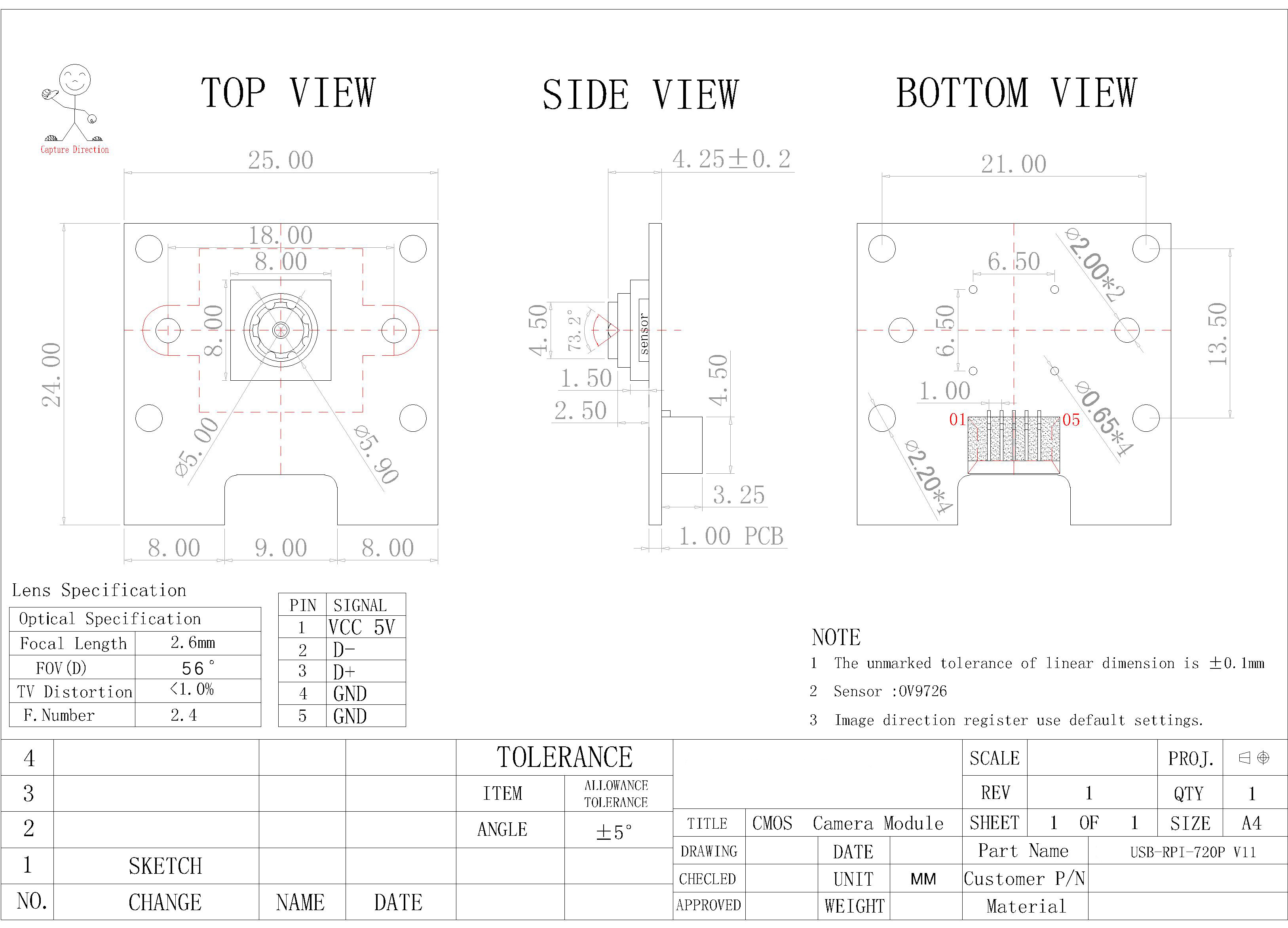

| Module Size | 25mm × 24mm × 4.25mm±0.2MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 400 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV9726 (1/6.5" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1280*800 |
| Sensitivity | 1300mv /（lux-sec） |
| Pixel Size | 1.75µm x 1.75µm |
| Maximum Image Transfer Rate | MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x360 30FPS / YUY2 640x360 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 30FPS / YUY2 800x600 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS |
| S/N Ratio | 36 db |
| Max Dynamic Range | 70 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | No |
| Lens Construction | 3P |
| F/No | 2.4 |
| EFL | 2.6 mm |
| FOV | 73.2° |
| TV Distortion | <1.0% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
