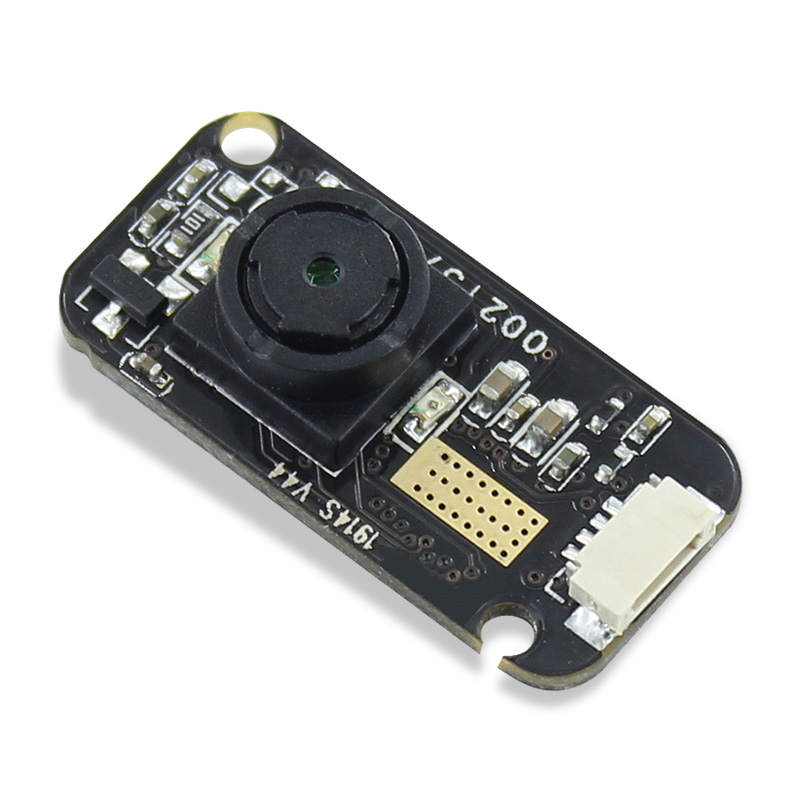

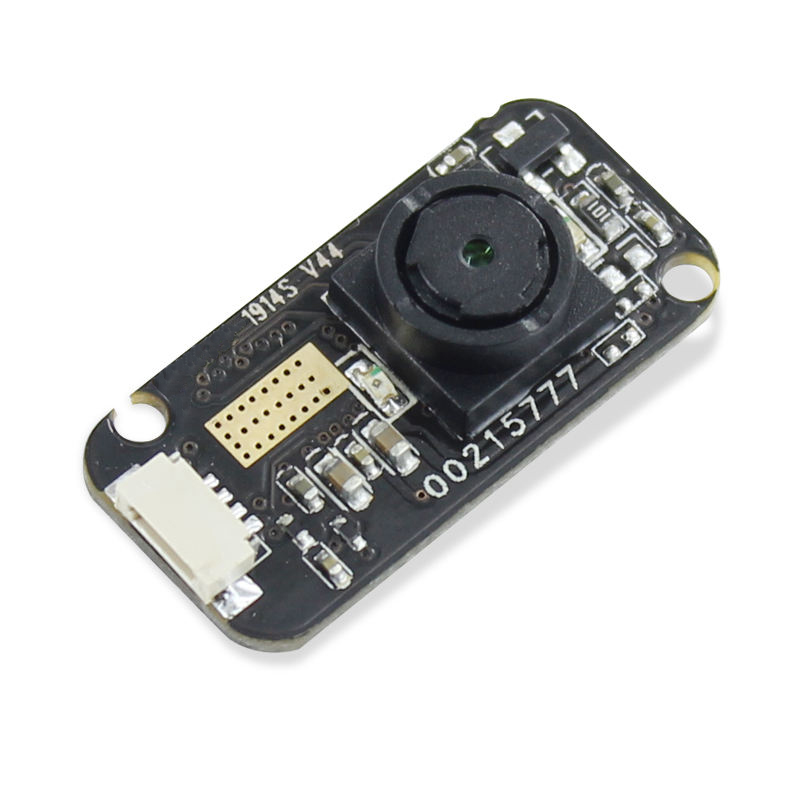

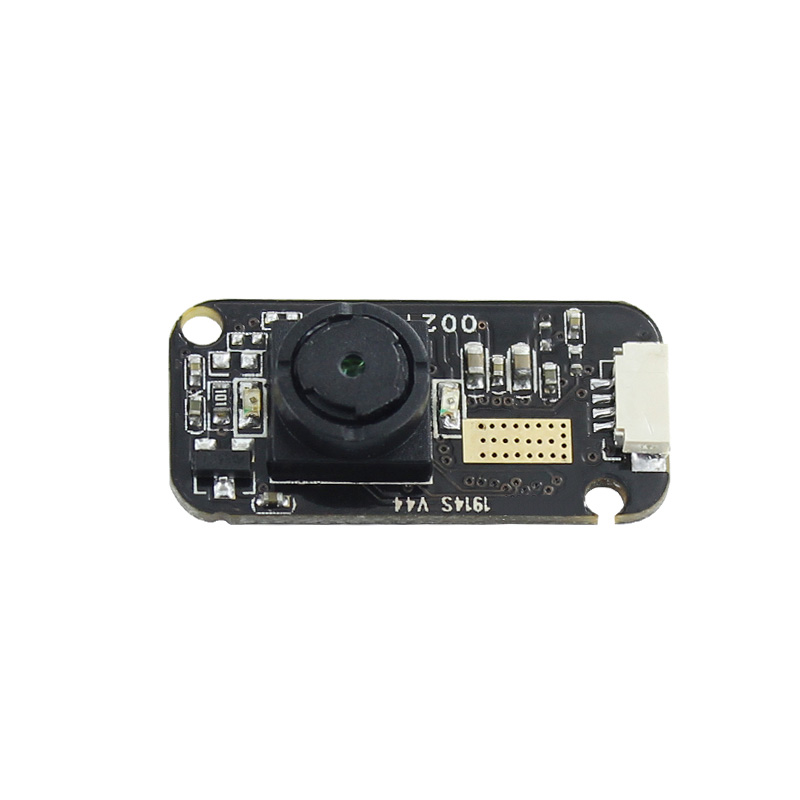

0.3MP 120FPS Black & White Global Exposure Camera Module 2D Code Scanning Camera Module
$10.80
Availability:
In stock
Out of stock
Variations
Product Description
Product Parameter
| Product Name | Global Exposure USB Camera Module |
| Module No | BM1914S V44-50 |
| Module Size | 25mm × 12mm × 6mm±0.2MM |
| Features | 1. Small structure, with YUV/MJPEG format, high frame rate 320x240-120fps 2. Macro infrared 850nm (conventional delivery of all-pass NO-IR sheets, black and white) 3. It can be made into color low-frame, high-frame non-infrared night vision 4. Small angle magnification, large angle field of view optional 5. Disadvantages: the cost performance is not high, long-distance infrared is not good |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |

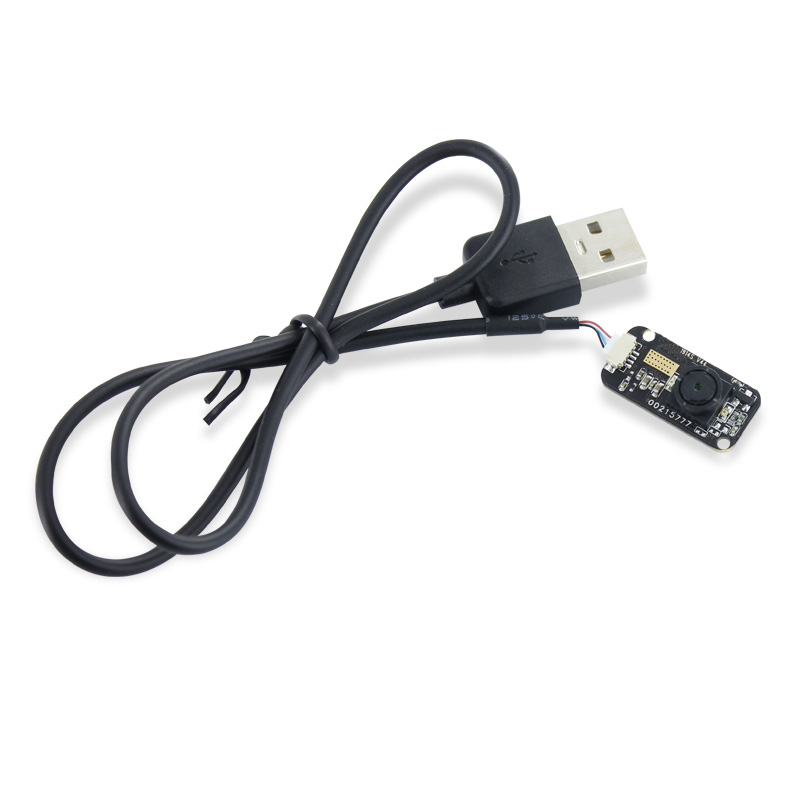

| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 500mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |

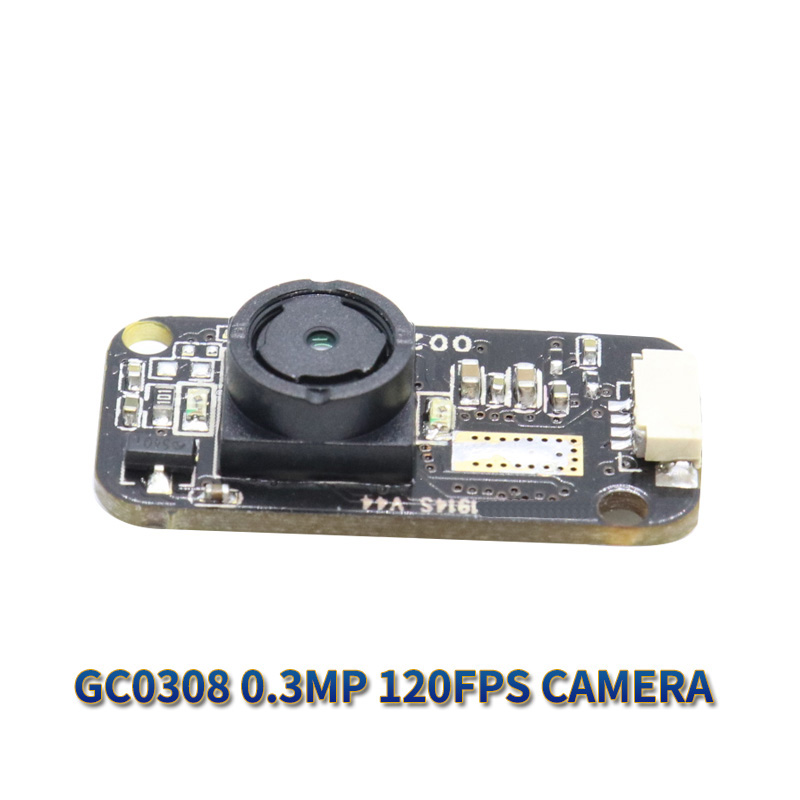

| Sensor | GC0308 (1/6.5" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 640*480 |
| Sensitivity | 3.0mv /（lux-sec） |
| Pixel Size | 3.4µm x 3.4µm |
| Maximum Image Transfer Rate | MJPEG 160x120 30FPS / YUY2 160x120 30FPS MJPEG 320x240 128FPS / YUY2 320x240 128FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS |
| S/N Ratio | 42 db |
| Max Dynamic Range | 58 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 4P |
| F/No | 2.8 |
| EFL | 2.6mm |
| FOV | 50° |
| TV Distortion | <1.8% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 850±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
