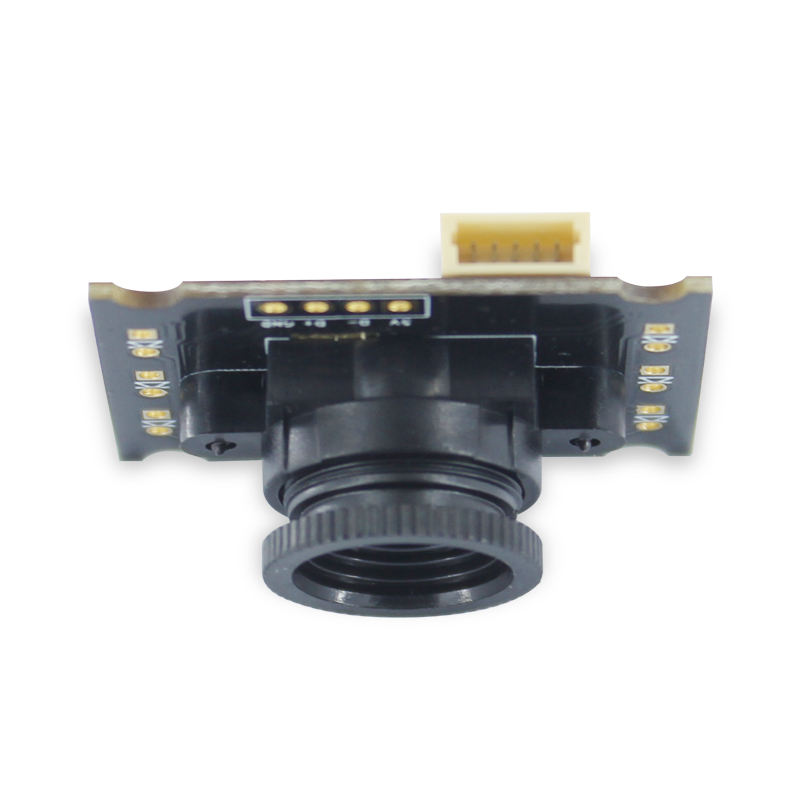

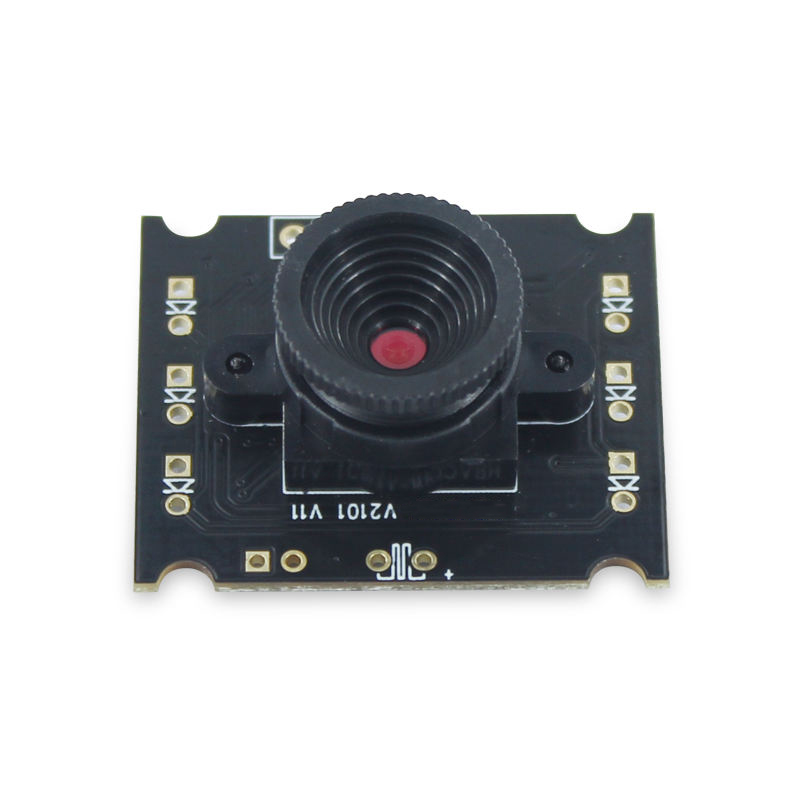

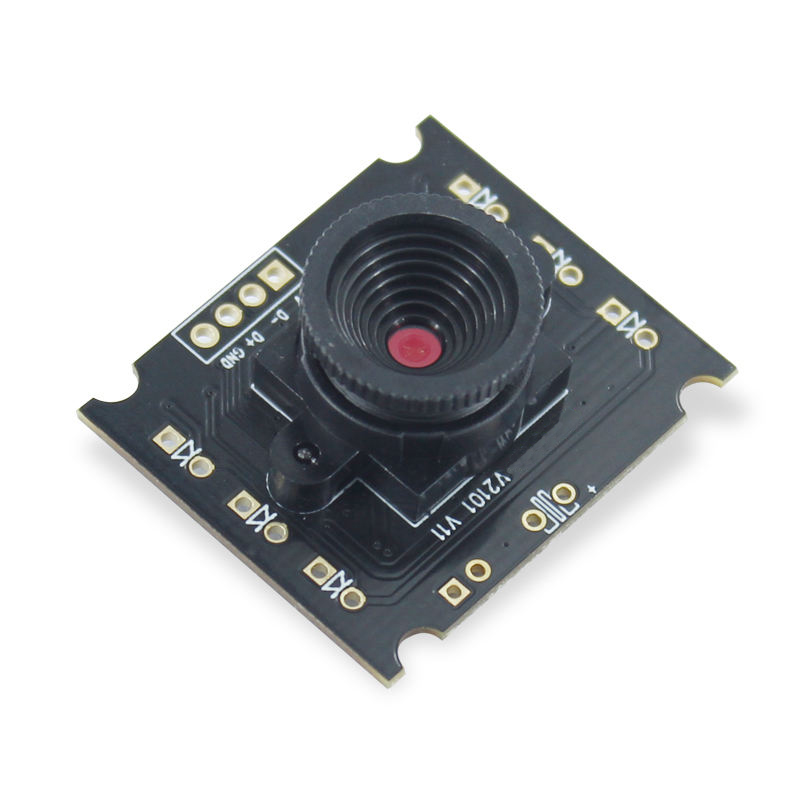

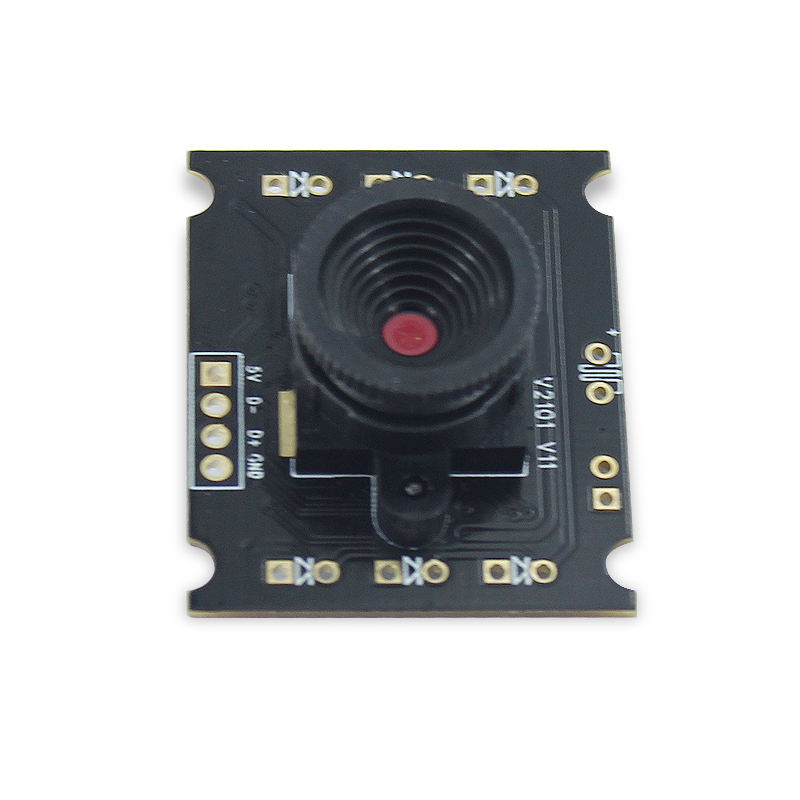

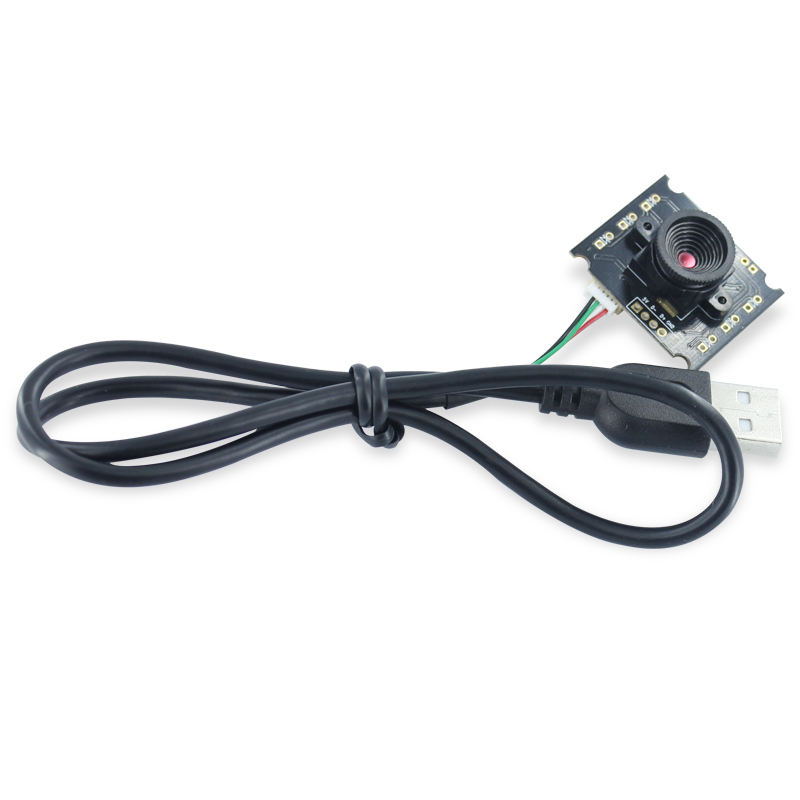

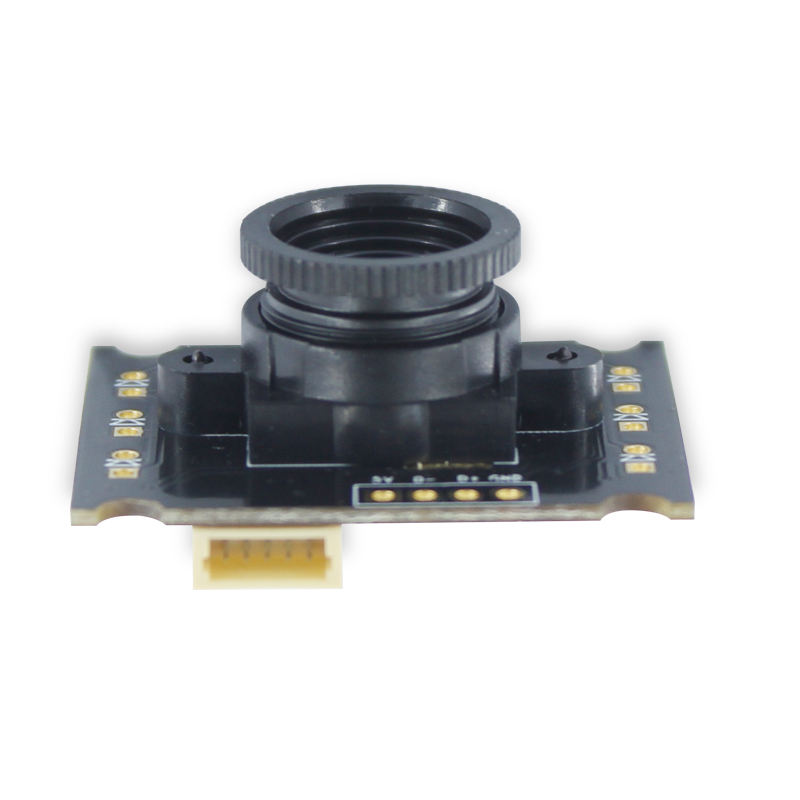

0.3MP USB Camera Module Face Recognition & QR Code Scanning Camera Module
$36.00
Availability:
In stock
Out of stock
Variations
Product Description
Product Parameter
| Product Name | 0.3MP USB Camera Module |
| Module No | BMV2101 V11-50 |
| Module Size | 30mm × 25mm × 11.3mm±0.3MM |
| Features | 1. Conventional standard 30X25mm structure has great versatility 2. You can add and weld 6 plug-in lights (can be infrared and white light). The on/off image can also be controlled by light sensitivity. 3. Optional lens available 4. High cost performance |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 400mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | GC0308 (1/6.5" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 640*480 |
| Sensitivity | 2.5v /（lux-sec） |
| Pixel Size | 3.4µm x 3.4µm |
| Maximum Image Transfer Rate | YUY2 160x120 30FPS YUY2 176x144 30FPS YUY2 320x240 30FPS YUY2 352x288 30FPS YUY2 640x480 30FPS |
| S/N Ratio | 42 db |
| Max Dynamic Range | 58 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 3P+IR |
| F/No | 2.8 |
| EFL | 3.0mm |
| FOV | 50° |
| TV Distortion | <-1% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
