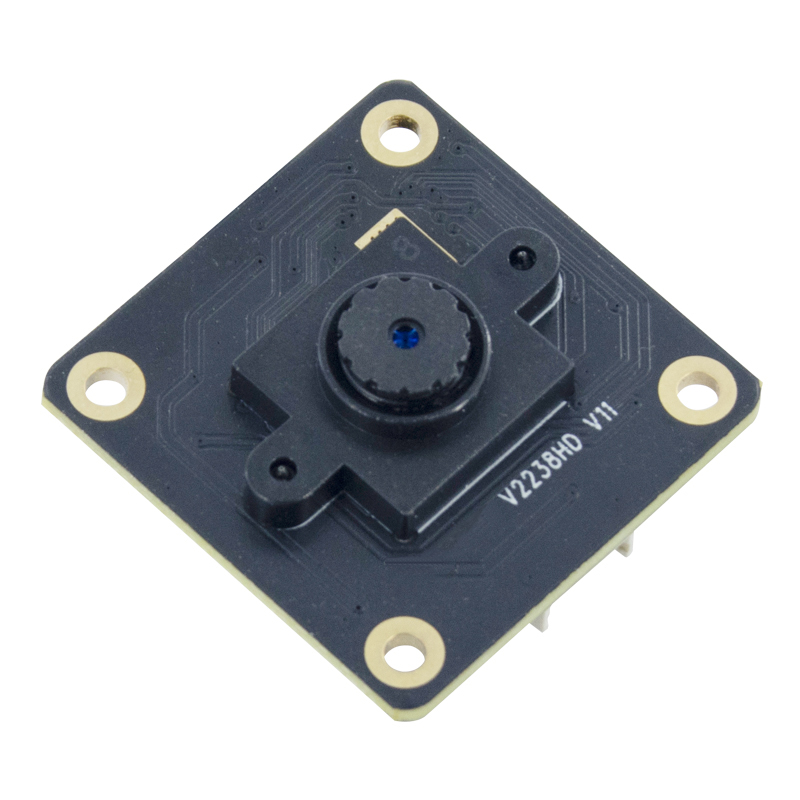

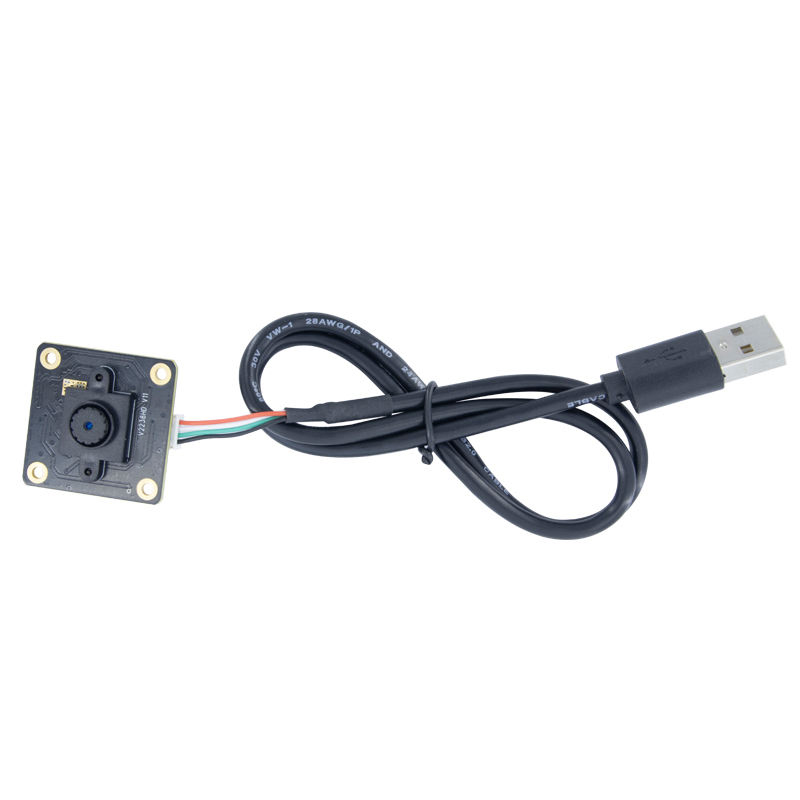

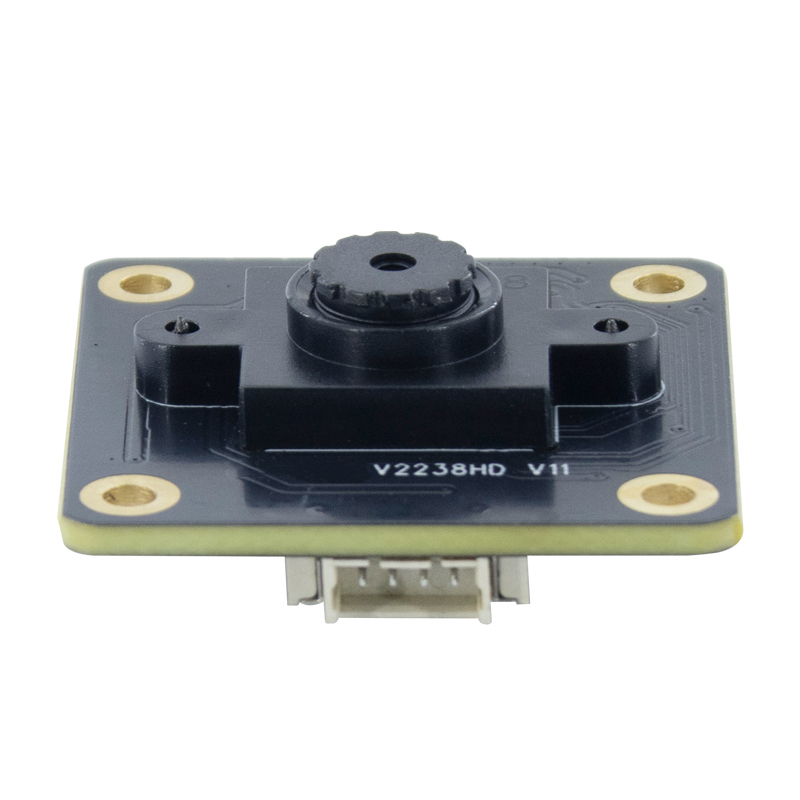

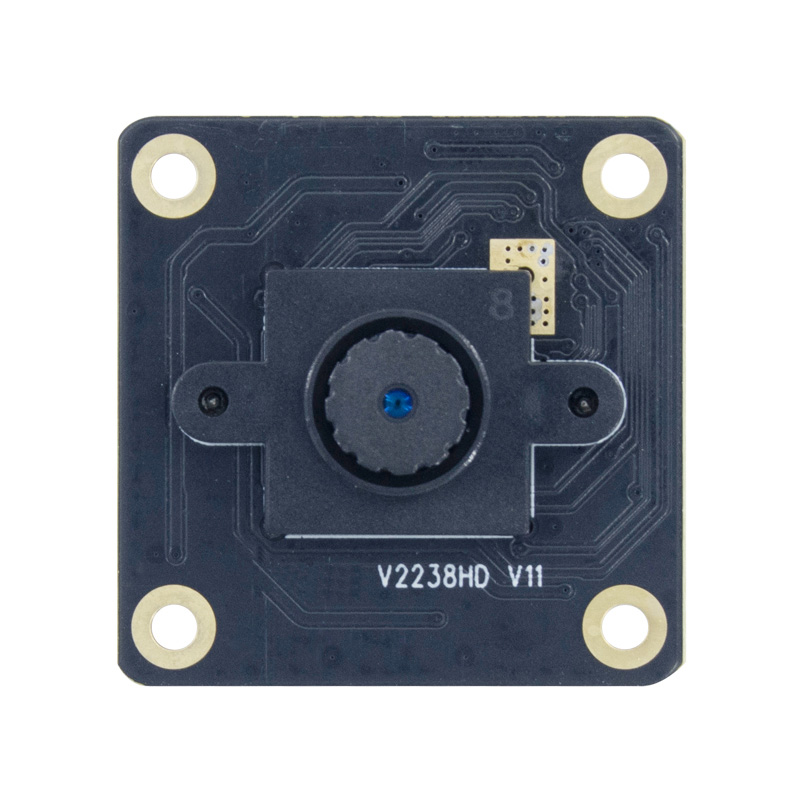

0.3MP standardized small camera module industrial equipment built-in camera module
$11.16
Availability:
In stock
Out of stock
Variations
Product Description
Product Parameter
| Product Name | 0.3MP Industrial Camera Module |
| Module No | BMV2238HD V11-63 |
| Module Size | 28mm × 28mm × 7.60mm±0.3MM |
| Features | 1. Standard industrial small camera housing 28X28mm structural hole position 2. Replace the old model 1312 3. For customer groups with high frame rate 60FPS and good effects. 4. Optional lens available 5. Disadvantages: low cost performance, infrared light cannot be added |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 380 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV7725 (1/4" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 640*480 |
| Sensitivity | 3.0V /（lux-sec） |
| Pixel Size | 6.0µm x 6.0µm |
| Maximum Image Transfer Rate | MJPEG 160x120 60FPS / YUY2 160x120 30FPS MJPEG 320x240 60FPS / YUY2 320x240 30FPS MJPEG 352x288 60FPS / YUY2 352x288 30FPS MJPEG 640x480 60FPS / YUY2 352x288 30FPS |
| S/N Ratio | 50db |
| Max Dynamic Range | 60db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 4P |
| F/No | 2.0 |
| EFL | 4.2mm |
| FOV | 63° |
| TV Distortion | <1.5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
