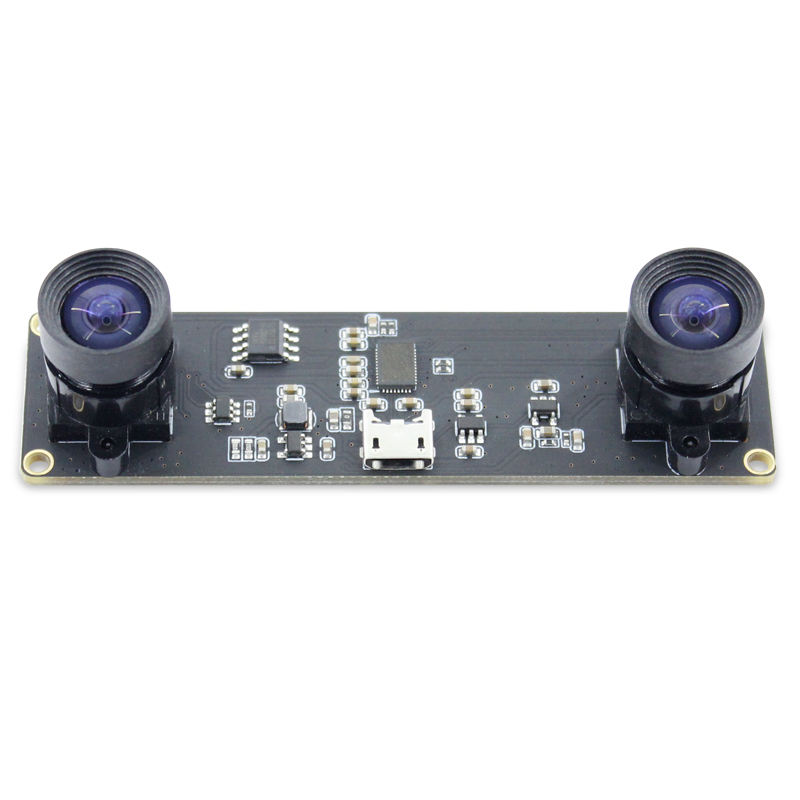

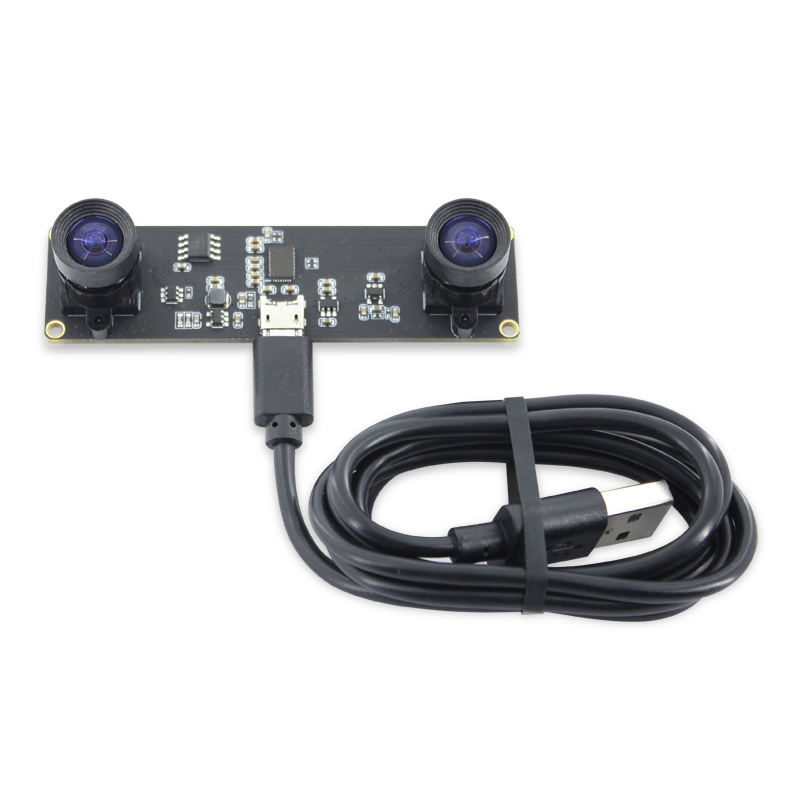

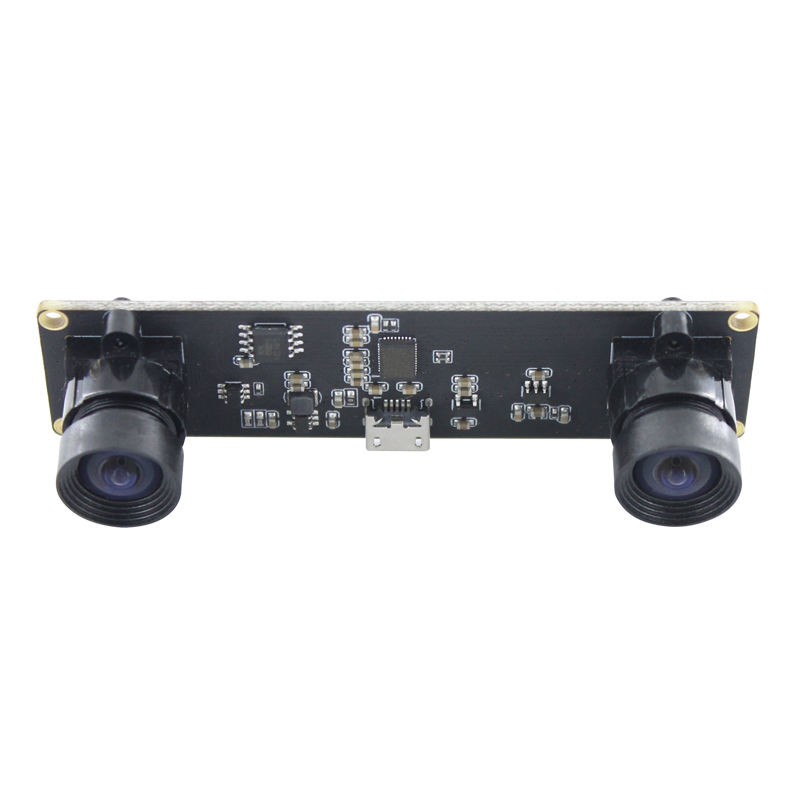

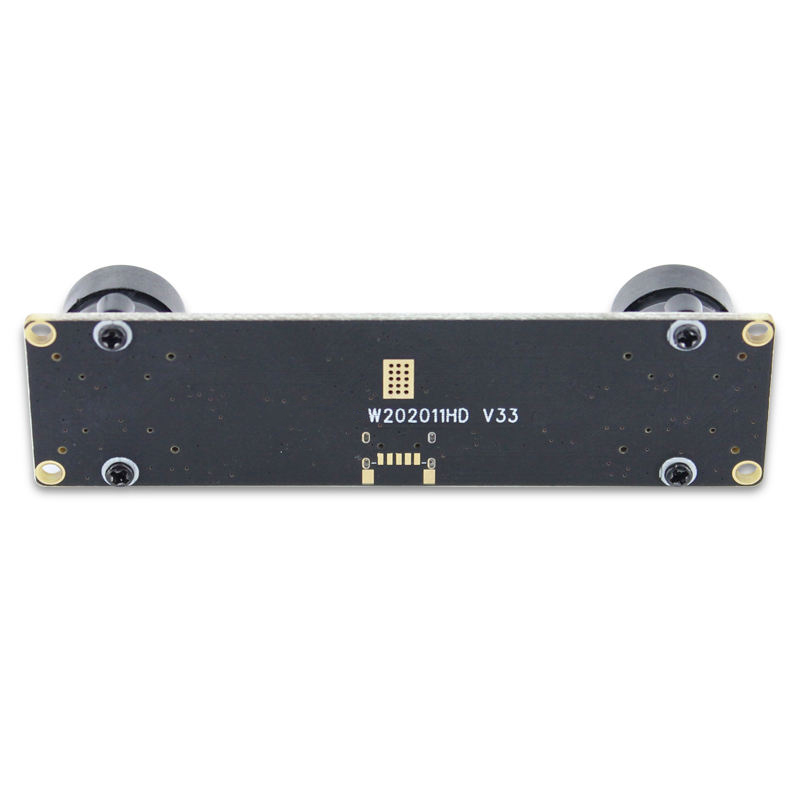

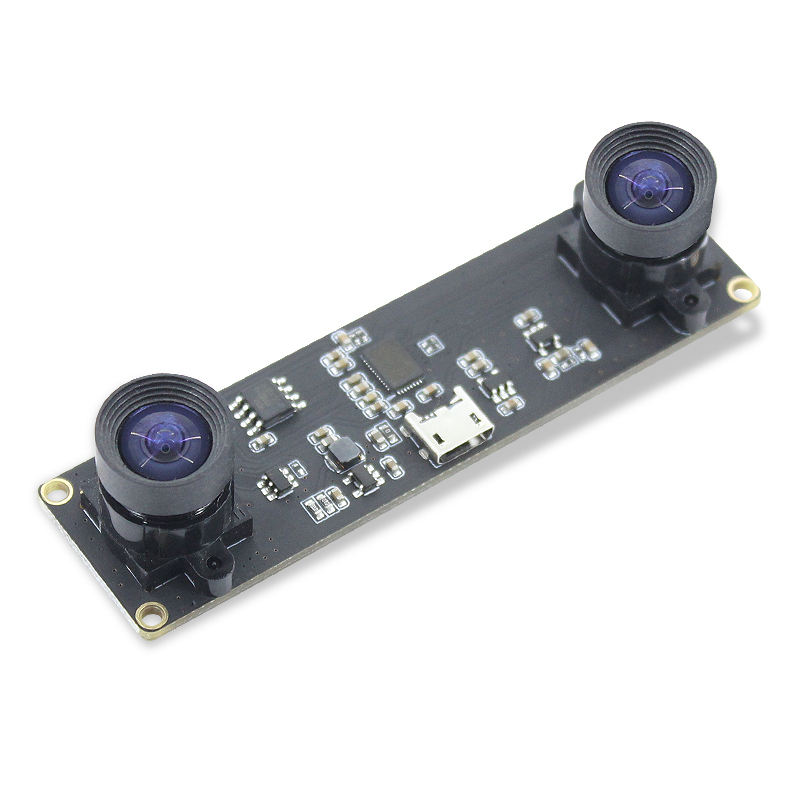

1MP 720P binocular synchronous USB camera module 3D reconstruction camera module
$56.40
Availability:
In stock
Out of stock
Variations
Product Description
Product Parameter
| Product Name | 3D binocular camera module |
| Module No | BMW202011HD V33-105 |
| Module Size | 80mm × 22mm × 16mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 740 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | JX-H62 (1/4" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 2560*720 |
| Sensitivity | 2066mV /（lux-sec） |
| Pixel Size | 3µm x 3µm |
| Maximum Image Transfer Rate | MJPEG 640x472 30FPS / YUY2 640x472 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x480 30FPS / YUY2 1280x480 15FPS MJPEG 1280x712 30FPS / YUY2 1280x712 10FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 2560x720 30FPS / YUY2 2560x720 5FPS |
| S/N Ratio | 39db |
| Max Dynamic Range | 72db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 2G2P |
| F/No | 2.4 |
| EFL | 2.4 mm |
| FOV | 105° |
| TV Distortion | <5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
