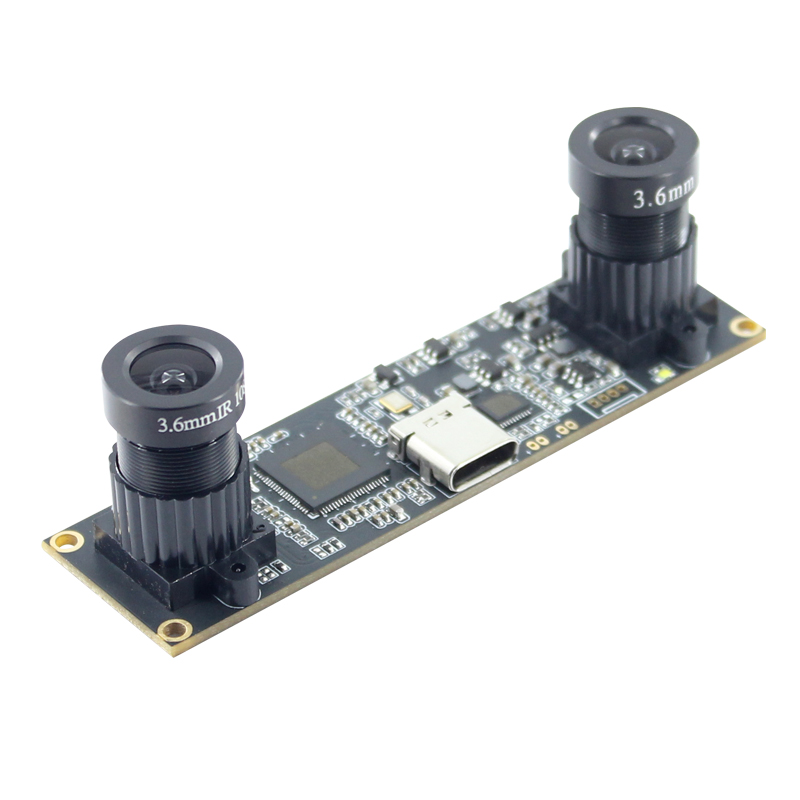

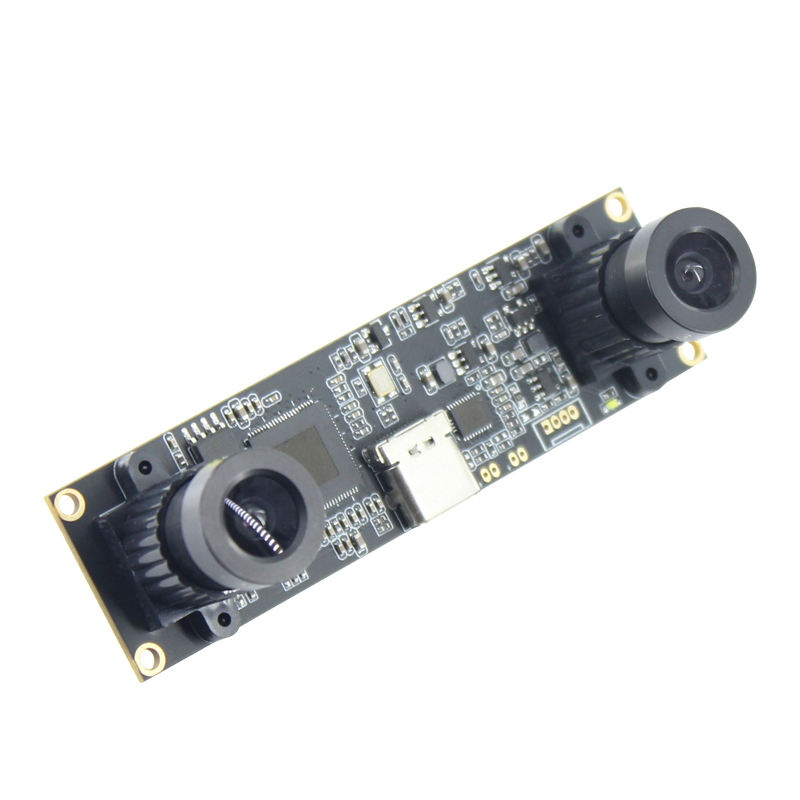

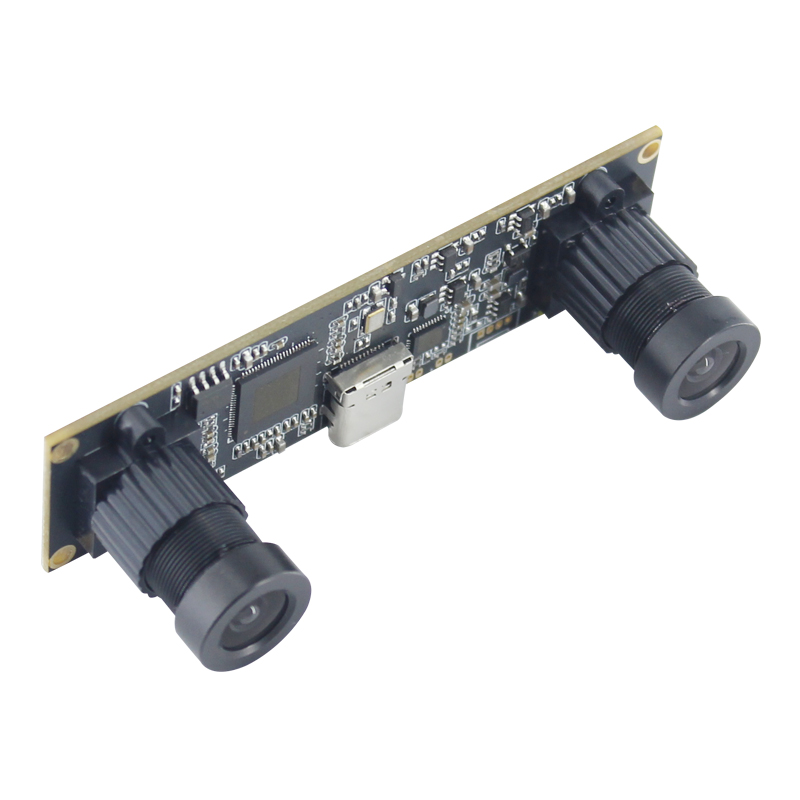

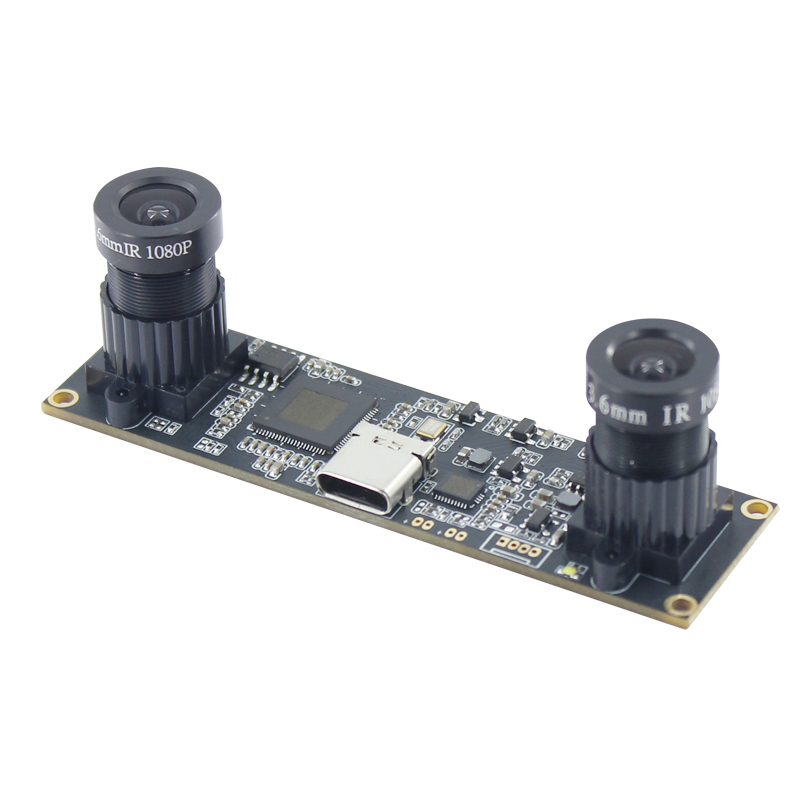

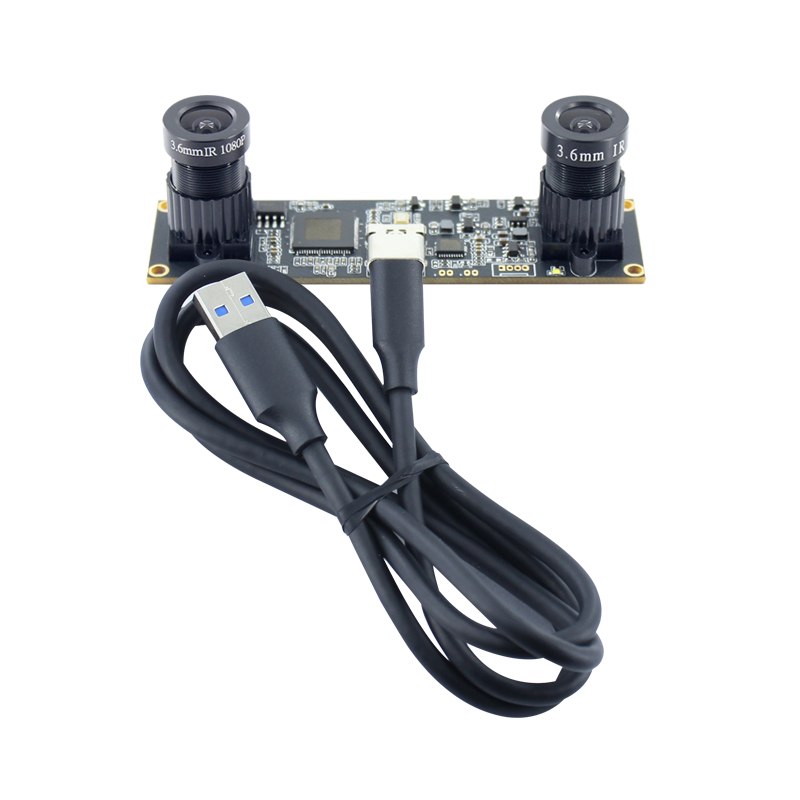

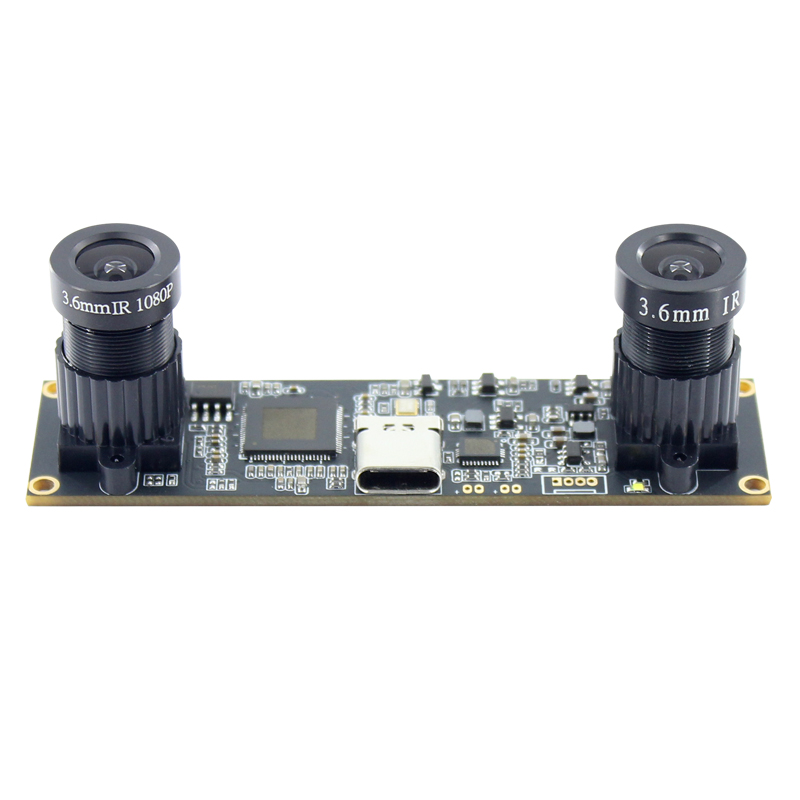

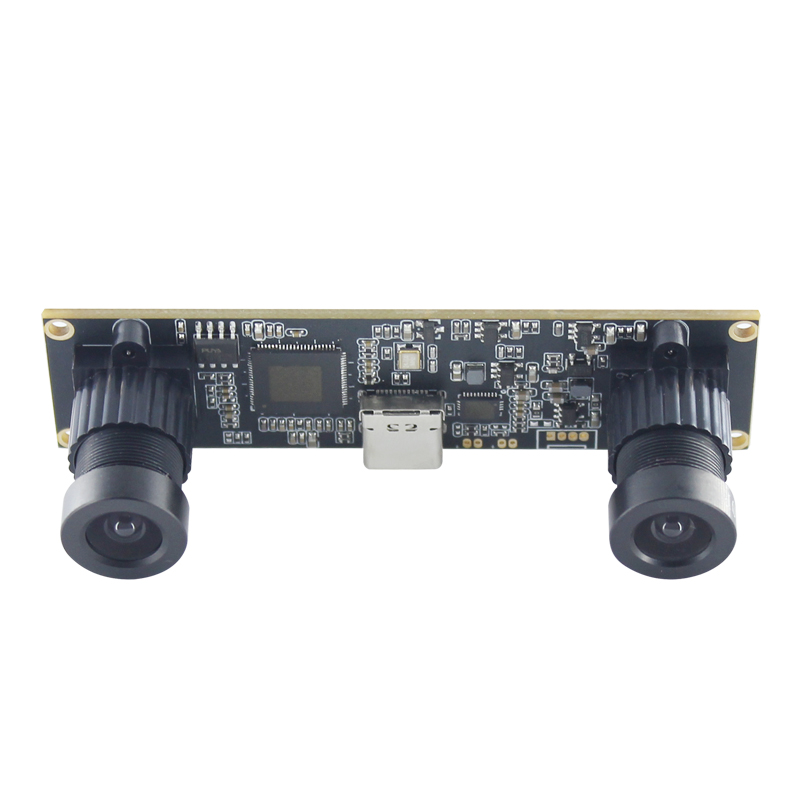

1MP 720P 3D Reconstruction Camera Module VR Vision Camera Module
$36.00
Availability:
In stock
Out of stock
Variations
Product Description
Product Parameter
| Product Name | Binocular Synchronized Camera Module |

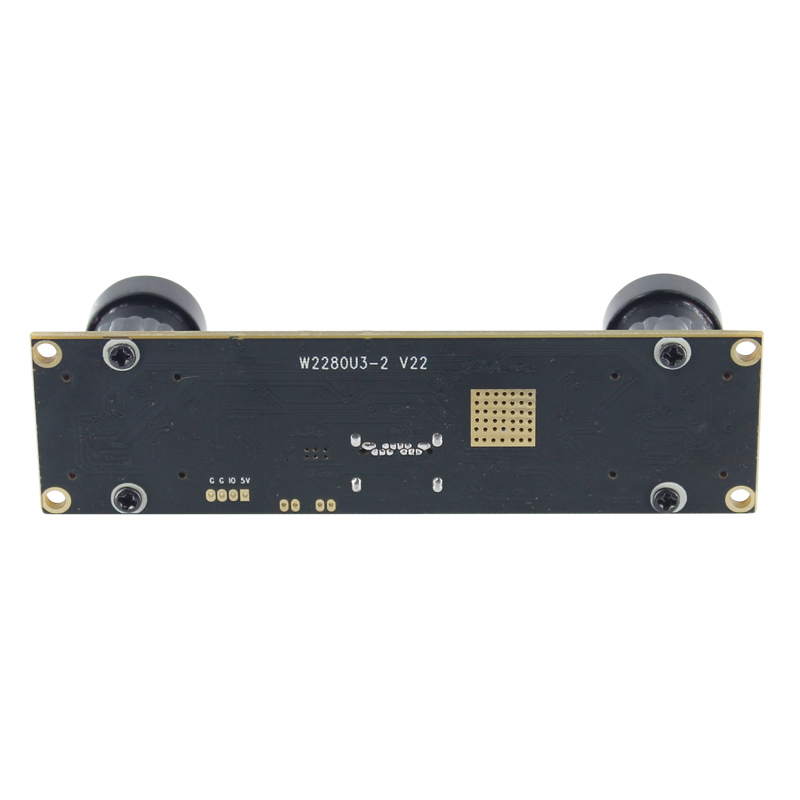

| Module No | BMW2280U3-2 V22-72 |
| Module Size | 80mm × 22mm × 24.60mm±0.5MM |
| Features | 1. Binocular 1780-upgraded, upgraded to USB3.0-YUY2 and MJPEG the same frame rate, left and right camera color consistency optimization and improvement, parameters dual camera can be adjusted at the same time 2. Real running high frame rate: 1280x480 45fps 1280x360 55fps 3. Do not use other cables and mobile phone charging data cables at will - otherwise run USB2.0-YUY2 without high frames |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 3.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 710 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV9732 (1/4" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 2560*720 |
| Sensitivity | 2066mV /（lux-sec） |
| Pixel Size | 3µm x 3µm |
| Maximum Image Transfer Rate | MJPEG 640x240 30FPS / YUY2 640x240 30FPS MJPEG 1280x360 60FPS / YUY2 1280x360 60FPS MJPEG 1600x600 30FPS / YUY2 1600x600 30FPS MJPEG 2560x720 30FPS / YUY2 2560x720 30FPS |
| S/N Ratio | 39 db |
| Max Dynamic Range | 72 db |
| Shutter type | Global shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 2G2P |
| F/No | 2.4 |
| EFL | 3.6mm |
| FOV | 72° |
| TV Distortion | <5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
