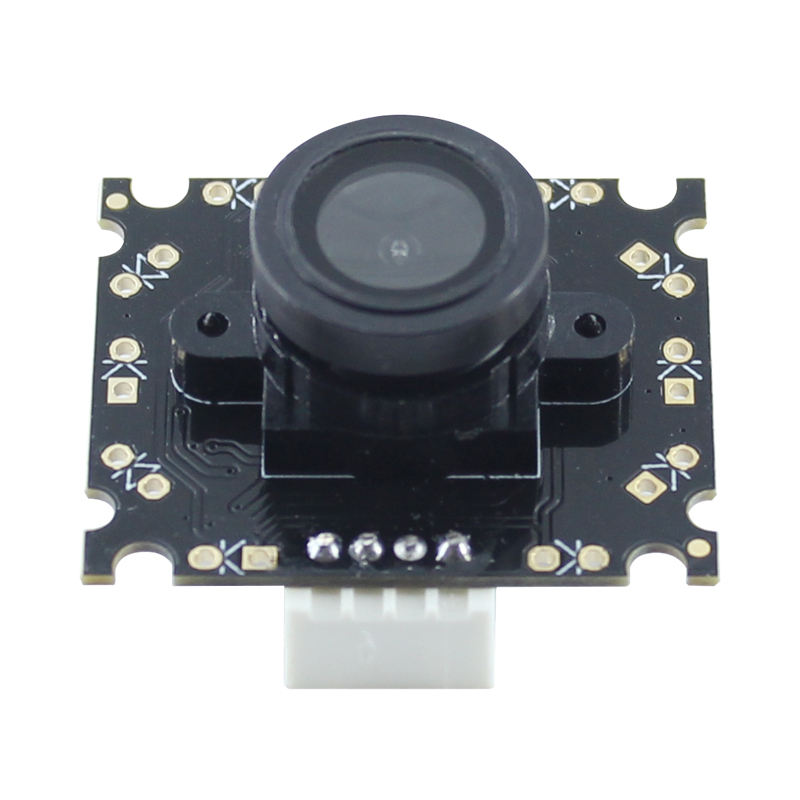

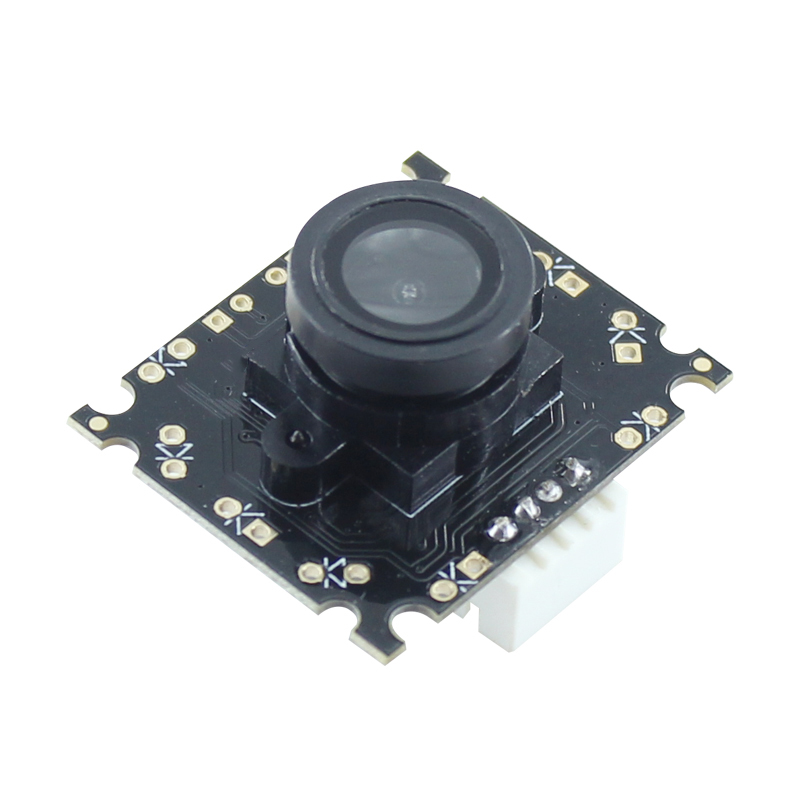

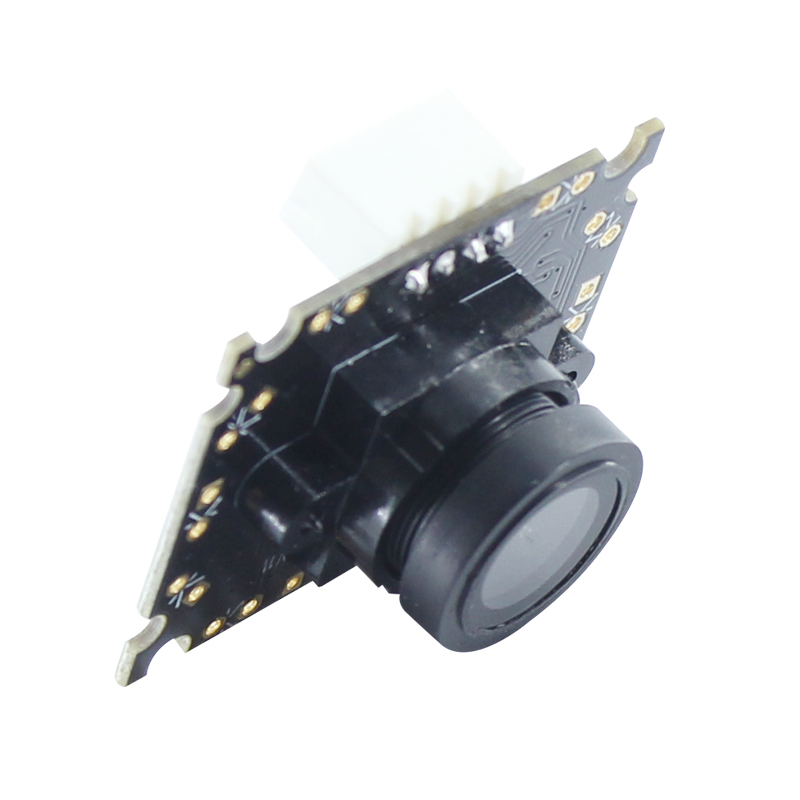

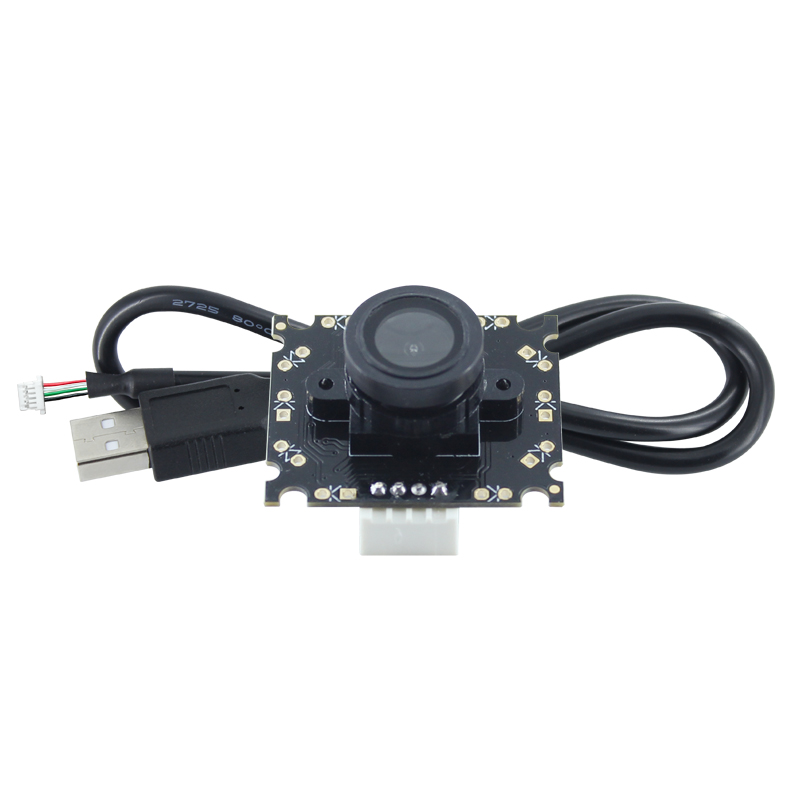

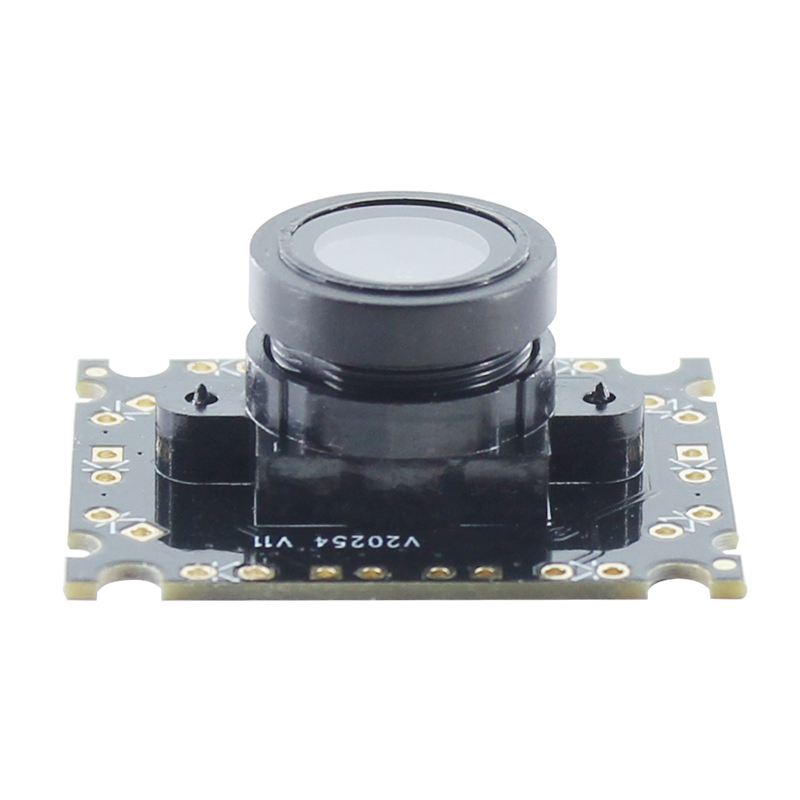

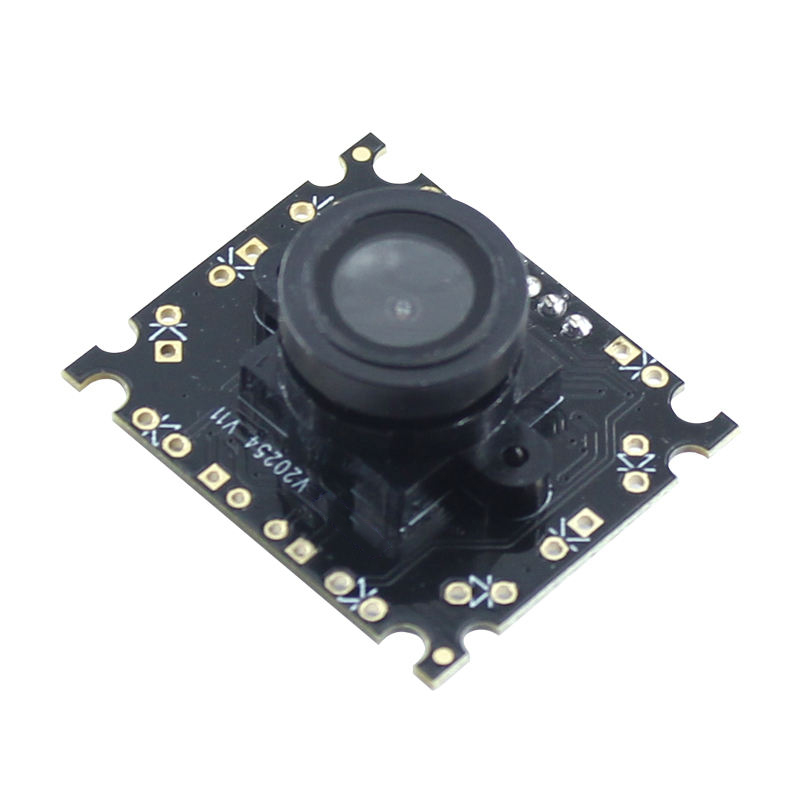

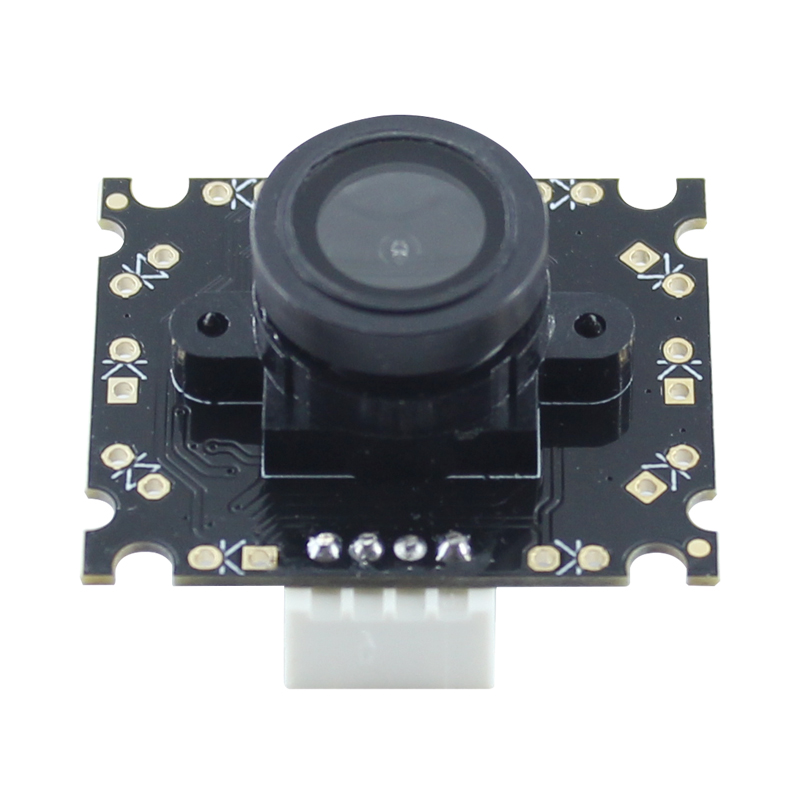

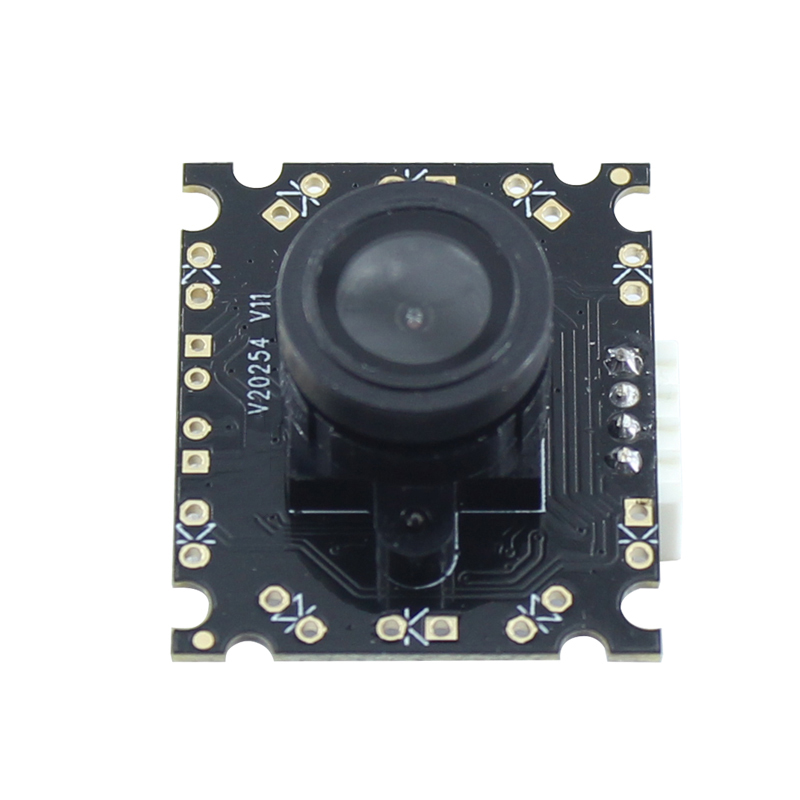

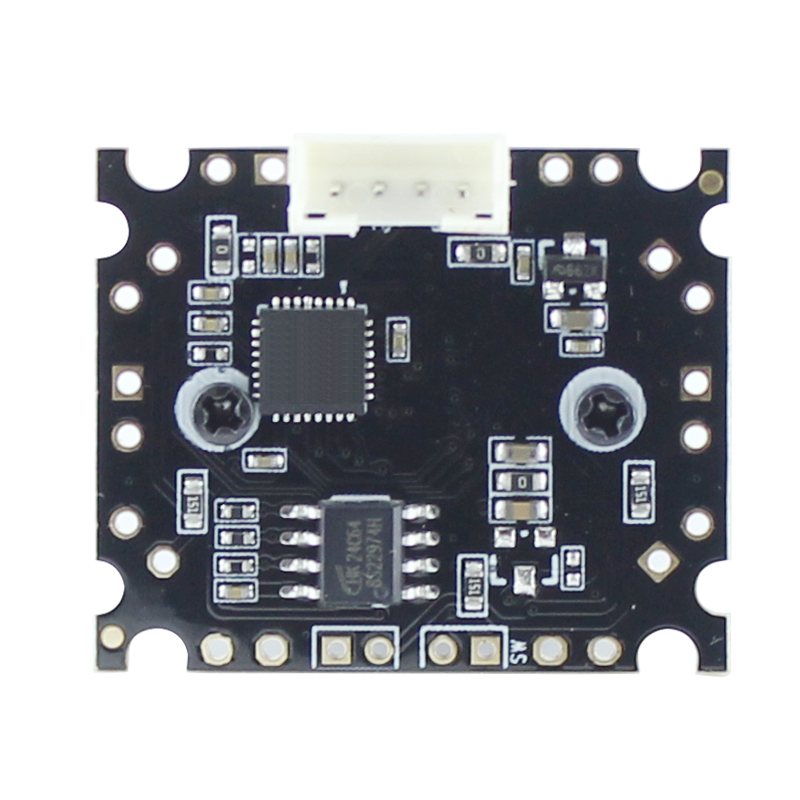

0.3MP face recognition camera module embedded built-in camera module
$3.60
Availability:
In stock
Out of stock
Variations
Product Description
Product Parameter
| Product Name | 0.3MP Device Embedded Built-in Camera Module |
| Module No | BMV20254 V11-100 |
| Module Size | 30mm × 25mm × 12.00mm±0.3MM |
| Features | 1. Conventional standard 30X25mm structure is versatile (PC camera available) 2. Remove the weldable wire from the seat 3. Welding plug-in lamp (infrared white light) can be added to control two welding joints, and the number of lamps is optional 4. Optional lens 5. Cost-effective 6. 130/160 degrees with slight vignetting on the four sides, without built-in microphone (defect) |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 250mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV7670 (1/6" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 640*480 |
| Sensitivity | 1.3V /（lux-sec） |
| Pixel Size | 3.6µm x 3.6µm |
| Maximum Image Transfer Rate | YUY2 160x120 30FPS YUY2 176x144 30FPS YUY2 320x240 30FPS YUY2 352x288 30FPS YUY2 640x480 30FPS |
| S/N Ratio | 46 db |
| Max Dynamic Range | 52 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2 |
| Microphone | NO |
| Lens Construction | 1G3P |
| F/No | 2.5 |
| EFL | 1.3mm |
| FOV | 130° |
| TV Distortion | <-2.3% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
