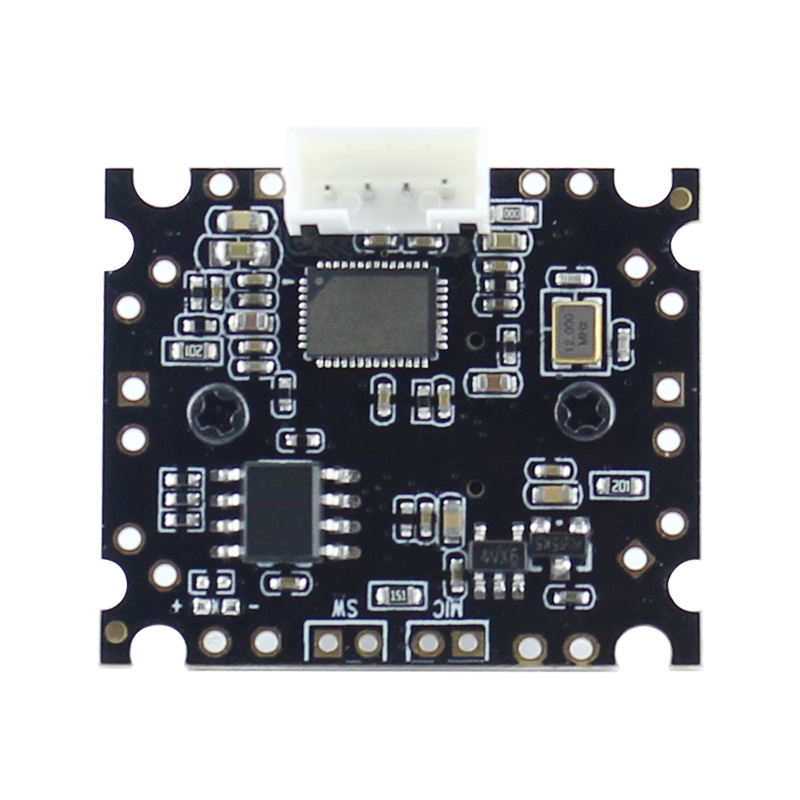

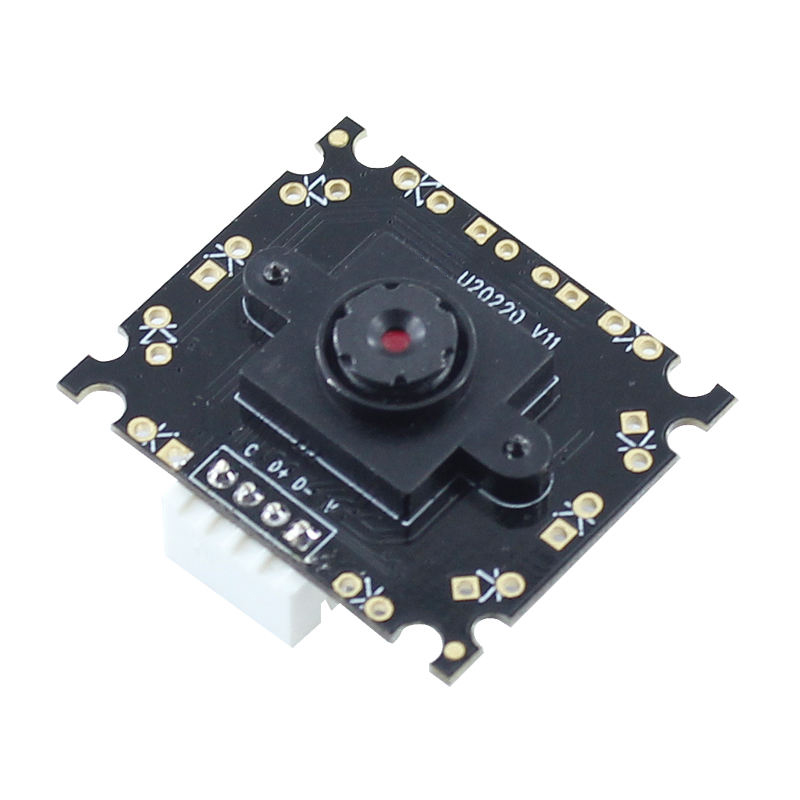

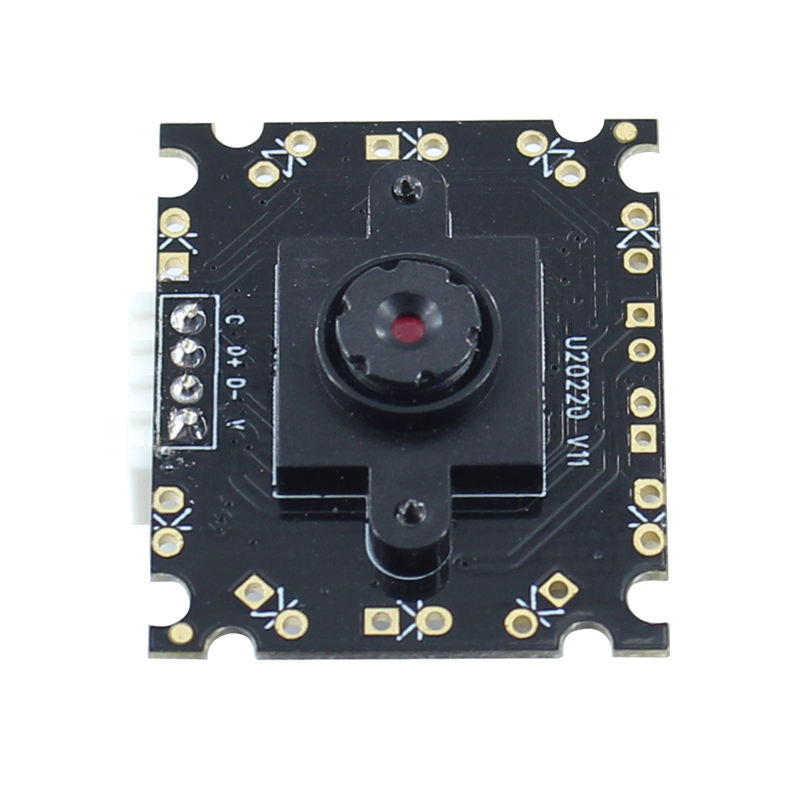

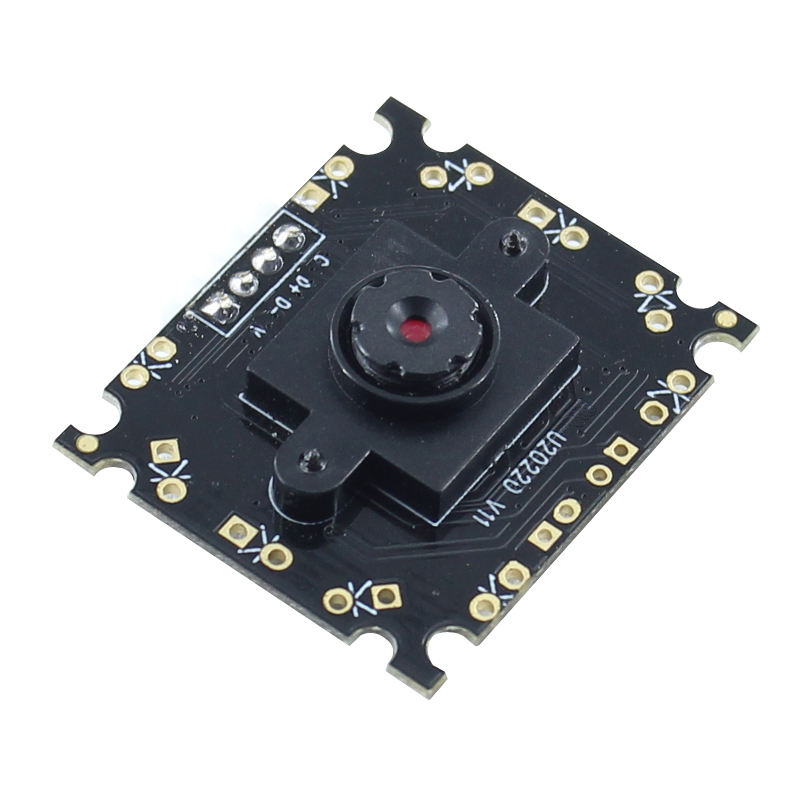

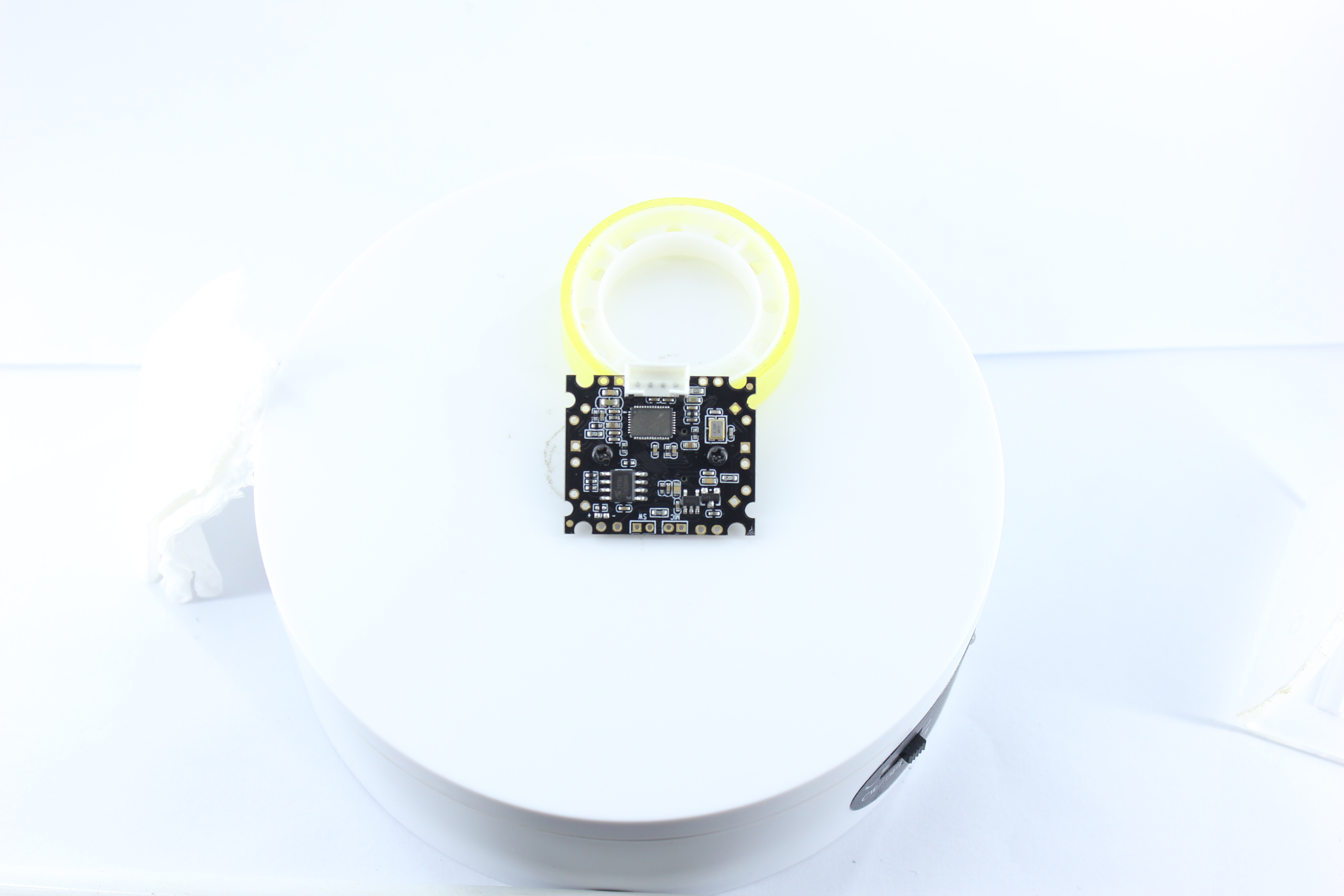

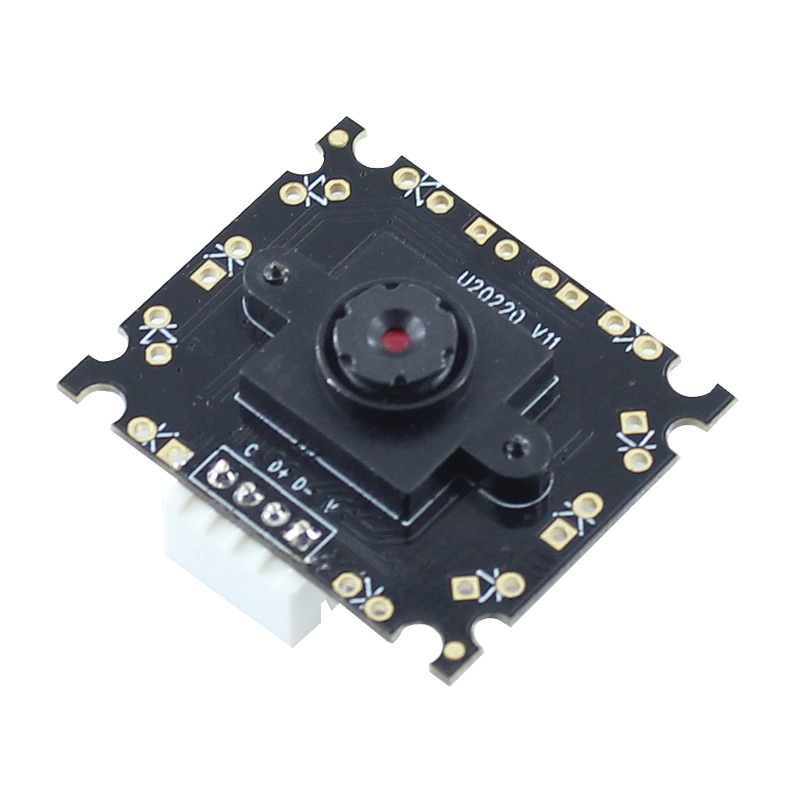

2MP Computer Equipment Embedded Built-in Camera Module Face Recognition Camera Module
$56.40
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Parameter
| Product Name | 2MP Face Recognition Camera Module |
| Module No | BMPC-U20220 V11-70 |
| Module Size | 30mm × 25mm × 6.50mm±0.2MM |
| Features | 1. The conventional standard 30X25mm structure has high universality (PC camera can be used) 2. Seat removal solderable wire 3. Welding plug-in lights (infrared white light) can be added for two welding point switch control, and the number of lights is optional 4. There are multiple lenses to choose from 5. Integrated analog microphone 6. Default cutting out mjpeg 1280x720 and running 15 frames normally |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 470mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | GC2145 (1/5" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1600*1200 |
| Sensitivity | 1200mv /（lux-sec） |
| Pixel Size | 1.75µm x 1.75µm |
| Maximum Image Transfer Rate | MJPEG 160x120 30FPS / YUY2 160x120 30FPS MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 20FPS / YUY2 800x600 12FPS MJPEG 1280x720 20FPS / YUY2 1280x720 10FPS |
| S/N Ratio | 36 db |
| Max Dynamic Range | 70 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 3P |
| F/No | 2.4 |
| EFL | 2.8mm |
| FOV | 70° |
| TV Distortion | <1% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
