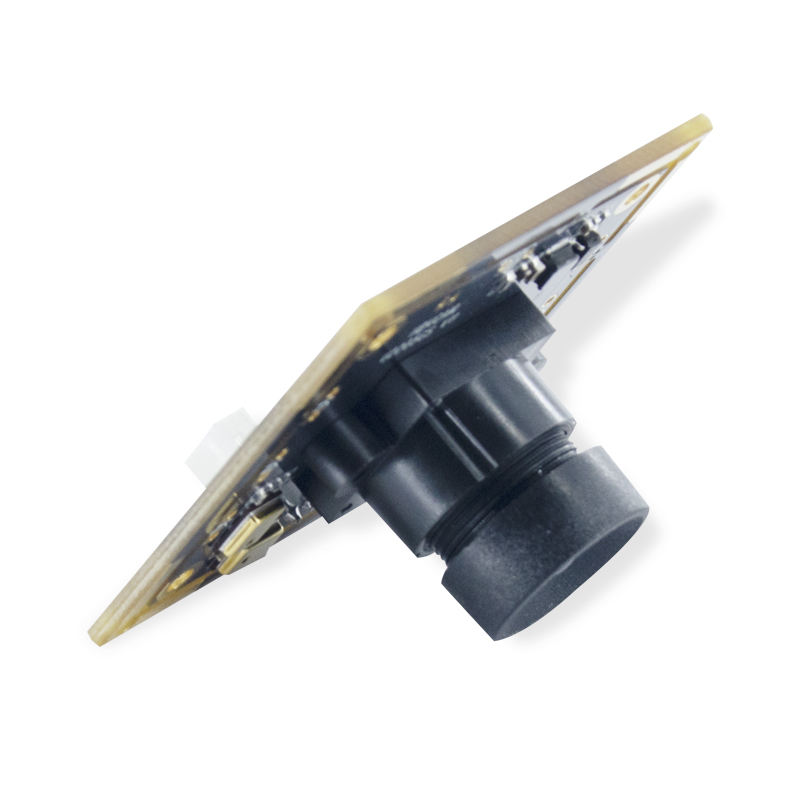

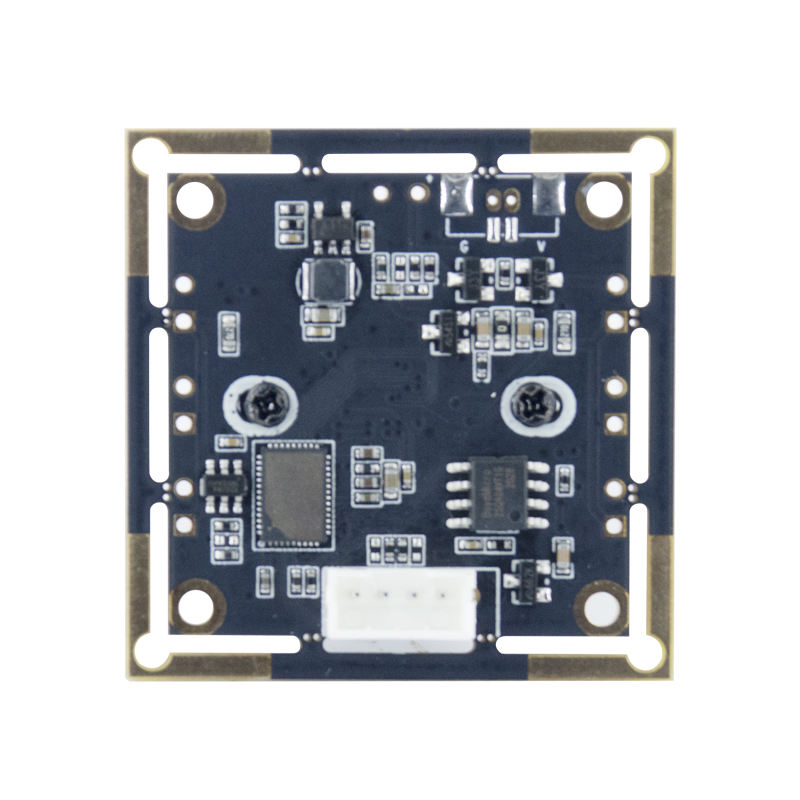

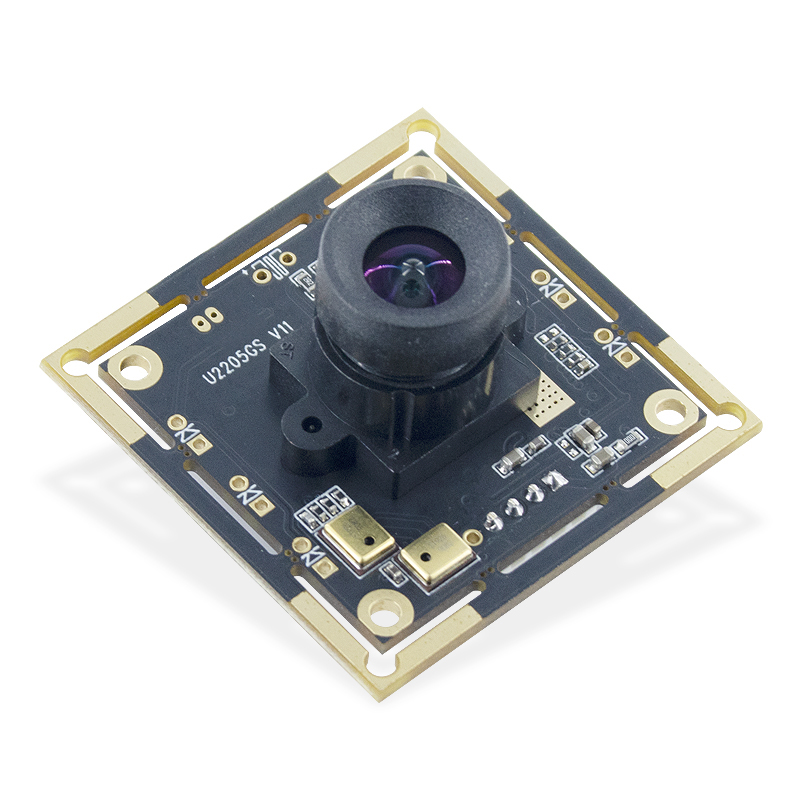

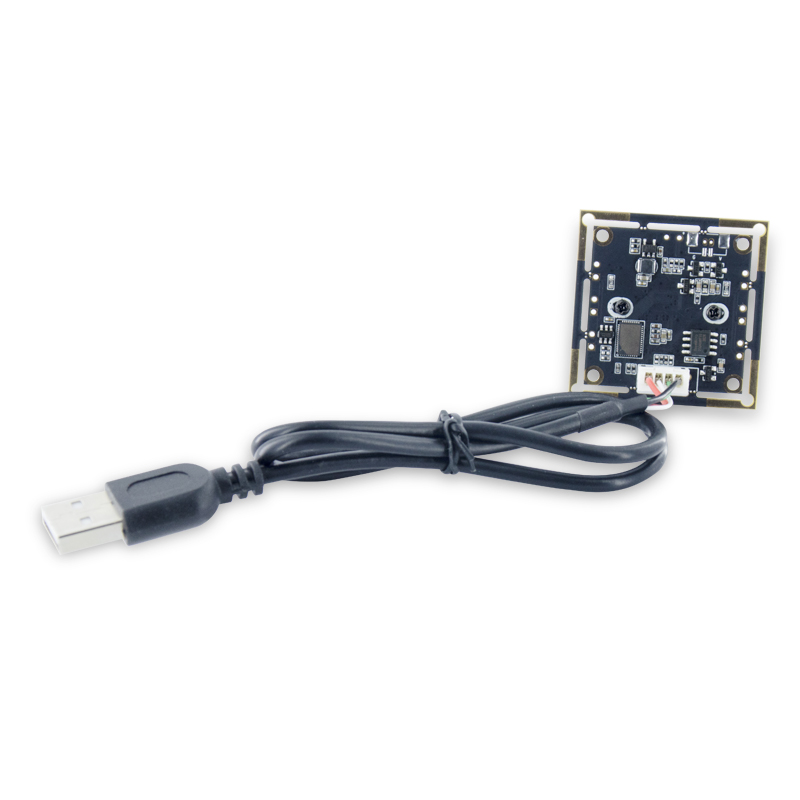

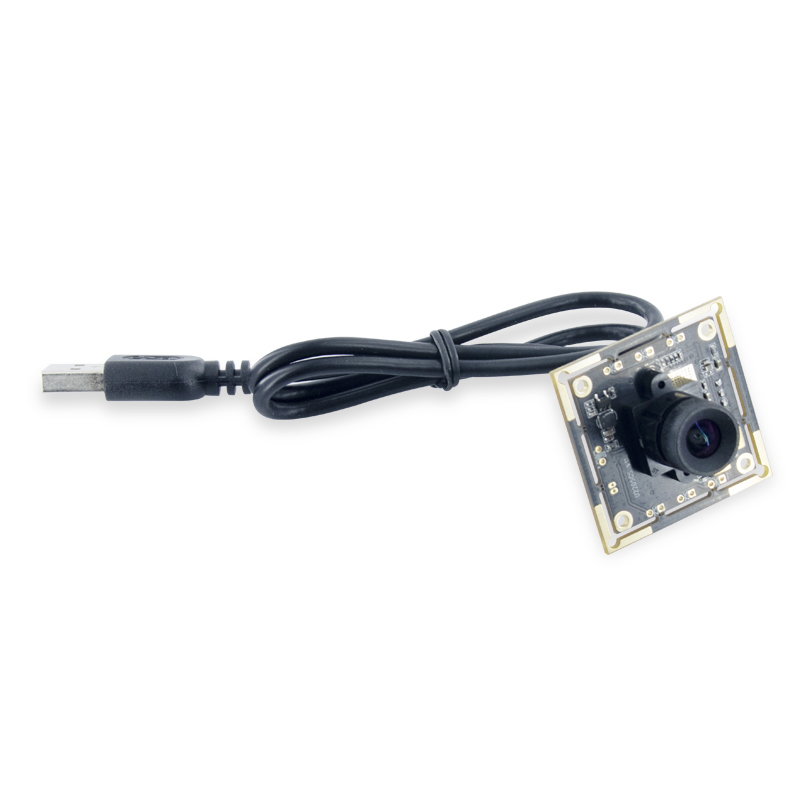

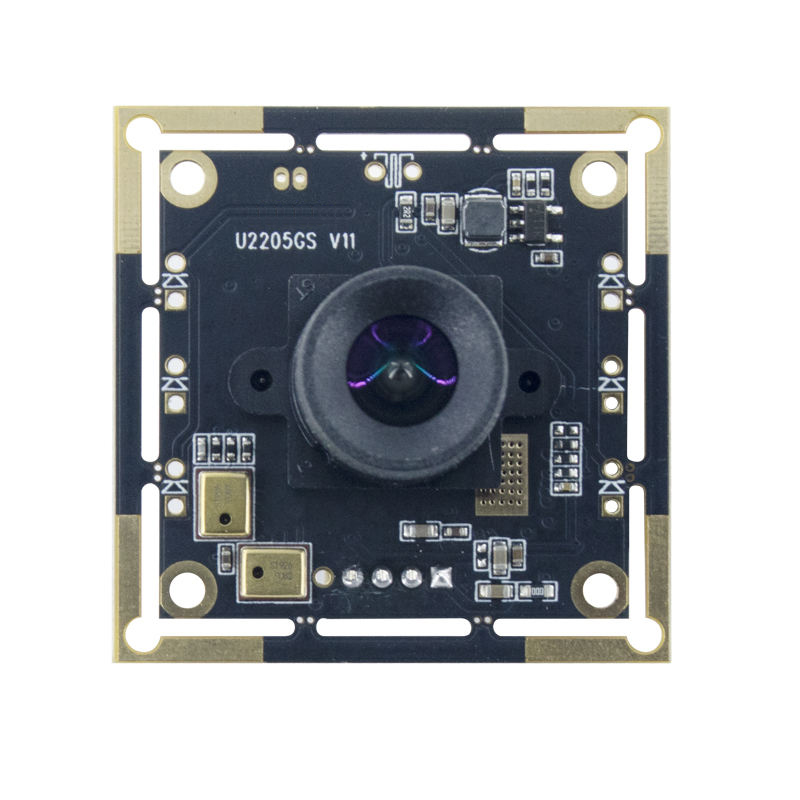

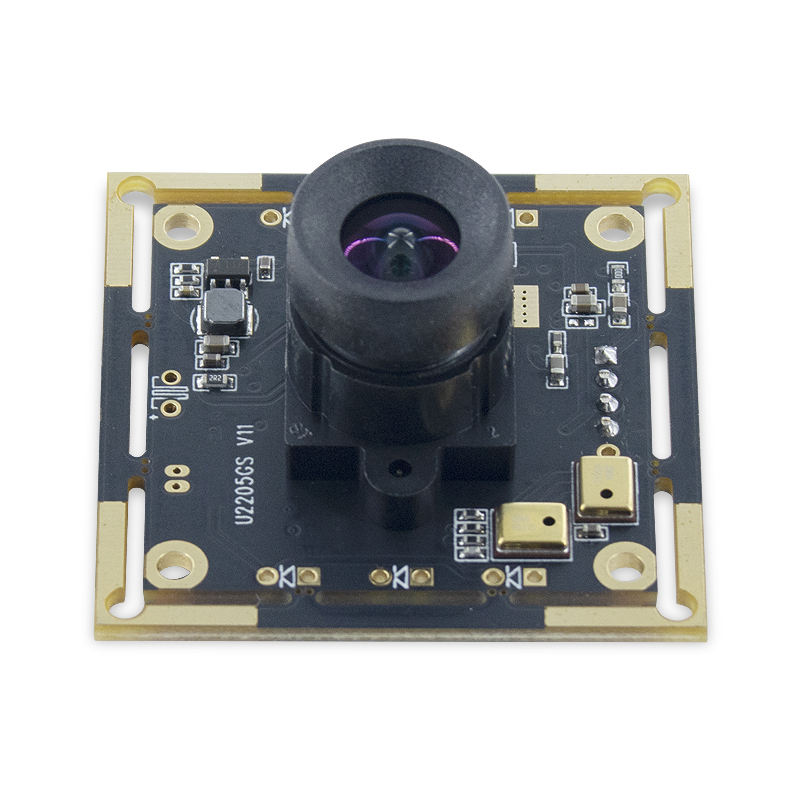

2MP Face Recognition USB Camera Module QR Code Scanning Camera Module
$56.40
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Parameter
| Product Name | 2MP Global Exposure Camera Module |
| Module No | BMU2205GS V11-100 |
| Module Size | 38mm × 38mm × 18.00mm±0.5MM |
| Features | 1. Standard industrial camera 38, 32mm plate structure 2. Can do physical chip - black and white/color selection (default color) 3. A variety of lenses are optional 4. It can be welded with 6 plug-in lamps (infrared white light), which can be made into an open picture, bright and off, and can also be controlled by photosensitivity 5. Built-in digital microphone 6. It can be installed with CS port large lens |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 890 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OG02B10 (1/2.9" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1600*1200 |
| Sensitivity | 1900mV /（lux-sec） |
| Pixel Size | 3.0µm x 3.0µm |
| Maximum Image Transfer Rate | MJPEG 640x480 120FPS / YUY2 640x480 30FPS MJPEG 848x480 120FPS / YUY2 848x480 15FPS MJPEG 1280x720 120FPS / YUY2 1280x720 10FPS MJPEG 1280x960 60FPS / YUY2 1280x960 1FPS MJPEG 1600x1200 60FPS / YUY2 1600x1200 1FPS |
| S/N Ratio | 37.4db |
| Max Dynamic Range | 68db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 2G2P |
| F/No | 2.4 |
| EFL | 3.0 mm |
| FOV | 100° |
| TV Distortion | <5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
