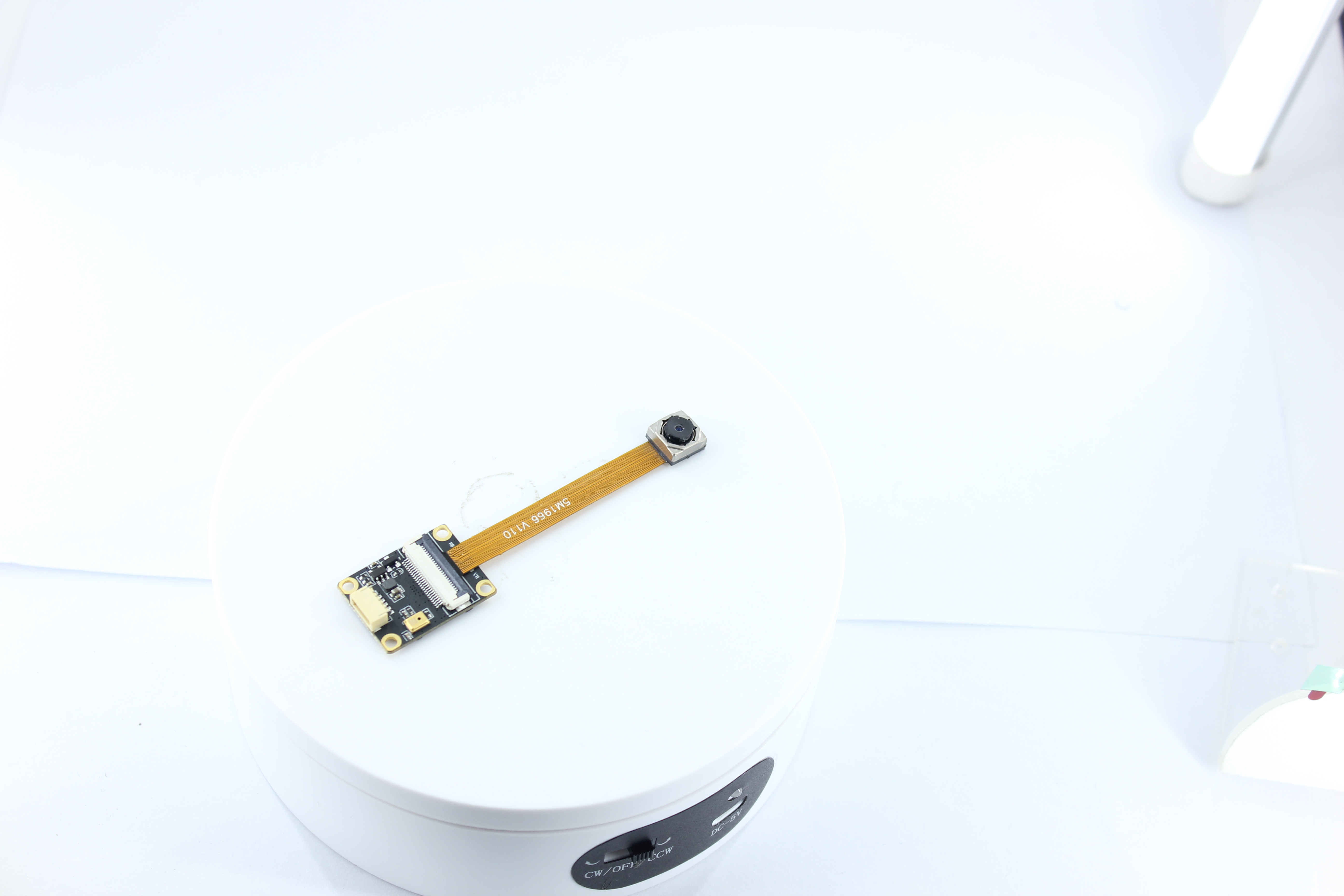

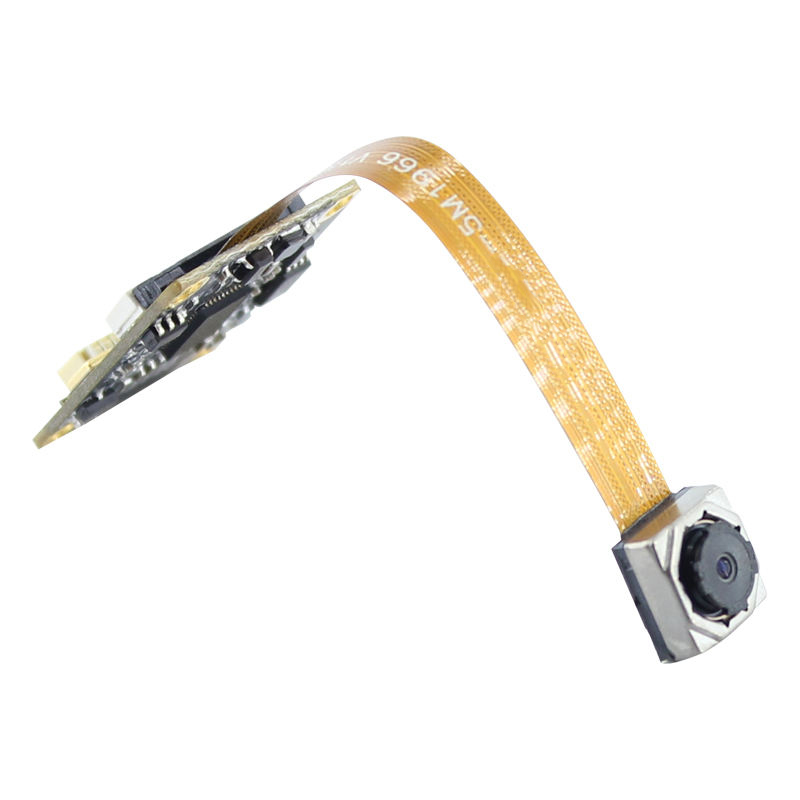

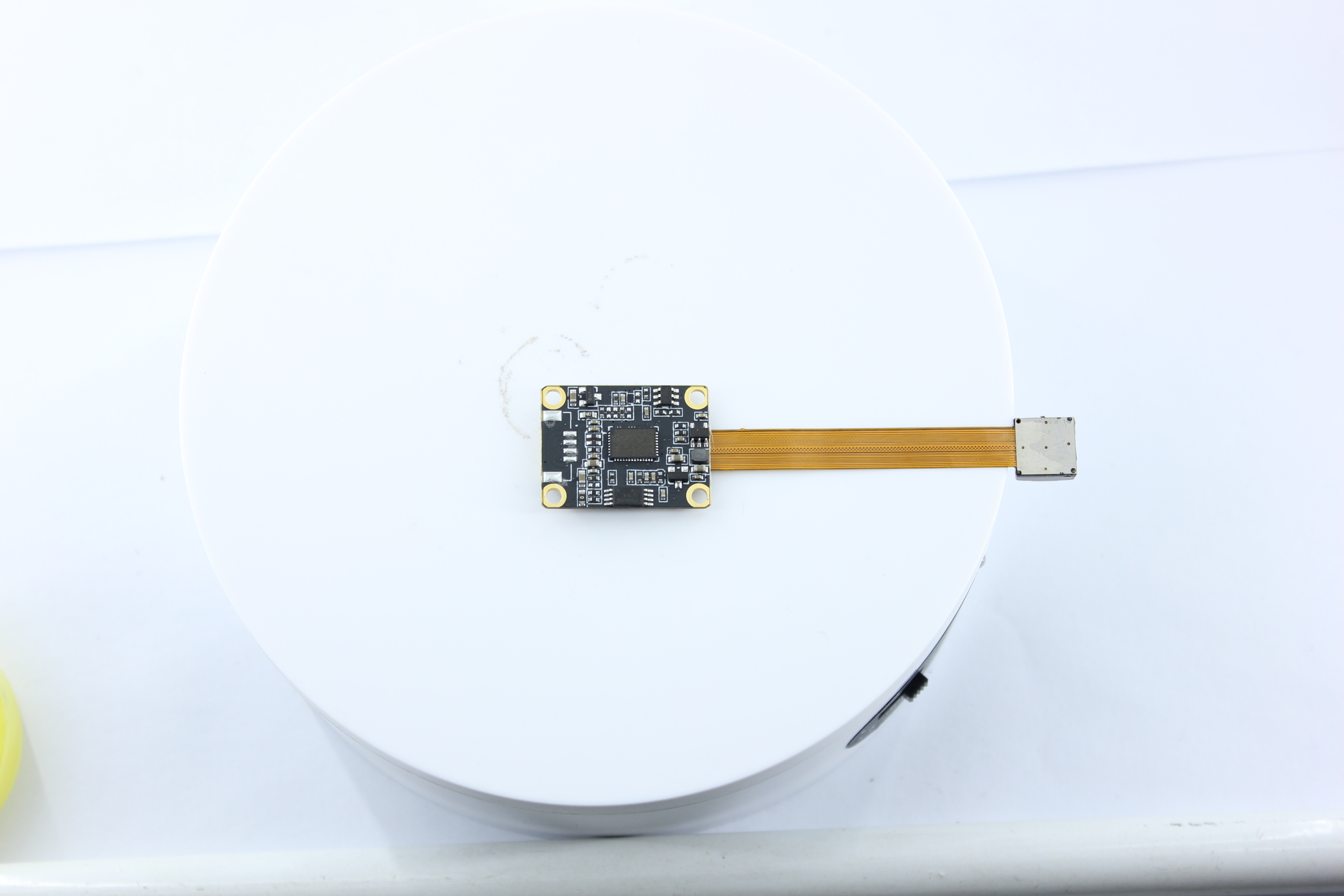

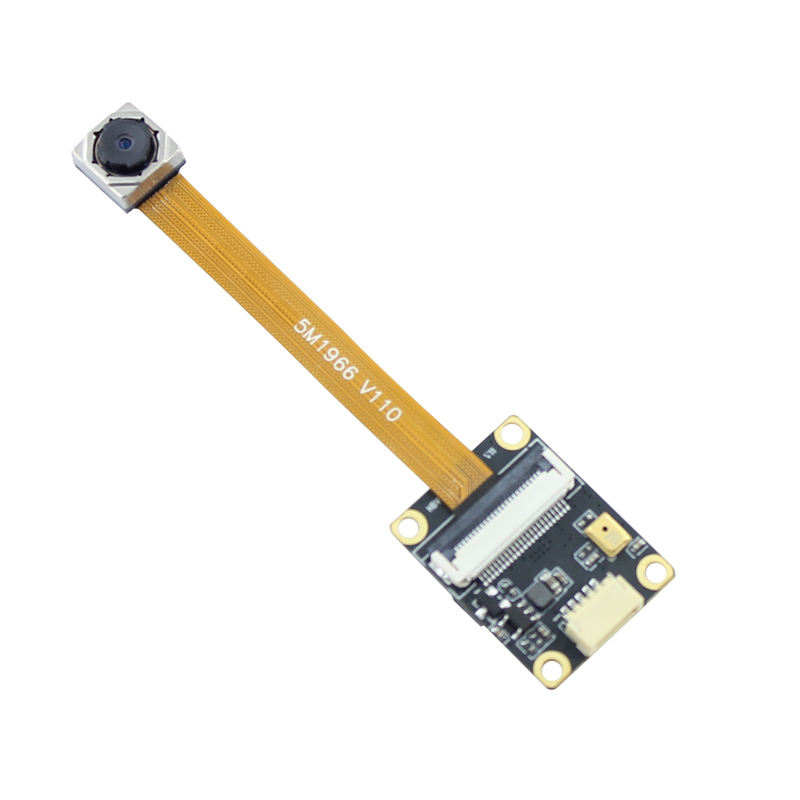

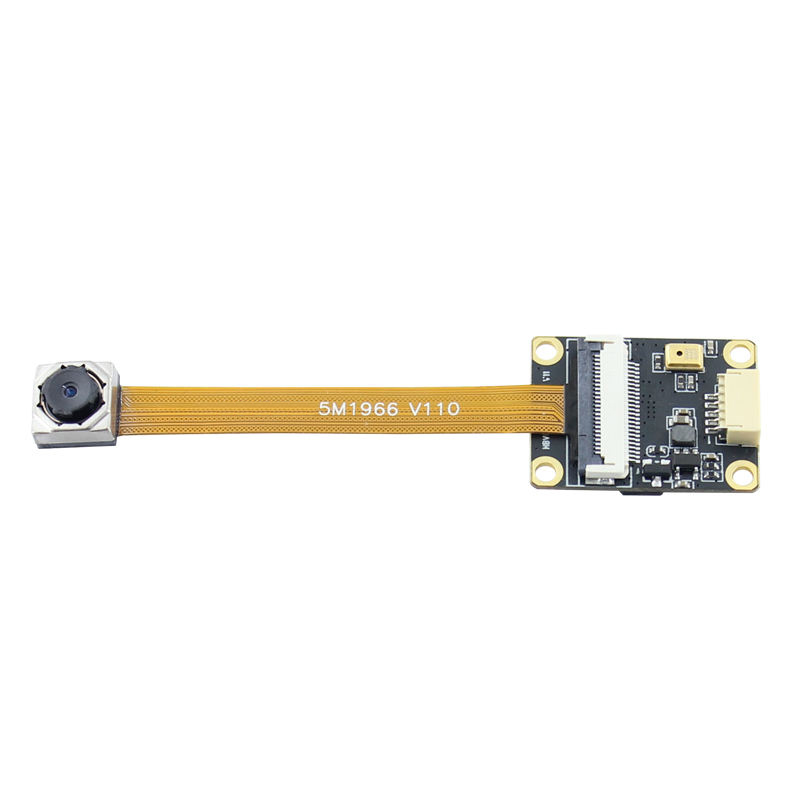

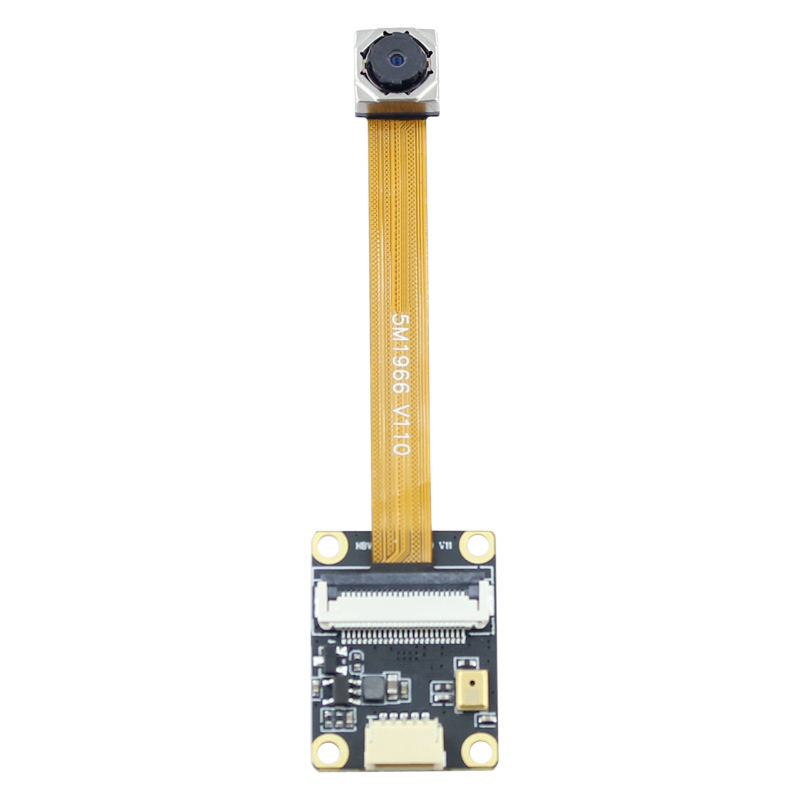

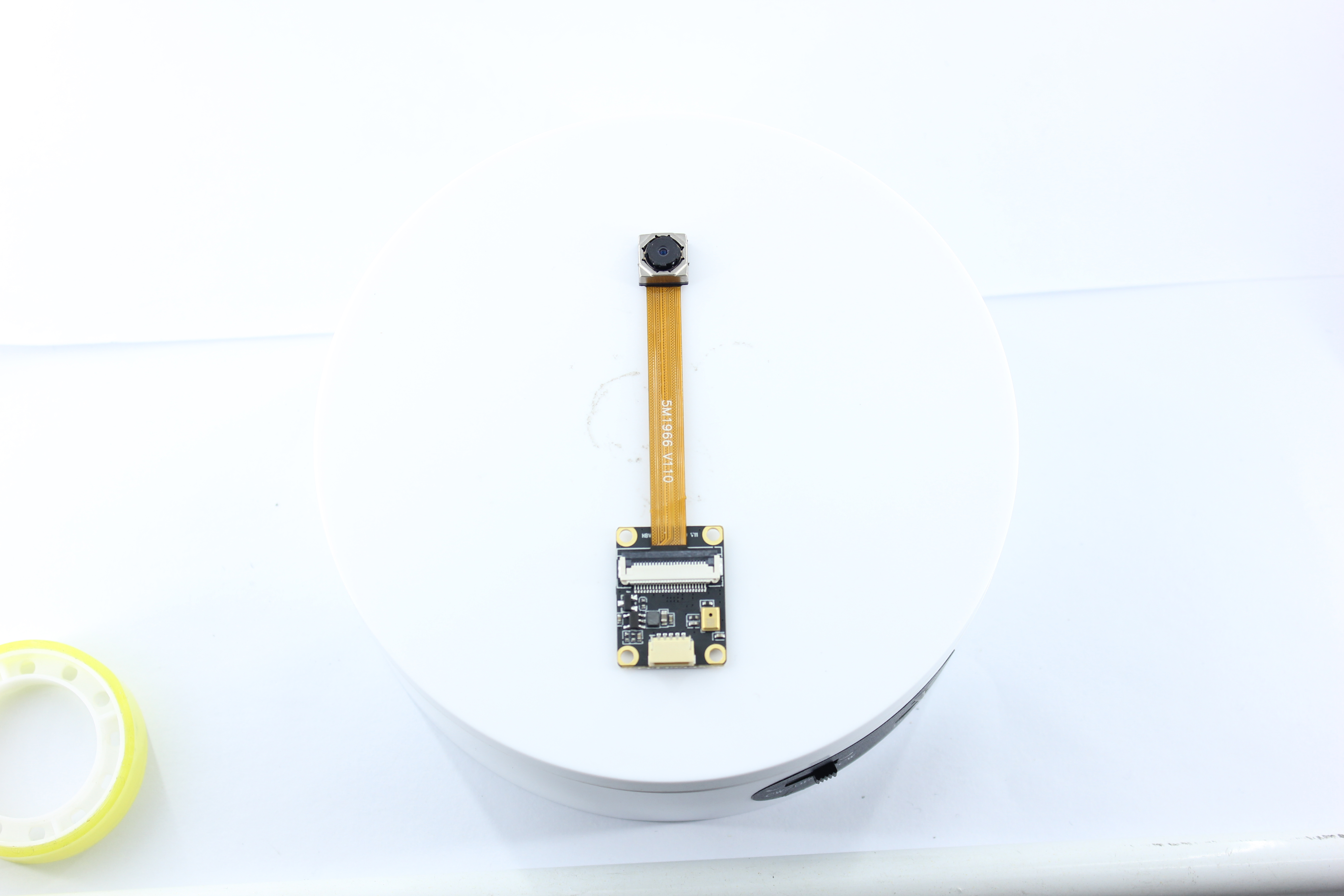

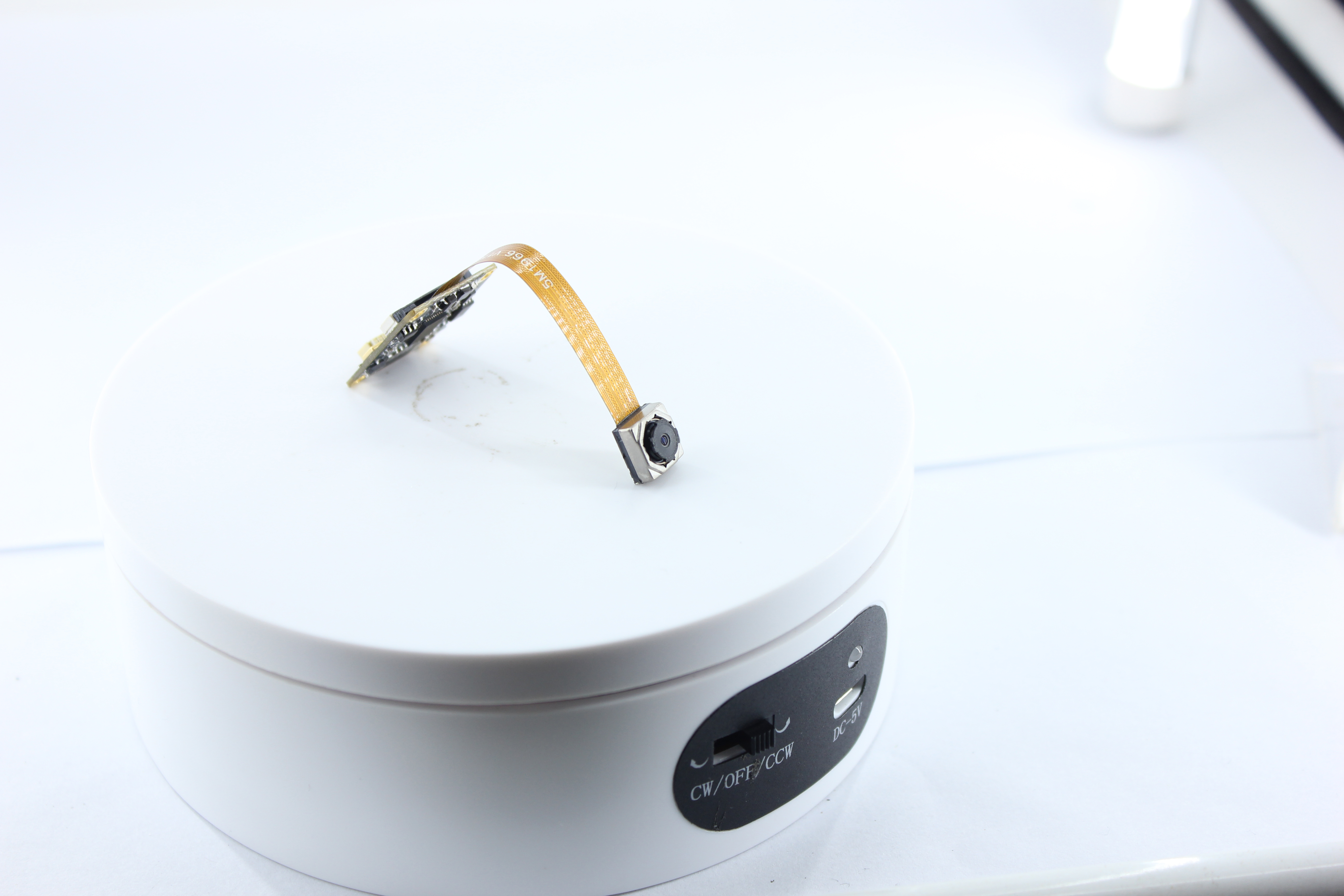

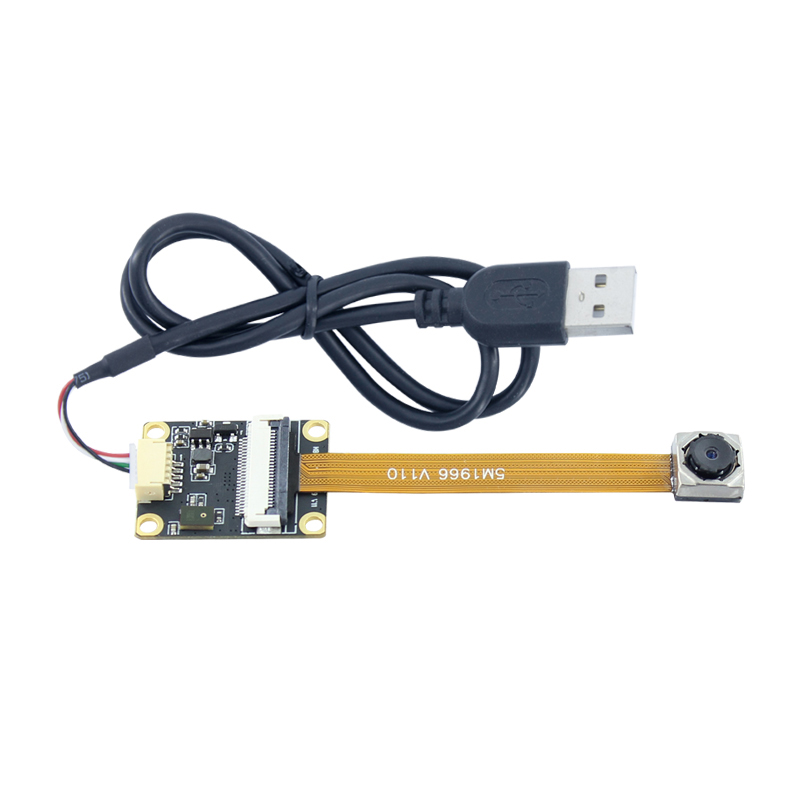

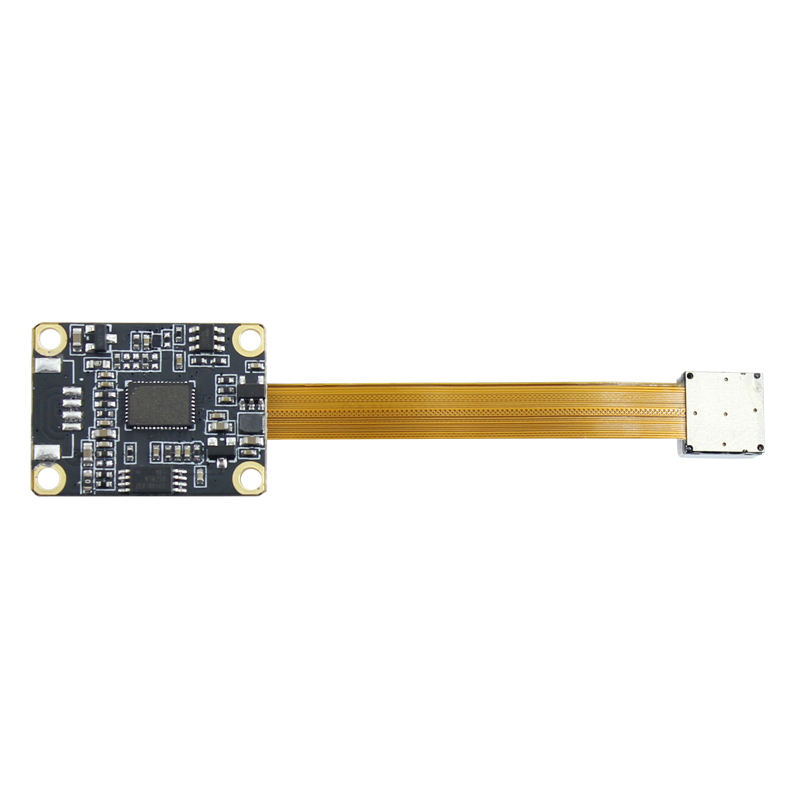

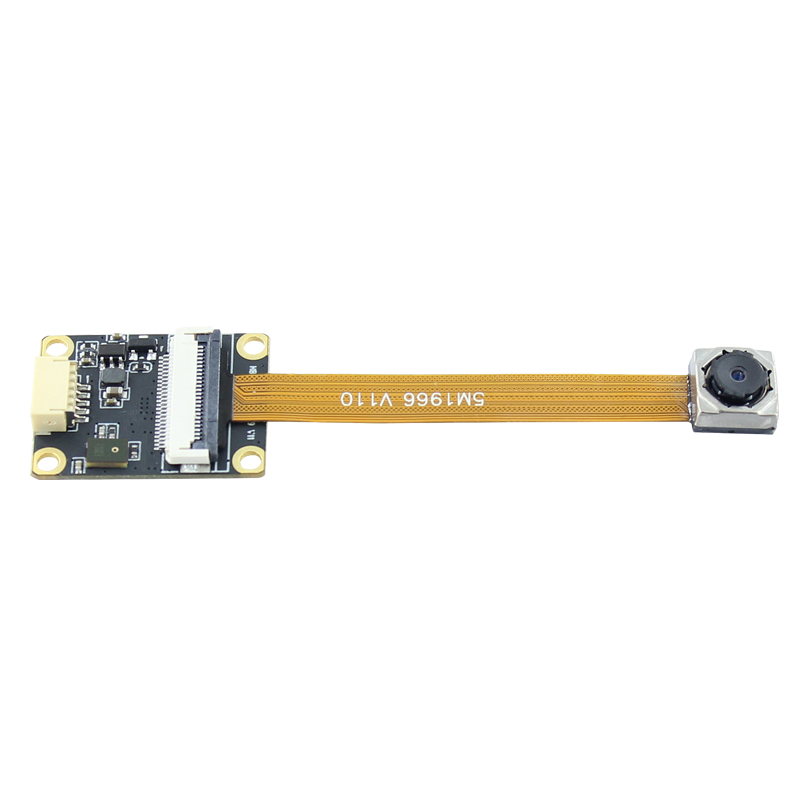

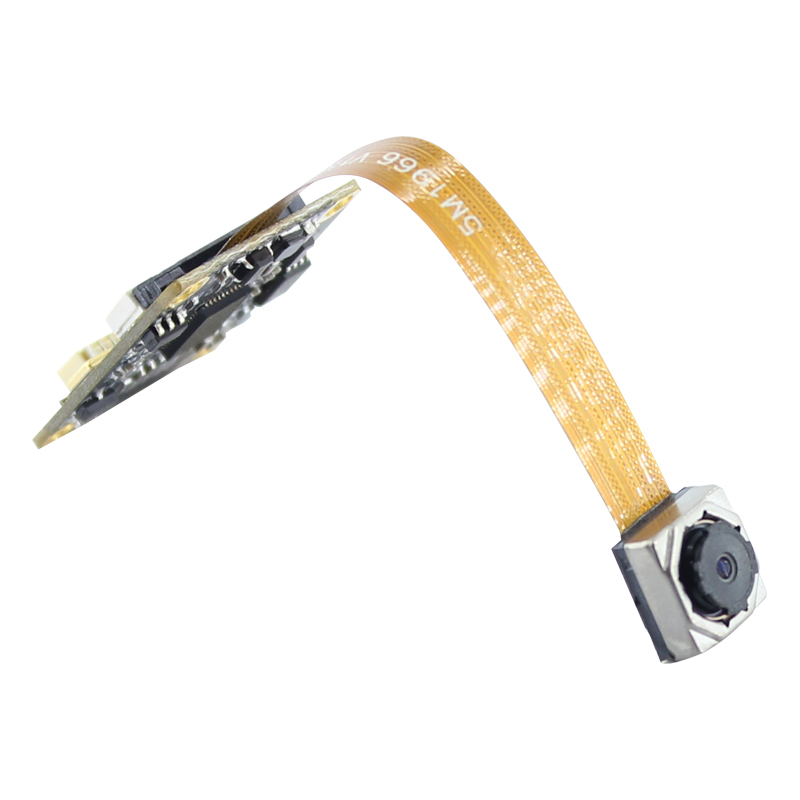

ODM OV5640 (1/4") 5MP 2K Camera Module All-in-One Built-in USB Camera Module
$25.20
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Parameter
| Product Name | 5MP 2K USB Camera Module |
| Module No | BMDSP2339 V11-120 |
| Module Size | 75.9mm × 18mm × 5.10mm±0.2MM |
| Features | 1. Flexible structure and small volume of split soft and hard boards 2. The FPC part can be customized in length and shape 3. Fixed focus and focus can be selected 4. Several specifications of lenses available 5. Integrated digital microphone 6. 20239- Upgraded version, with improved microphone sound quality and effect delicacy, improved focus sensitivity, and smaller size 7. Firmware with the same effect as 1466 V22 (with microphone) |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Auto |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 1000 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV5640 (1/4" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 2592*1944 |
| Sensitivity | 600mv /（lux-sec） |
| Pixel Size | 1.4µm x 1.4µm |
| Maximum Image Transfer Rate | MJPEG 640x480 30FPS / YUY2 320x240 30FPS MJPEG 1280x720 30FPS / YUY2 352x288 30FPS MJPEG 1600x1200 30FPS / YUY2 640x480 30FPS MJPEG 1920x1080 30FPS / YUY2 1280x720 10FPS MJPEG 2048x1536 15FPS / YUY2 1280x960 10FPS MJPEG 2592x1944 15FPS / YUY2 1920x1080 3FPS |
| S/N Ratio | 36 db |
| Max Dynamic Range | 68 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 4P |
| F/No | 2.4 |
| EFL | 1.57 mm |
| FOV | 120° |
| TV Distortion | <-6.75% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
