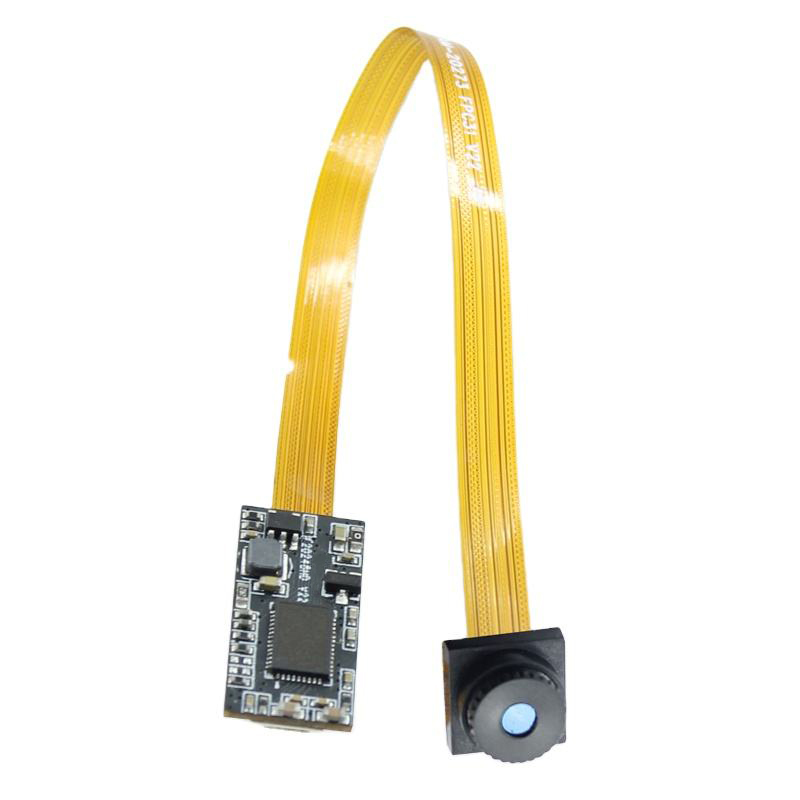

2 MP Soft Hard Board Separation 1080P 60Fps Camera Module Flexible Structure Camera Module
$39.60
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Description
| Product Name | 2 MP soft hard board separation docking flexible structure device embedded built-in camera module | ||
| Module No. | BMF20248HD V22 | ||

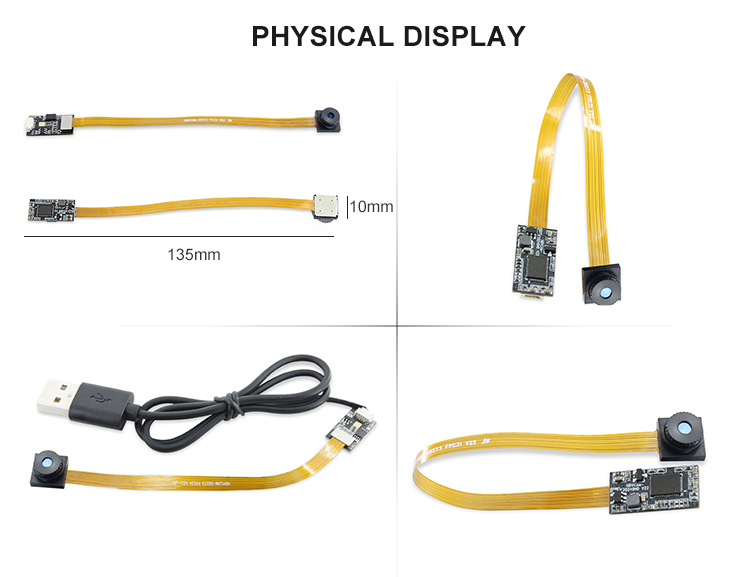

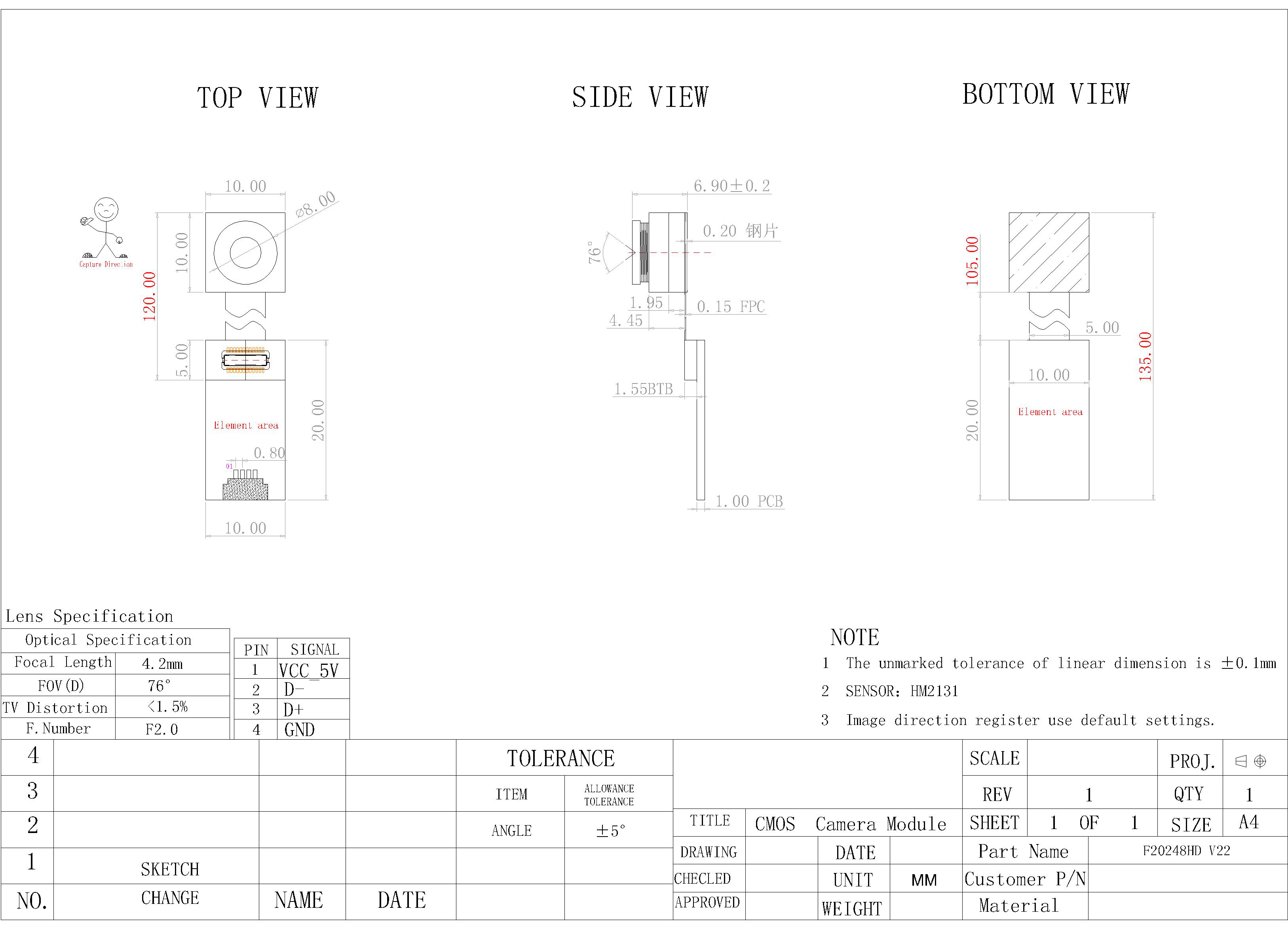

| Module Size | 135mm × 10mm × 6.9mm±0.2MM | ||
| Features | 1. Soft and hard board split flexible structure, large image surface, high-definition effect, small volume
| ||
| Temperature (Operation) | -30°C to 70°C | ||
| Temperature (Stable Image) | 0°C to 50°C | ||
| Assembly technique | SMT (ROSH) | ||
| Focus | Fixed | ||
| Object distance | 30CM-infinity | ||
| Resolution | 600LW/PH (Center) | ||
| PCB printing ink | Black | ||

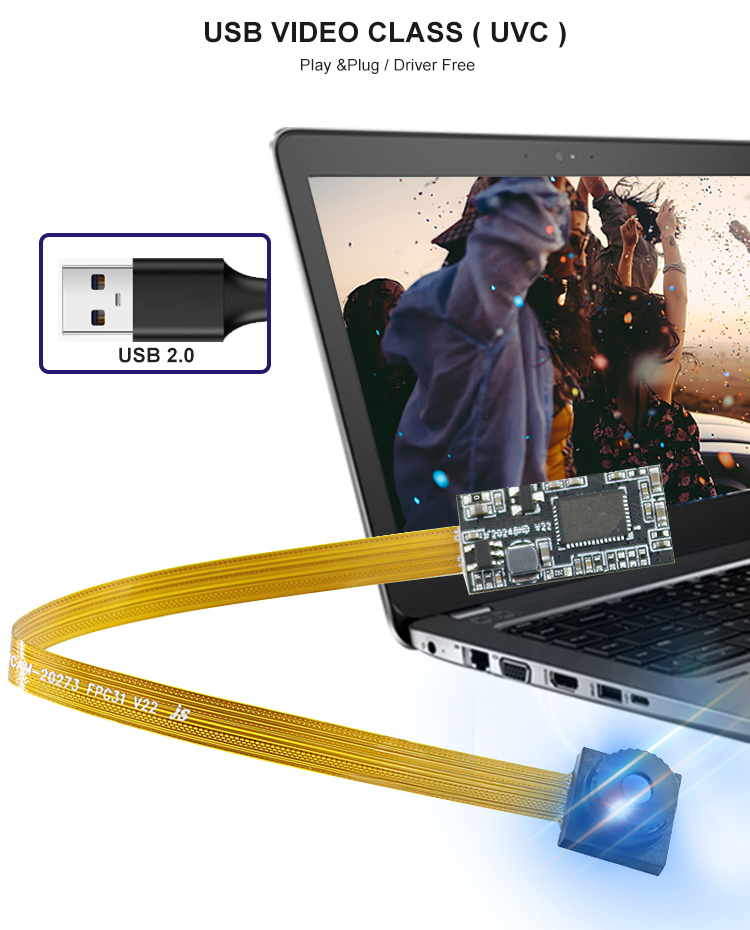

| interface | USB 2.0 | ||
| Power suuply | USB bus power | ||
| supply voltage | DC 5V±5% | ||
| Maximum Power consumption | 450mW | ||
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc | ||
| Sensor | HM2131 (1/2.7" ) | ||
| Seneor Package | CSP,Bare Die | ||
| Maximum resolution | 1920*1080 | ||
| Sensitivity | 4600mV /(lux-sec) | ||
| Pixel Size | 3µm x 3µm | ||
| Maximum Image Transfer Rate | MJPEG 320x240 30FPS / YUY2 320x240 30FPS
| ||
| S/N Ratio | 38.9 db | ||
| Max Dynamic Range | 62 db | ||
| Shutter type | Electronic rolling shutter | ||
| AGC/AEC/Whiter balance | Auto | ||
| Output Formats | YUY2/MJPEG | ||
| Microphone | Support | ||
| Lens Construction | 6P | ||
| F/No | 2.0 | ||
| EFL | 4.2mm | ||
| FOV | 76° | ||
| TV Distortion | <1.5% | ||
| Relative Illumination (Sensor) | 70% | ||
| IR Filter | 650±10nm | ||
| Module Package | Anti-electrostatic tray | ||
| Certifications | FCC/CE/ROSH |

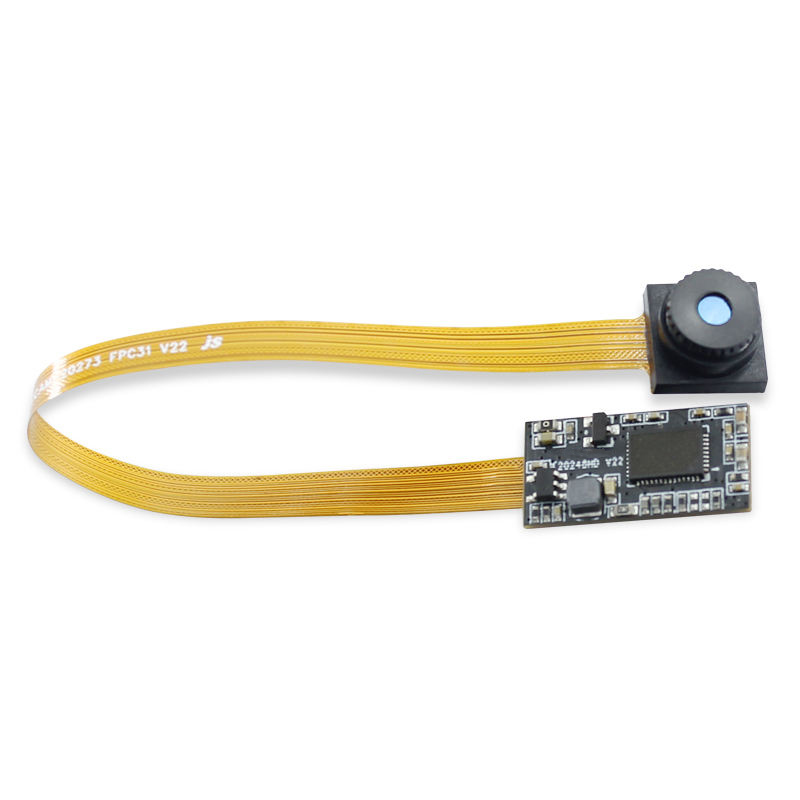

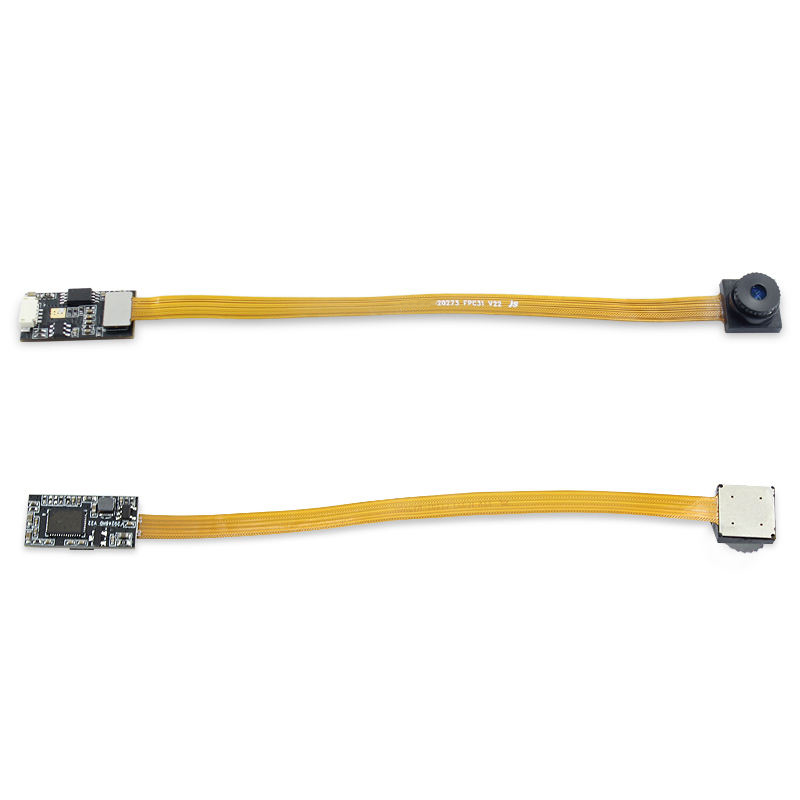

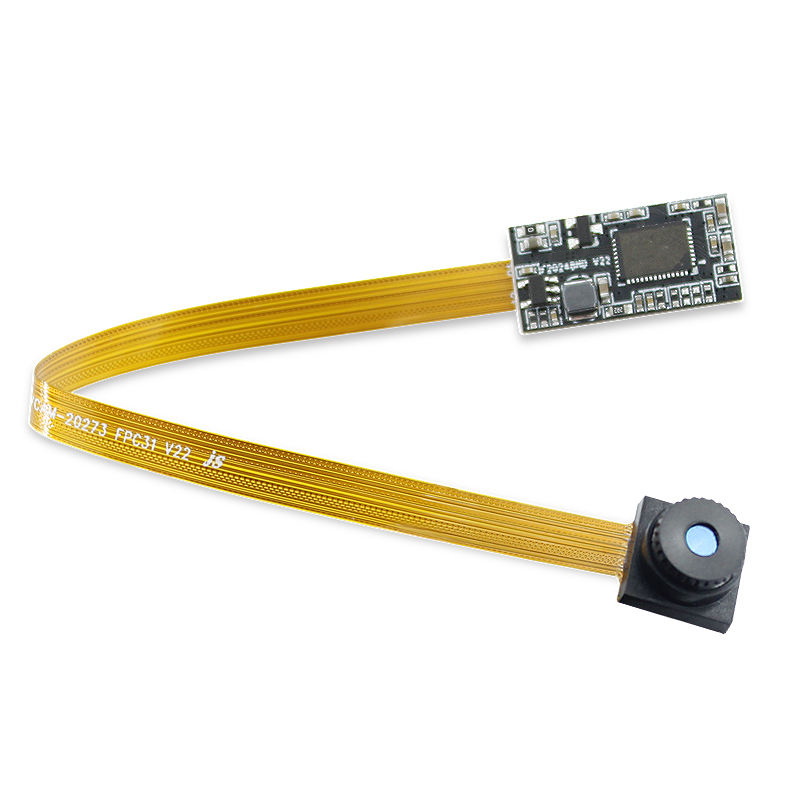

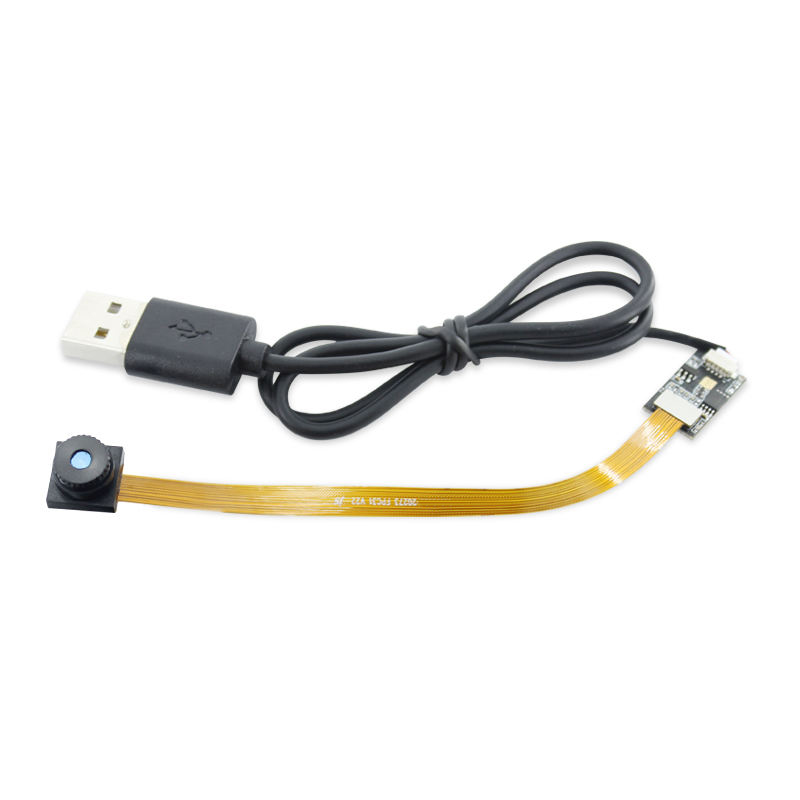

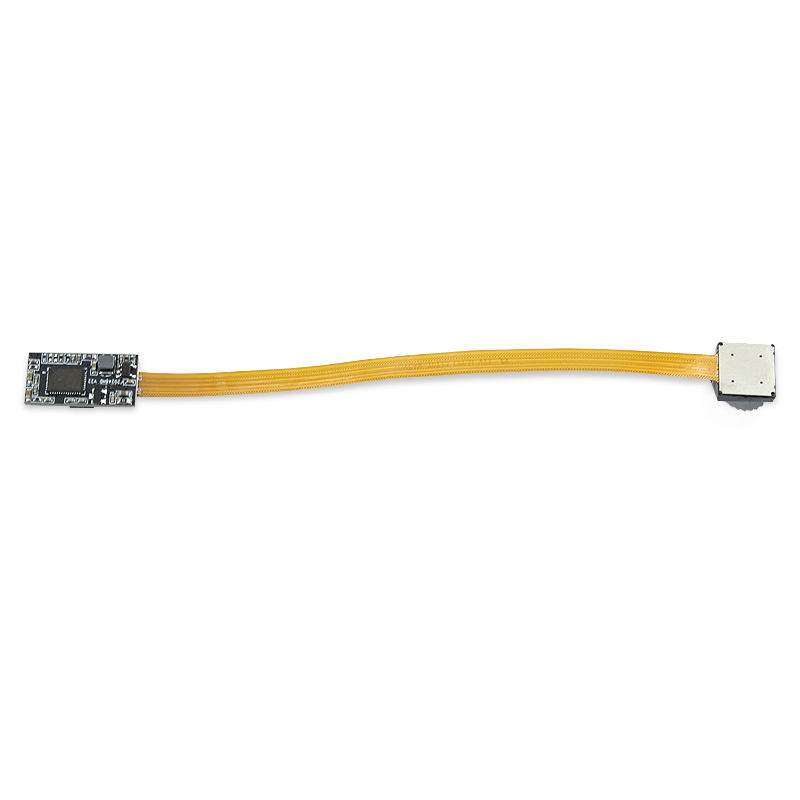

Detailed Images
