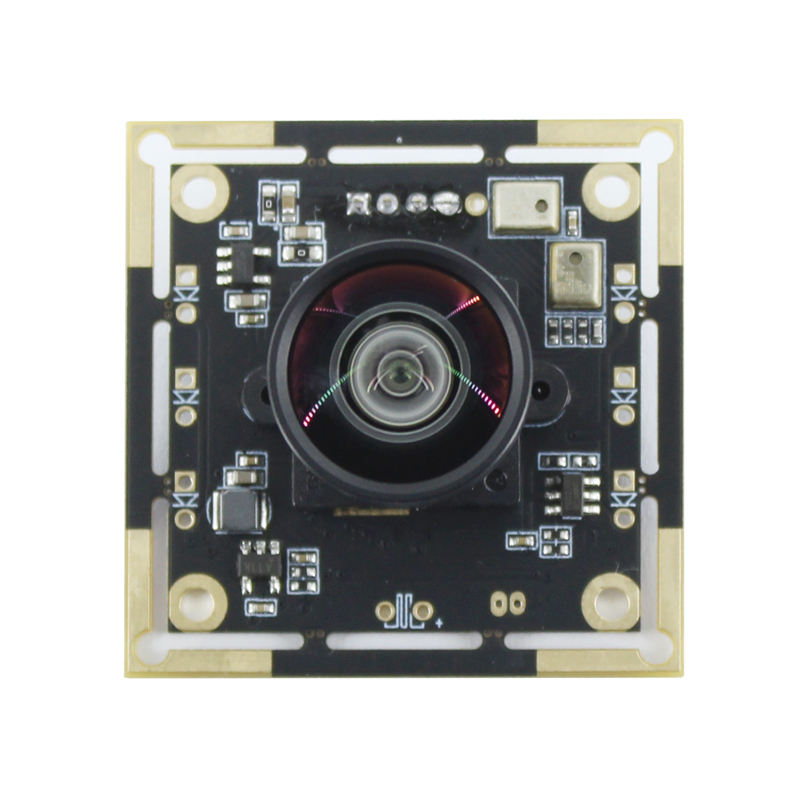

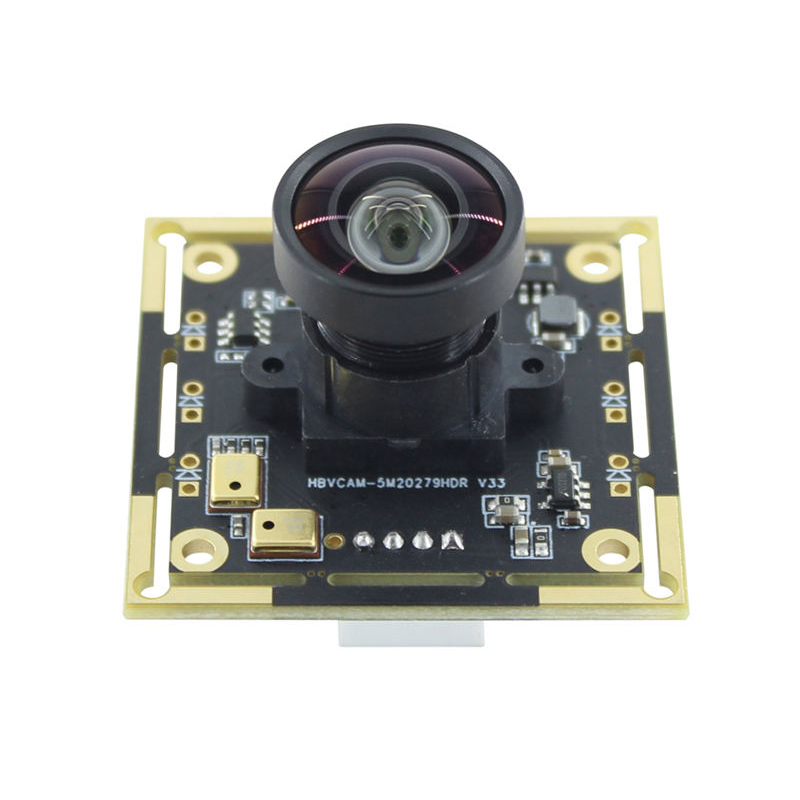

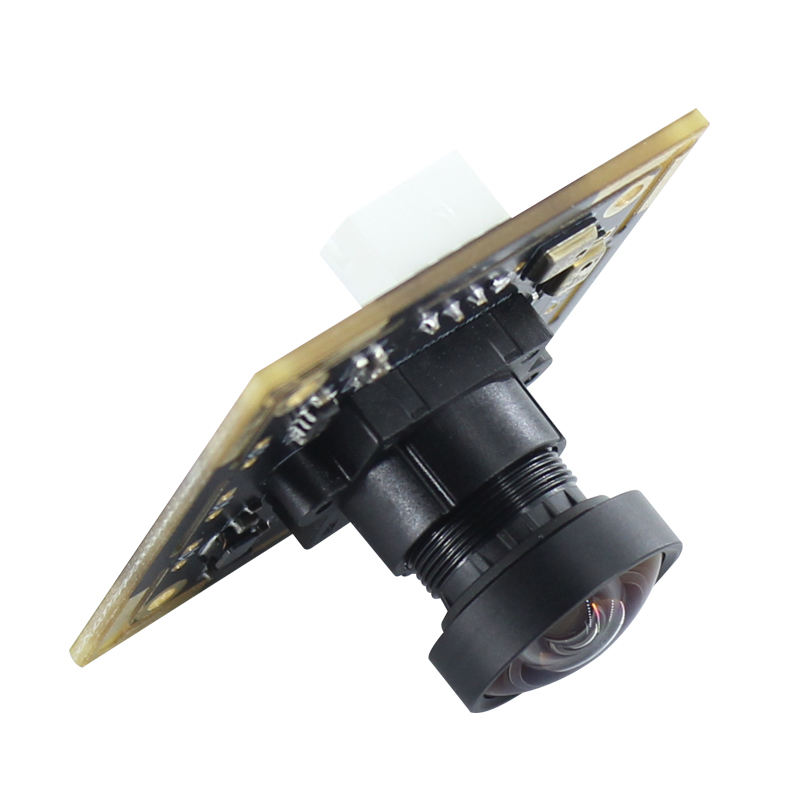

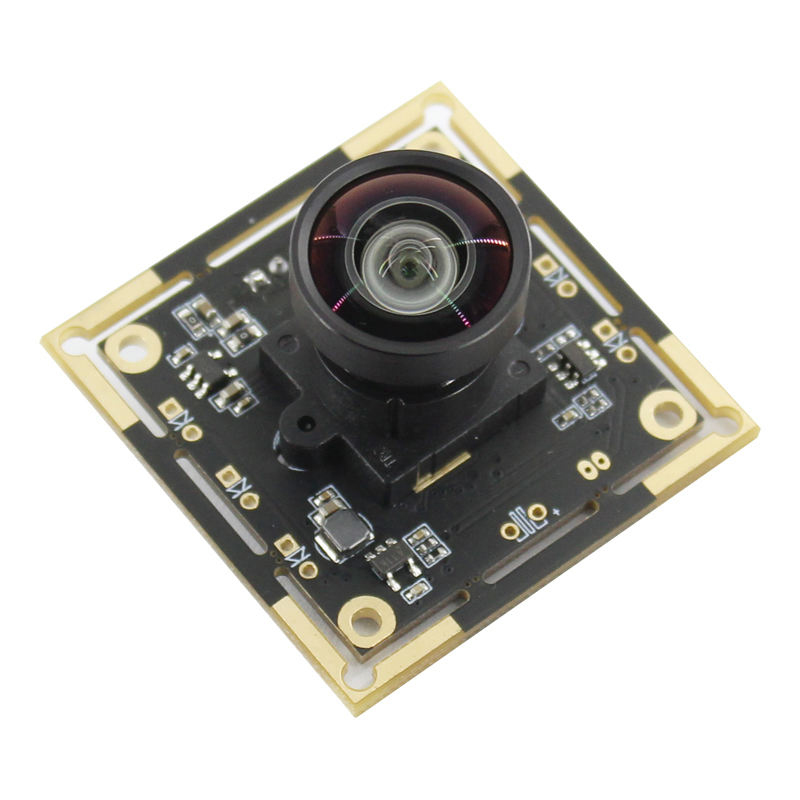

5 Megapixel 2K Industrial Control Embedded Camera Module
$44.40
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Description
| Product Name | 5 megapixel 2K industrial control camera, advertising machine, embedded built-in camera module of equipment | ||
| Module No. | BM5M20279HDR V22 | ||
| Module Size | 38mm × 38mm × 22mm±0.5MM | ||
| Features | 1. Standard industrial camera 38, 32mm panel structure
| ||
| Temperature (Operation) | -30°C to 70°C | ||
| Temperature (Stable Image) | 0°C to 50°C | ||
| Assembly technique | SMT (ROSH) | ||
| Focus | Fixed | ||
| Object distance | 30CM-infinity | ||
| Resolution | 600LW/PH (Center) | ||
| PCB printing ink | Black | ||

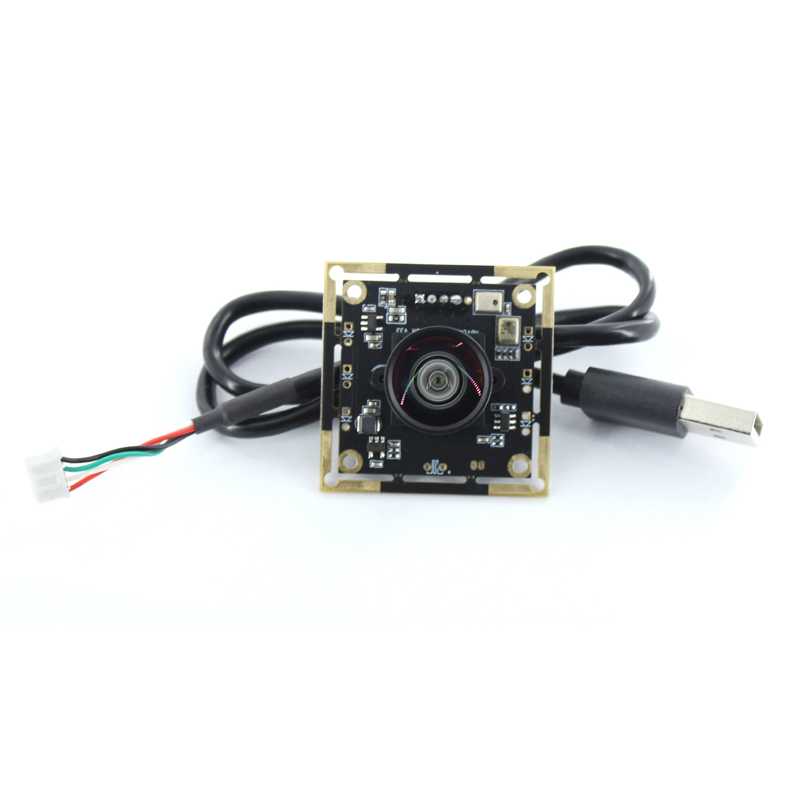

| interface | USB 2.0 | ||
| Power suuply | USB bus power | ||
| supply voltage | DC 5V±5% | ||
| Maximum Power consumption | 500mW | ||
| Operating system request | Win XP/win 7,8 ,10/ vista /android 4.0/ mac /Linux with uvc | ||
| Sensor | PS5520(1/2.5" ) | ||
| Seneor Package | CSP,Bare Die | ||
| Maximum resolution | 2592*1944 | ||
| Sensitivity | 2400mV /(lux-sec) | ||
| Pixel Size | 2.2µm x 2.2µm | ||
| Maximum Image Transfer Rate | MJPEG 640x480 30FPS / YUY2 640x480 30FPS
MJPEG 1920x1080 30FPS /YUY2 1920x1080 5FPS
| ||
| S/N Ratio | 39 db | ||
| Max Dynamic Range | 85 db | ||
| Shutter type | Electronic rolling shutter | ||
| AGC/AEC/Whiter balance | Auto | ||
| Output Formats | YUY2/MJPEG | ||
| Microphone | Support | ||
| Lens Construction | 5G | ||
| F/No | 1.55 | ||
| EFL | 2.96mm | ||
| FOV | 125° | ||
| TV Distortion | <8% | ||
| Relative Illumination (Sensor) | 70% | ||
| IR Filter | 650±10nm | ||
| Module Package | Anti-electrostatic tray | ||
| Certifications | FCC/CE/ROSH |

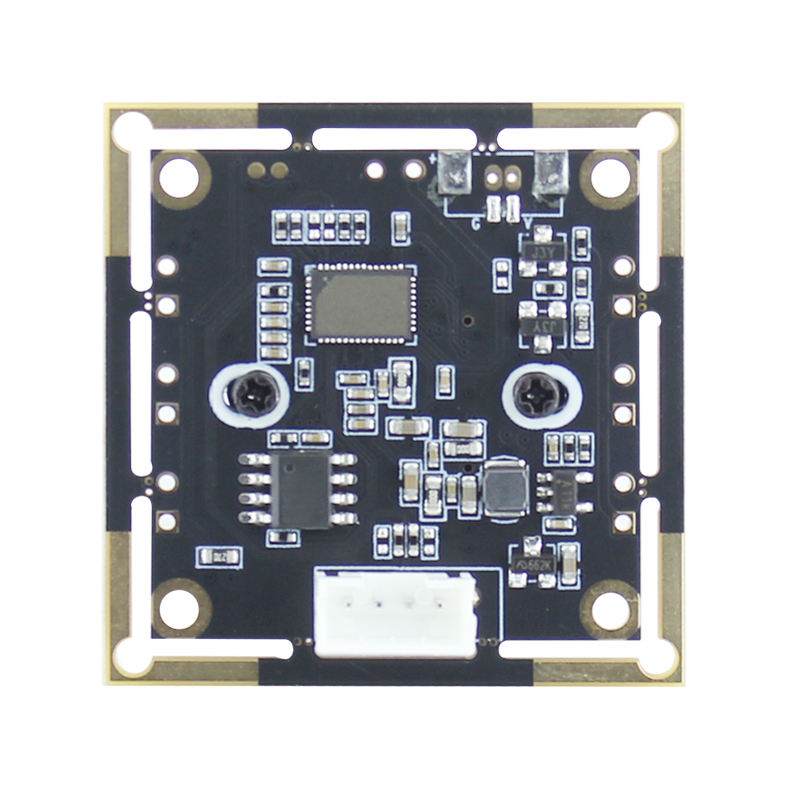

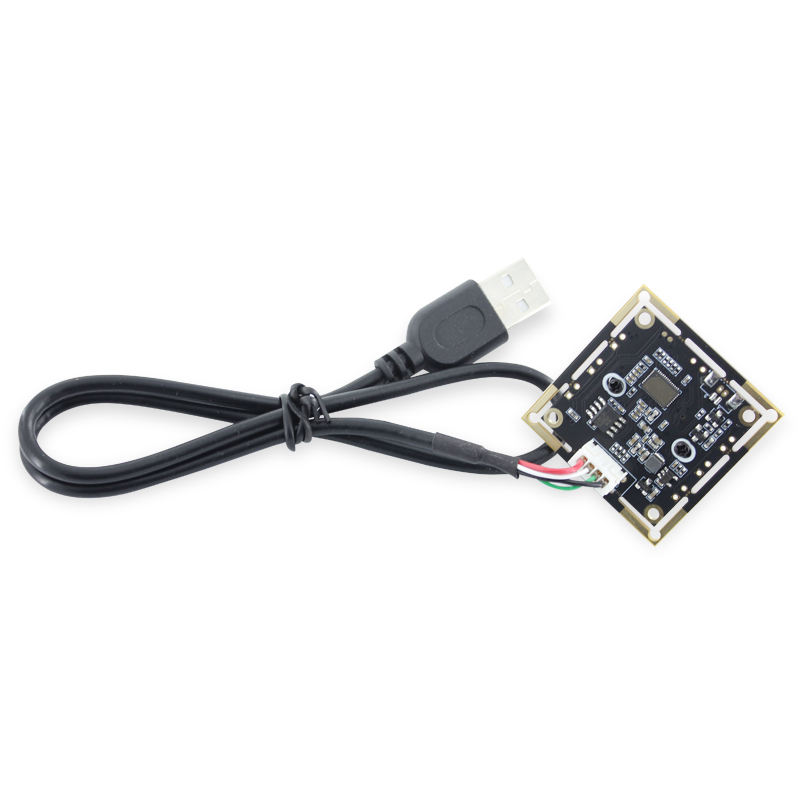

Detailed Images
