2MP Laptop CMOS Camera Module 1080P 4fps Fixed Focus Camera Module With Simulate Microphone
$15.60
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Specification
| Module No. | 1609 S2.0 |
| Module Size | 35mm × 31.5mm × 18.5mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 400 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV2643 (1/4" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1600*1200 |
| Sensitivity | 1250mV /（lux-sec） |
| Pixel Size | 2.2µm x 2.2µm |
Maximum Image Transfer Rate | MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 352x288 30FPS / YUY2 640x480 30FPS MJPEG 640x480 30FPS / YUY2 800x600 15FPS MJPEG 800x600 30FPS / YUY2 1280x720 8FPS MJPEG 1280x720 30FPC / YUY2 1280x1024 8FPS MJPEG 1280x1024 30FPC / YUY2 1600x1200 4FPS |
| FOV | 90° |
| Certifications | FCC/CE/ROSH |

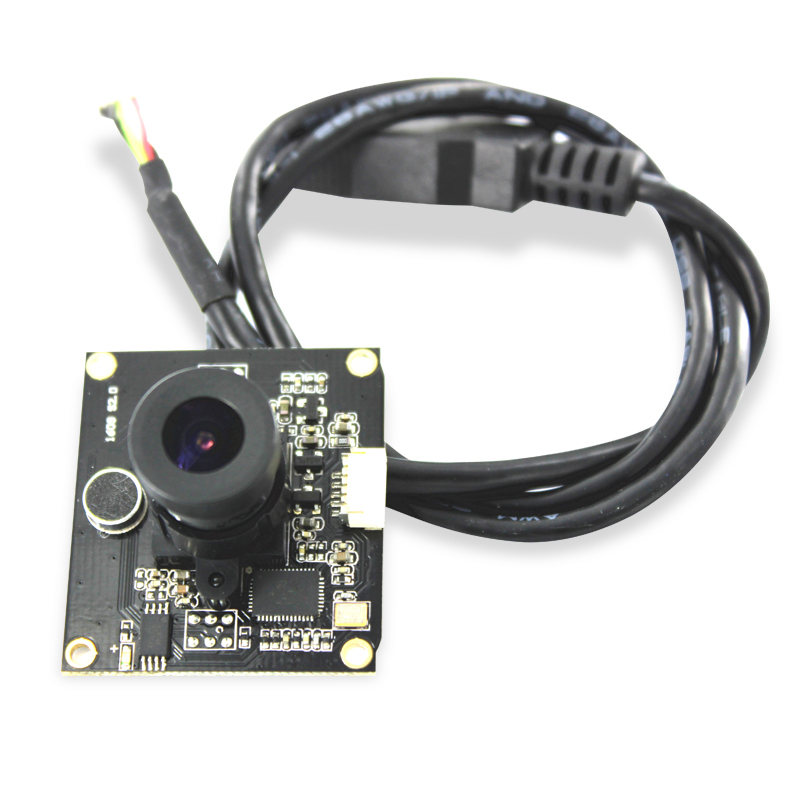

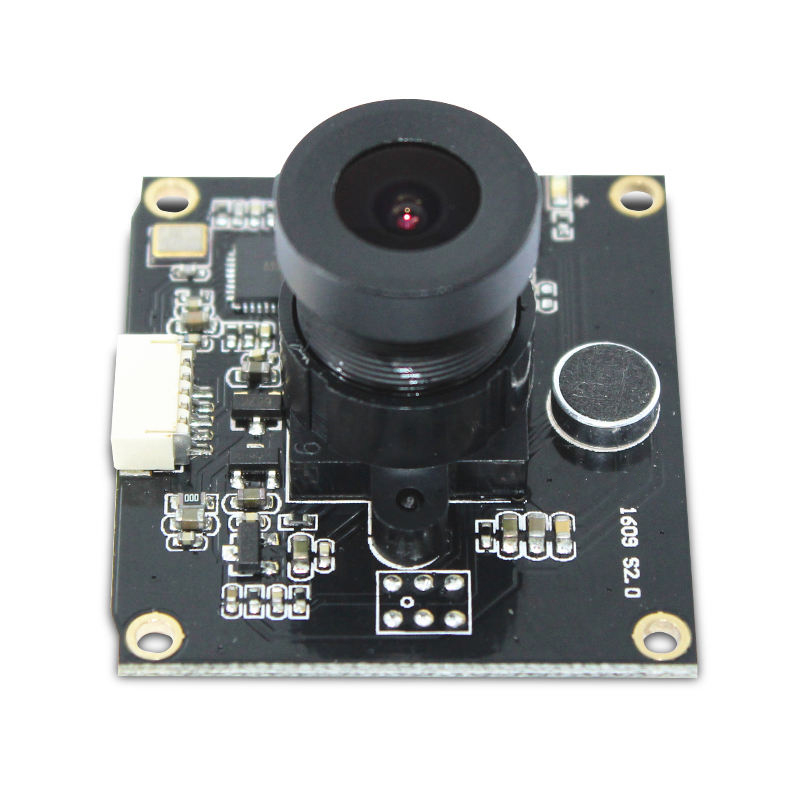

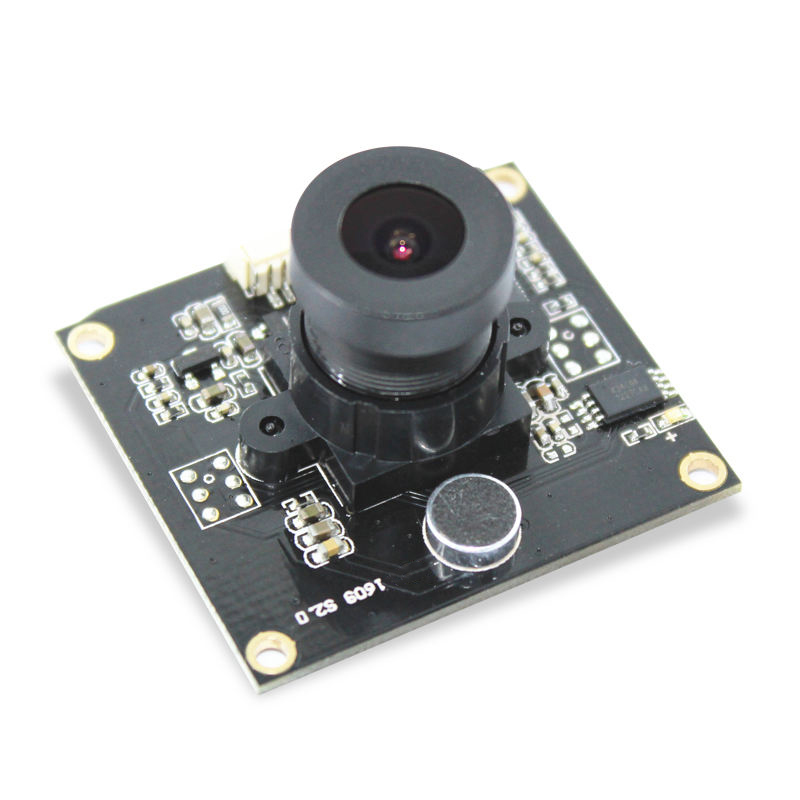

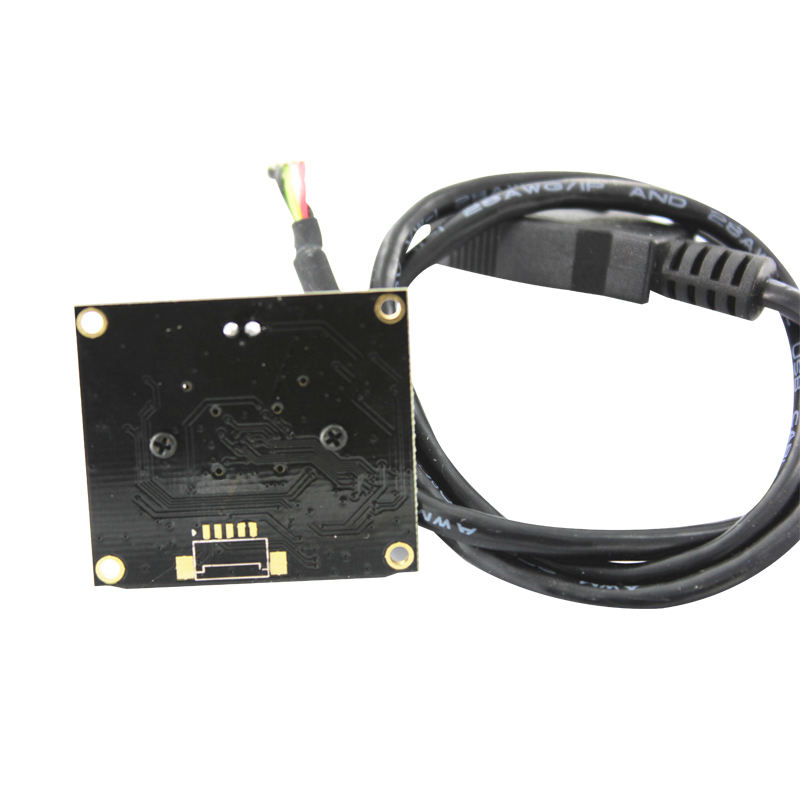

Detail Images

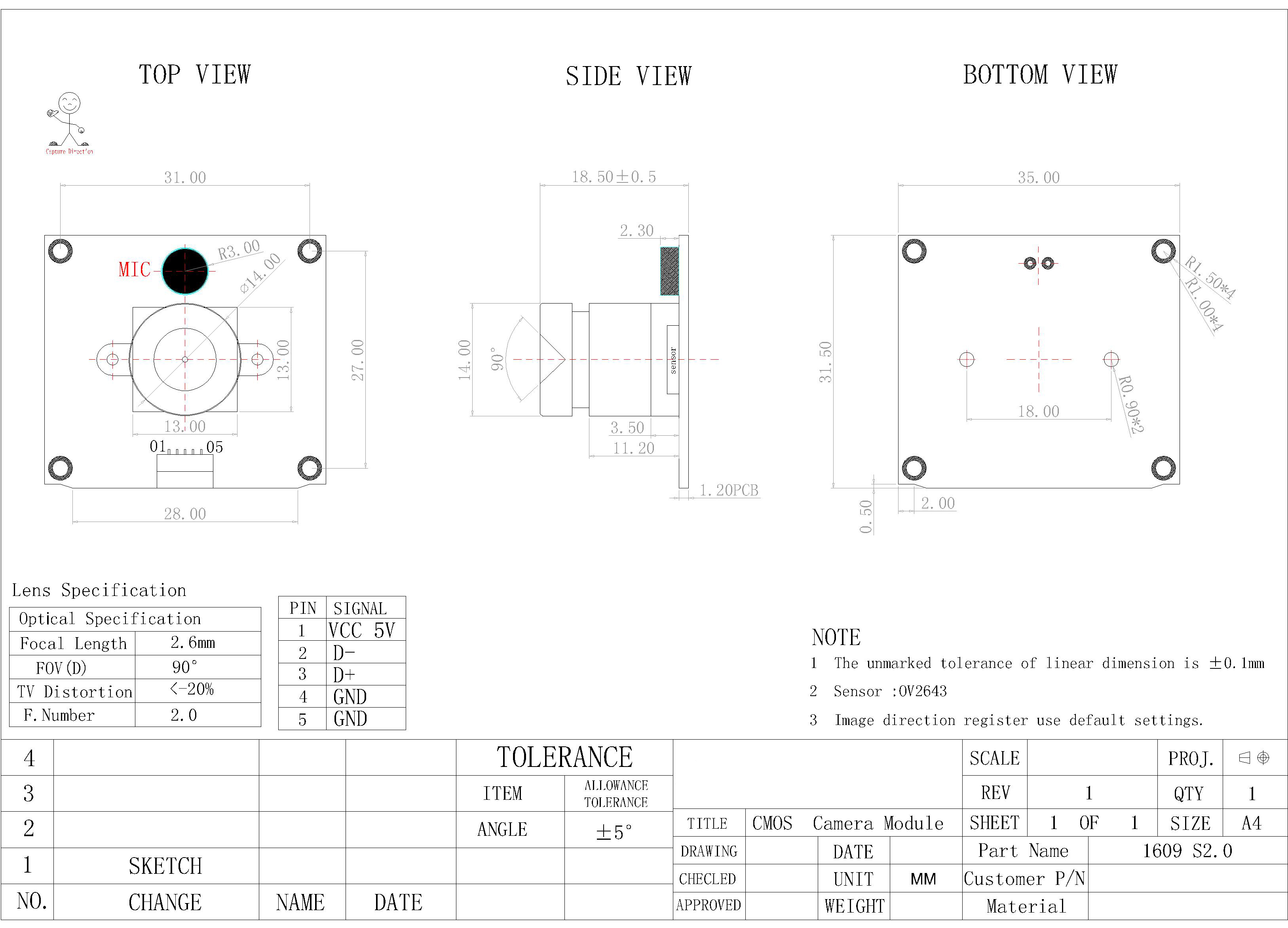

Product drawing
