8MP free driver Auto Focus Sensor IMX179 CMOS Mini camera module
$6.00
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Specification
| Module No. | BM8M1824U3 V11 |
| Module Size | 38mm × 38mm × 6.75mm±0.2MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | AUTO |
| Object distance | 30CM-infinity |
| Resolution | 800LW/PH (Center) |
| PCB printing ink | black |
| interface | USB 3.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 1000 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | IMX179 (1/3.2" ) |
| Seneor Package | PLCC,Bare Die |
| Maximum resolution | 3264*2448 |
| Sensitivity | 700mv /（lux-sec） |
| Pixel Size | 1.4µm x 1.4µm |
| Maximum Image Transfer Rate | MJPEG 1280x1024 30FPS / YUY2 1280x1024 5FPS MJPEG 1600x1200 30FPS / YUY2 1600x1200 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2048x1536 20FPS / YUY2 2048x1536 3FPS MJPEG 2592x1944 20FPS / YUY2 2592x1944 2FPS MJPEG 3264x2448 20FPS / YUY2 3264x2448 1FPS |
| S/N Ratio | 44 db |
| Max Dynamic Range | 83 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 5P |
| F/No | 2.2 |
| EFL | 3.5 mm |
| FOV | 77.2° |
| TV Distortion | <1.0% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
Product Description

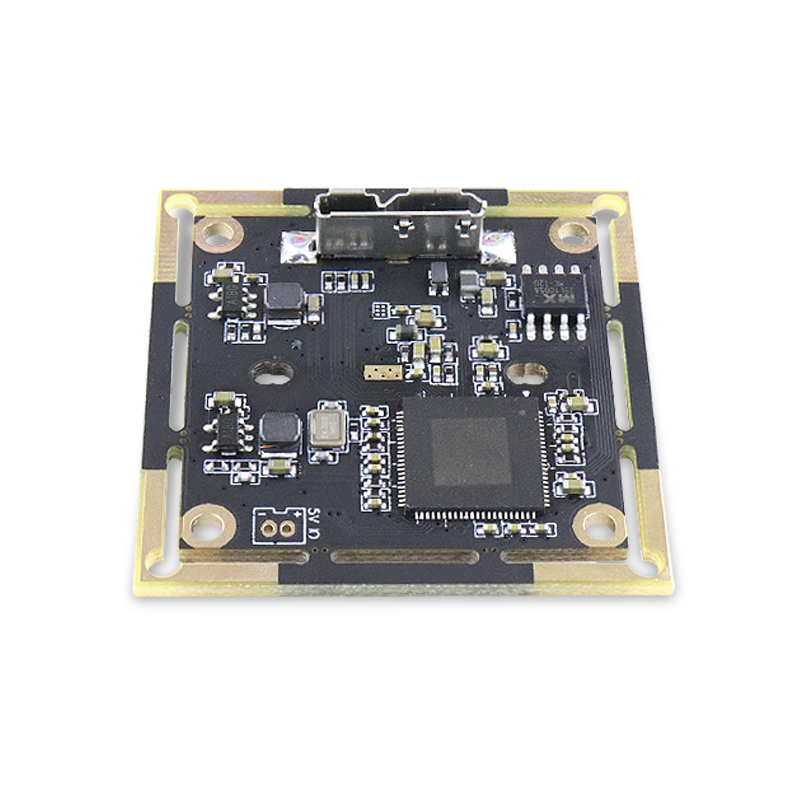

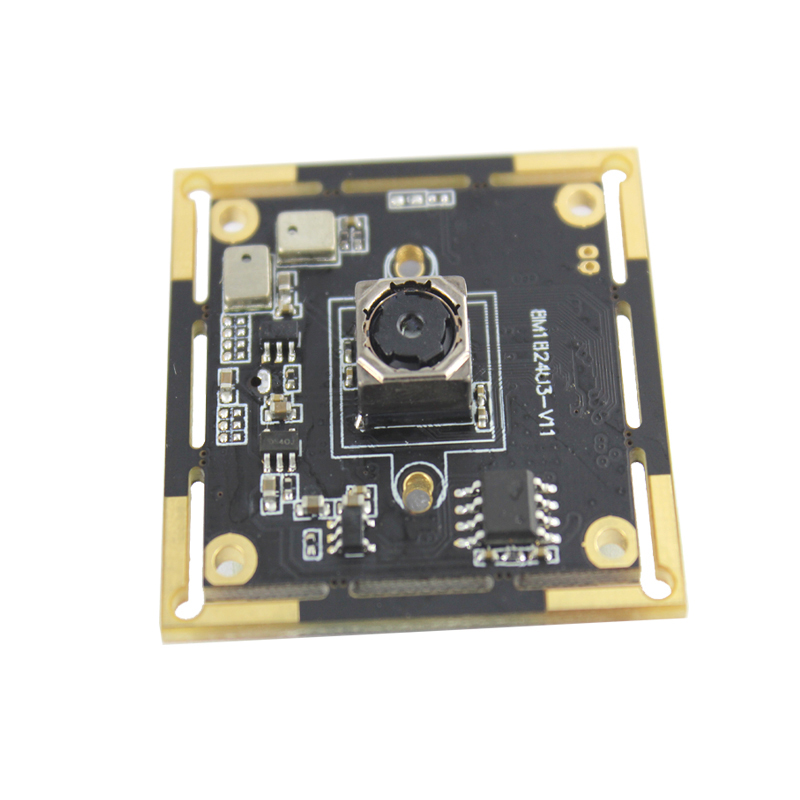

8MP USB3.0 Auto FOCUS CAMERA MODULE
8MP usb3.0 Auto Focus Camera module for Face Recognition/Industrial
equipment/Advisement player/Monitoring equipment
Product Drawing
Product Usage
Product usage introduction

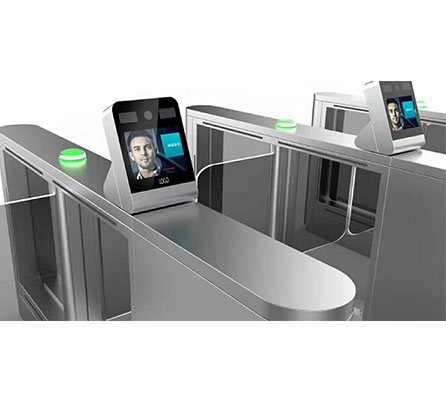

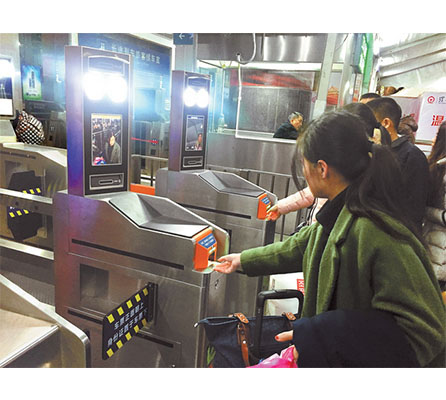

this 8MP Camra module can be used in face recognition access control system
Description of product use effect
IMX179 usb camera module, it is free driver for window/Linux/Andorid system with good quality
