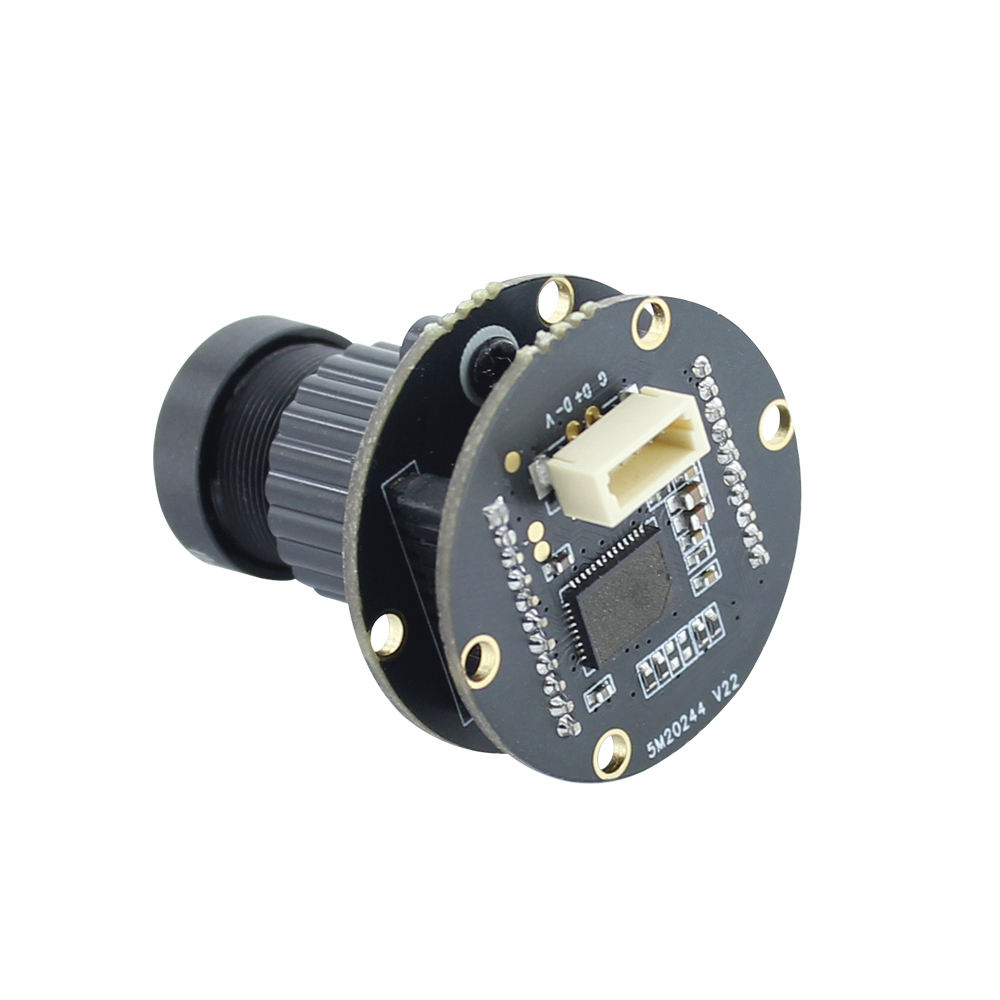

Circular Structure 5Mp F2.4 30Fps Hardware Wide Dynamic 85Db PS5520 Camera Module For Telescopes
$43.20
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Description
| Product Name | 5 MP 2K cylindrical pipeline industrial equipment embedded built-in camera module | ||
| Module No. | BM5M20244 V11 | ||
| Module Size | 25mm × 31mm±0.5MM | ||

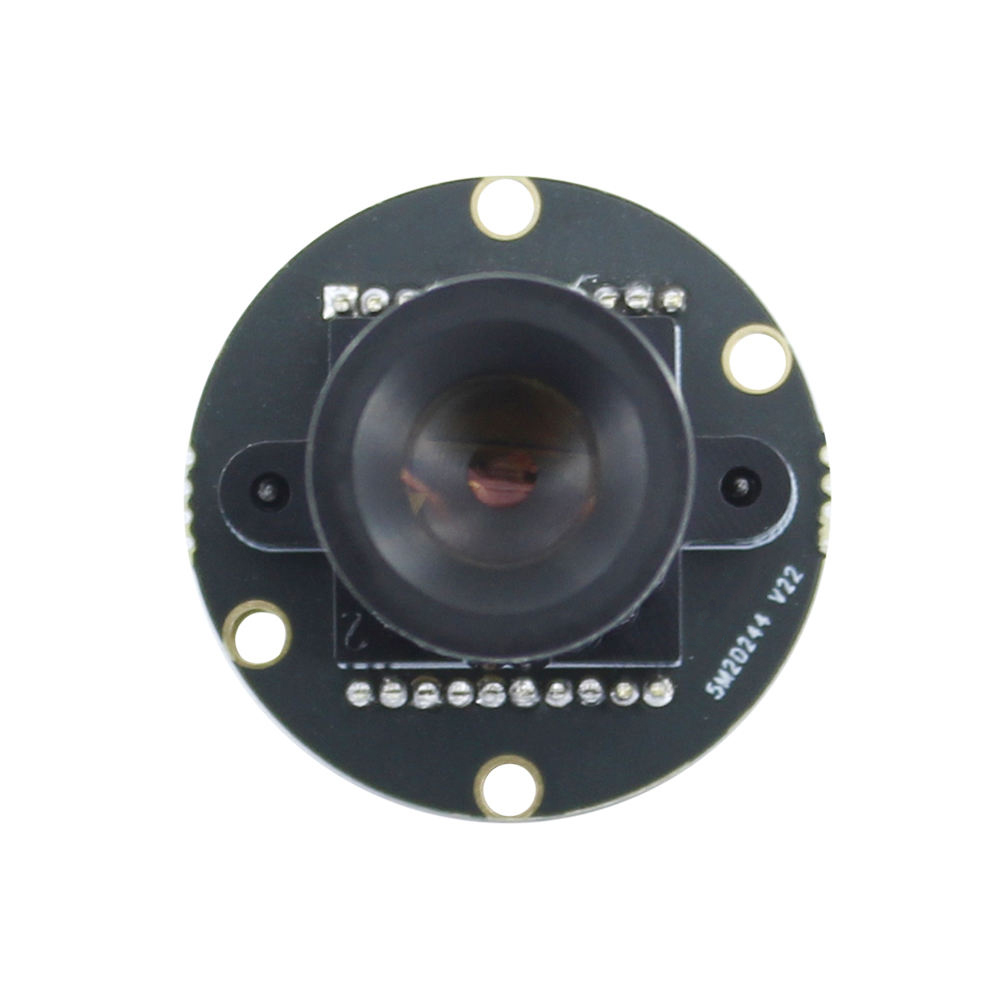

| Features | 1. The circular structure is mainly used for installation in large circular tubes, telescopes, etc.
| ||
| Temperature (Operation) | -30°C to 70°C | ||
| Temperature (Stable Image) | 0°C to 50°C | ||
| Assembly technique | SMT (ROSH) | ||
| Focus | Fixed | ||
| Object distance | 30CM-infinity | ||
| Resolution | 600LW/PH (Center) | ||
| PCB printing ink | Black | ||

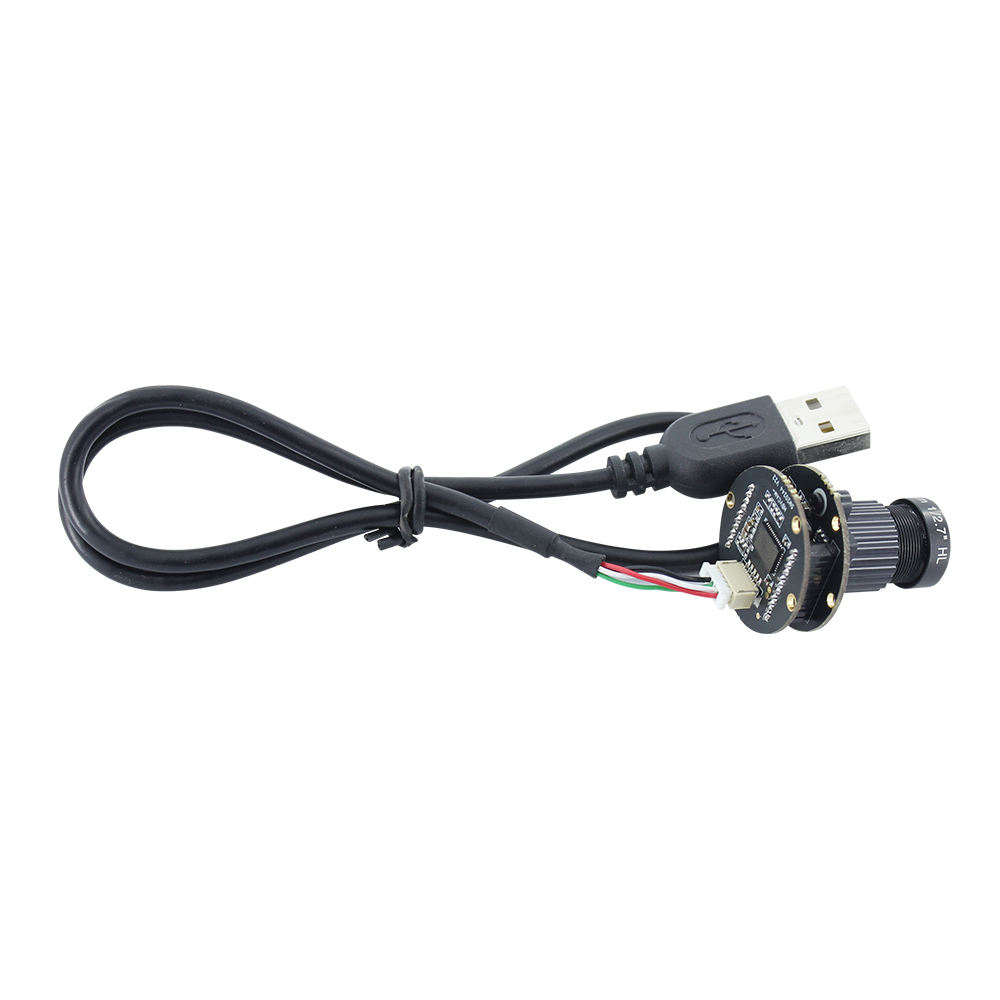

| interface | USB 2.0 | ||
| Power suuply | USB bus power | ||
| supply voltage | DC 5V±5% | ||
| Maximum Power consumption | 600 mW | ||
| Operating system request | Win XP/win 7,8 ,10/ vista /android 4.0/ mac /Linux with uvc | ||
| Sensor | PS5520 (1/2.7" ) | ||
| Seneor Package | CSP,Bare Die | ||
| Maximum resolution | 2592*1944 | ||
| Sensitivity | 3300mV /(lux-sec) | ||
| Pixel Size | 3.0µm x 3.0µm | ||
| Maximum Image Transfer Rate | MJPEG 1024x768 30FPS / YUY2 1024x768 10FPS MJPEG 1600x1200 30FPS / YUY2 1600x1200 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2048x1536 30FPS / YUY2 2048x1536 3FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 3FPS | ||
| S/N Ratio | 39 db | ||
| Max Dynamic Range | 85 db | ||
| Shutter type | Electronic rolling shutter | ||
| AGC/AEC/Whiter balance | Auto | ||
| Output Formats | YUY2/MJPEG | ||
| Microphone | NO | ||
| Lens Construction | 2G2P | ||
| F/No | F2.4 | ||
| EFL | 8mm | ||
| FOV | 53° | ||
| TV Distortion | <5% | ||
| Relative Illumination (Sensor) | 70% | ||
| IR Filter | 650±10nm | ||
| Module Package | Anti- electrostatic tray | ||
| Certifications | FCC/CE/ROSH |

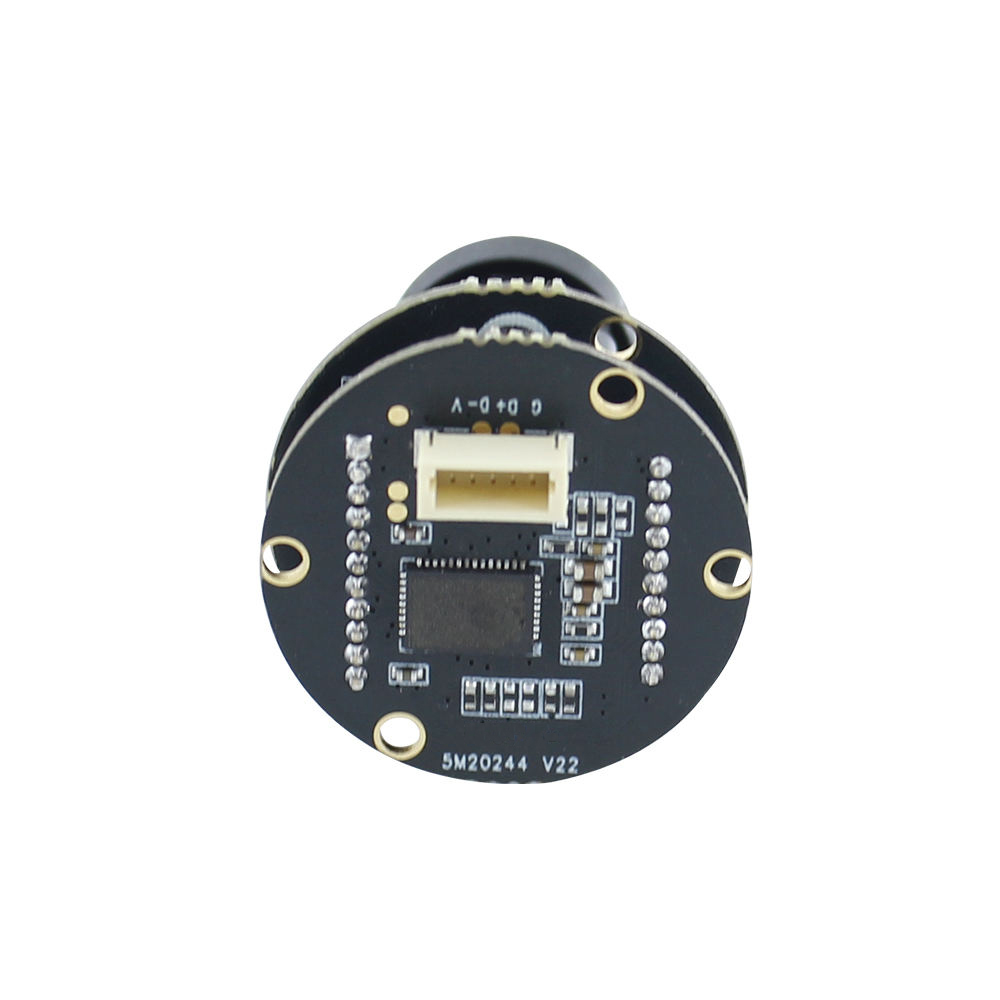

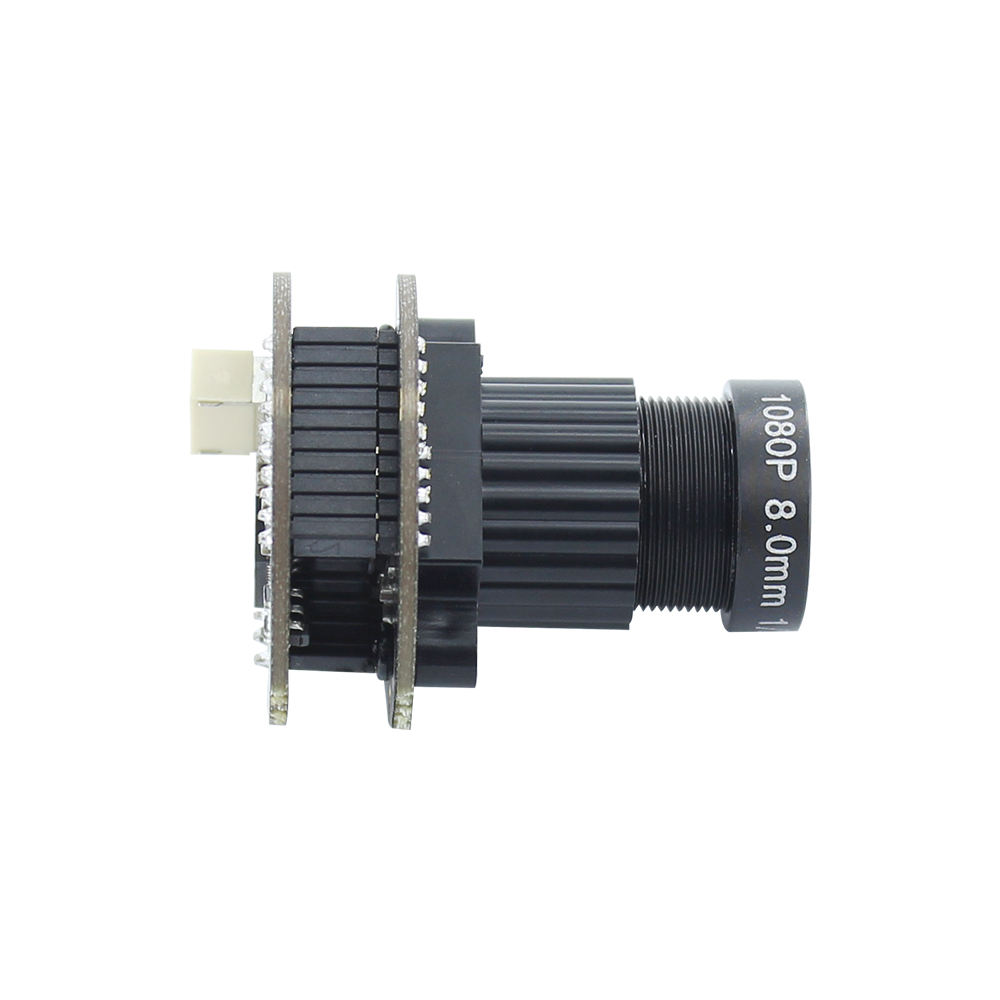

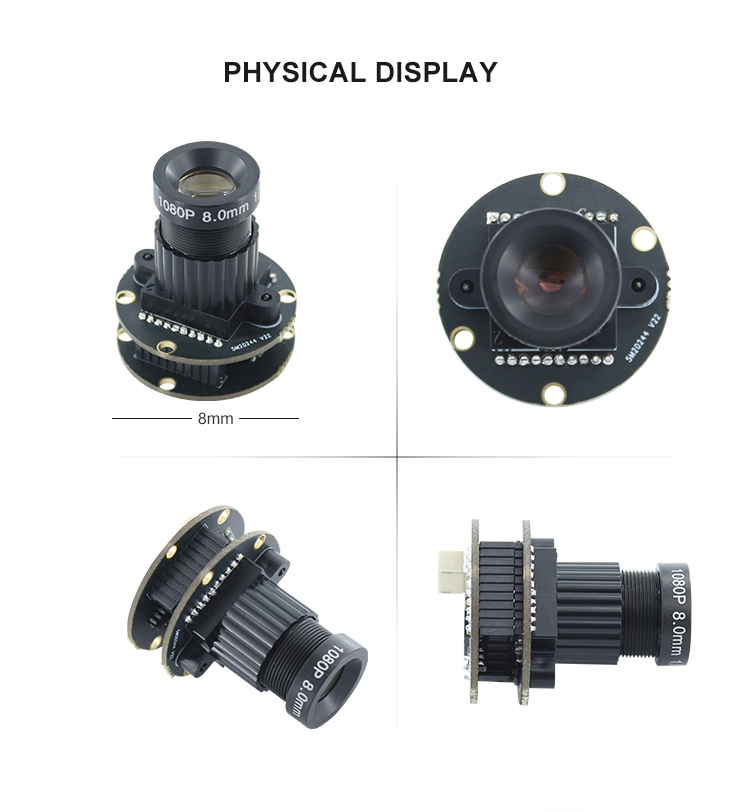

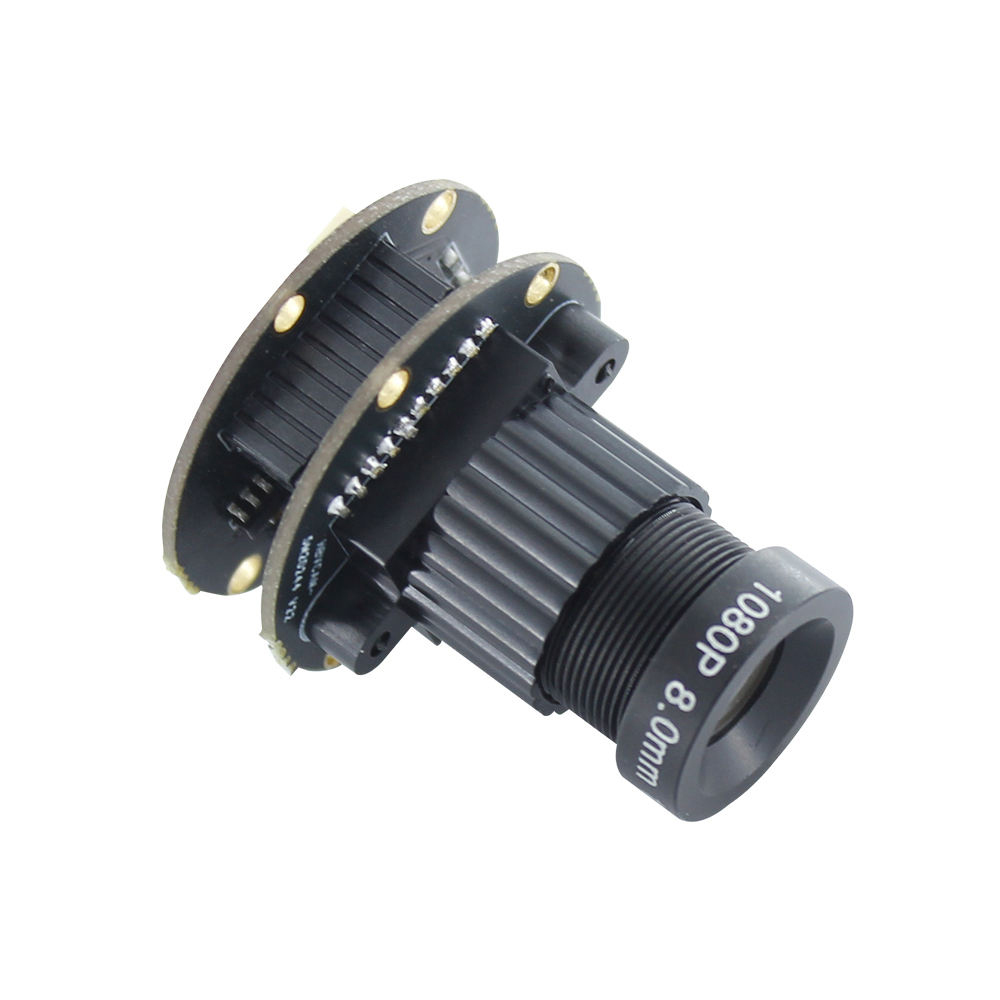

Detailed Images
