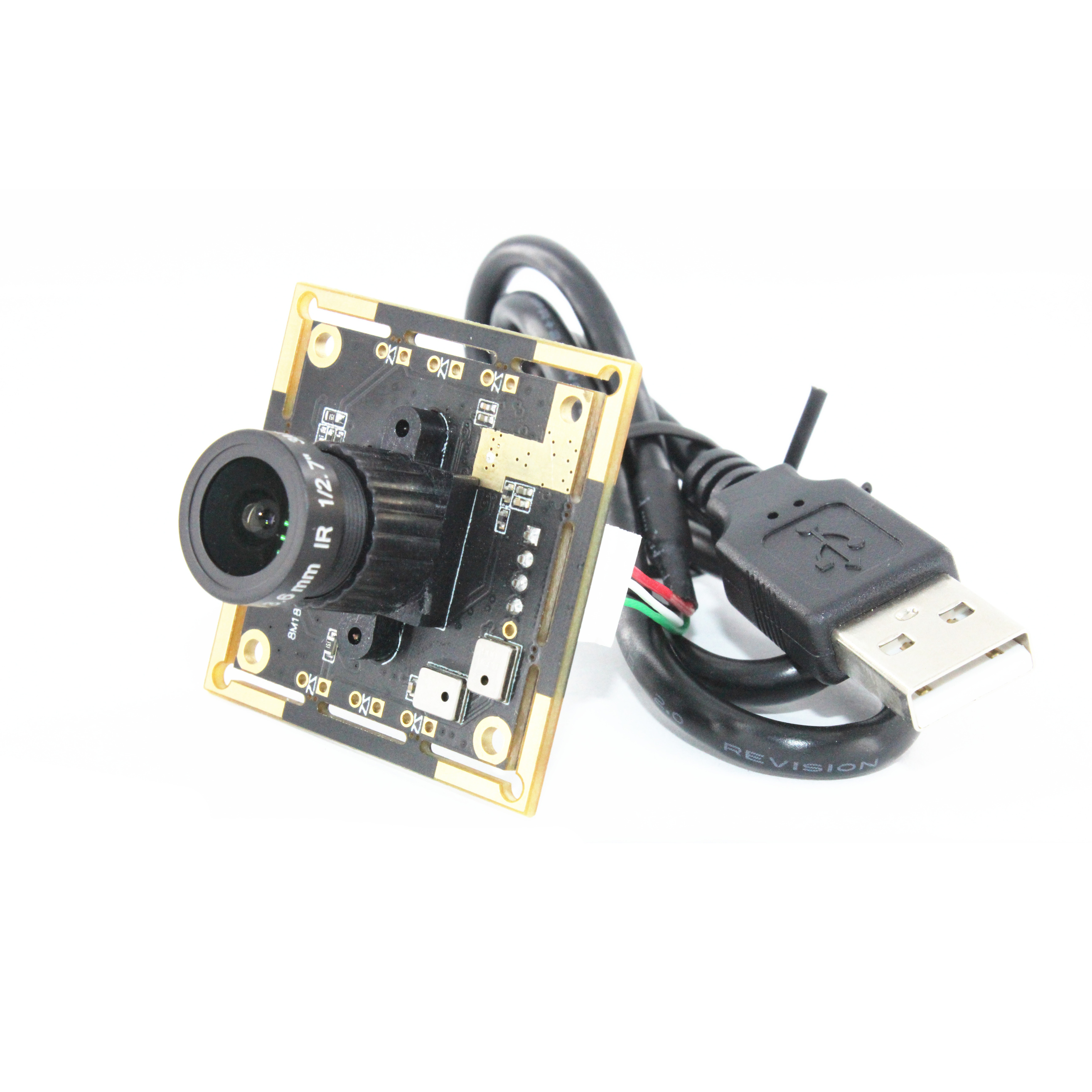

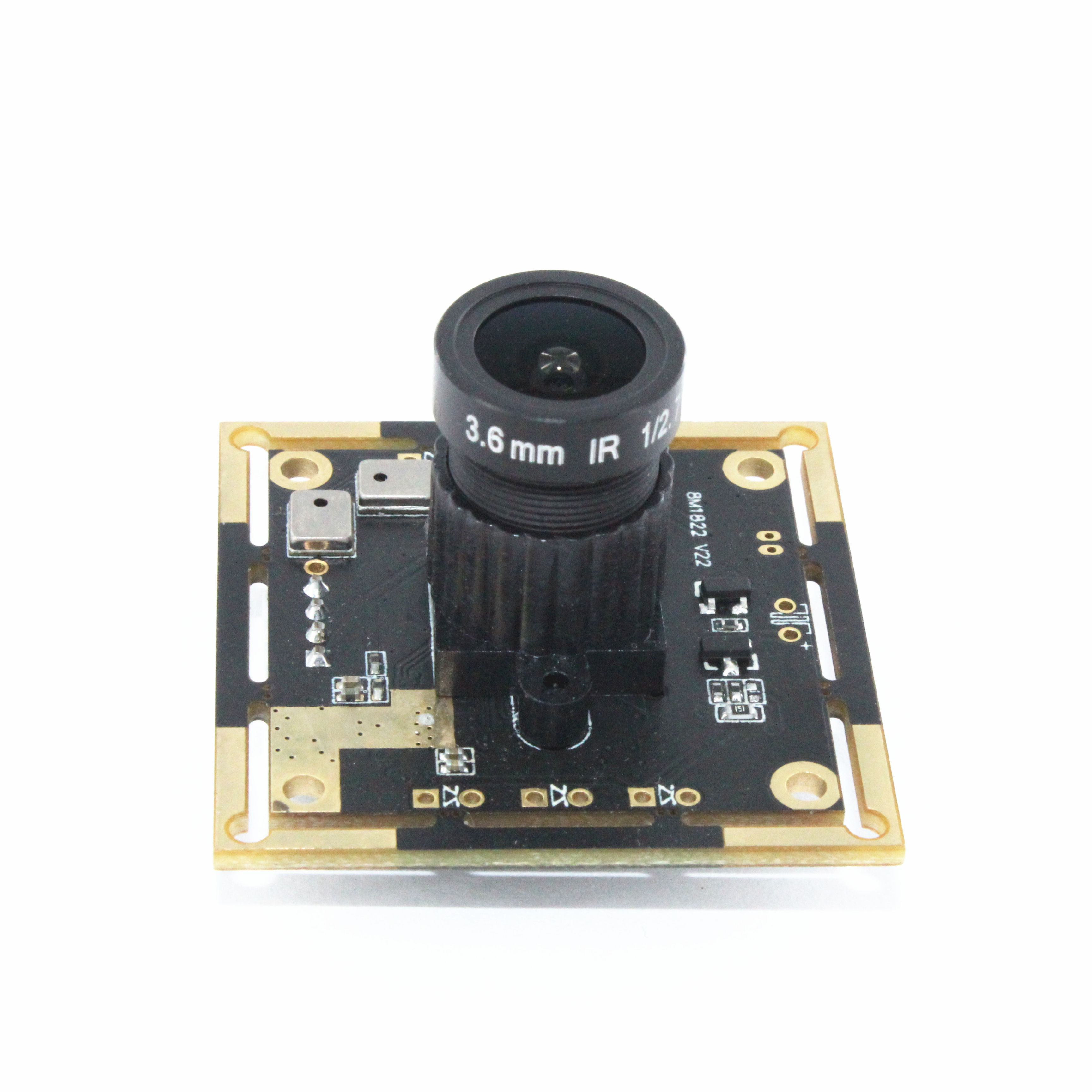

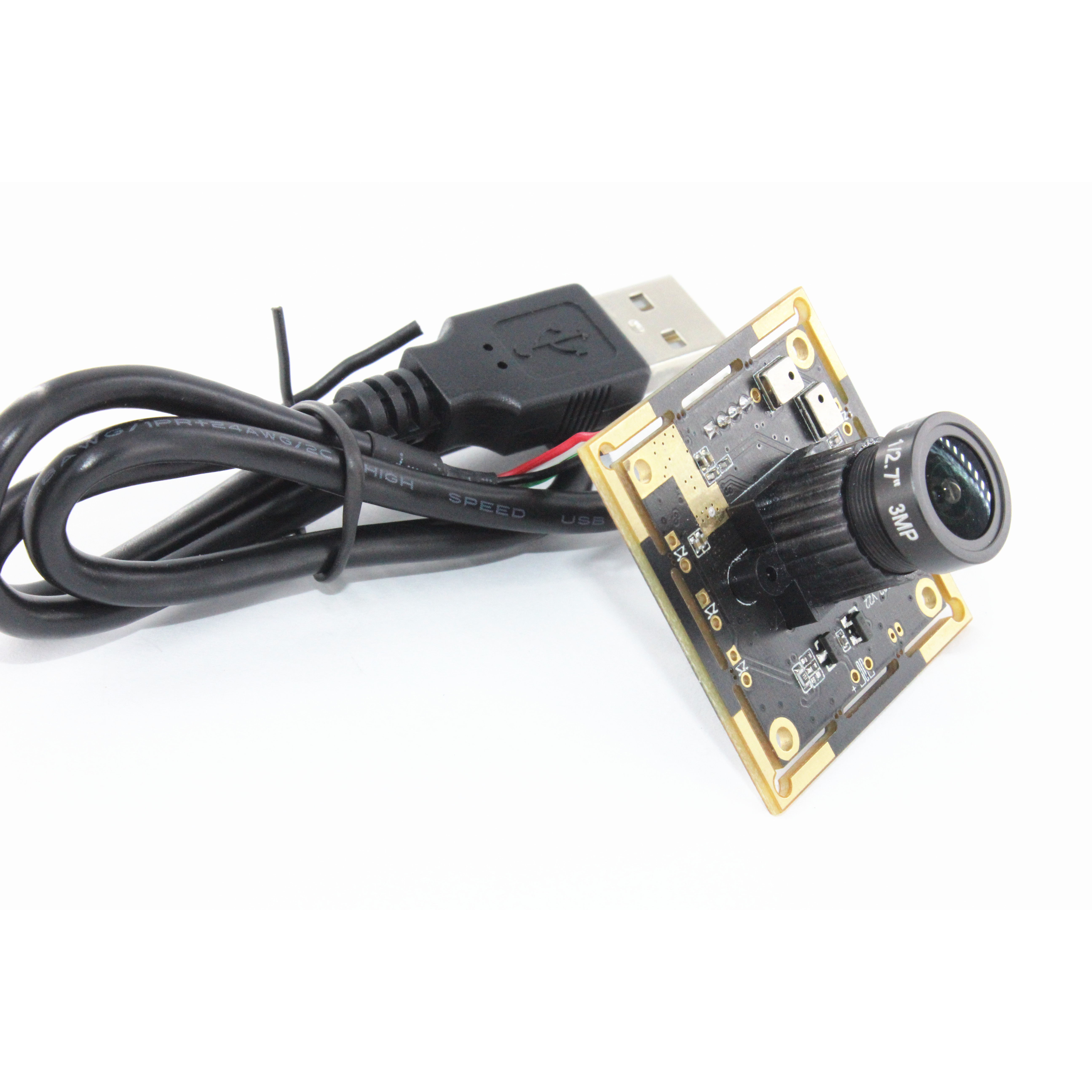

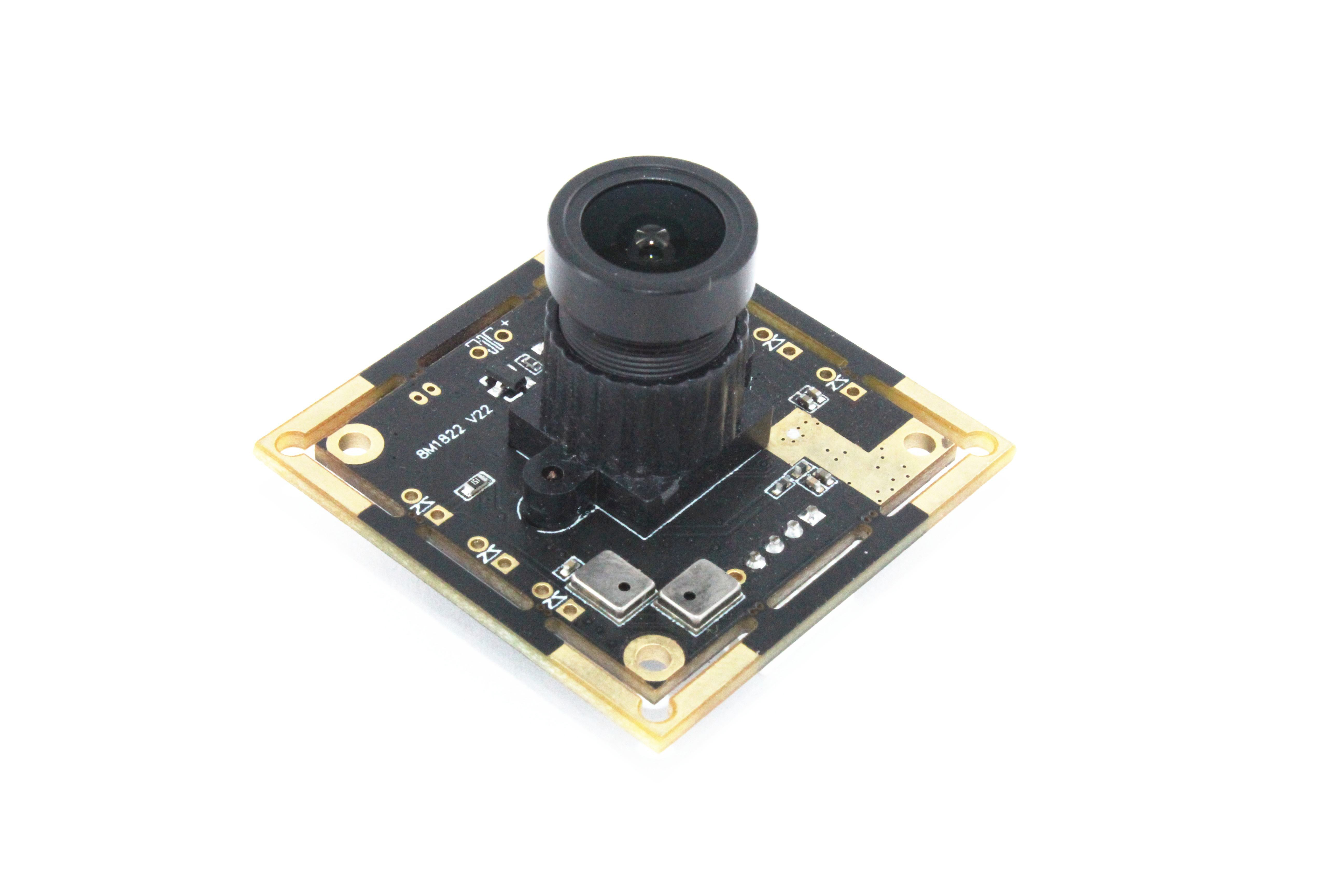

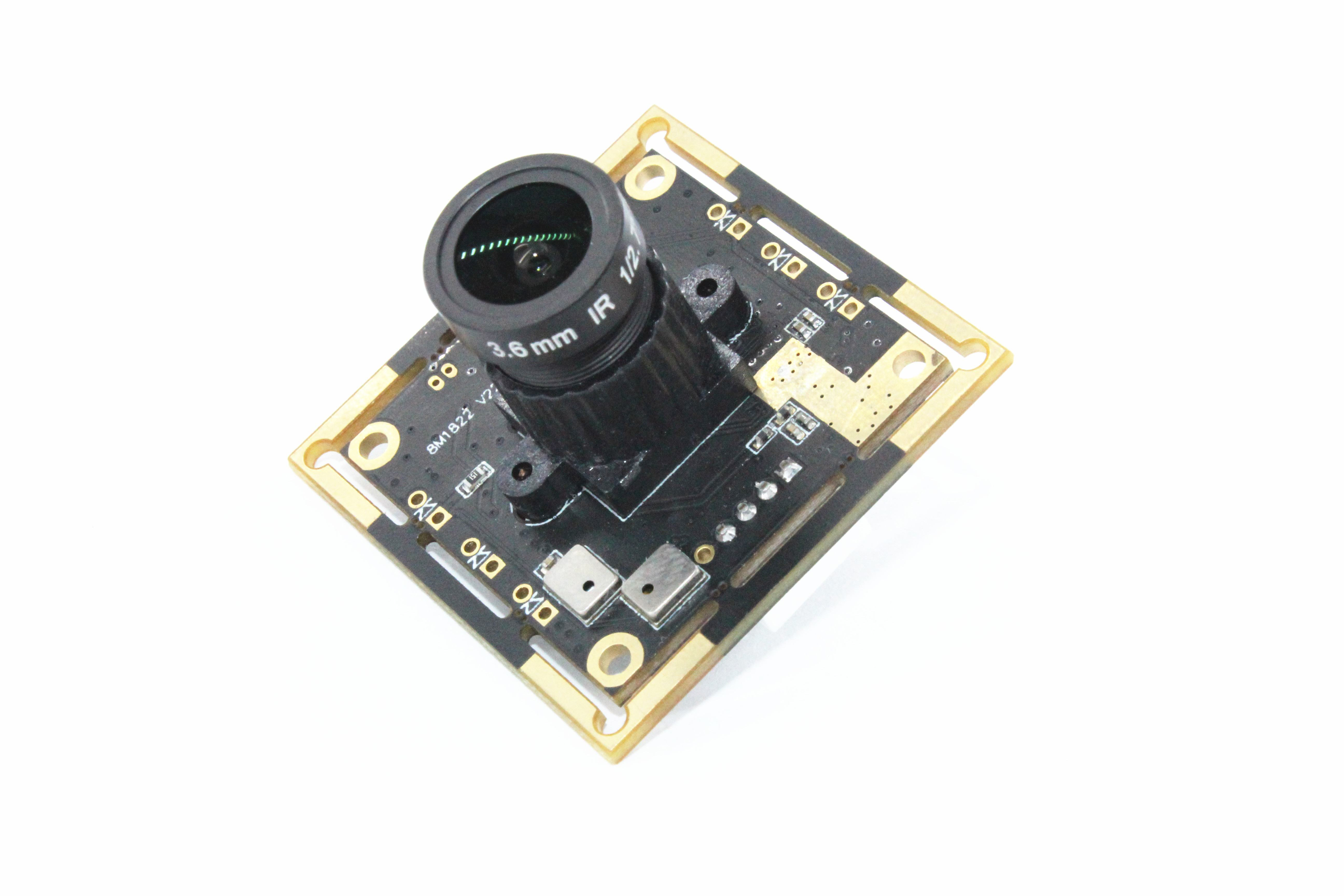

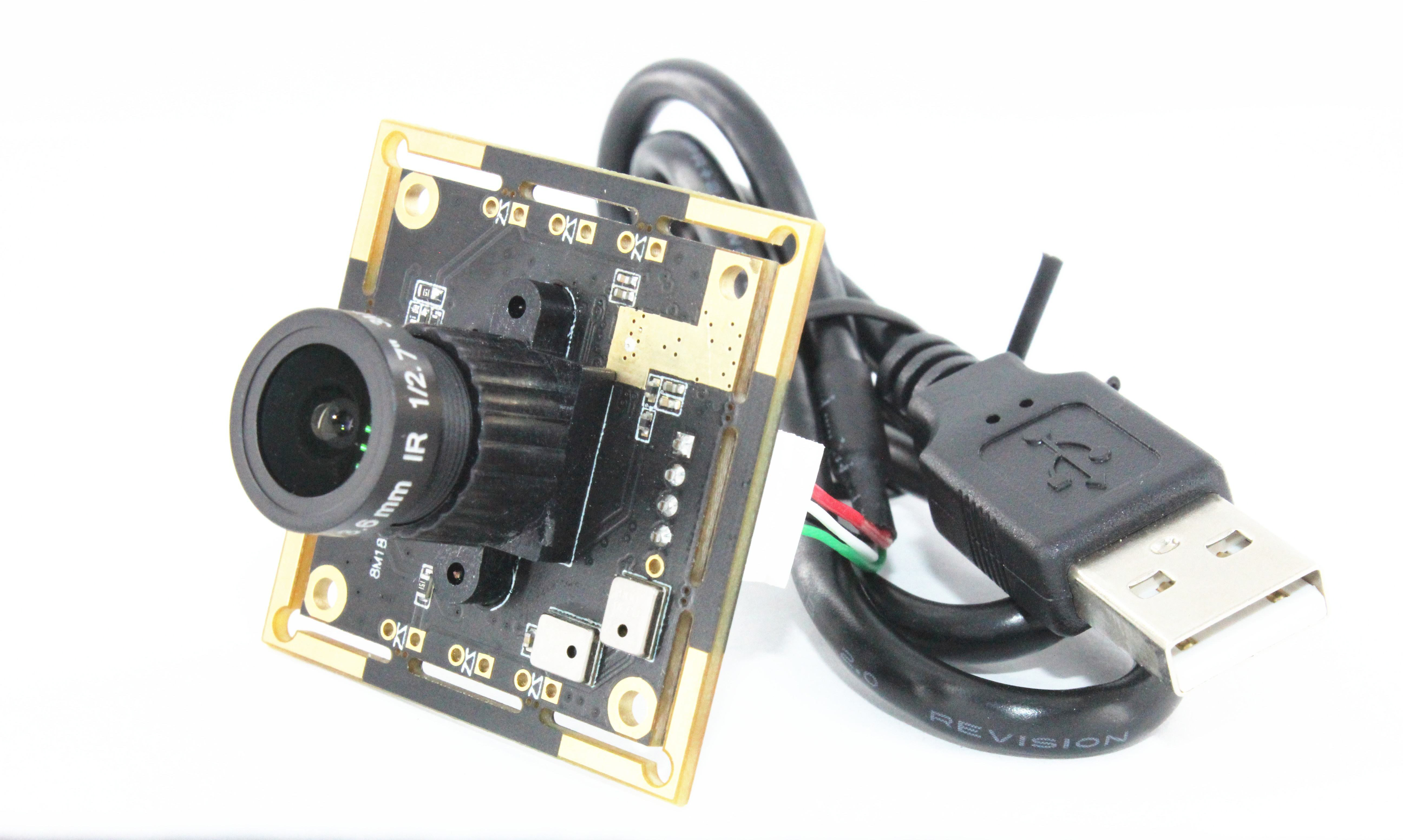

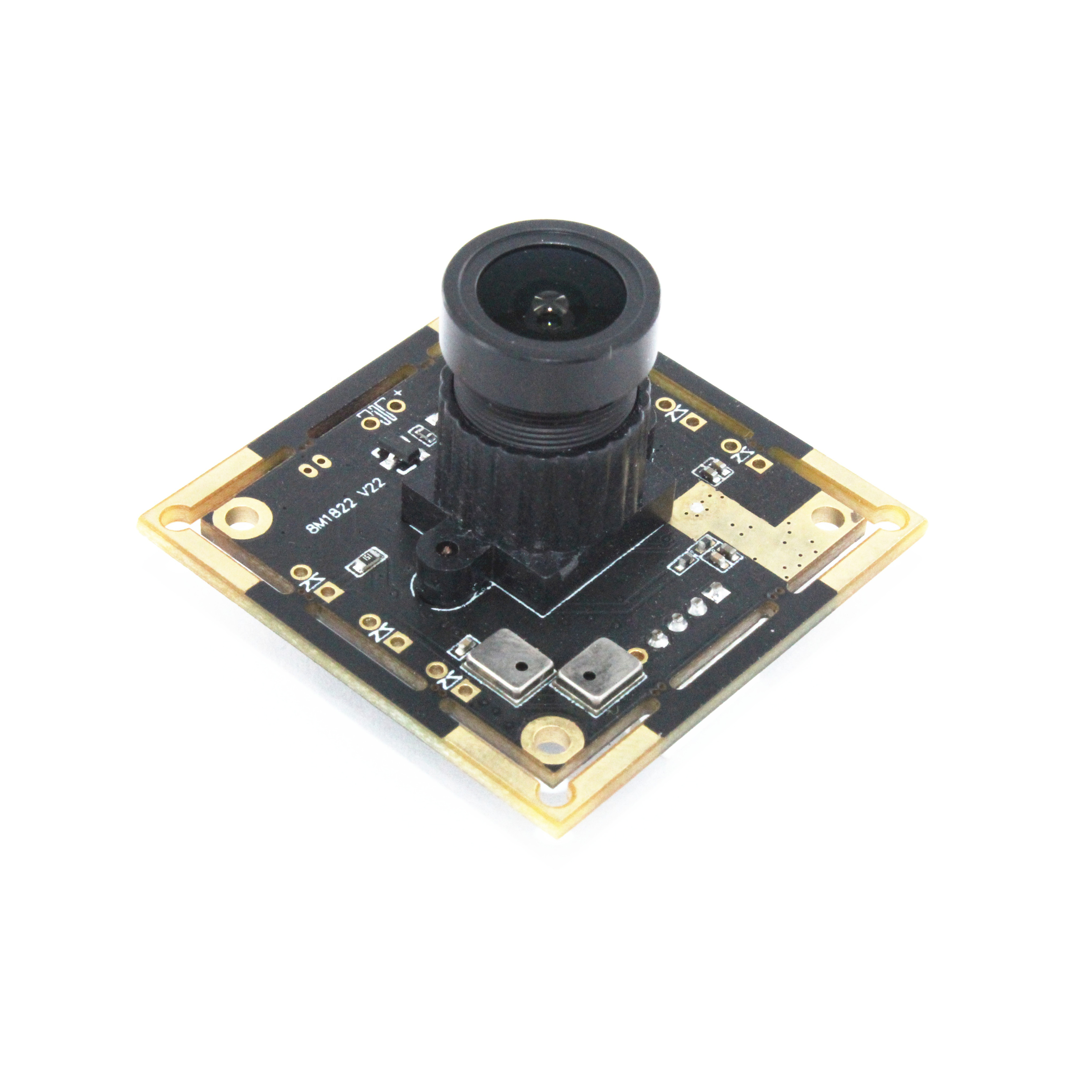

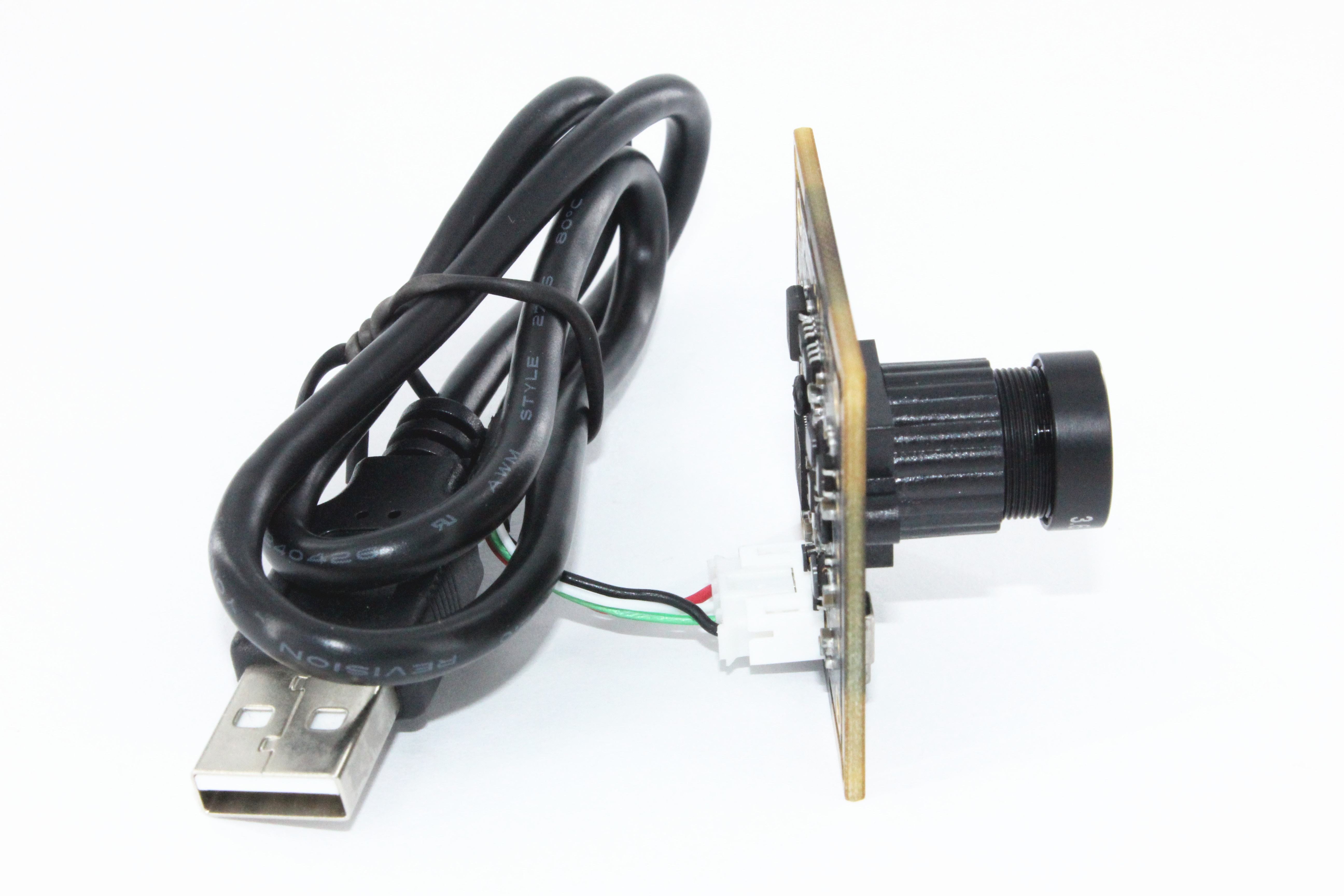

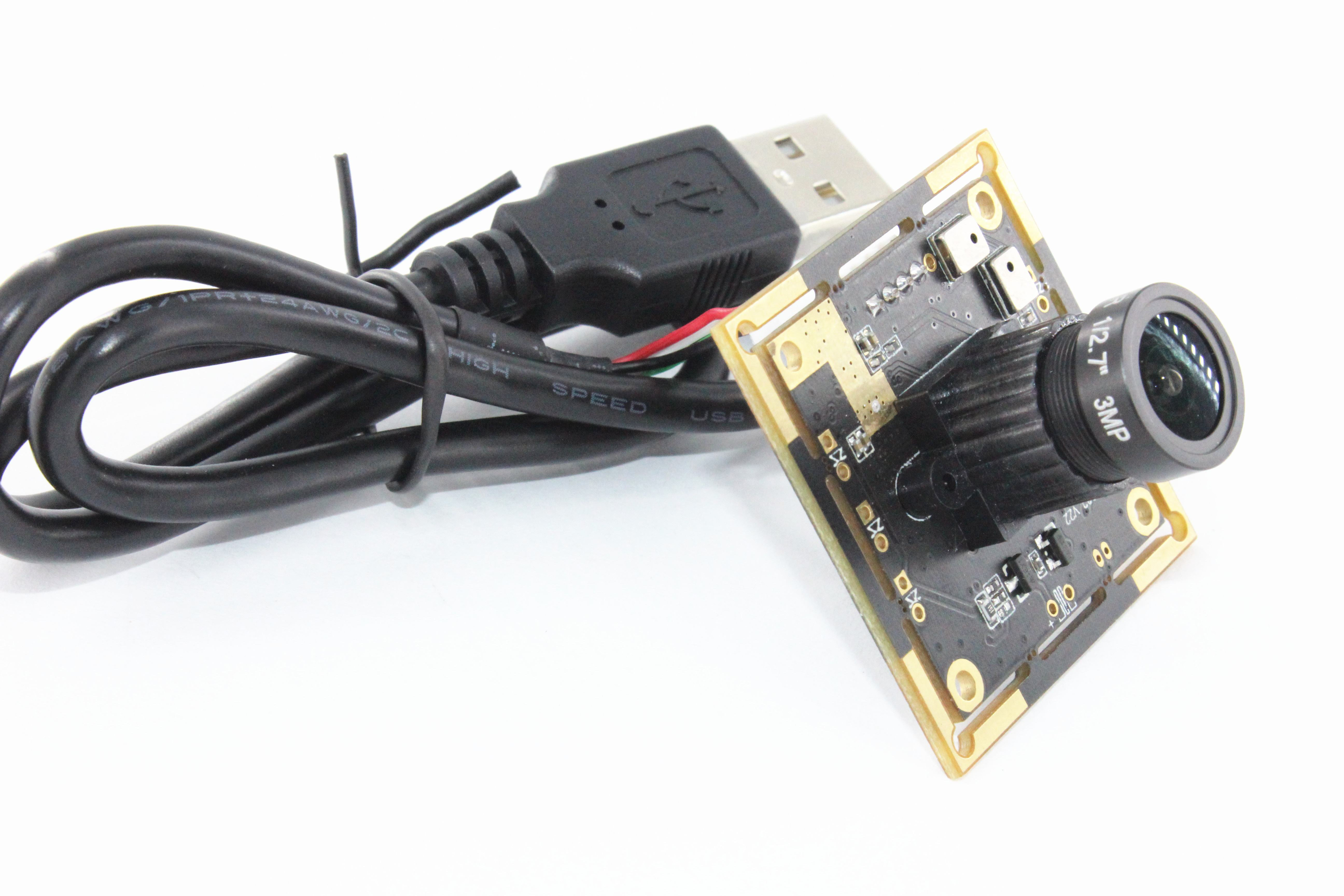

Strength ODM customization 8MP IP Camera module with 3.6MM lens compatible for Android system
$30.00
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Description
Module No. | BM8M1822 V22 |

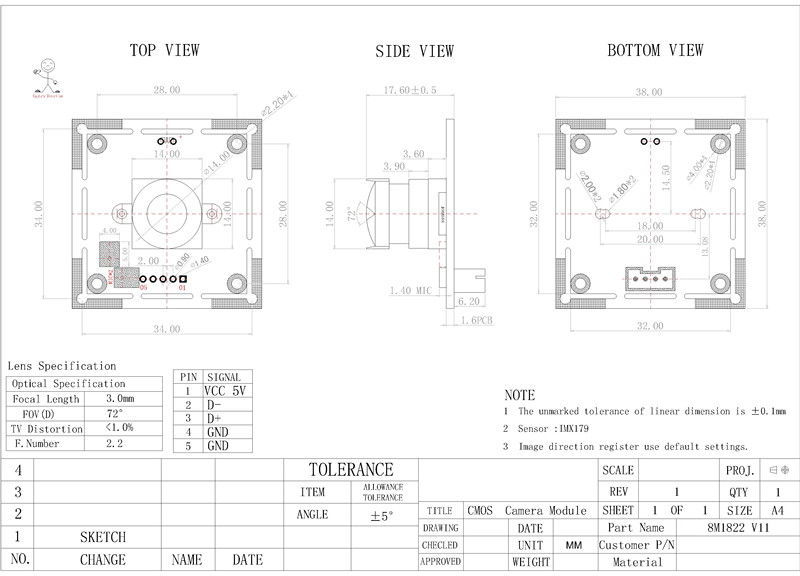

Module Size | 38mm × 38mm × 17.6mm±0.2MM |
Temperature (Operation) | -30°C to 70°C |
Temperature (Stable Image) | 0°C to 50°C |
Assembly technique | SMT (ROSH) |
Focus | AUTO |
Object distance | 30CM-infinity |
Resolution | 800LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 1000 Mw |
Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
Sensor | IMX179 (1/3.2" ) |
Seneor Package | PLCC,Bare Die |
Maximum resolution | 3264*2448 |
Sensitivity | 700mv /（lux-sec） |
Pixel Size | 1.4µm x 1.4µm |
Maximum Image Transfer Rate | MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 8FPS MJPEG 1600x1200 30FPS / YUY2 1600x1200 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 4FPS MJPEG 2048x1536 20FPS / - MJPEG 2592x1944 20FPS / - MJPEG 3264x2448 15FPS / - |
S/N Ratio | 44 db |
Max Dynamic Range | 83 db |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPEG |
Microphone | Support |
Lens Construction | 5P |
F/No | 2.2 |
EFL | 3.5mm |
FOV | 77.2° |
TV Distortion | <1.0% |
Relative Illumination (Sensor) | 70% |
IR Filter | 650±10nm |
Module Package | Anti-electrostatic tray |
Certifications | FCC/CE/ROSH |
8MP Fixed FOCUS CAMERA MODULE
8MP Fixed Focus Camera module for Face Recognition/Industrial equipment/Advisement player/Monitoring equipment
Details Images
IMX179 8MP Auto Focus camera for PC webcam
