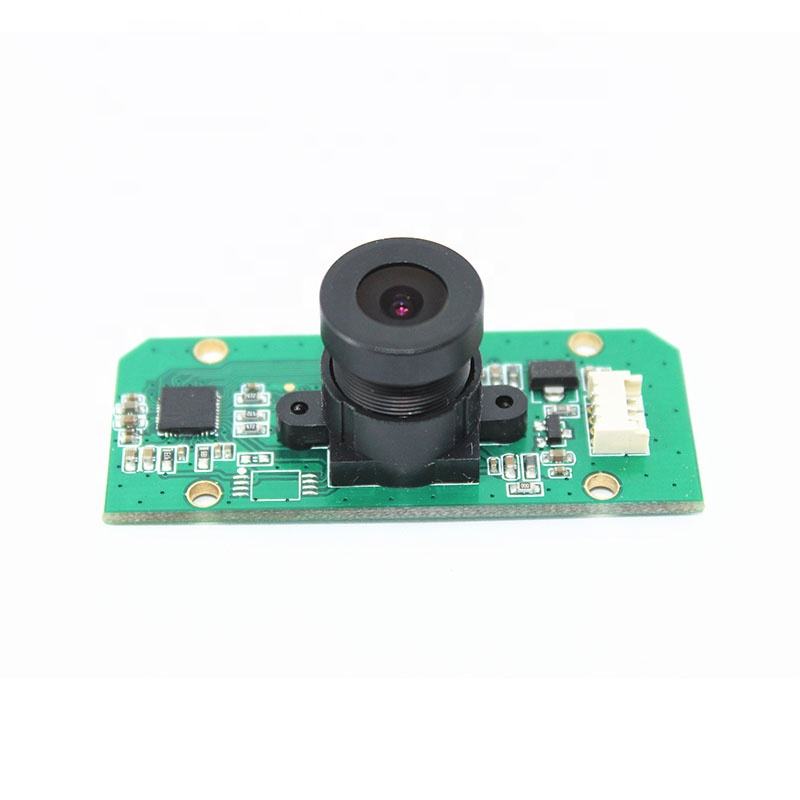

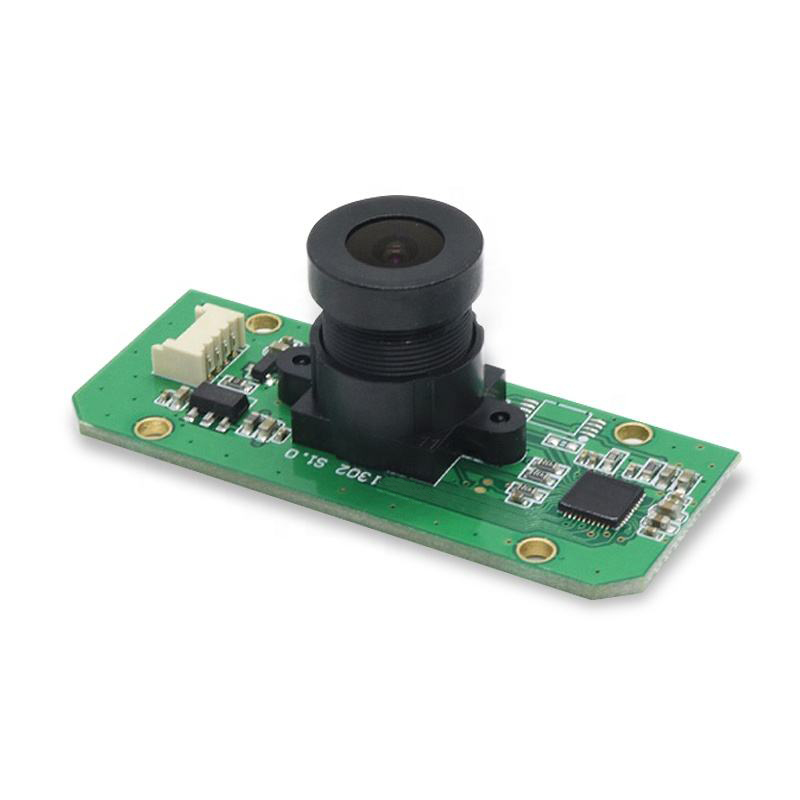

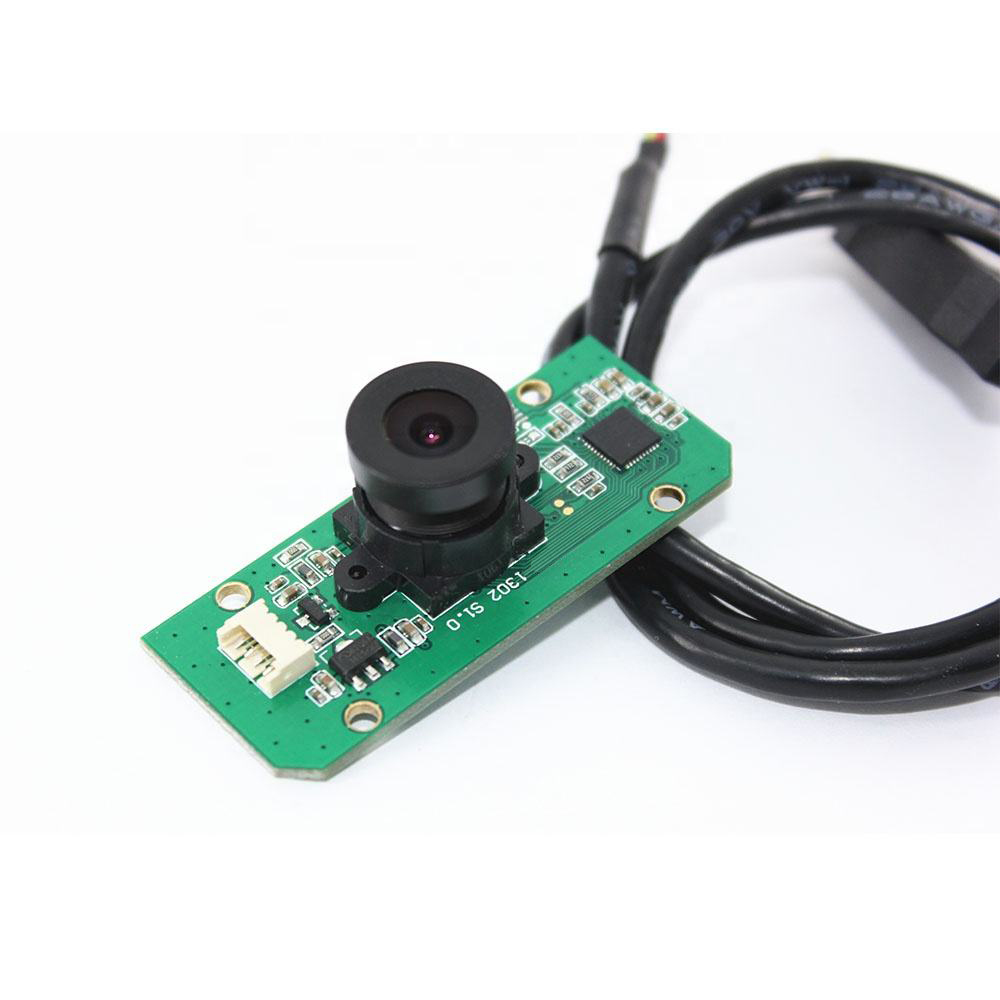

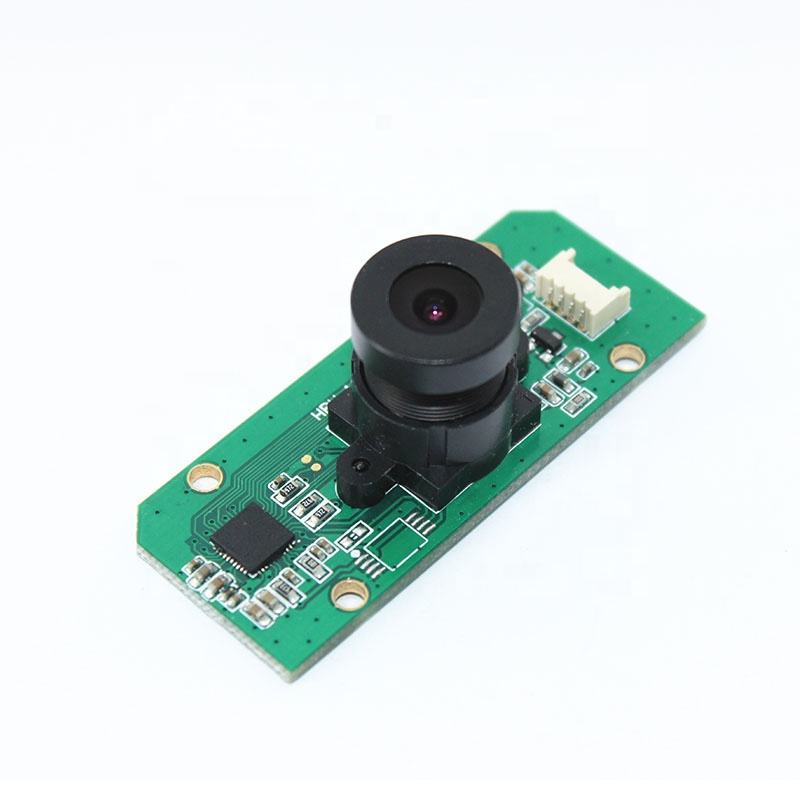

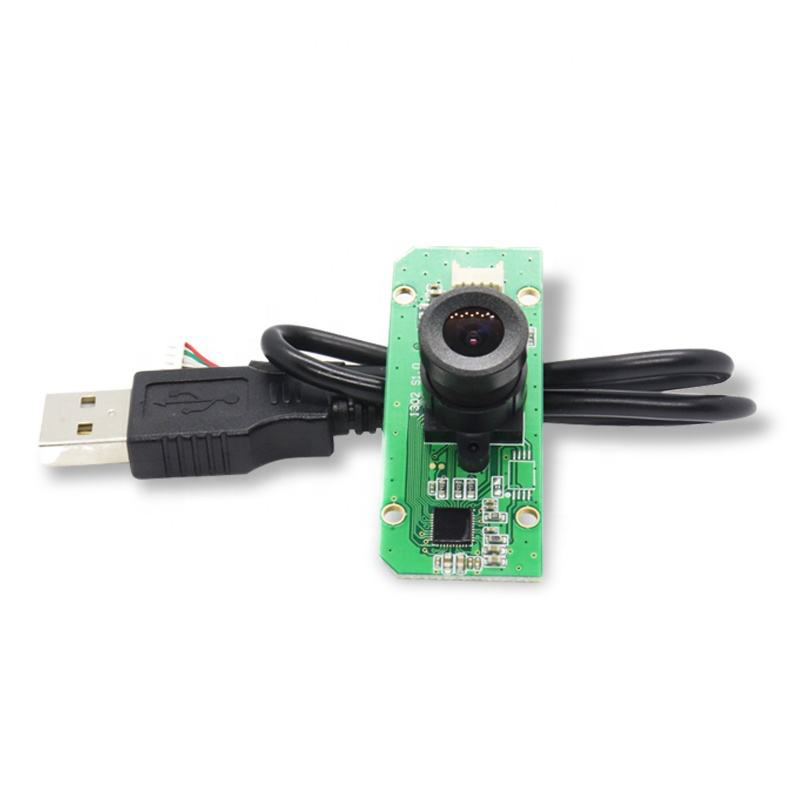

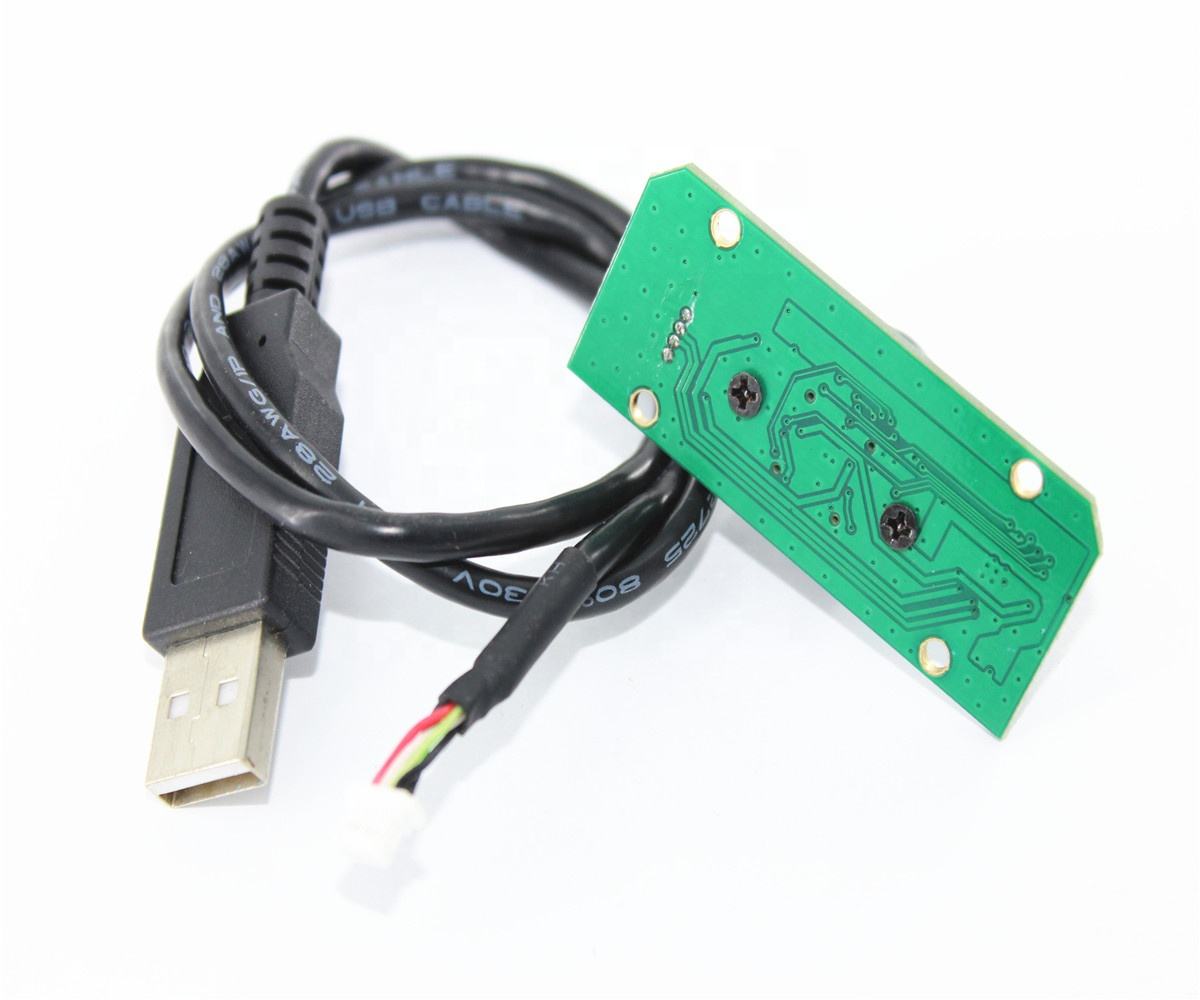

Qr Code Scanner for 0.3 MP HD Miniature Digital Camera Module
$8.40
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Description
Module No. | 1302 S1.0 |
Module Size | 52.2mm × 21.2mm × 18.75mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Green |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 600 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV7725 (1/4" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 640*480 |
| Sensitivity | 3.0V /（lux-sec） |
| Pixel Size | 6.0µm x 6.0µm |
| Maximum Image Transfer Rate | MJPEG 160x120 60FPS / YUY2 160x120 60FPS MJPEG 320x240 60FPS / YUY2 320x240 60FPS MJPEG 352x288 60FPS / YUY2 352x288 60FPS MJPEG 640x480 60FPS / YUY2 640x480 30FPS MJPEG 800x600 60FPS / YUY2 800x600 15FPS |
| S/N Ratio | 50db |
| Max Dynamic Range | 60db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 4G+IR |
| F/No | 2.0 |
| EFL | 2.6 mm |
| FOV | 120° |
| TV Distortion | <-50% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |

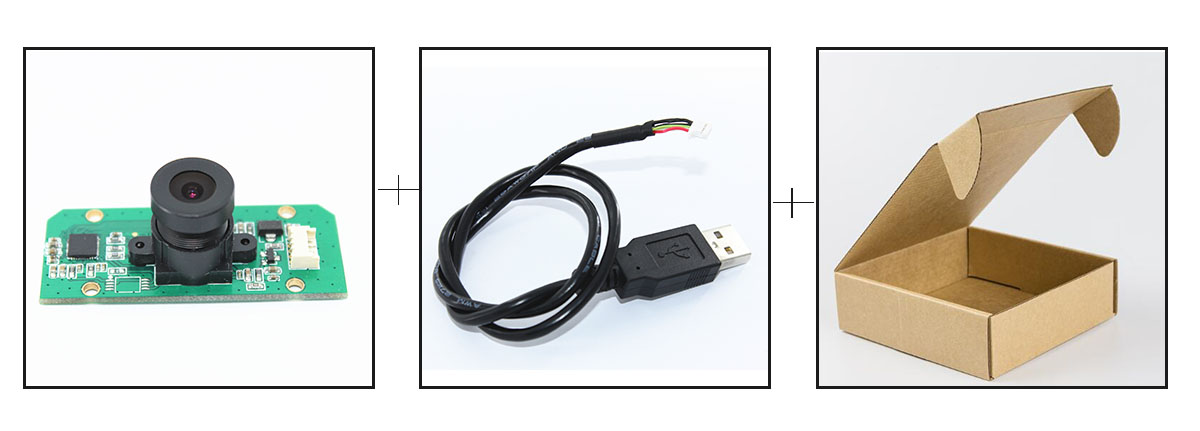

acking&Shipping
