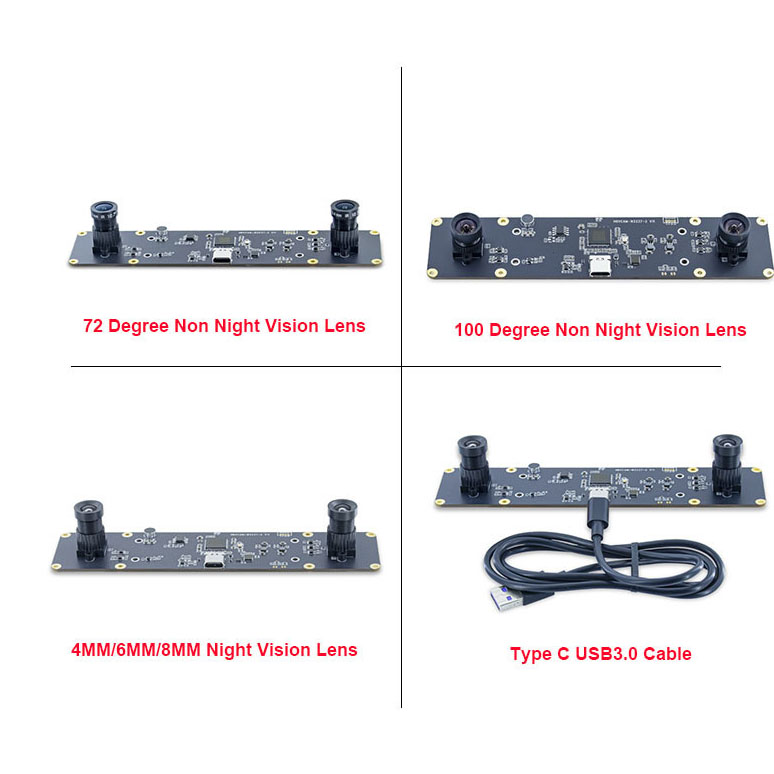

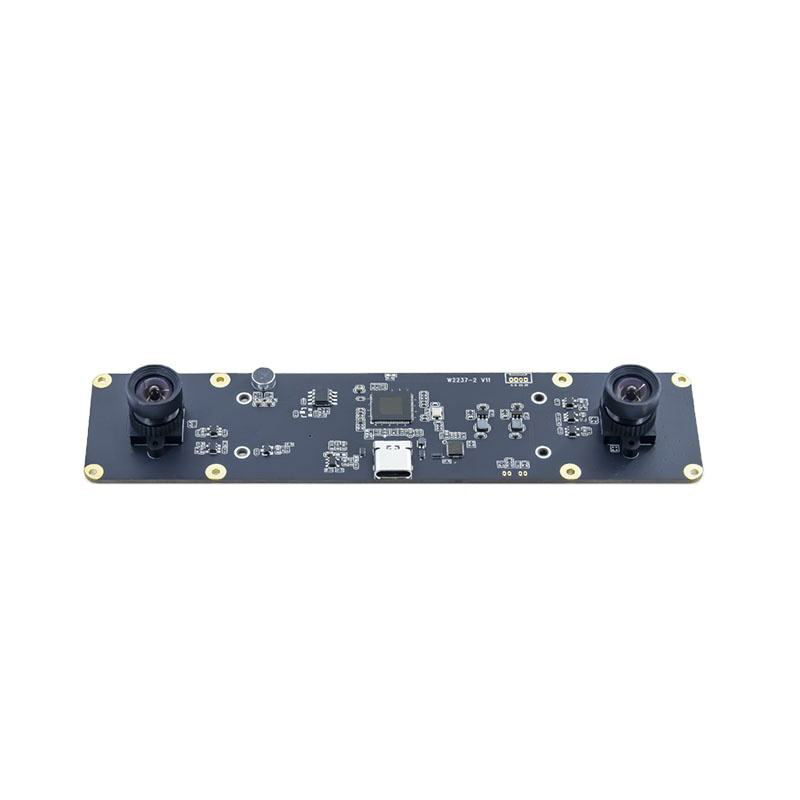

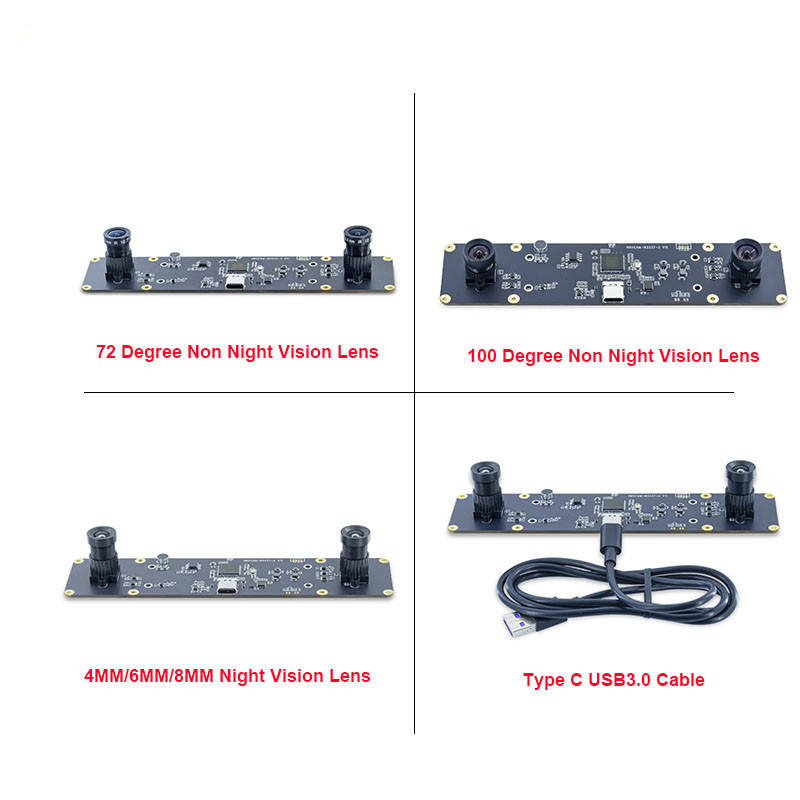

Ov9281 720P Global Shutter Black And White USB3.0 Dual Camera Module For 3D Applications
$67.20
Availability:
In stock
Out of stock
Variations
Product Description
Specification
| Module No. | BMW2237-2 V11 |
| Module Size | 156mm × 36mm × 16.30mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 1000 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV9281 (1/4" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 2560*720 |
| Sensitivity | 1300mV /（lux-sec） |
| Pixel Size | 3µm x 3µm |
| Maximum Image Transfer Rate | MJPEG 1280x400 120FPS / YUY2 1280x400 120FPS MJPEG 1280x480 100FPS / YUY2 1280x480 100FPS MJPEG 1600x600 100FPS / YUY2 1600x600 100FPS MJPEG 2560x720 60FPS / YUY2 2560x720 60FPS |
| S/N Ratio | 38 db |
| Max Dynamic Range | 68 db |
| Shutter type | Global shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 2G2P |
| F/No | 2.2 |
| EFL | 2.1 mm |

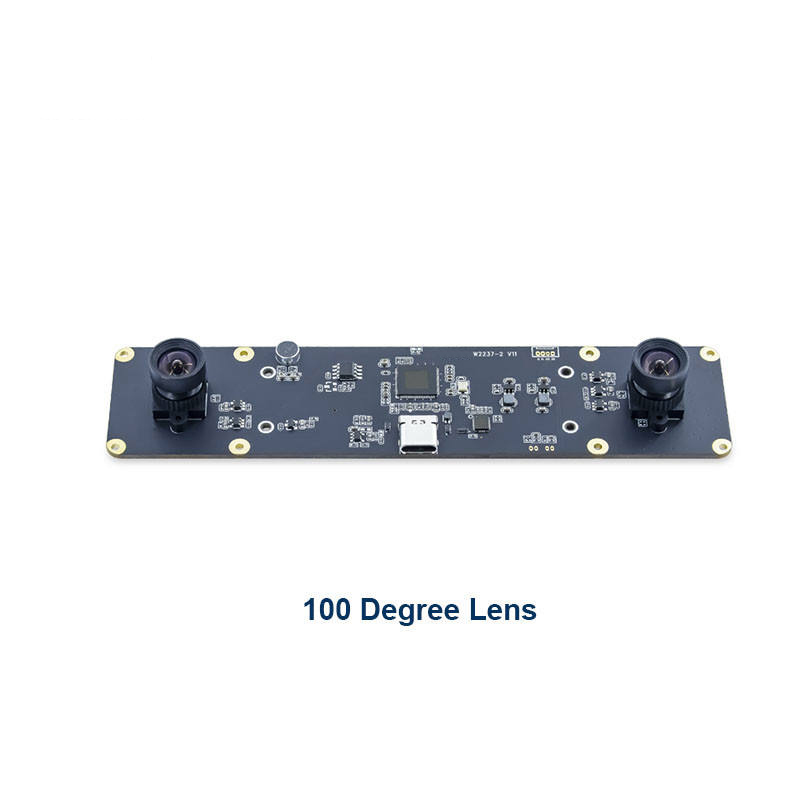

| FOV | 100° |
| TV Distortion | <5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |

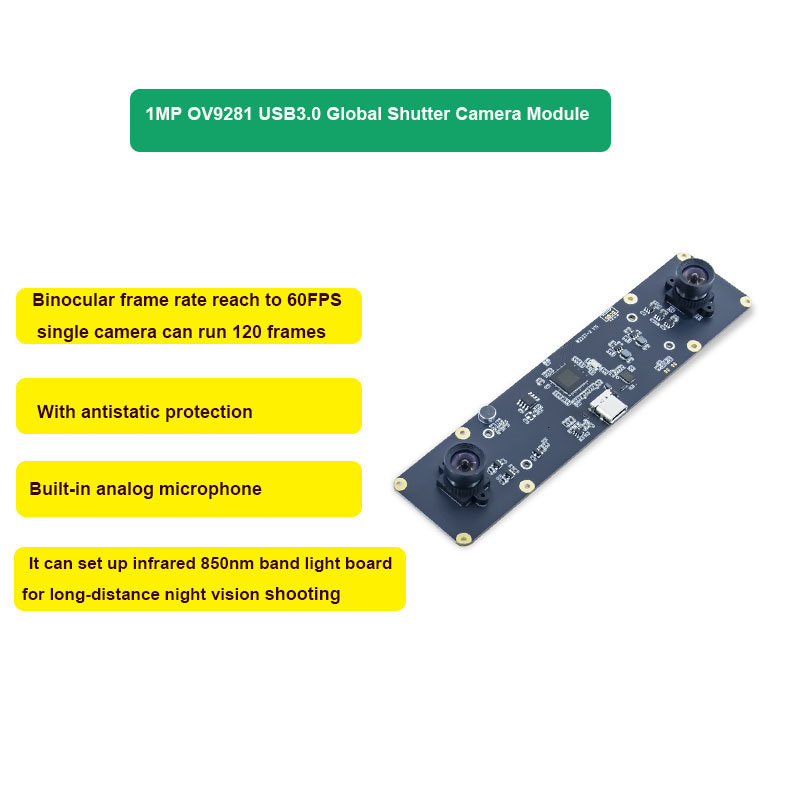

* Product performance description
1. Global exposure black and white camera module
2. New generation USB3.0 binocular camera module: YUY2 has the same frame rate as
MJPEG, the color consistency of the left and right cameras is optimized and improved, and the attribute parameters can be adjusted
at the same time
MJPEG, the color consistency of the left and right cameras is optimized and improved, and the attribute parameters can be adjusted
at the same time
3. High frame rate binocular 60 frames, single head running 120 frames

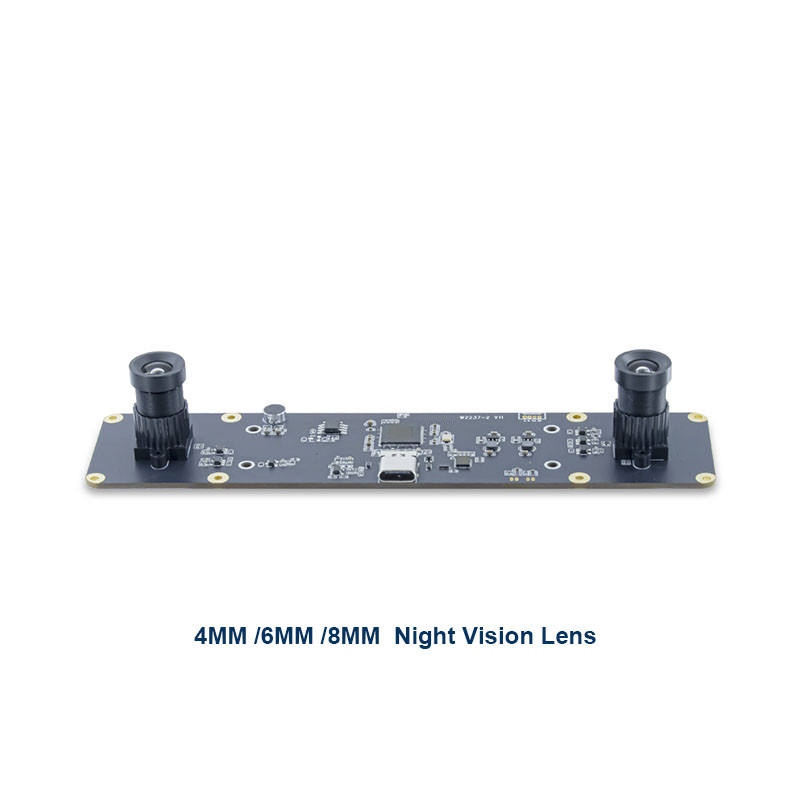

4. Can set up infrared 850nm band light
board, long-distance night vision shooting
board, long-distance night vision shooting
5. Built-in analog microphone

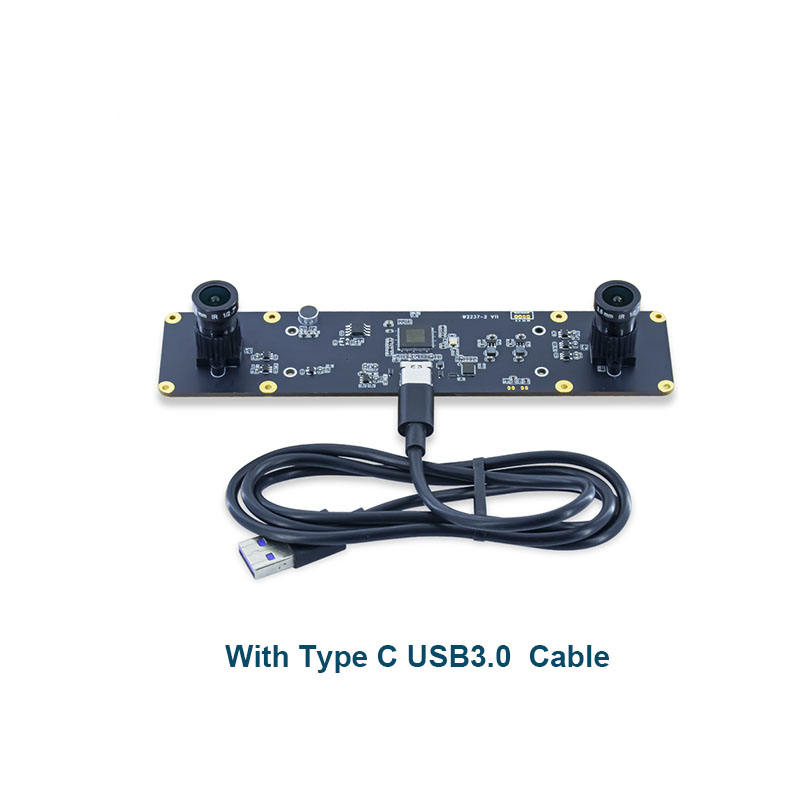

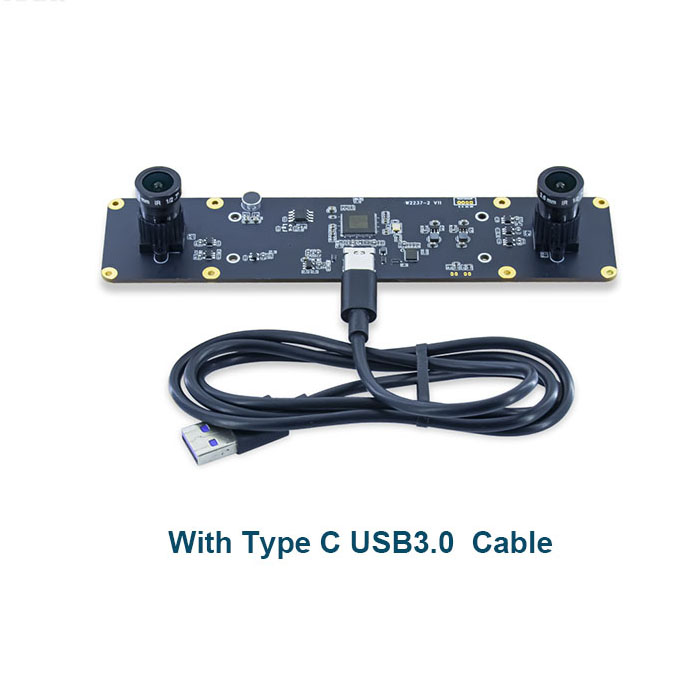

6. Do not use other cables and mobile phone charging data
cables at will - otherwise run USB2.0-YUY2 without high frames
cables at will - otherwise run USB2.0-YUY2 without high frames
7. This model comes with antistatic protection

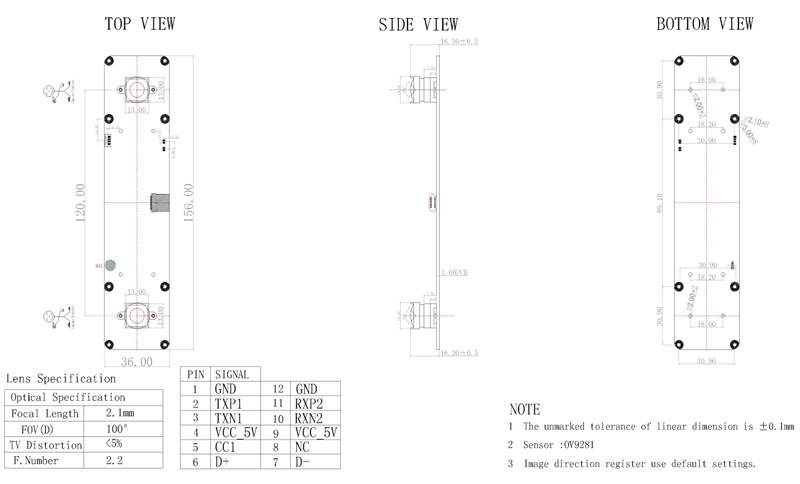

PRODUCT DRAWING
.
