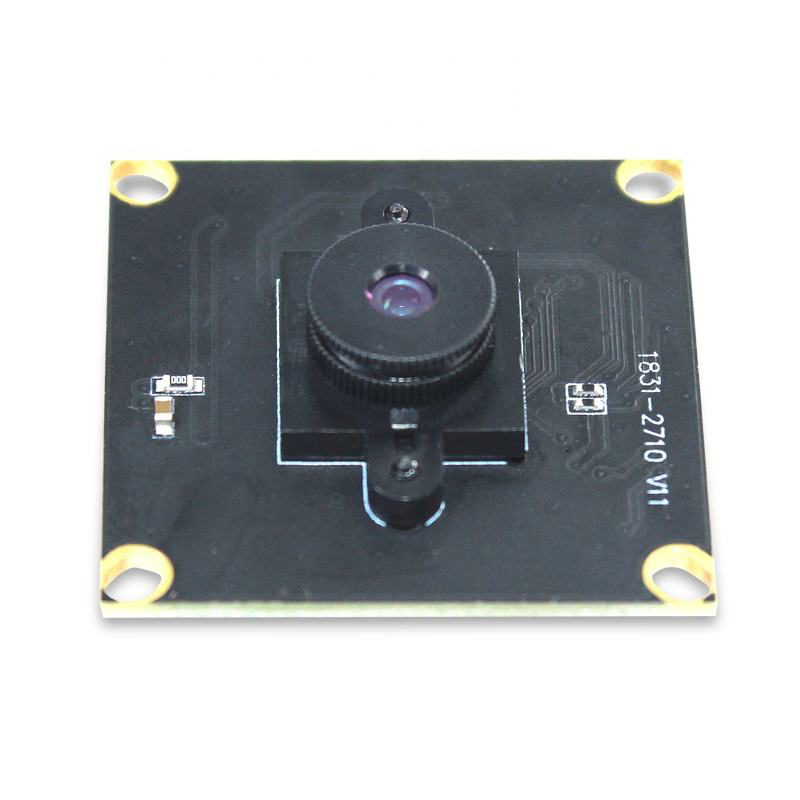

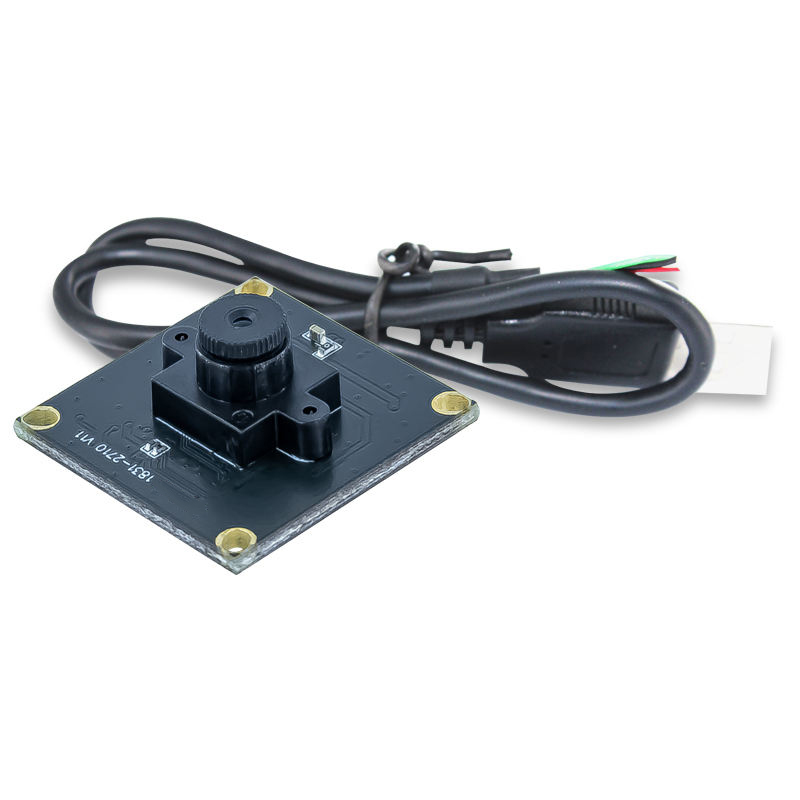

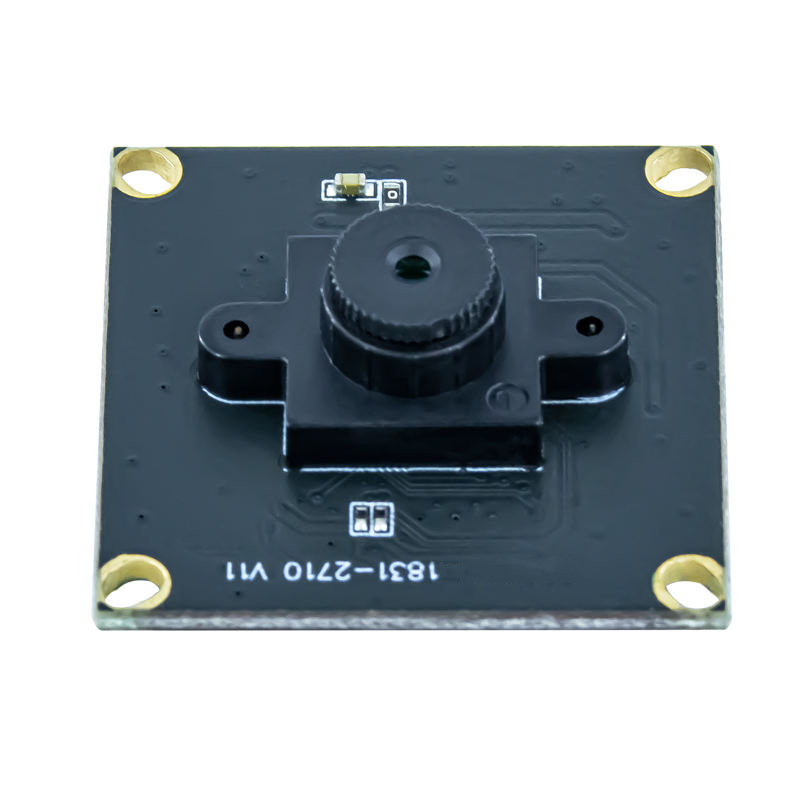

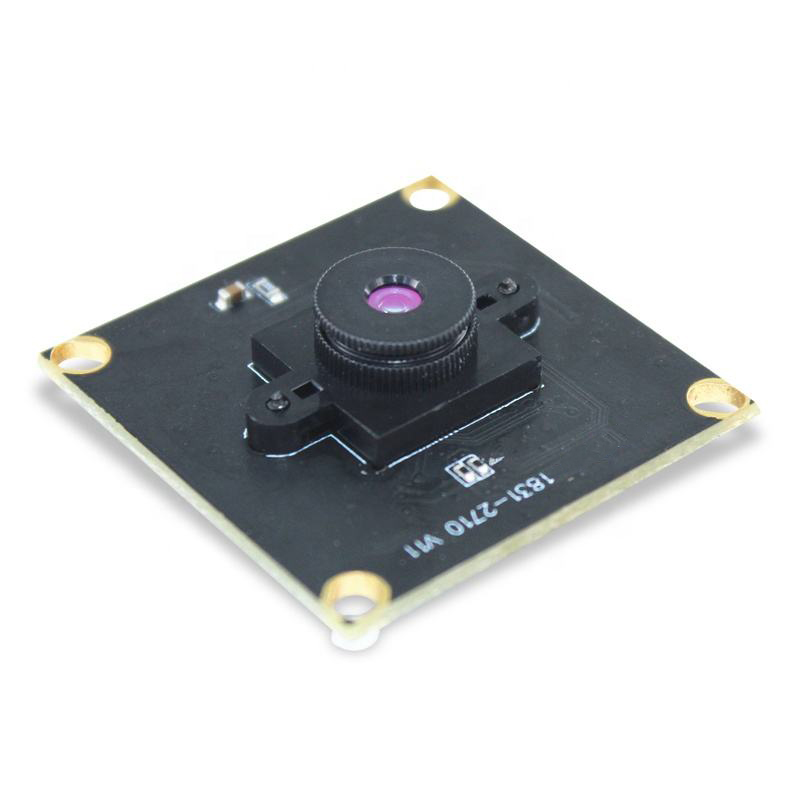

2MP Hd Fixed Focus Module Camera OV2710 1920*1980 Sensor Built-In Industrial Camera Module Usb
$24.00
Availability:
In stock
Out of stock
Variations
Product Attributes

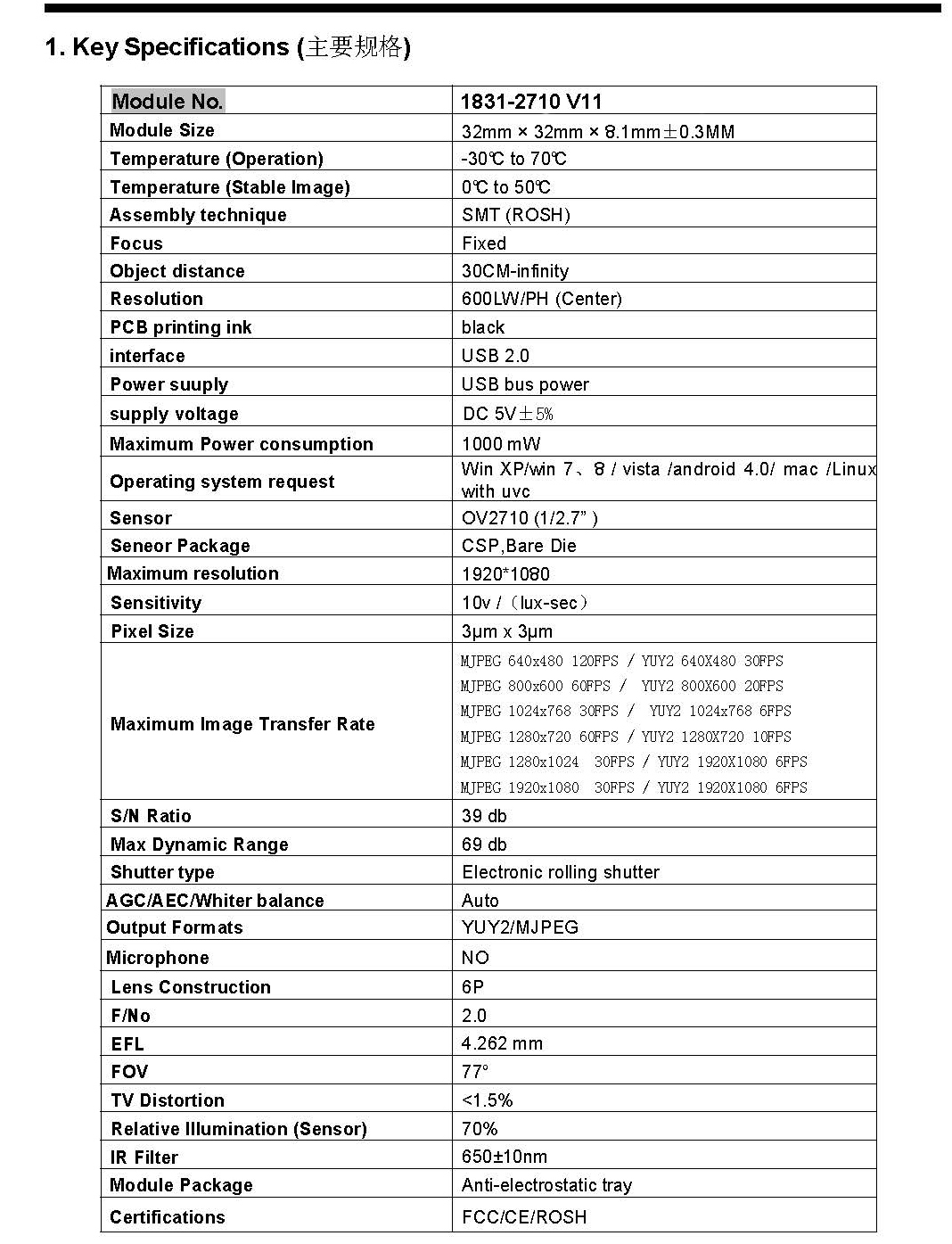

Product Description
Product name | 2 MP industrial control industrial camera, advertising machine, equipment embedded built-in camera module | ||
| Module No. | BM1831 V11 | ||
| Module Size | 32mm × 32mm × 8.1mm±0.3MM | ||
| Temperature (Operation) | -30°C to 70°C | ||
| Temperature (Stable Image) | 0°C to 50°C | ||
| Assembly technique | SMT (ROSH) | ||
| Focus | Fixed | ||
| Object distance | 30CM-infinity | ||
| Resolution | 600LW/PH (Center) | ||
| PCB printing ink | Black | ||
| interface | USB 2.0 | ||
| Power suuply | USB bus power | ||
| supply voltage | DC 5V±5% | ||
| Maximum Power consumption | 1000mW | ||
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc | ||
| Sensor | OV2710 (1/2.7" ) | ||
| Seneor Package | Csp,Bare Die | ||
| Maximum resolution | 1920*1080 | ||
| Sensitivity | 10mV /(lux-sec) | ||
| Pixel Size | 3µm x 3µm | ||
| Maximum Image Transfer Rate | MJPEG 640x480 120FPS / YUY2 640X480 30FPS MJPEG 800x600 60FPS / YUY2 800X600 20FPS MJPEG 1024x768 30FPS / YUY2 1024x768 6FPS MJPEG 1280x720 60FPS / YUY2 1280X720 10FPS MJPEG 1280x1024 30FPS / YUY2 1920X1080 6FPS MJPEG 1920x1080 30FPS / YUY2 1920X1080 6FPS | ||
| S/N Ratio | 39db | ||
| Max Dynamic Range | 69db | ||
| Shutter type | Electronic rolling shutter | ||
| AGC/AEC/Whiter balance | Auto | ||
| Output Formats | YUY2/MJPEG | ||
| Microphone | NO | ||
| Lens Construction | 6P | ||
| F/No | 2.0 | ||
| EFL | 4.2mm | ||
| FOV | 74° | ||
| TV Distortion | <1.5% | ||
| Relative Illumination (Sensor) | 70% | ||
| IR Filter | 650±10nm | ||
| Module Package | Anti-electrostatic tray | ||
| Certifications | FCC/CE/ROSH |
