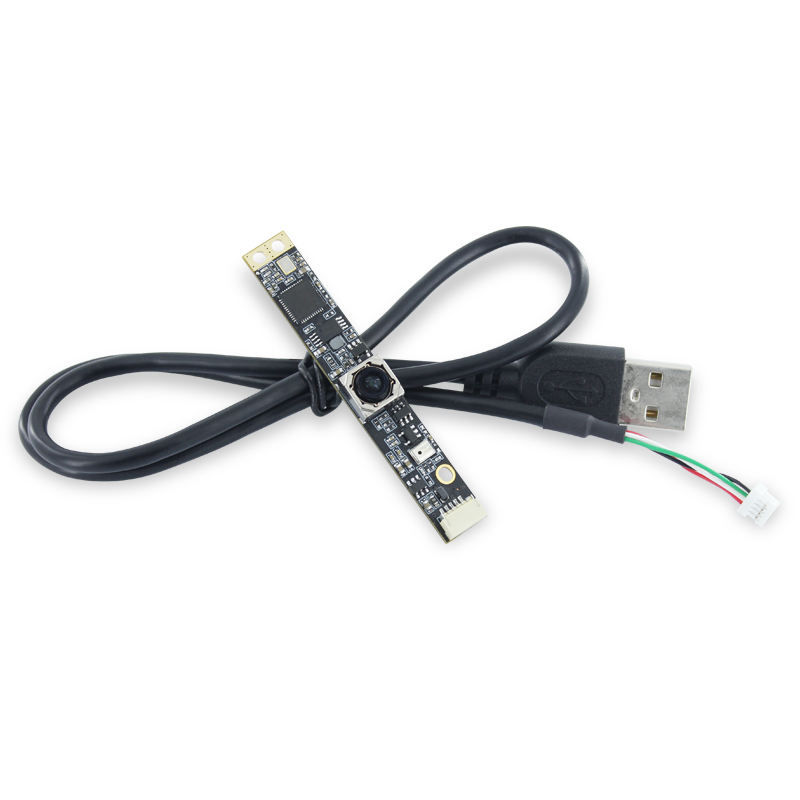

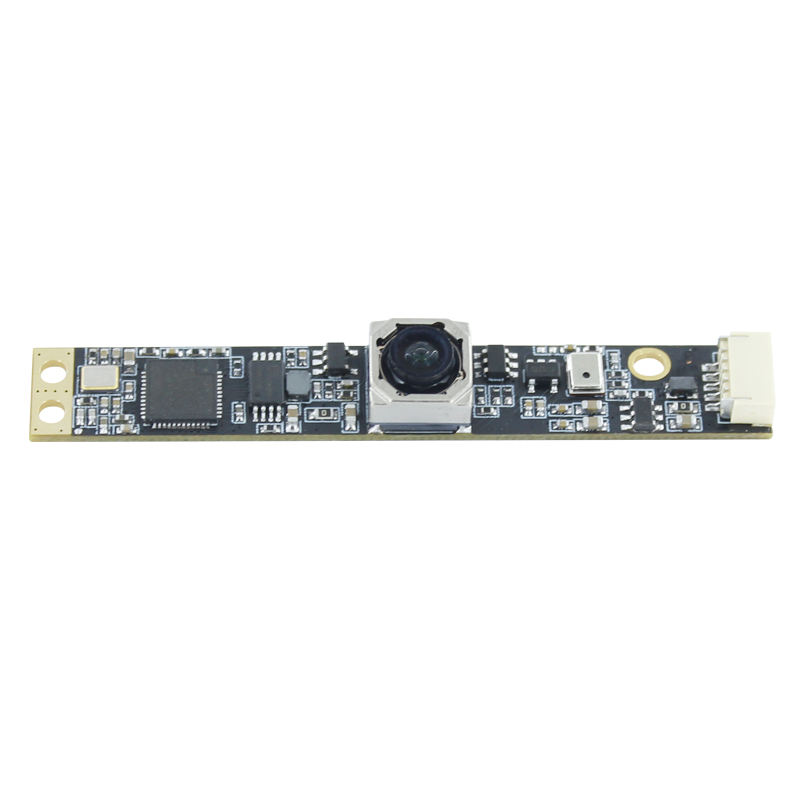

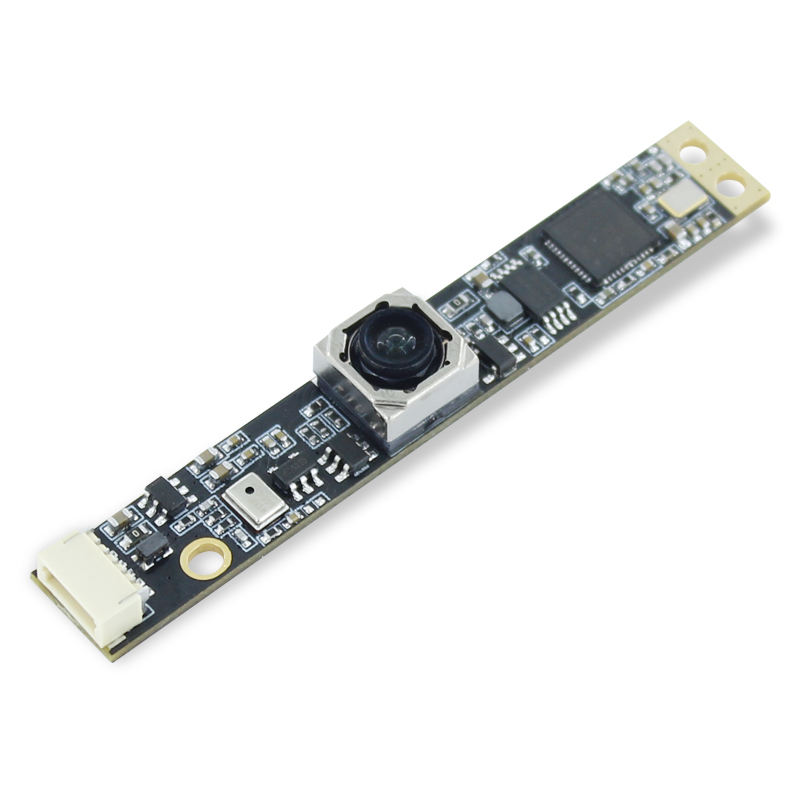

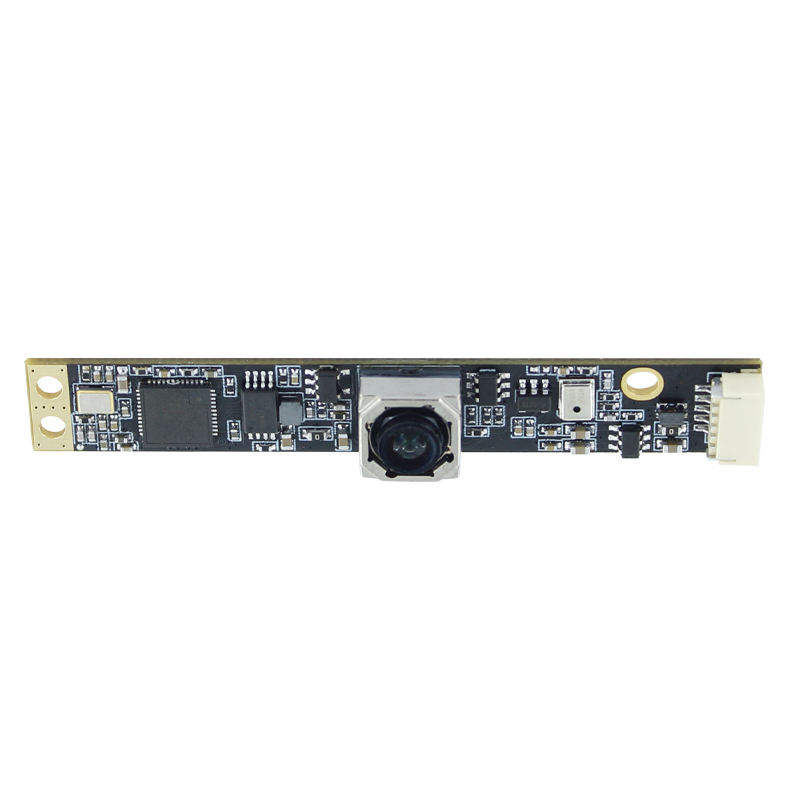

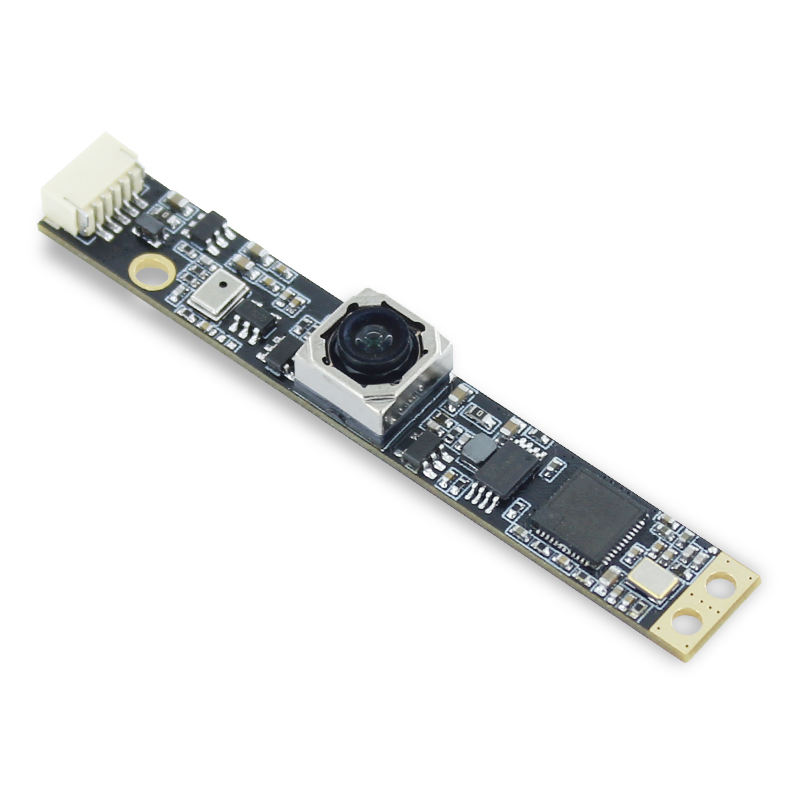

8MP IMX179 Auto Focus Micro USB Security Camera Module with Microphone HD Mini Hidden Design
$28.80
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Description
| Module No. | BM8M1915 V11 |

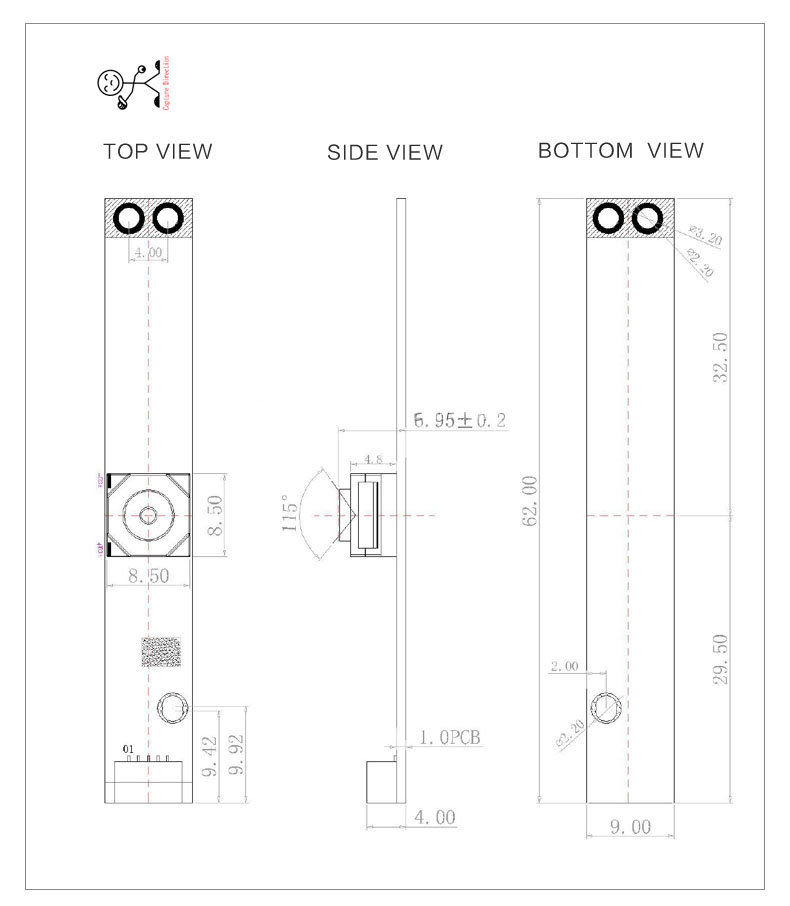

| Module Size | 62mm*9mm*6.1mm |
| Temperature(Operation) | -30°C -70°C |
| Temperature(Stable Image) | 0°C-50°C |
| Assembly technique | SMT(ROSH) |
| Focus | Auto |
| Object distance | 30cm-infinity |
| Resolution | 800LW/PH(Center) |
| PCB printing ink | black |
| Interface | USB2.0 |
| Power supply | USB bus power |
| Supply Voltage | DC 5V+5% |
| Maximum Power consumption | 1000mW |
| Operating system request | Win XP/win 7 , 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | IMX179 (1/3.2" ) |
| Pixel Size | 1.4µm x 1.4µm |
| Maximum Image Transfer Rate | MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 8FPS MJPEG 1600x1200 30FPS / YUY2 1600x1200 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 4FPS MJPEG 2048x1536 20FPS / - MJPEG 2592x1944 20FPS / - MJPEG 3264x2448 15FPS / - |
| S/N Ratio | 44db |
| Max Dynamic Range | 83db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 5P |
| F/No | 2.2 |
| EFL | 3.566MM |
| FOV | 115° |
| TV Distortion | <1.0% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Certifications | FCC/ CE /ROSH |
