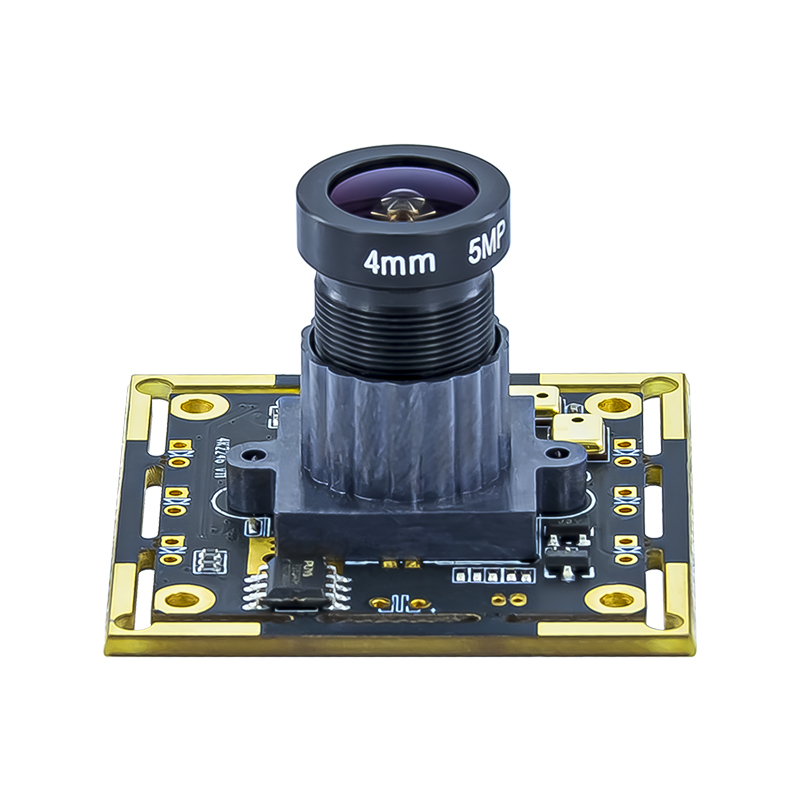

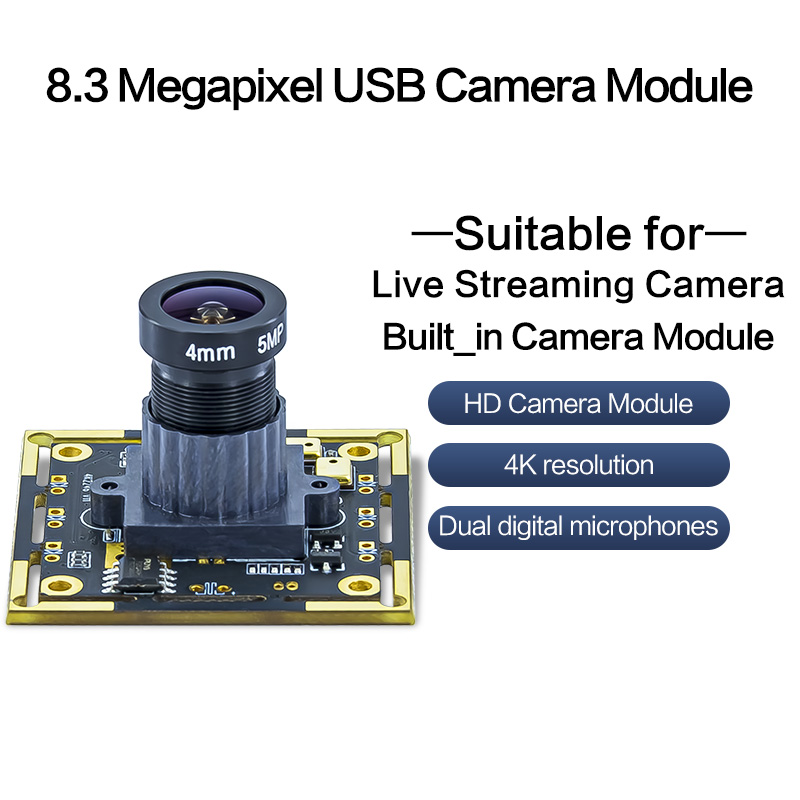

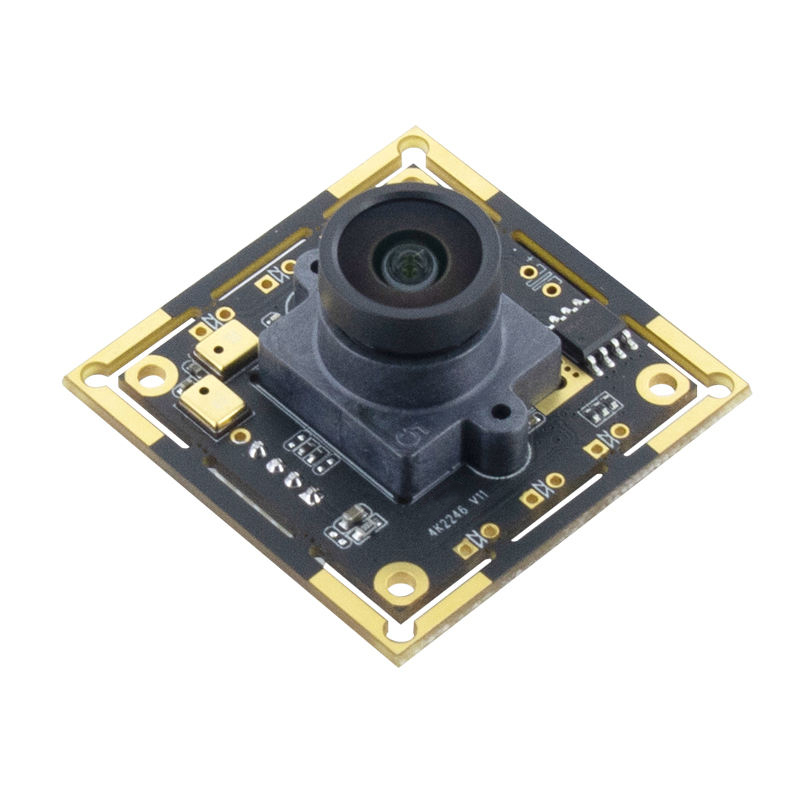

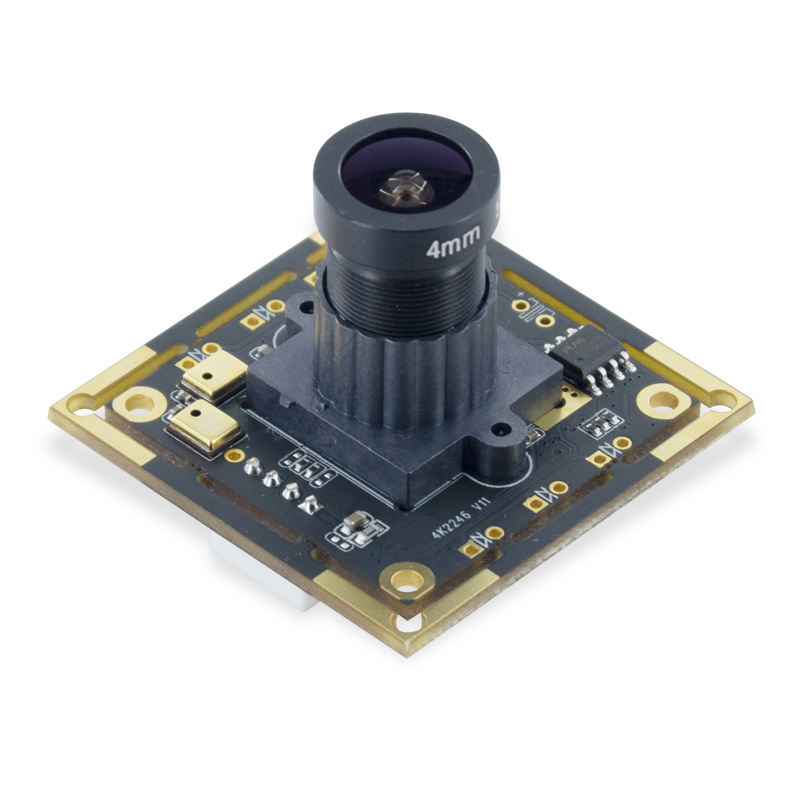

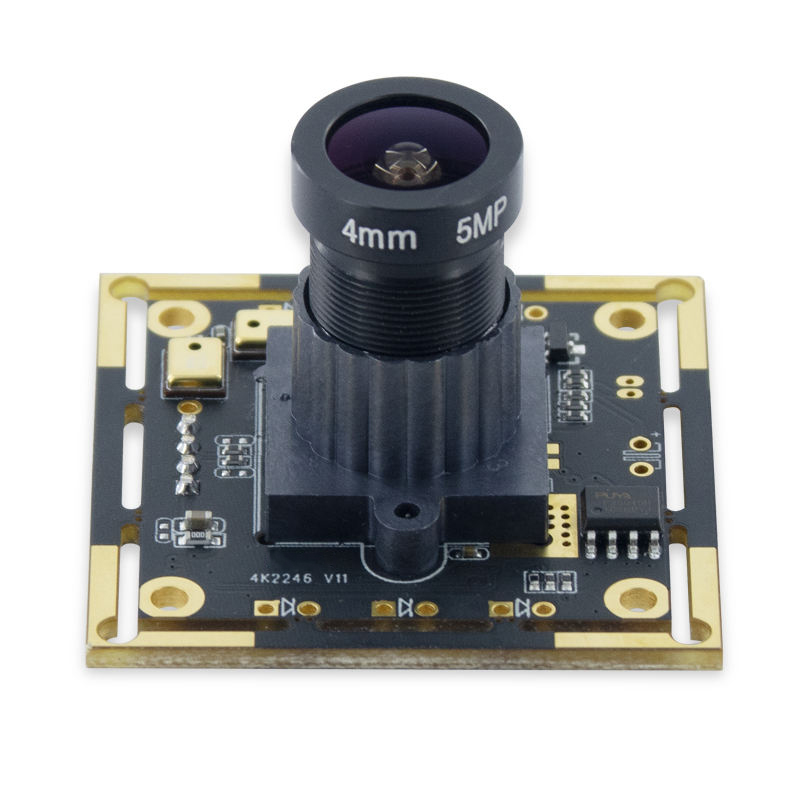

4K 8mp IMX415 (1/2.8 ) sensor usb2.0 USB camera module
$40.80
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description

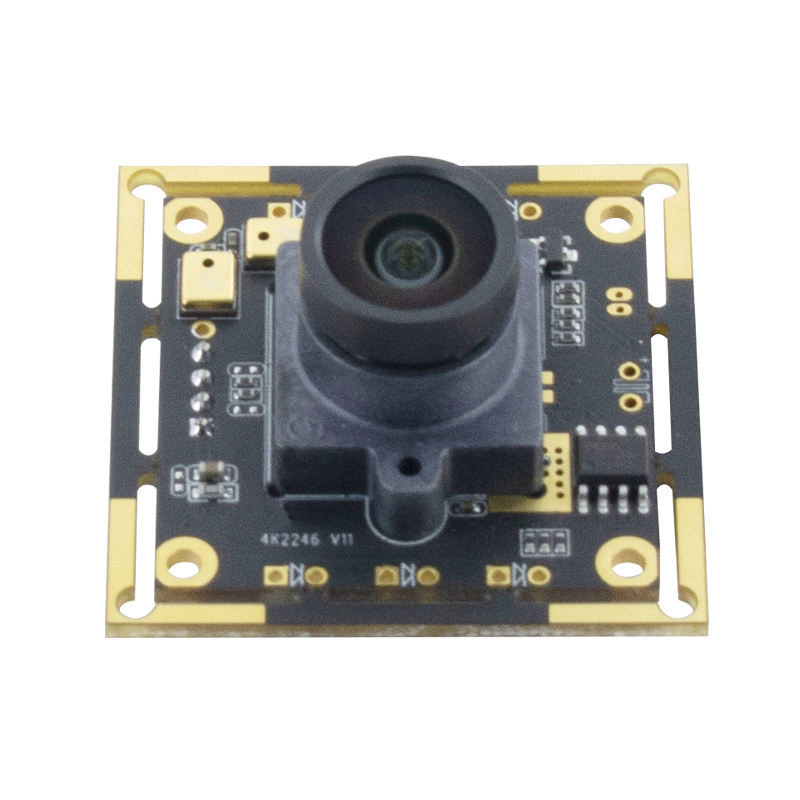

| Module No. | BM4K2246 V11 | |||

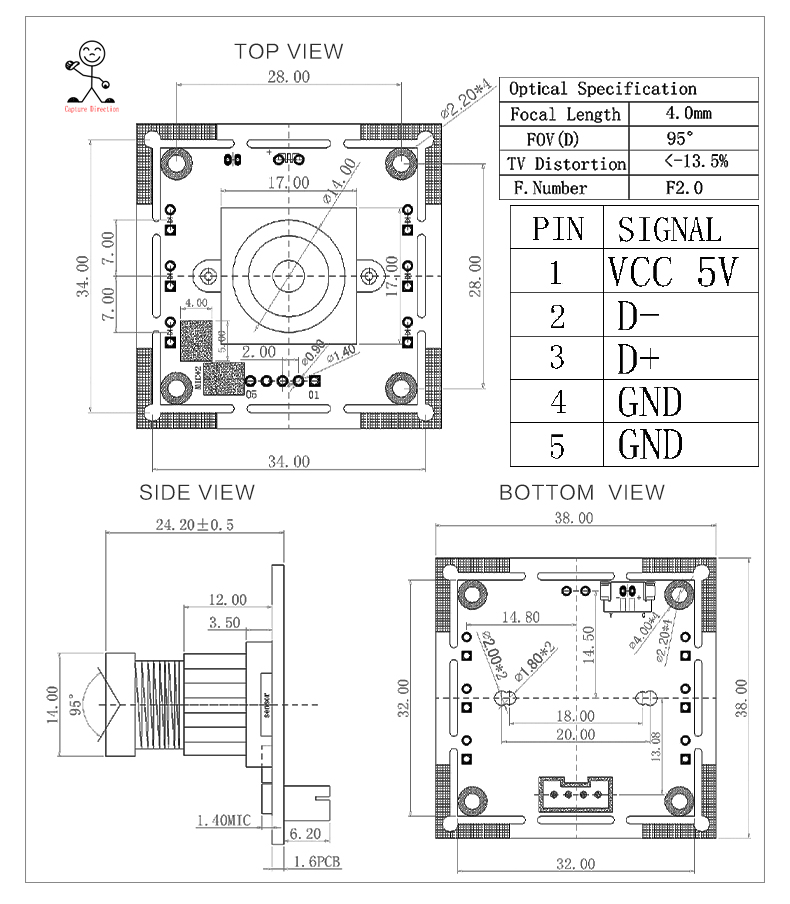

| Module Size | 38mm × 38mm × 17.20mm±0.5MM | |||
| Temperature (Operation) | -30°C to 70°C | |||
| Temperature (Stable Image) | 0°C to 50°C | |||
| Assembly technique | SMT (ROSH) | |||
| Focus | Fixed | |||
| Object distance | 30CM-infinity | |||
| Resolution | 600LW/PH (Center) | |||
| PCB printing ink | Black | |||
| interface | USB 2.0 | |||
| Power suuply | USB bus power | |||
| supply voltage | DC 5V±5% | |||
| Maximum Power consumption | 1330 mW | |||
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc | |||
| Sensor | IMX415 (1/2.8" ) | |||
| Seneor Package | PLCC,Bare Die | |||
| Maximum resolution | 3840*2160 | |||
| Sensitivity | 2000mV /(lux-sec) | |||
| Pixel Size | 1.0µm x 1.0µm | |||
MJPEG 1280x720 | 30FPS / | YUY2 1280x720 | 10FPS | |
MJPEG 1920x1080 | 30FPS / | YUY2 1920x1080 | 3FPS | |
| Maximum Image Transfer Rate | MJPEG 2048x1536 MJPEG 2880x2160 | 30FPS / 30FPS / | YUY2 2048x1536 YUY2 2880x2160 | 3FPS 1FPS |
MJPEG 3840x2160 | 30FPS / | YUY2 3840x2160 | 1FPS | |
| S/N Ratio | 46db | |||
| Max Dynamic Range | 72db | |||
| Shutter type | Electronic rolling shutter | |||
| AGC/AEC/Whiter balance | Auto | |||
| Output Formats | YUY2/MJPEG | |||

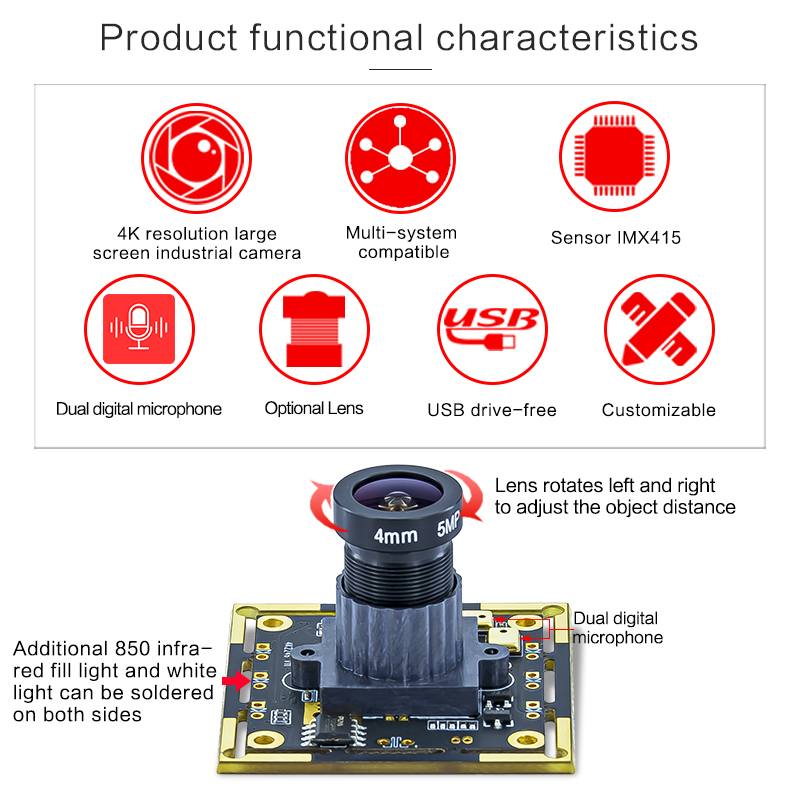

| Microphone | Support | |||
| Lens Construction | 5G | |||
| F/No | 2.2 | |||
| EFL | 1.9 mm | |||

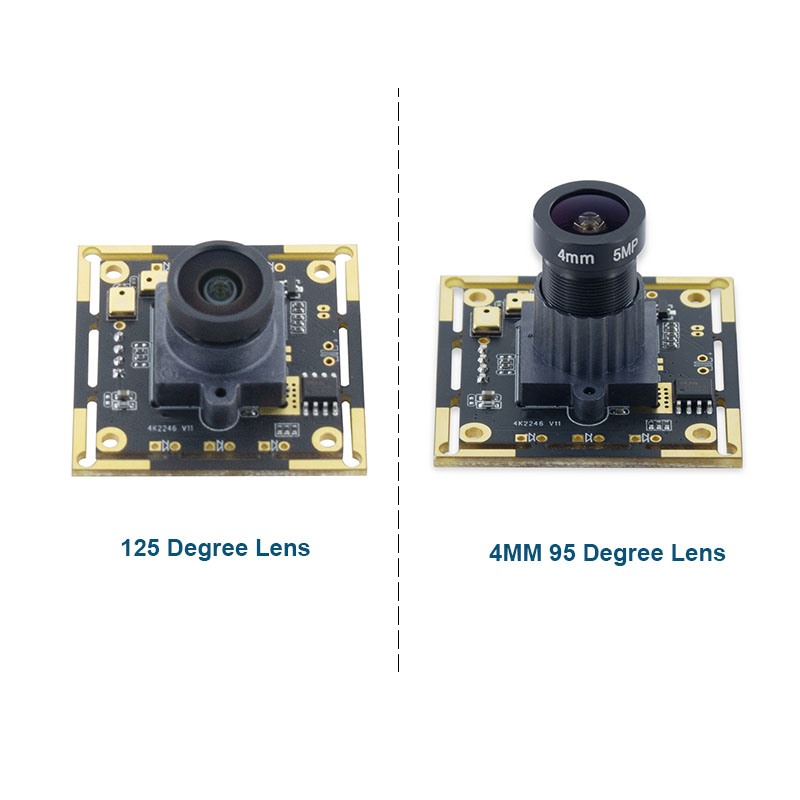

| FOV | 125° | |||
| TV Distortion | <8% | |||
| Relative Illumination (Sensor) | 70% | |||
| IR Filter | 650±10nm | |||
| Module Package | Anti-electrostatic tray | |||
| Certifications | FCC/CE/ROSH | |||
