Fixed focus high resolution 2592*1944 5MP OV5640 CMOS Interface USB2.0 wide angle 160 degree camera module
$22.80
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Specification
Module No. | 5640WA S2.0 |
Module Size | 60mm × 8mm × 10.6mm |
Temperature (Operation) | -20°C to 70°C |
Temperature (Stable Image) | 0°C to 50°C |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-200CM |
Resolution | 600LW/PH (Center) |
PCB printing ink | black |
interface | USB 2.0 |
Power | USB bus power |
Power consumption | 150mW VGA; 200 mW QSXGA; |
Operating system request | Windows 2000\ Windows XP\Windows 7 |
Package | Anti-electrostatic tray |
Certifications | FCC and CE |
Sensor Type | OV5640 (1/4" ) |
Active Array Size | 2592*1944 |
Sensitivity | TBD |
Pixel Size | 1.4µm x1.4µm |
Maximum Image Transfer Rate | 15 fps for QSXGA; |
S/N Ratio | TBD |
Dynamic Range | TBD |
Package | CSP,Bare Die |
Lens Type | |
Lens Construction | 3G2P+IR |
F/No | 2.8 |
EFL | 1.66 mm |
BFL(Optical) | 2.11mm |
FOV | 160° |
TV Distortion | <8.5% |
Relative Illumination (Sensor) | 70% |
IR Filter | 650±10nm |
DSP Type | HBV5640 |
AGC/AEC/Whiter balance | Auto |
Output Formats | USB suspend out |
Fixed Pattern Noise | < 0.03% of VPEAK-TO-PEAK |
Package | LQFN-40pin |

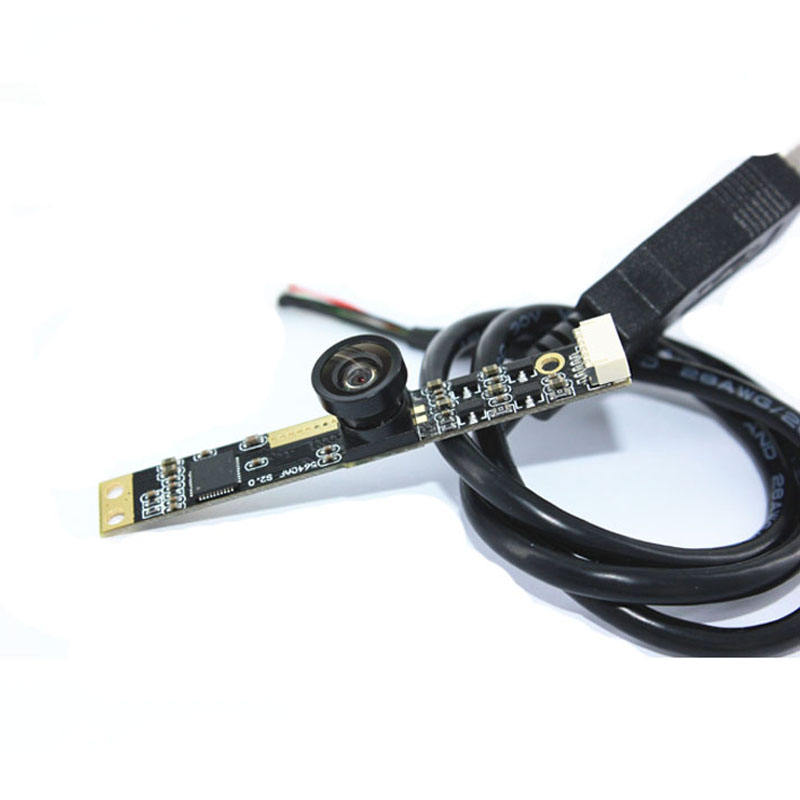

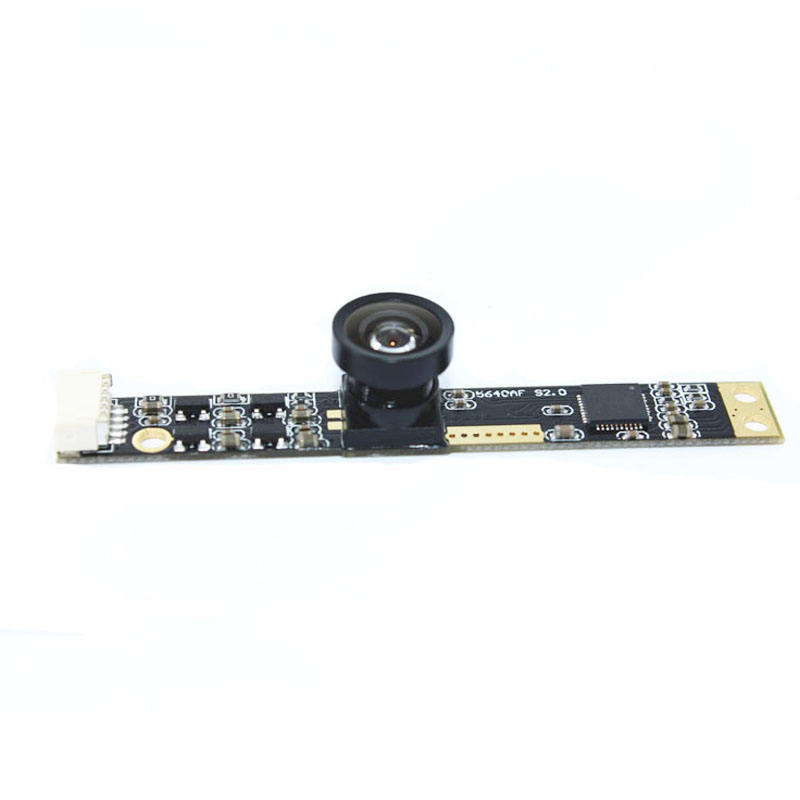

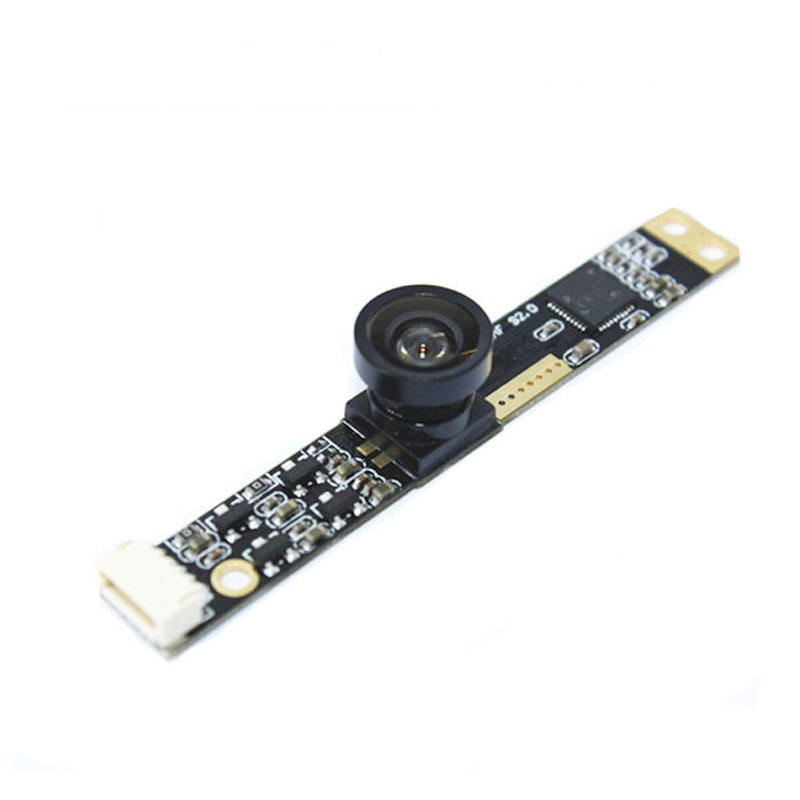

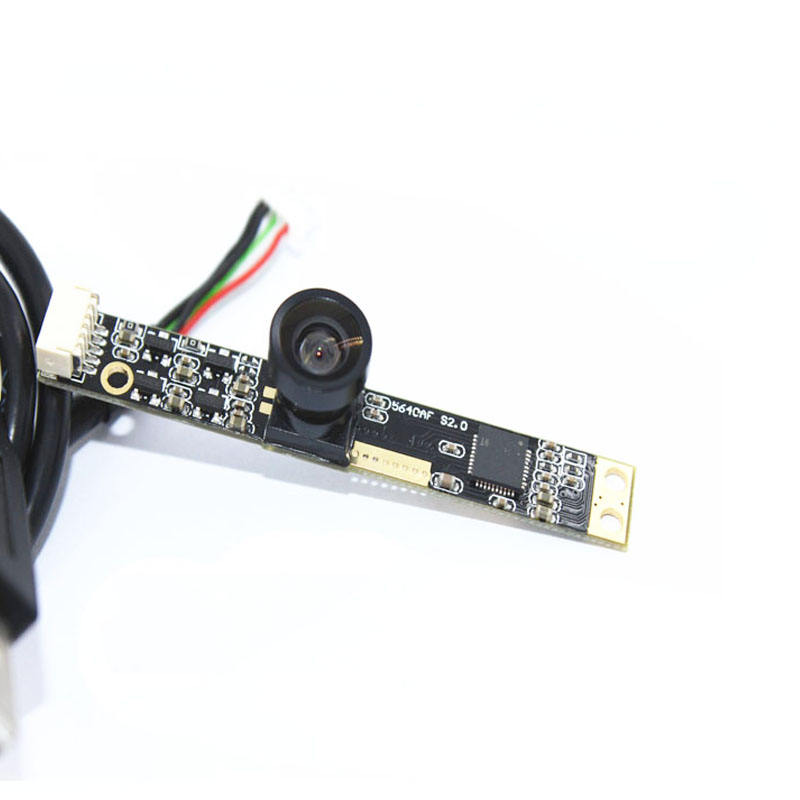

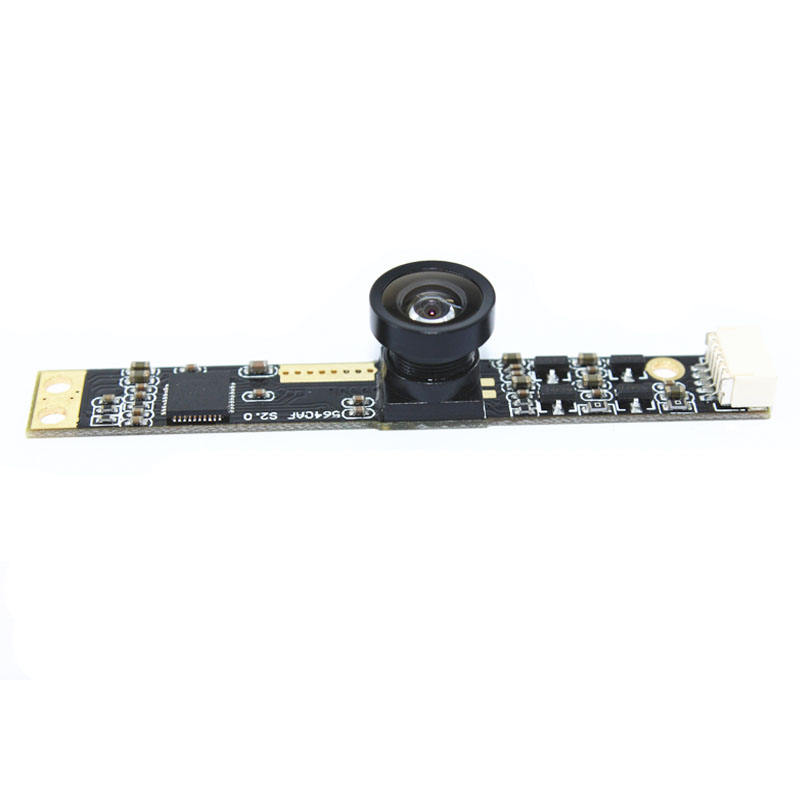

Detail Images
