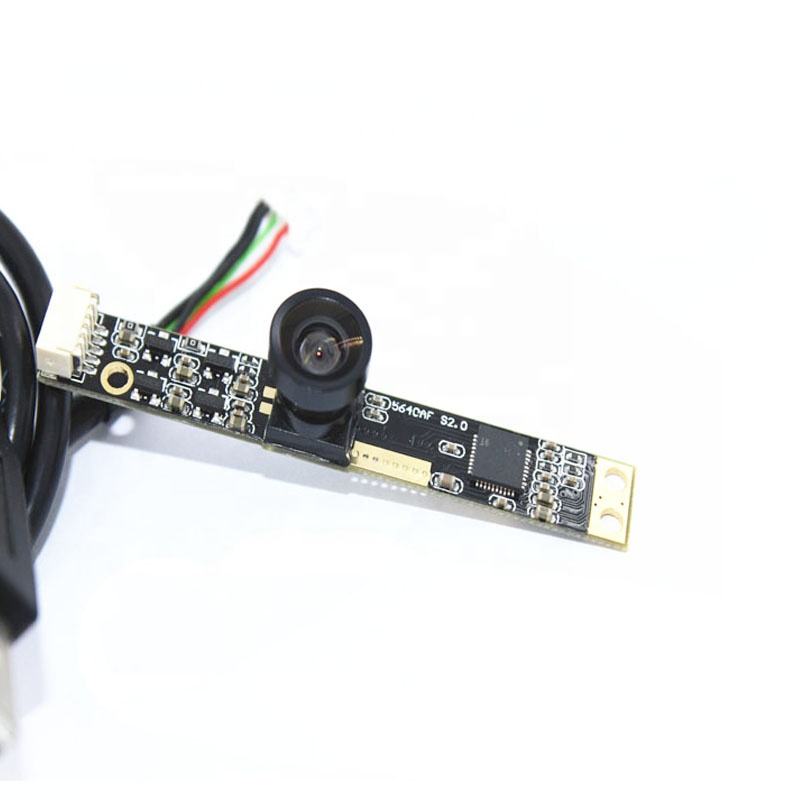

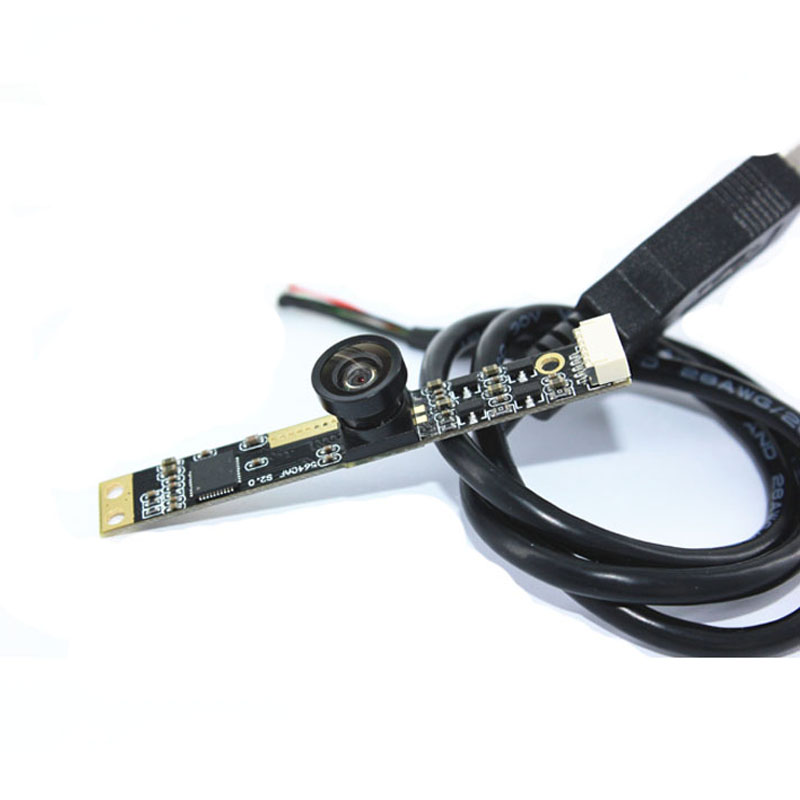

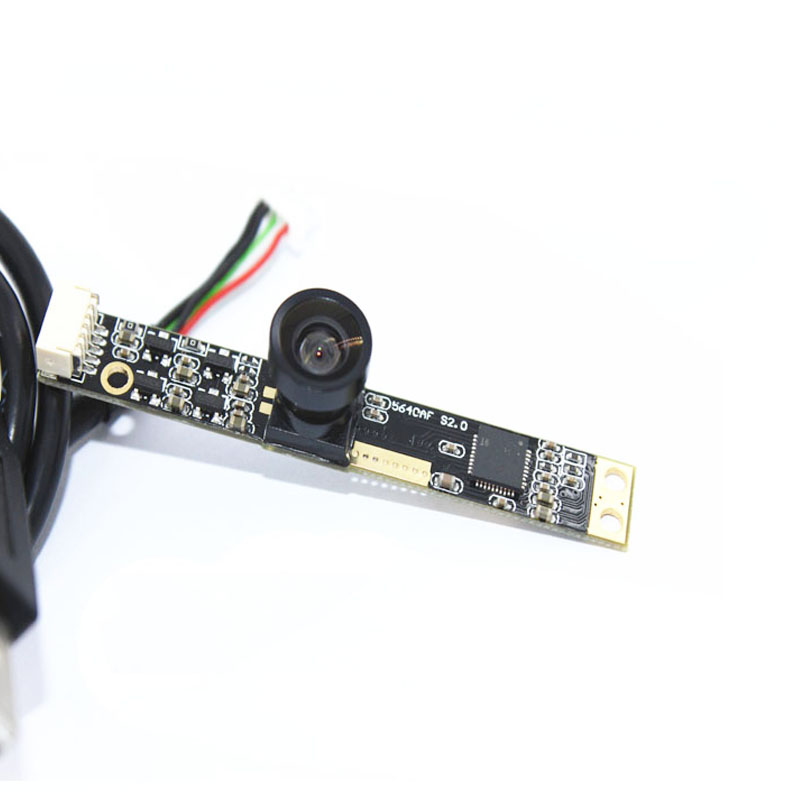

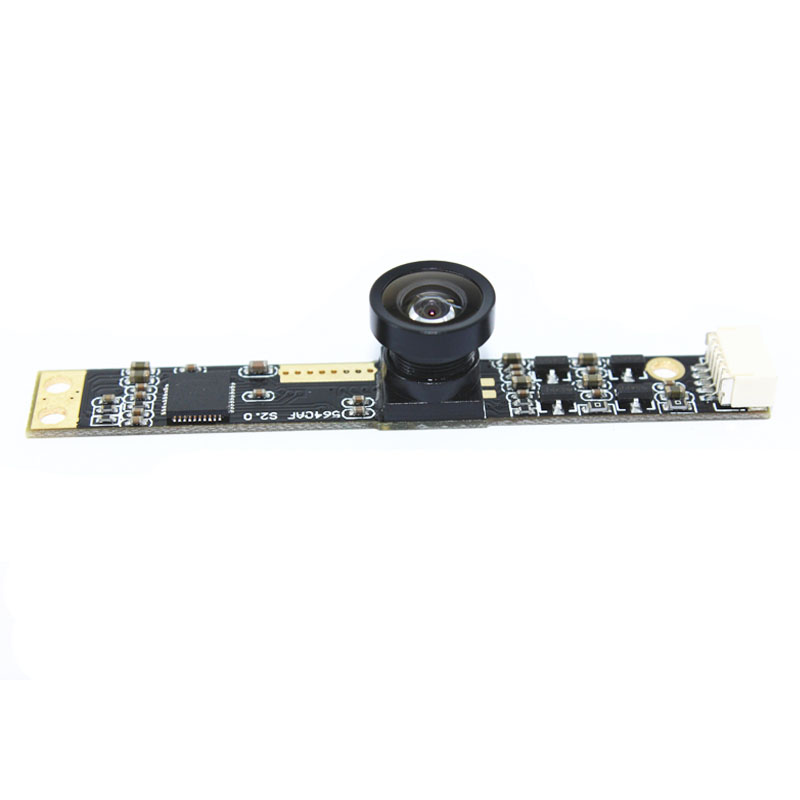

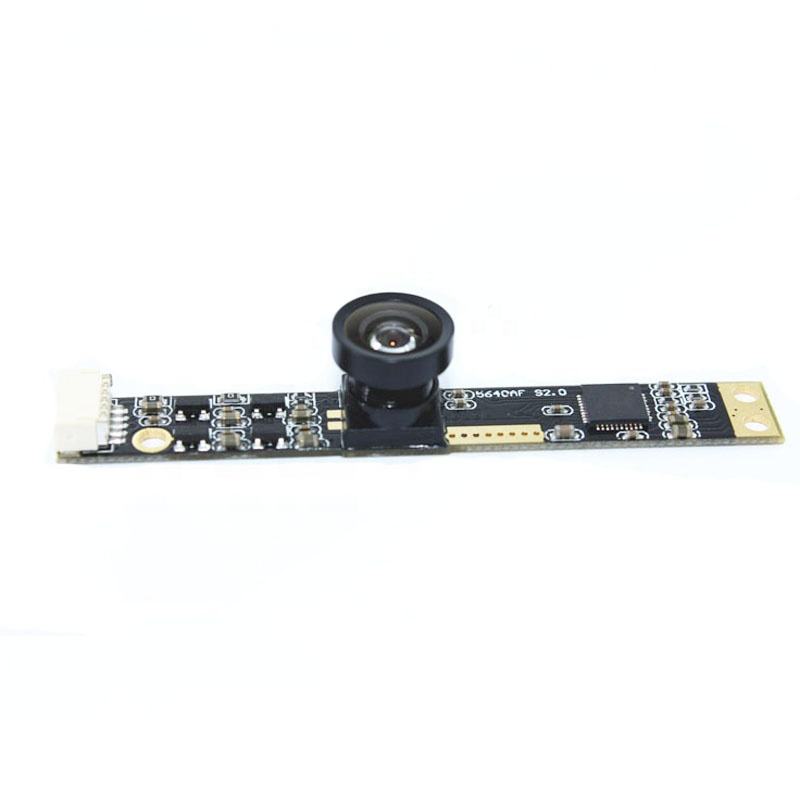

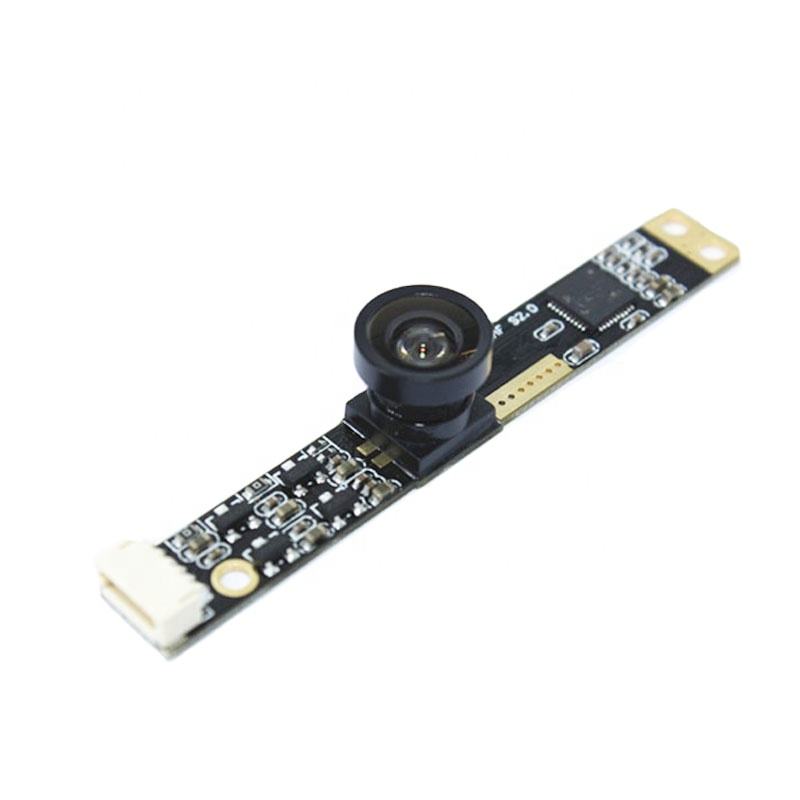

USB2.0 ov5640 sensor camera with 160 degree mini usb full hd resolution camera 4k Usb Raspberry Pi Camera Module
$30.00
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
5mp usb camera module
USB2.0 ov5640 omnivision camera sensor module with 160 degree
| Model No. | 5640WA S2.0 |
| Model Size | 60mm × 8mm × 10.6mm |
| Temperature (Operation) | -20°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| Interface | USB 2.0 |
| Power | USB bus power |
| Power consumption | 1200 mW |
| Package | Anti-electrostatic tray |
| Operating system request | Windows 2000\Windows XP\Windows 7 |
| Certifications | FCC and CE |
| Maximum resolution | 2592*1944 |
| Sensitivity | 600mv /(lux-sec) |
| Pixel Size | 1.4µm x1.4µm |
| Maximum Image Transfer Rate MJPEG | MJPEG 1024x768 30FPS / YUY2 1024x768 6FPS MJPEG 1280x720 30FPS / YUY2 1280x720 6FPS MJPEG 1280x960 30FPS / YUY2 1280x960 4FPS MJPEG 1600x1200 15FPS / YUY2 1600x1200 1FPS MJPEG 2048x1536 15FPS / YUY2 2048x1536 1FPS MJPEG 2592x1944 15FPS / YUY2 2592x1944 1FPS |
| S/N Ratio | 36db |
| Dynamic Range | 68db |
| Package | CSP,Bare Die |
| Lens Type | |
| Lens Construction | 3G2P+IR |
| F/No | 2.8 |
| EFL | 1.66mm |
| BFL(Optical) | 2.11mm |
| FOV | 160 |
| TV Distortion | <8.5% |
| Relative Illumination (Sensor) | 70% |
| R Filter | 650 ± 10nm |
| DSP Type | HBV5640 |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | USB suspend out |
| Fixed Pattern Noise | < 0.03% of V PEAK-TO-PEAK |
| Package | LQFN-40pin |
