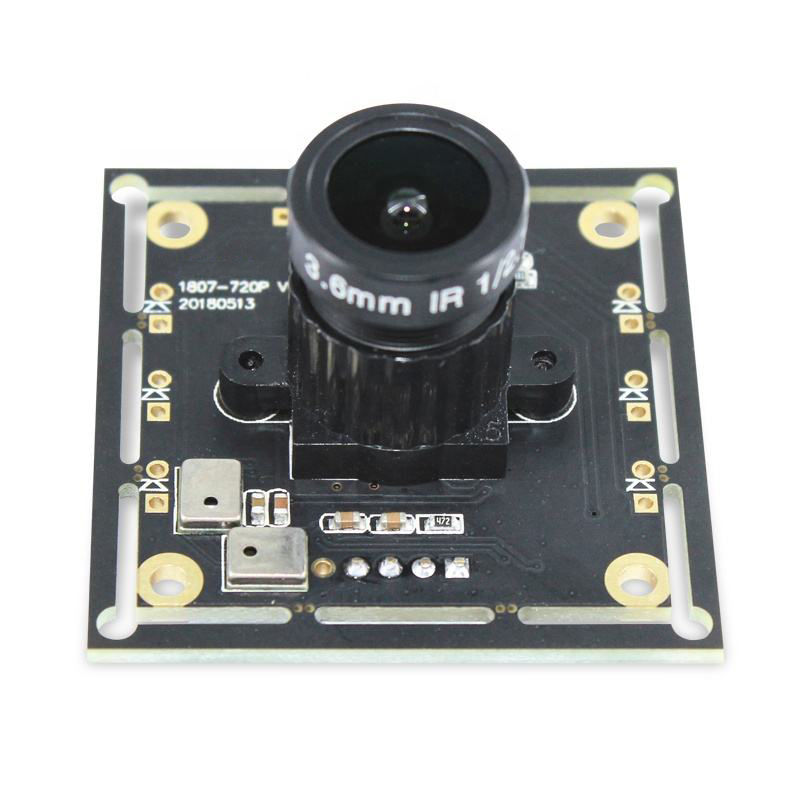

1MP Interface USB 2.0 OV9732 Sensor CMOS Camera Module Micro Fixed Focus HD micro camera module
$15.60
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
| Module No. | BM1807-720P V11 |
| Module Size | 38mm × 38mm × 24.5mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 450 mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV9732 (1/4" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1280*720 |
| Sensitivity | 3300mV /(lux-sec) |
| Pixel Size | 3µm x 3µm |
| Maximum Image Transfer Rate | MJPEG 320x240 30FPS / YUY2 320x240 30FPS |
| MJPEG 640x360 30FPS / YUY2 640x360 30FPS | |
| MJPEG 640x480 30FPS / YUY2 640x480 20FPS | |
| MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS | |
| FOV | 72° |
| Certifications | FCC/CE/ROSH |

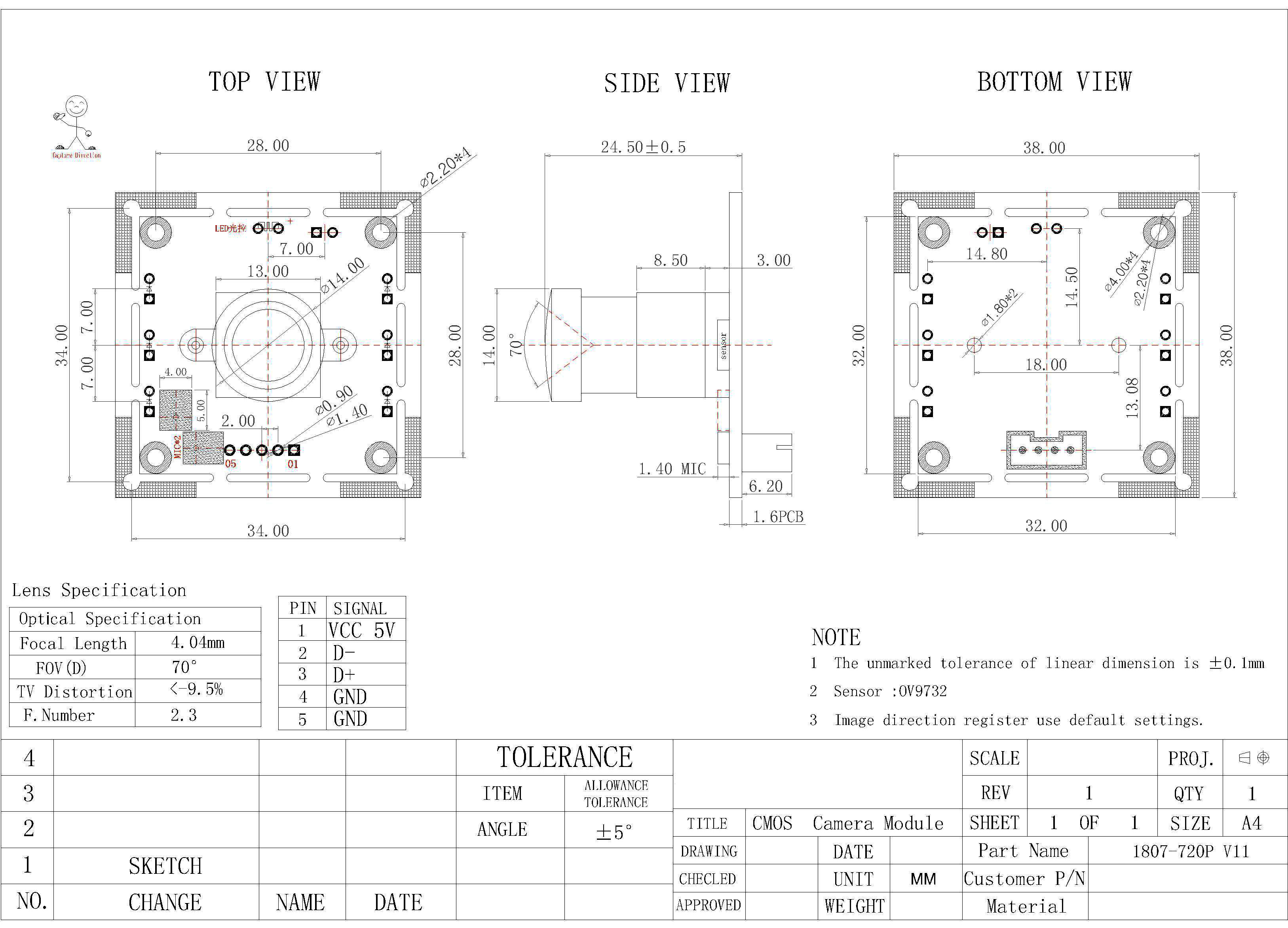

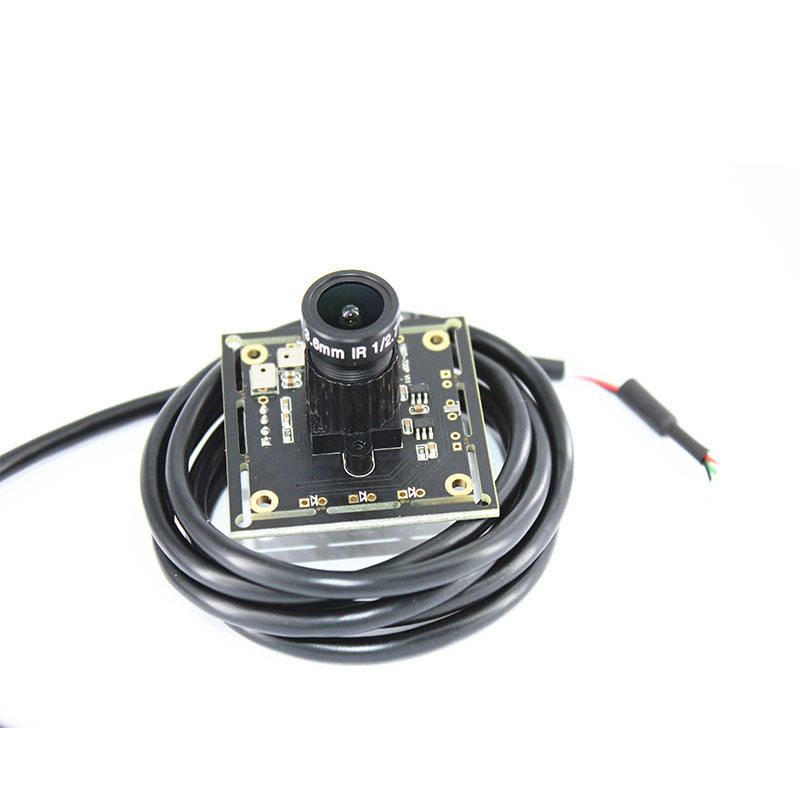

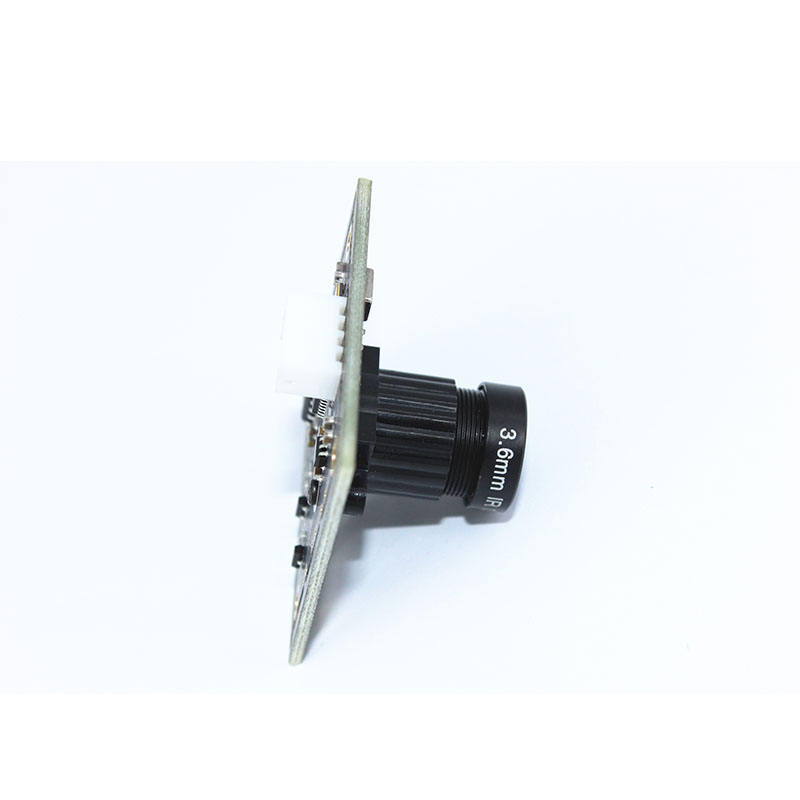

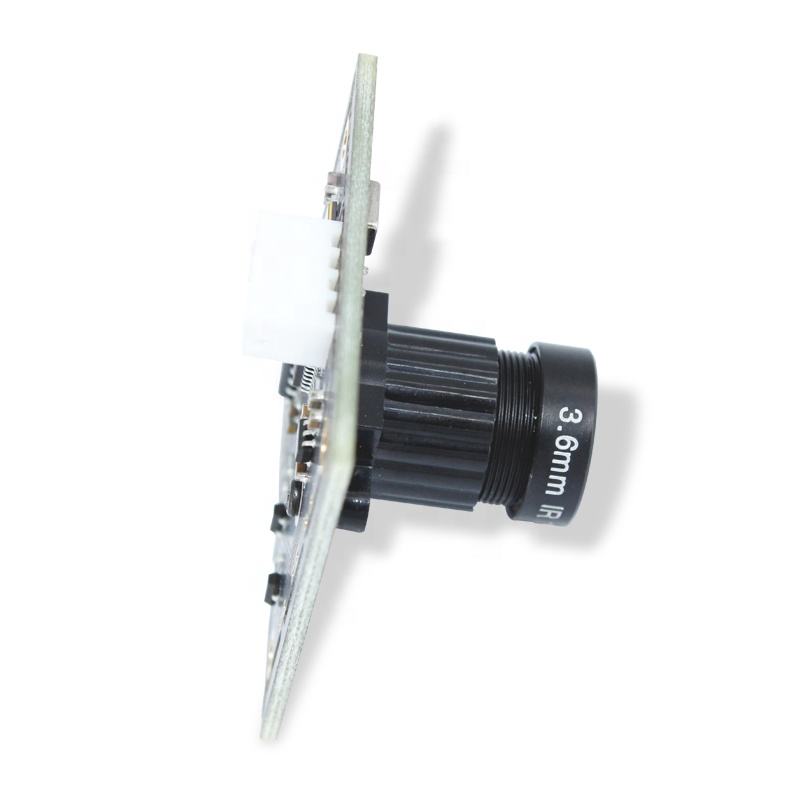

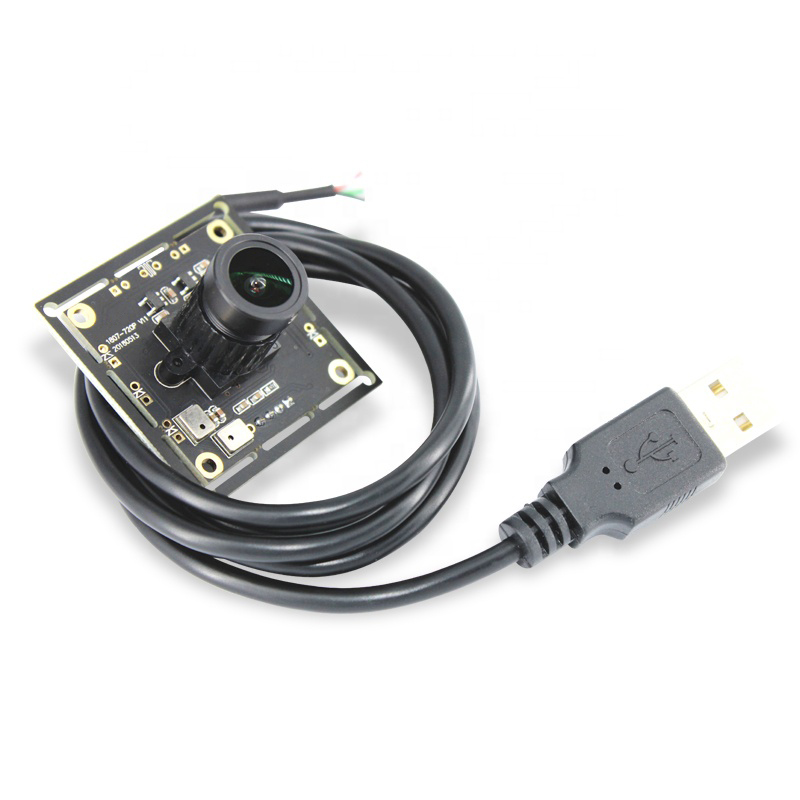

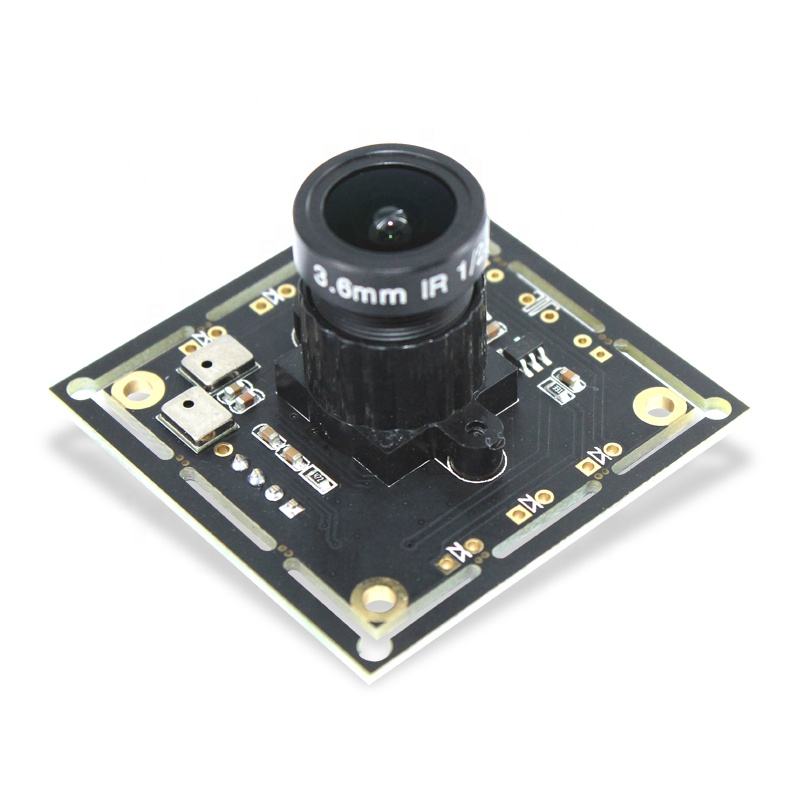

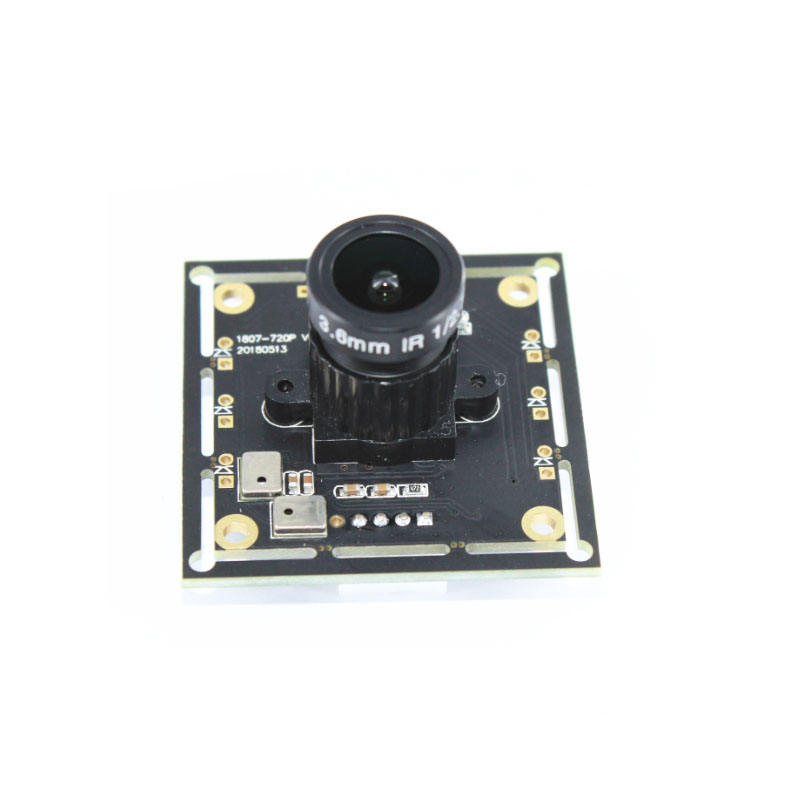

Detailed Images
