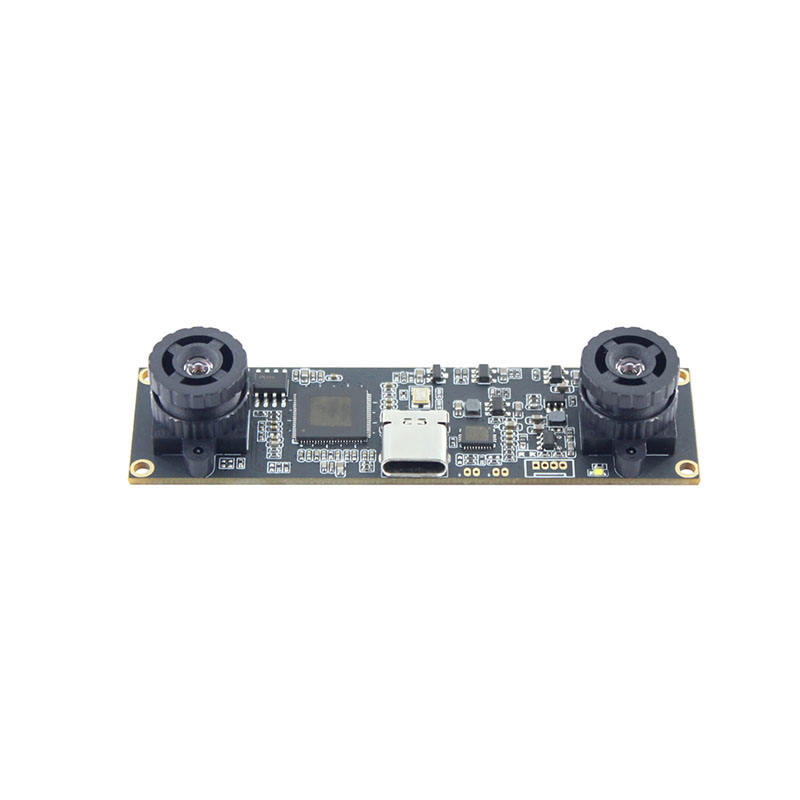

1MP HD OV9732 USB3.0 Dual Camera Module For 3D Depth Measurement
$38.40
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Description
| Product Name | 1MP HD OV9732 USB3.0 Dual Camera Module For 3D Depth Measurement | ||
| Module No. | BMW2280U3-2 V22 | ||

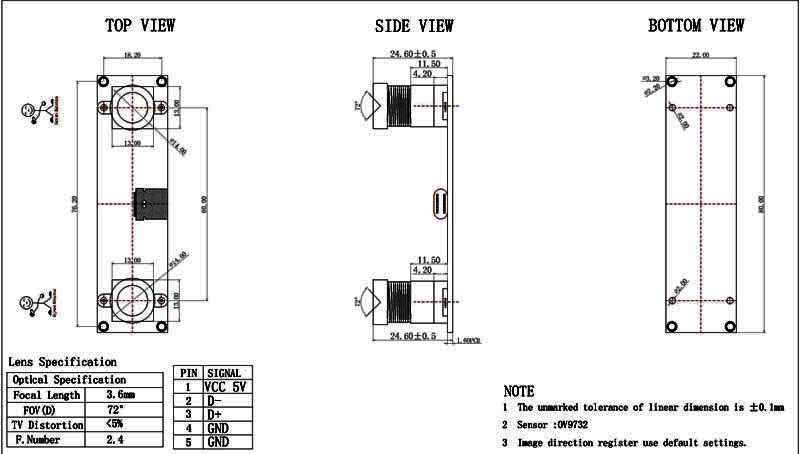

| Module Size | 80mm × 22mm × 24.60mm±0.5MM | ||
| Features | 1. Standard advertising machine all-in-one machine structure and hole position
| ||
| Temperature (Operation) | -30°C to 70°C | ||
| Temperature (Stable Image) | 0°C to 50°C | ||
| Assembly technique | SMT (ROSH) | ||
| Focus | Fixed | ||
| Object distance | 30CM-infinity | ||
| Resolution | 600LW/PH (Center) | ||
| PCB printing ink | Black | ||
| interface | USB 3.0 | ||
| Power suuply | USB bus power | ||
| supply voltage | DC 5V±5% | ||
| Maximum Power consumption | 710mW | ||
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc | ||
| Sensor | OV9732 (1/4" ) | ||
| Seneor Package | CSP,Bare Die | ||
| Maximum resolution | 2560*720 | ||
| Sensitivity | 2066mV /(lux-sec) | ||
| Pixel Size | 3µm x 3µm | ||
| Maximum Image Transfer Rate | MJPEG 640x240 30FPS / YUY2 640x240 30FPS MJPEG 1280x360 30FPS / YUY2 1280x360 10FPS MJPEG 1600x600 30FPS / YUY2 1600x600 10FPS MJPEG 2560x720 30FPS / YUY2 2560x720 5FPS | ||
| S/N Ratio | 39db | ||
| Max Dynamic Range | 72db | ||
| Shutter type | Electronic rolling shutter | ||
| AGC/AEC/Whiter balance | Auto | ||
| Output Formats | YUY2/MJPEG | ||
| Microphone | YES | ||
| Lens Construction | 2G2P | ||
| F/No | 2.4 | ||
| EFL | 3.6mm | ||
| FOV | 72° | ||
| TV Distortion | <5% | ||
| Relative Illumination (Sensor) | 70% | ||
| IR Filter | 650±10nm | ||
| Module Package | Anti-electrostatic tray | ||
| Certifications | FCC/CE/ROSH |

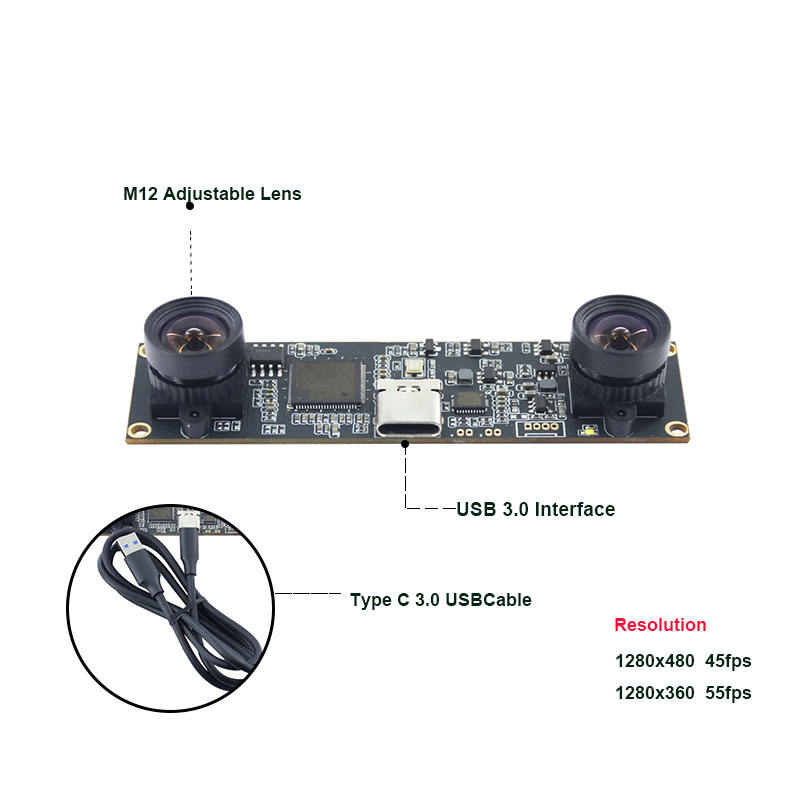

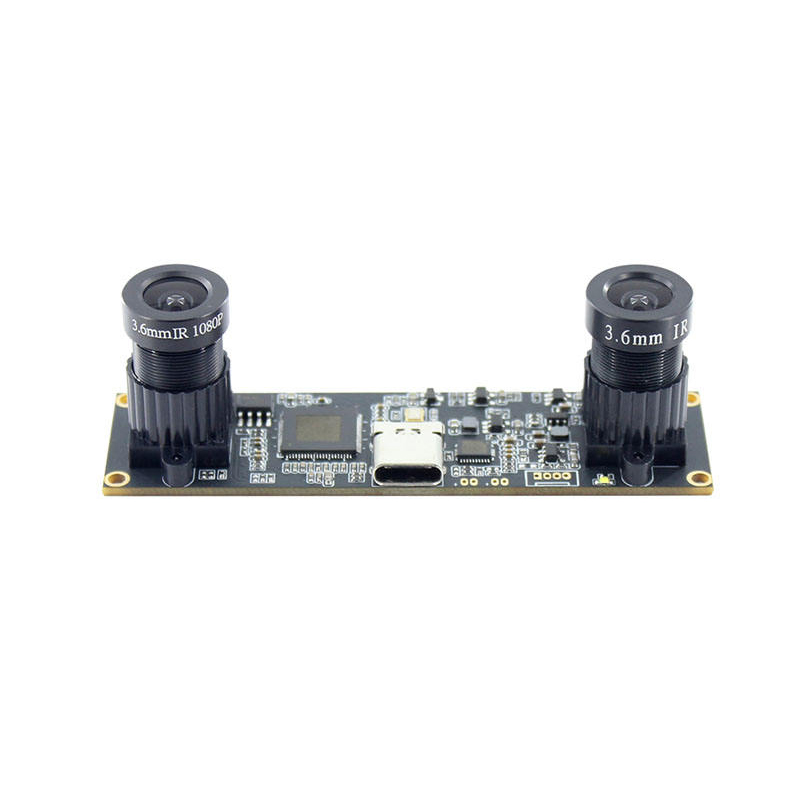

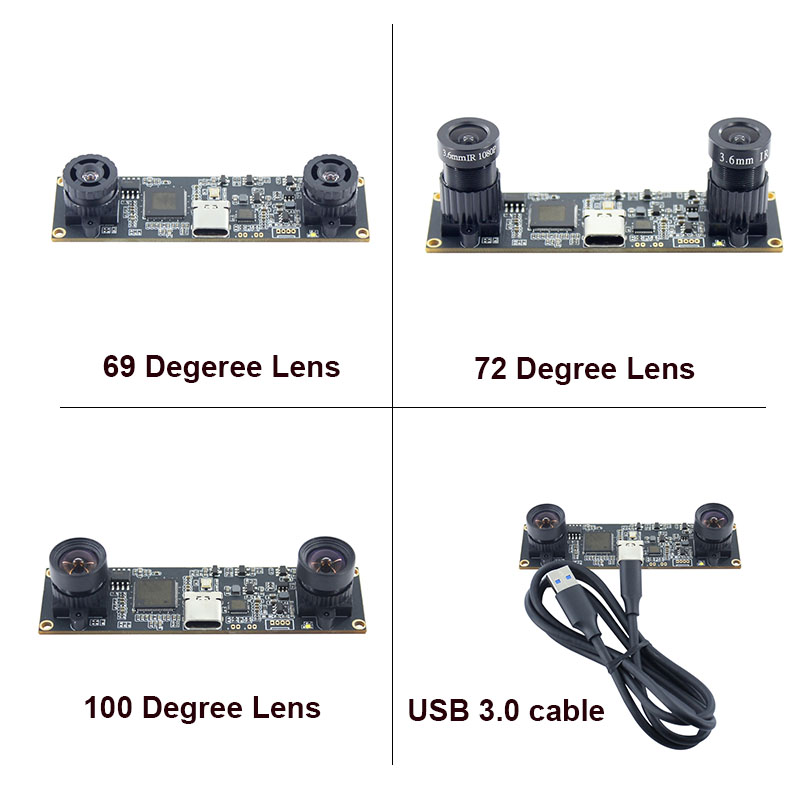

Detailed Images

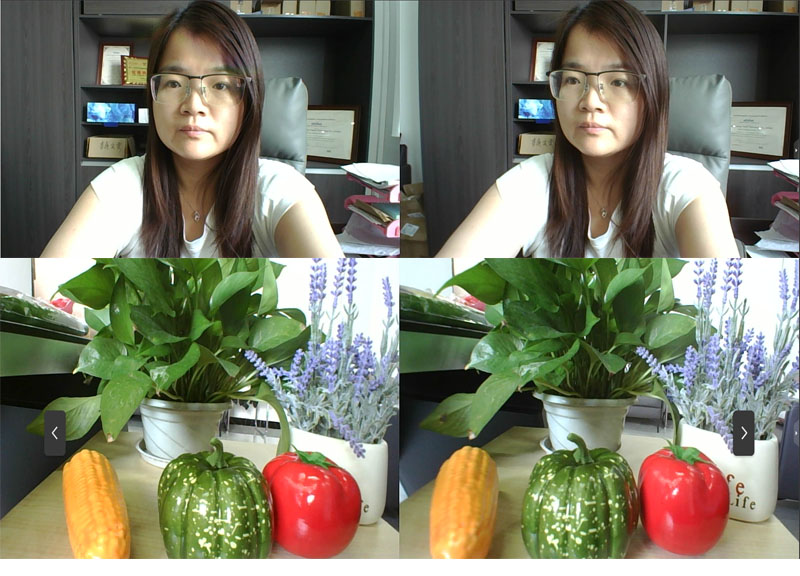

Effect Picture
