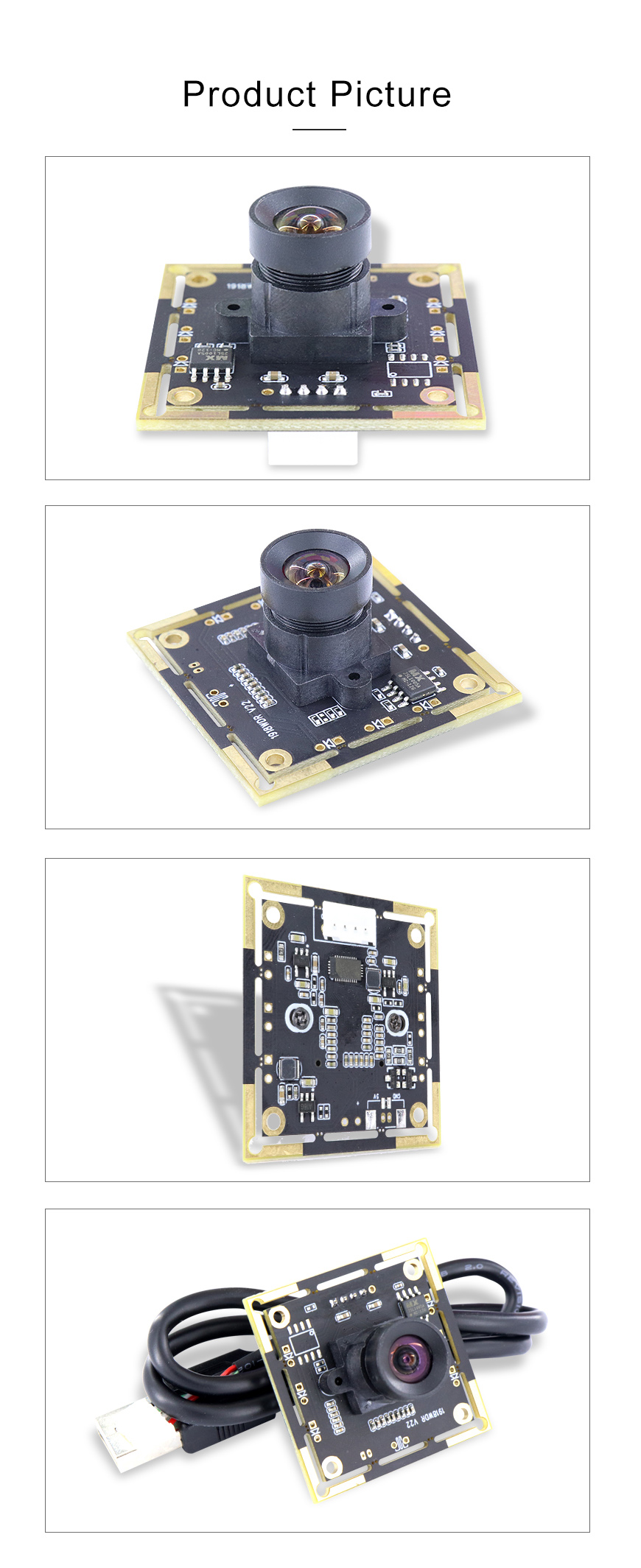

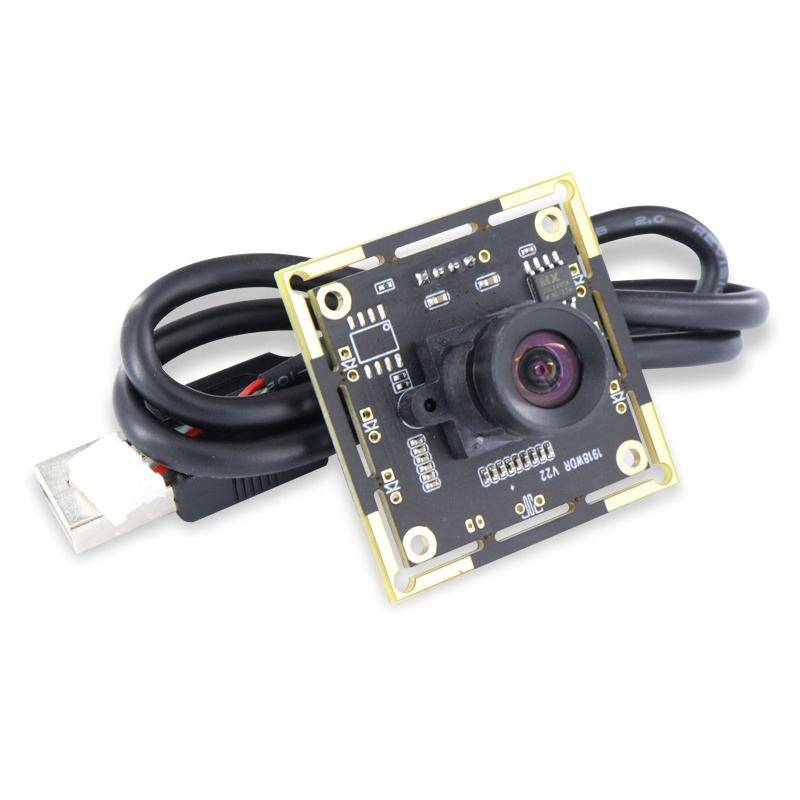

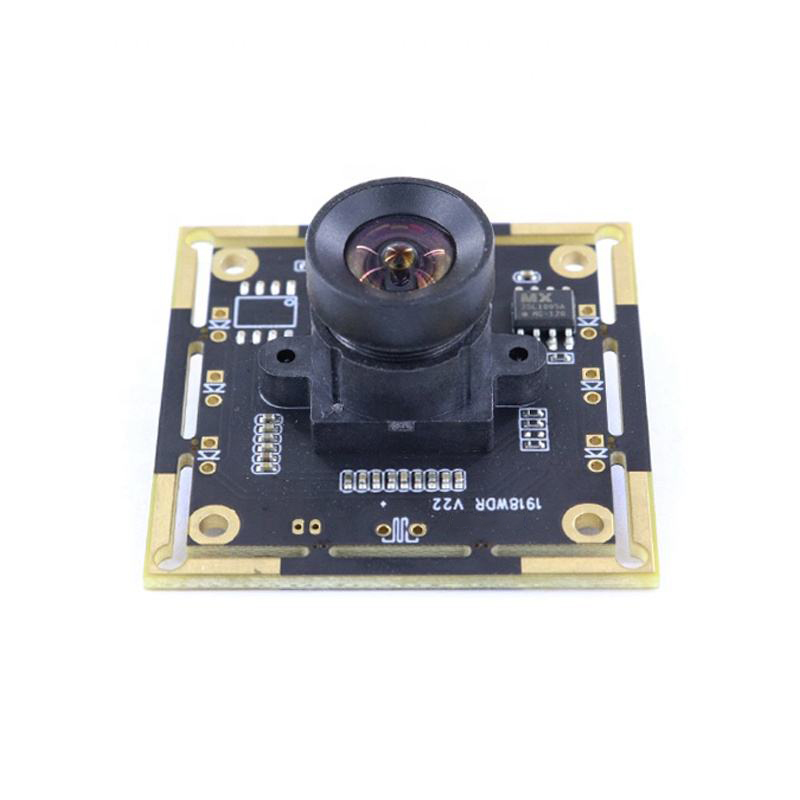

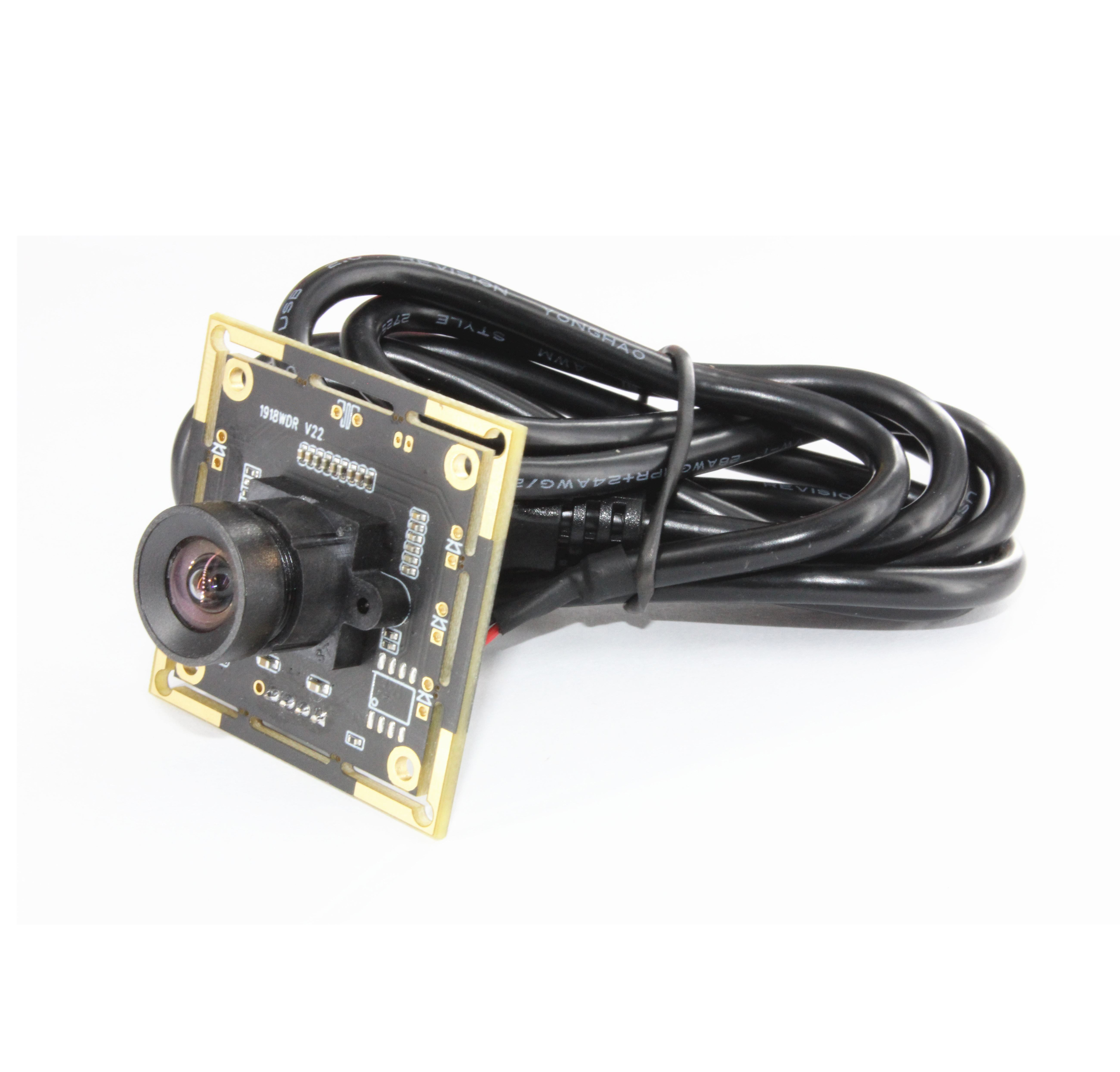

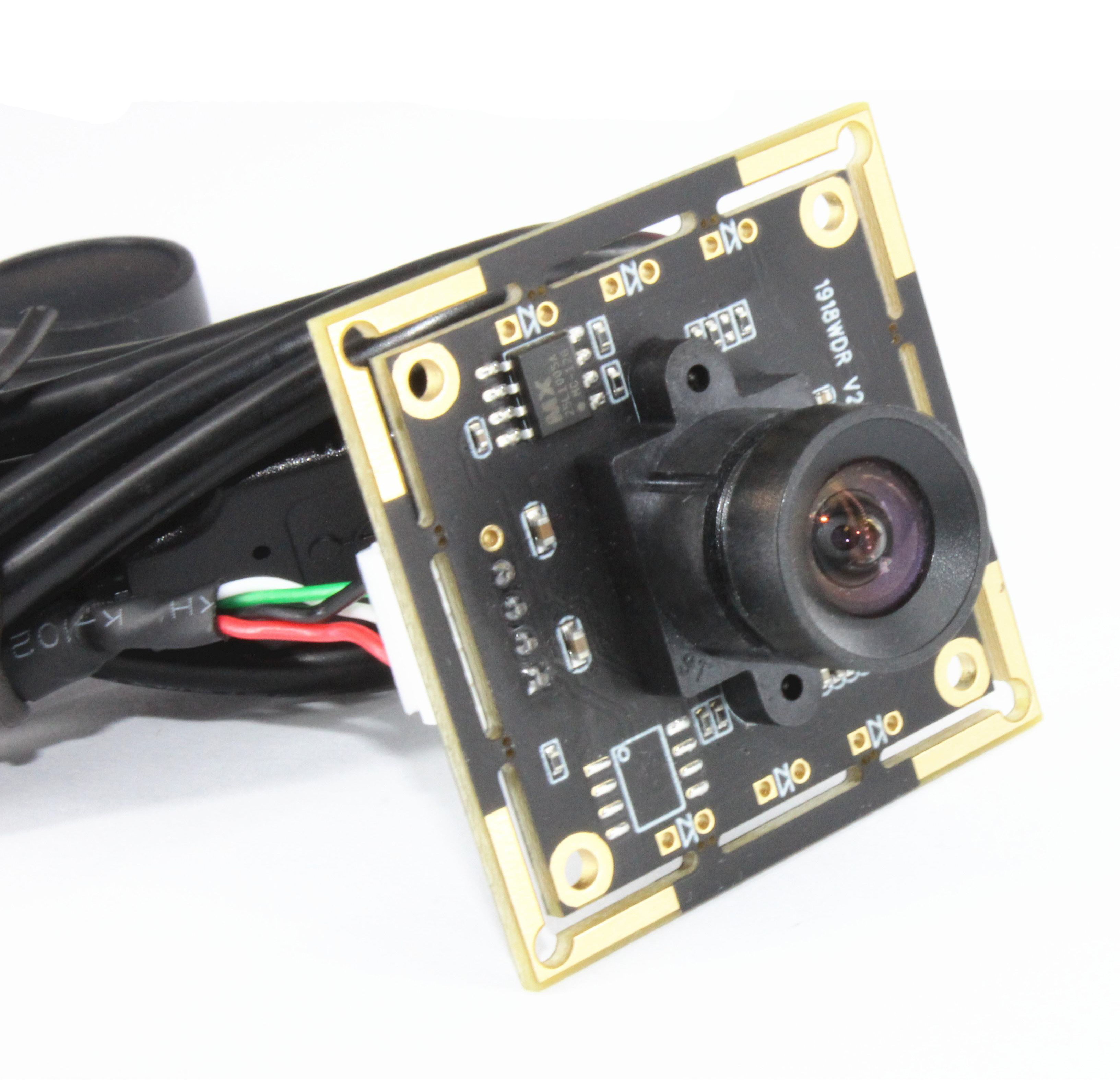

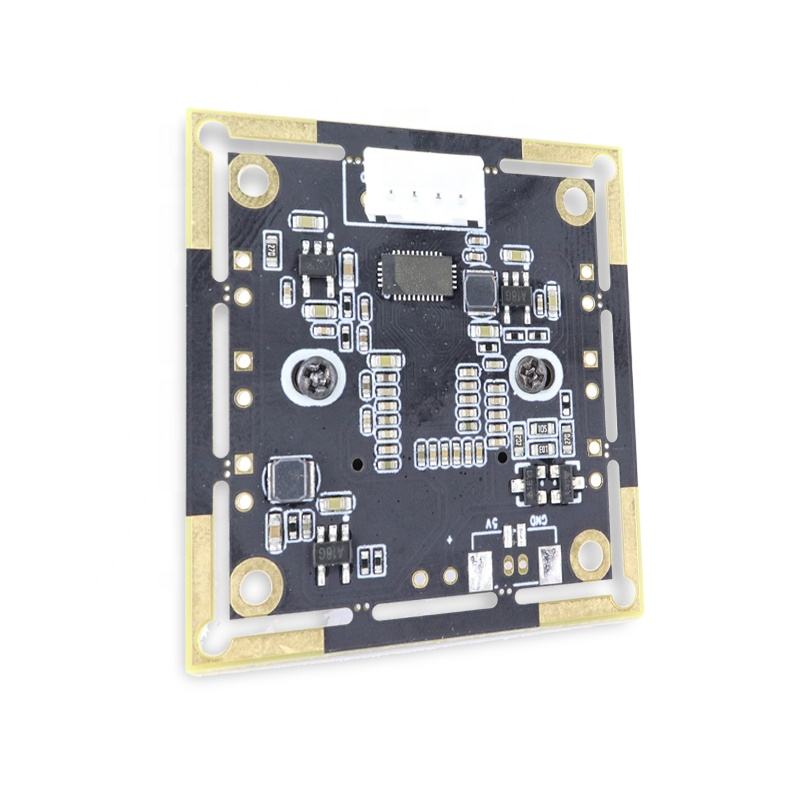

Hot-selling 30fps 2MP mini HD USB2.0 Wide Dynamic Range CMOS AR0230 Face Recognition Camera Module
$44.40
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
| Module No. | BM1918WDR V22 |

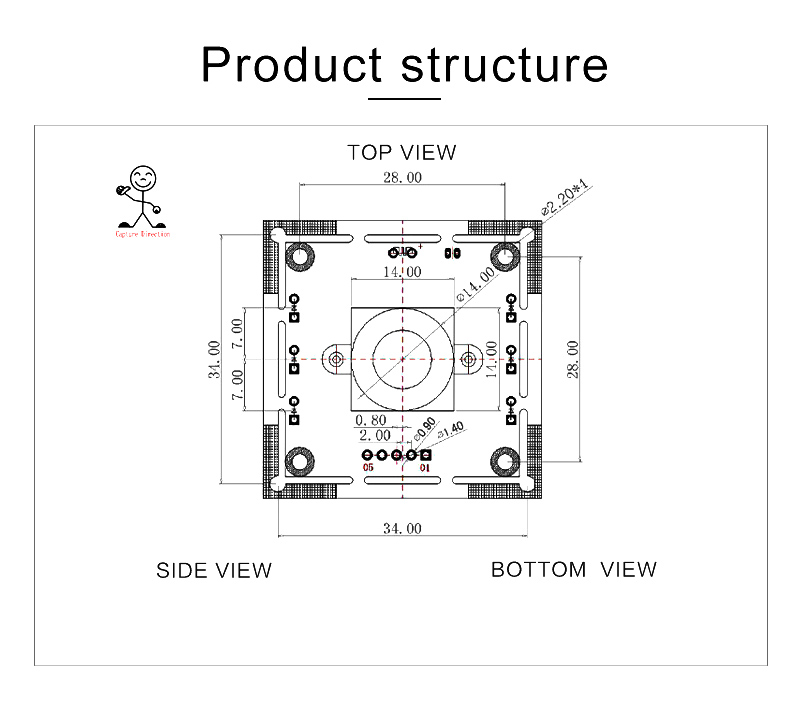

| Module Size | 38mm × 38mm × 17.95mm±0.5MM |
| Temperature (Operation) | -20°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| interface | USB 2.0 |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | AR0230 (1/2.7" ) |
| Maximum resolution | 1920*1080 |
| Sensitivity | 4.0V /(lux-sec) |
| Pixel Size | 3.0µm x 3.0µm |
| Maximum Image Transfer Rate | MJPEG 800x600 30FPS / YUY2 800x600 20FPS |
| MJPEG 960x720 30FPS / YUY2 960x720 15FPS | |
| MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS | |
| MJPEG 1280x960 30FPS / YUY2 1280x960 5FPS | |
| MJPEG 1280x1024 30FPS / YUY2 1280x1024 5FPS | |
| MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS | |
| S/N Ratio | 41 db |
| Max Dynamic Range | 105 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 2G2P |
| F/No | 2.4 |
| EFL | 3.0 mm |
| FOV | 100° |
| TV Distortion | <5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Certifications | FCC/CE/ROSH |
| The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to | |
| Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding. | |
