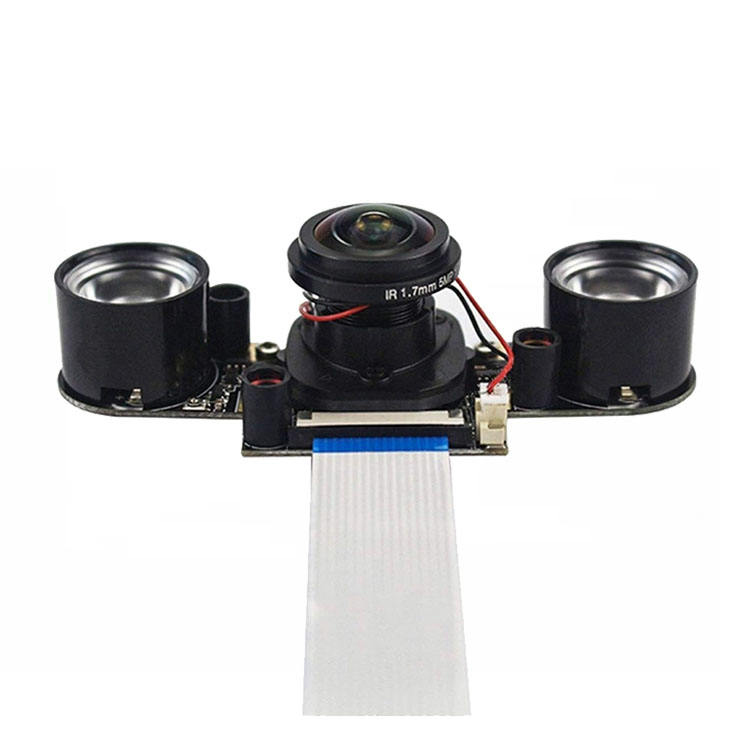

Raspberry Pi Camera Module OV5647 5MP 175 Degree Wide Angle Fisheye Lens Raspberry Pi 3/2 Model B Camera Module
$12.36
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Specification
Module No. | HR-AUTO-IRCUT-175 S1.0 |
| Module Size | 30.58mm×32mm ×24.5±0.5mm |
| Temperature (Operation) | -20°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM to infinity |
| Resolution | 800LW/PH (Center) |
| PCB printing ink | Black |
| interface | 15p-1.0 mip |
| Working power supply | 3.3v（pin15） |
| Operating system | Raspberry Pi |
| Package | Anti-electrostatic tray |
| Certifications | FCC and CE |
| Sensor Type | OV5647 (1/4" ) |
Active Array Size | 2592*1944 |
Sensitivity | 600mV/Lux-sec |
| Pixel Size | 1.4µm x1.4µm |
Maximum Image Transfer Rate | 15 fps for QSXGA; |
| Output formats | 8/10bit RGB RAW output |
S/N Ratio | 34db |
| Dynamic Range | 67db @8x gain |
Package | CSP,Bare Die |
| Lens Type | |
| Lens Construction | 6G |
| F/No | 2.0 |
| EFL | 1.7mm |
| BFL(Optical) | 4.8 mm |
| DFOV | 175° |
| TV Distortion | <16% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | Auto IR-CUT |

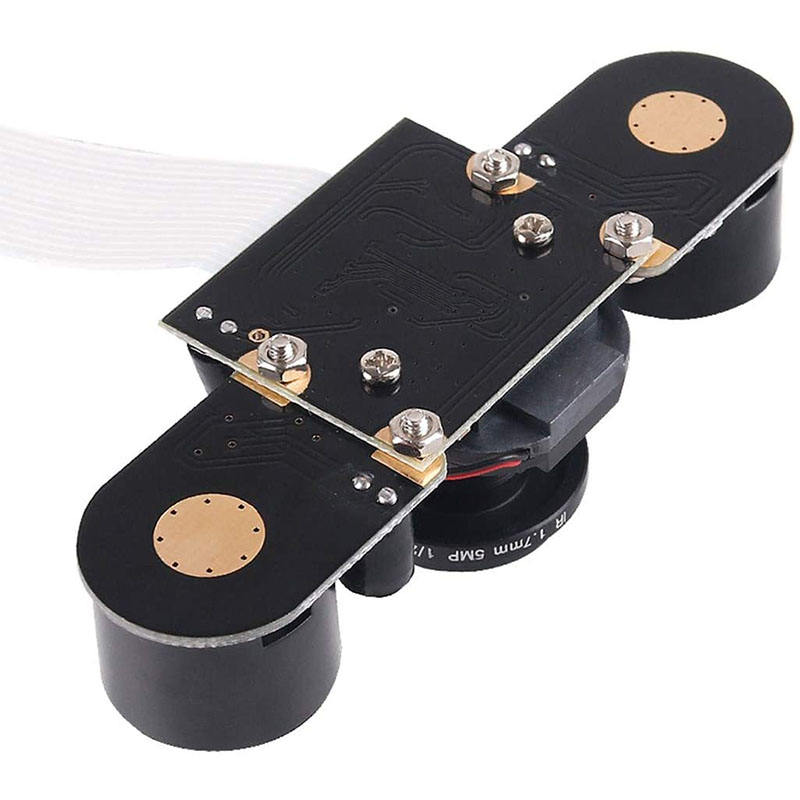

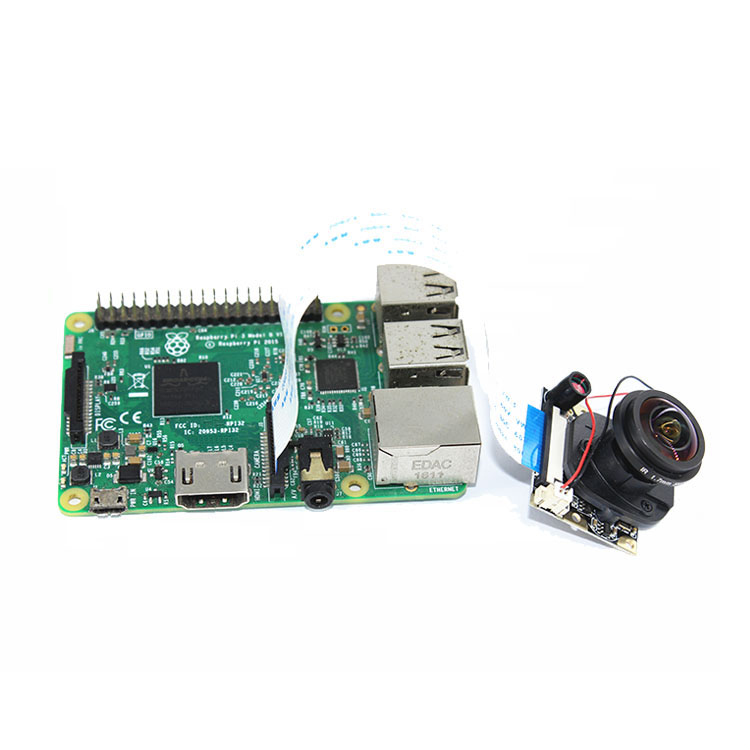

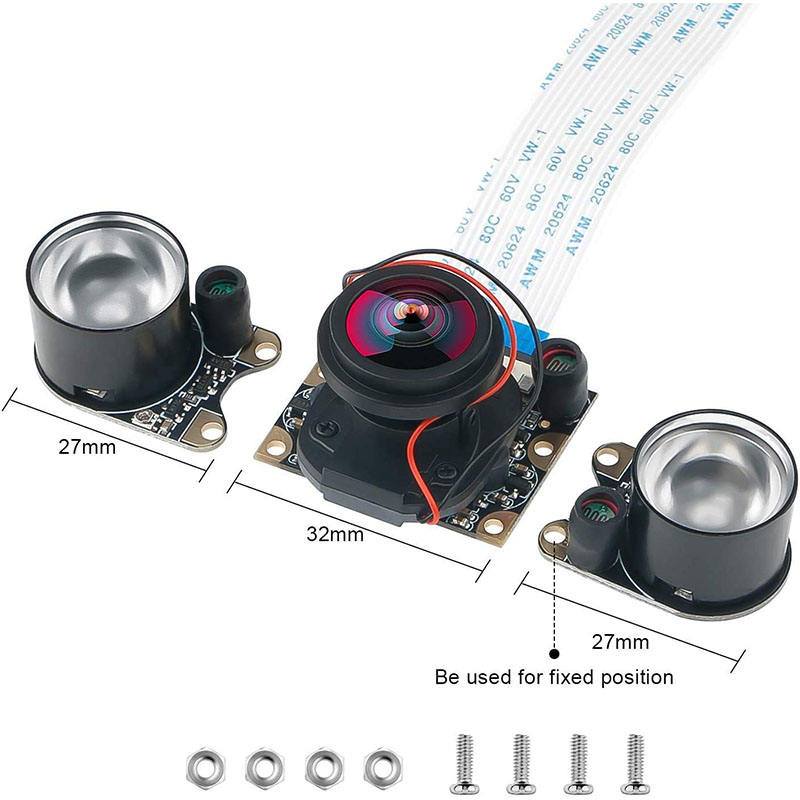

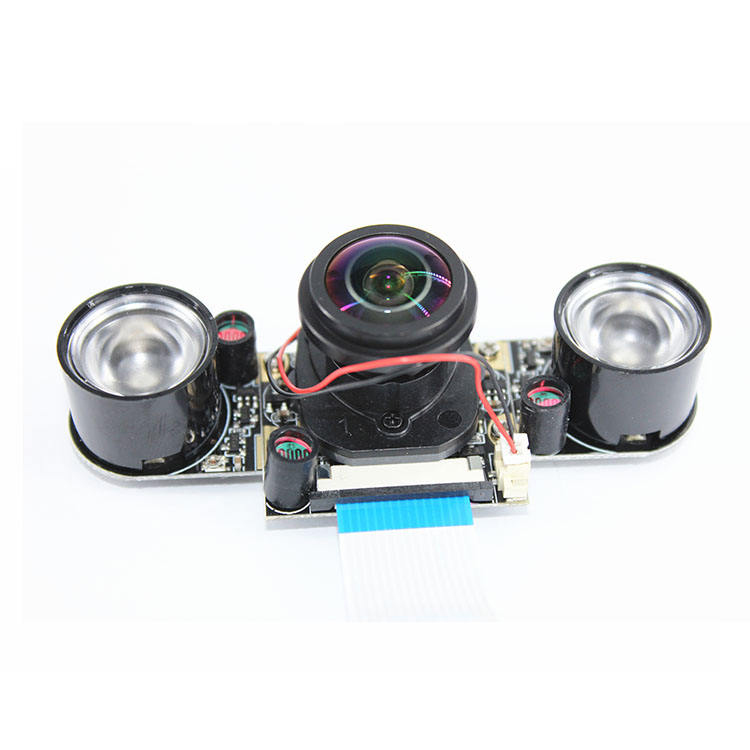

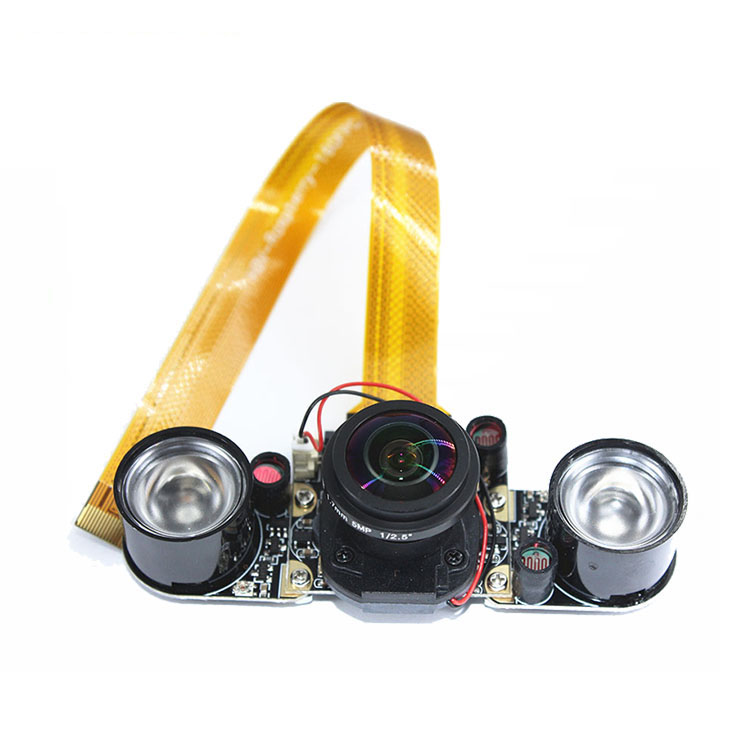

Detail Images

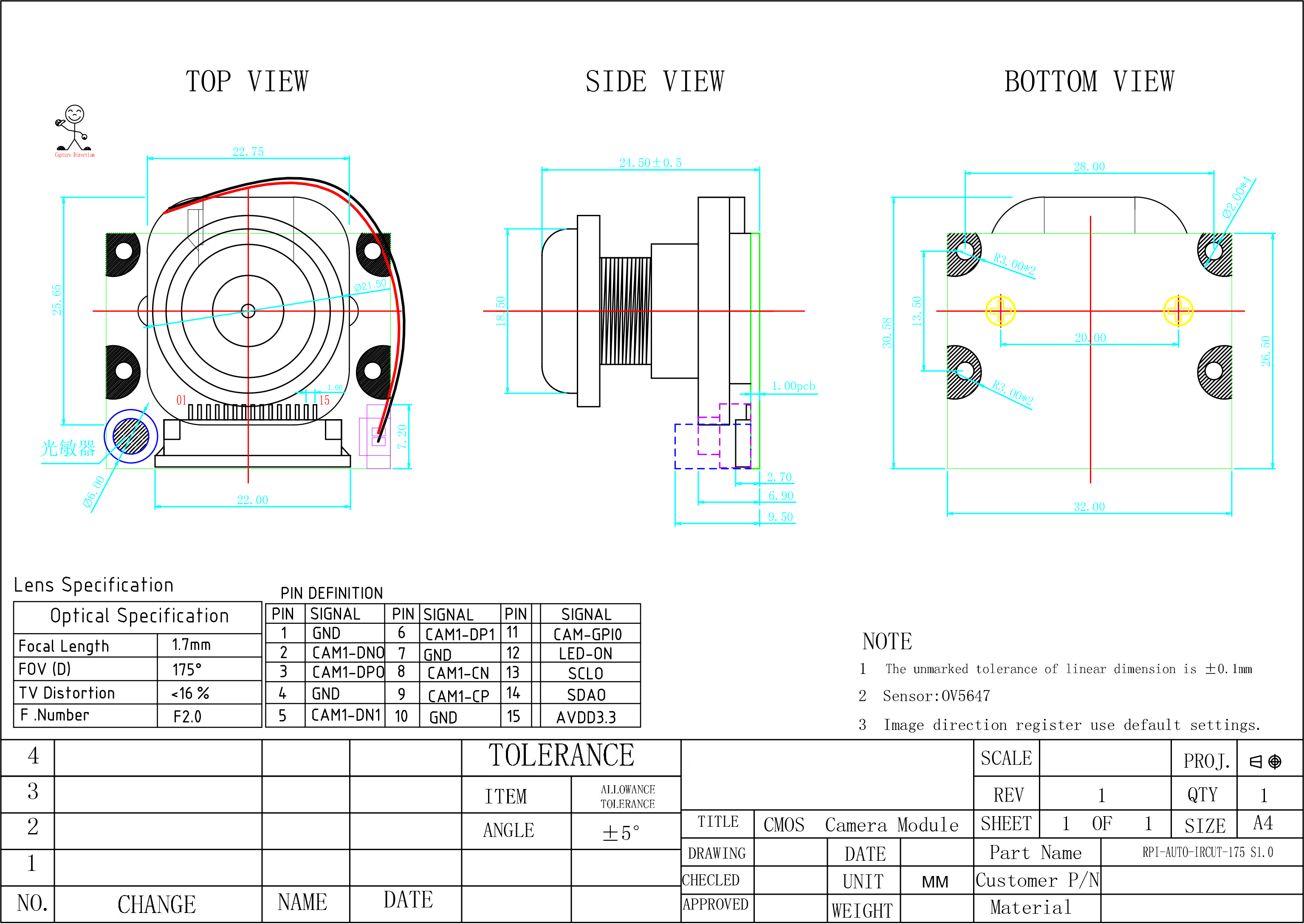

Product drawing
