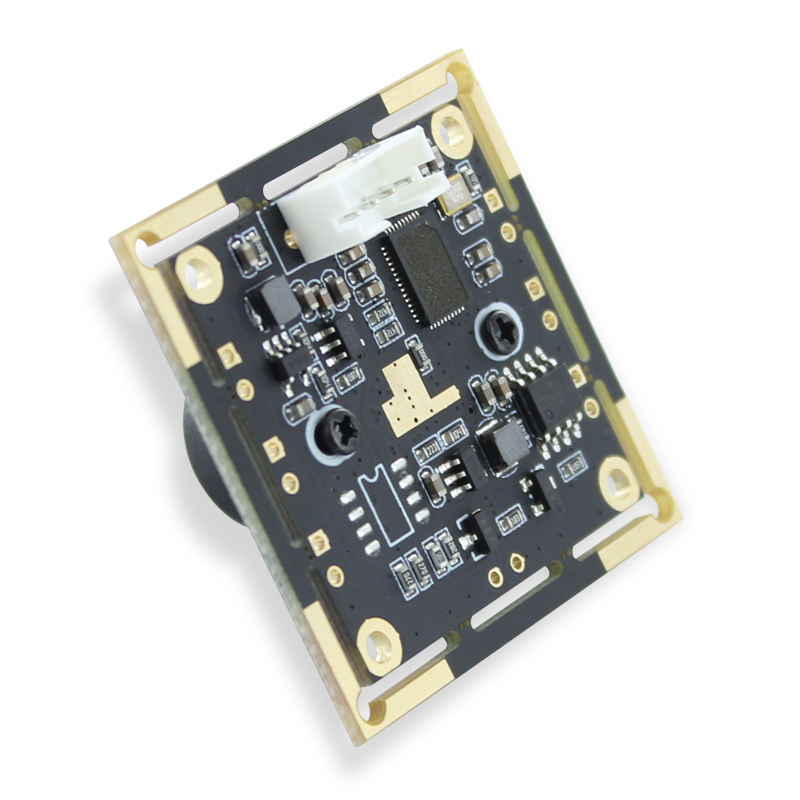

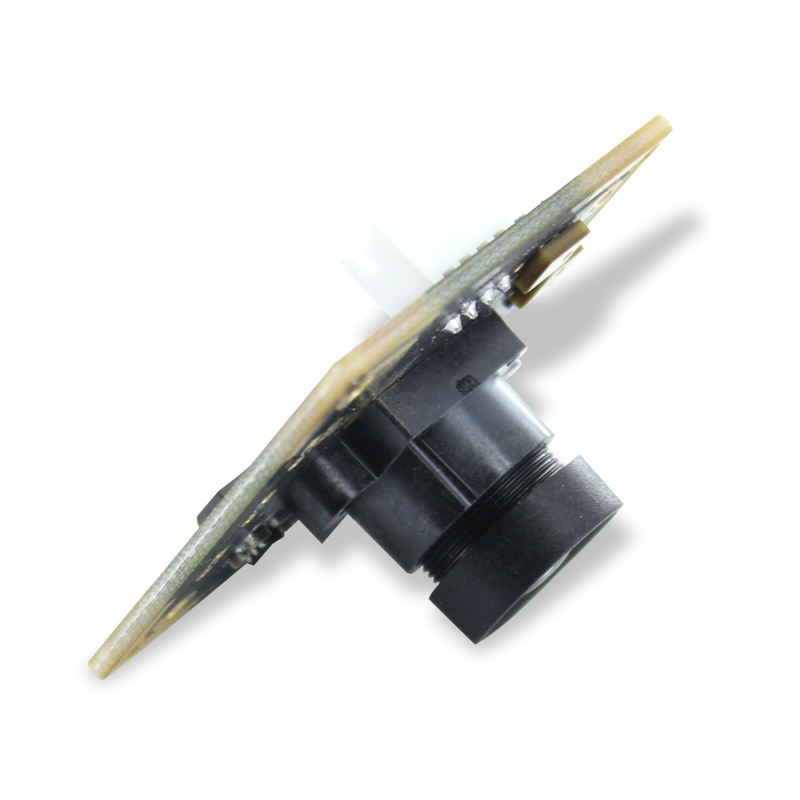

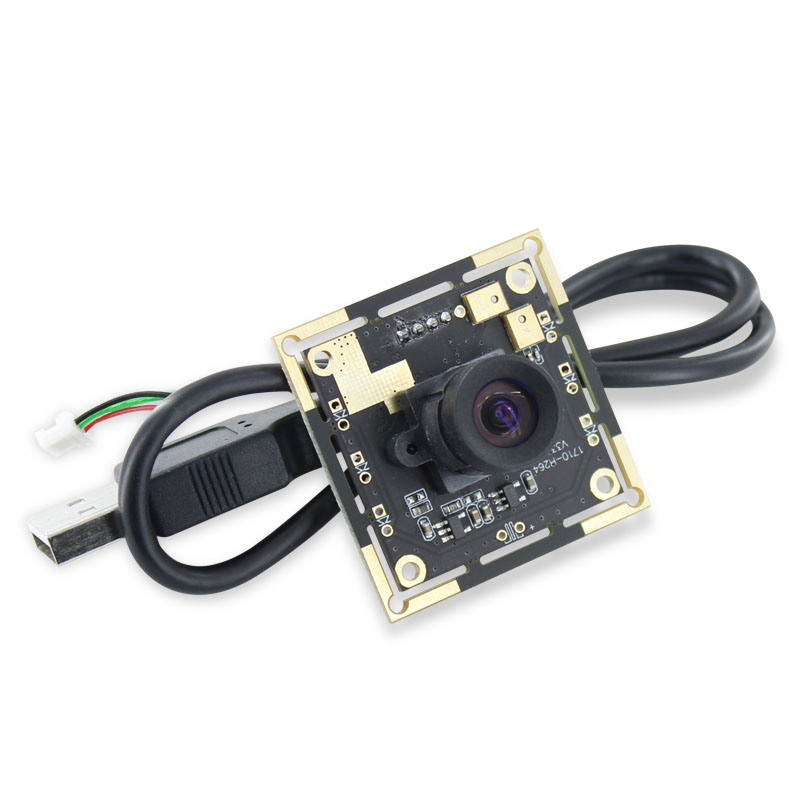

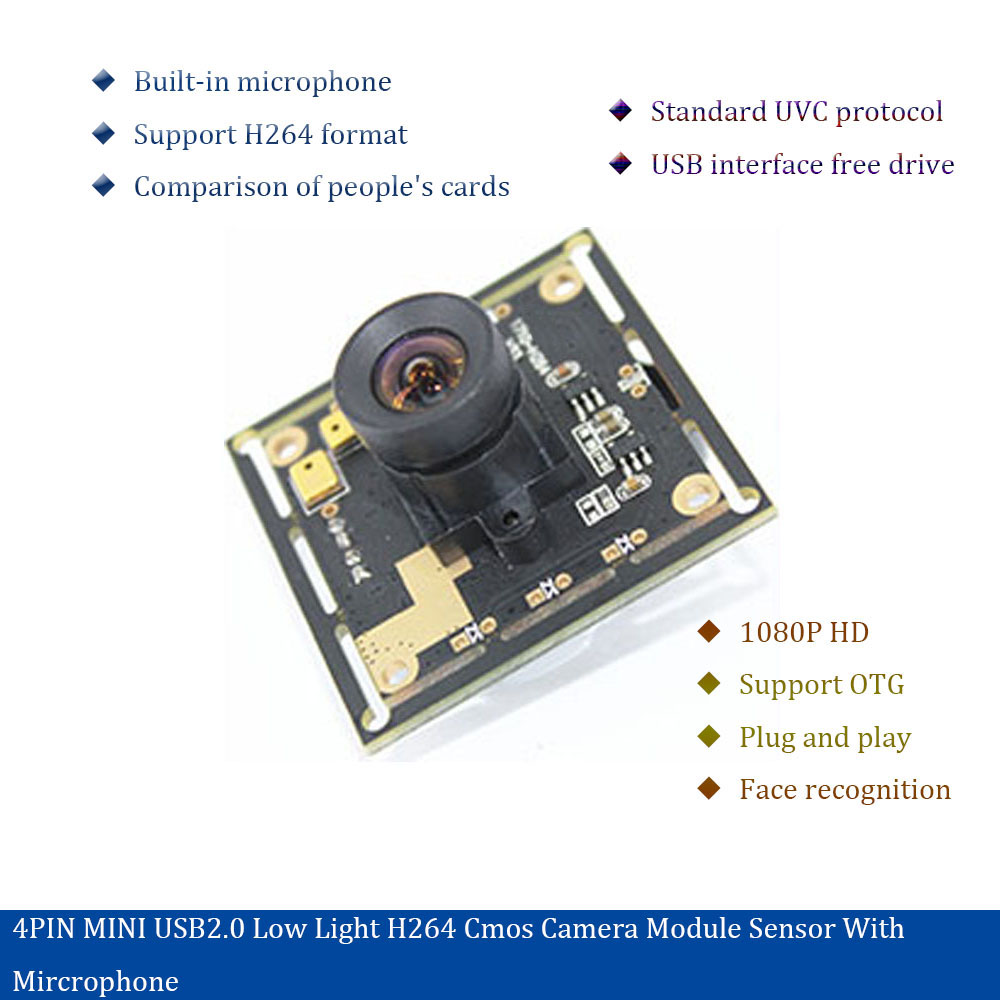

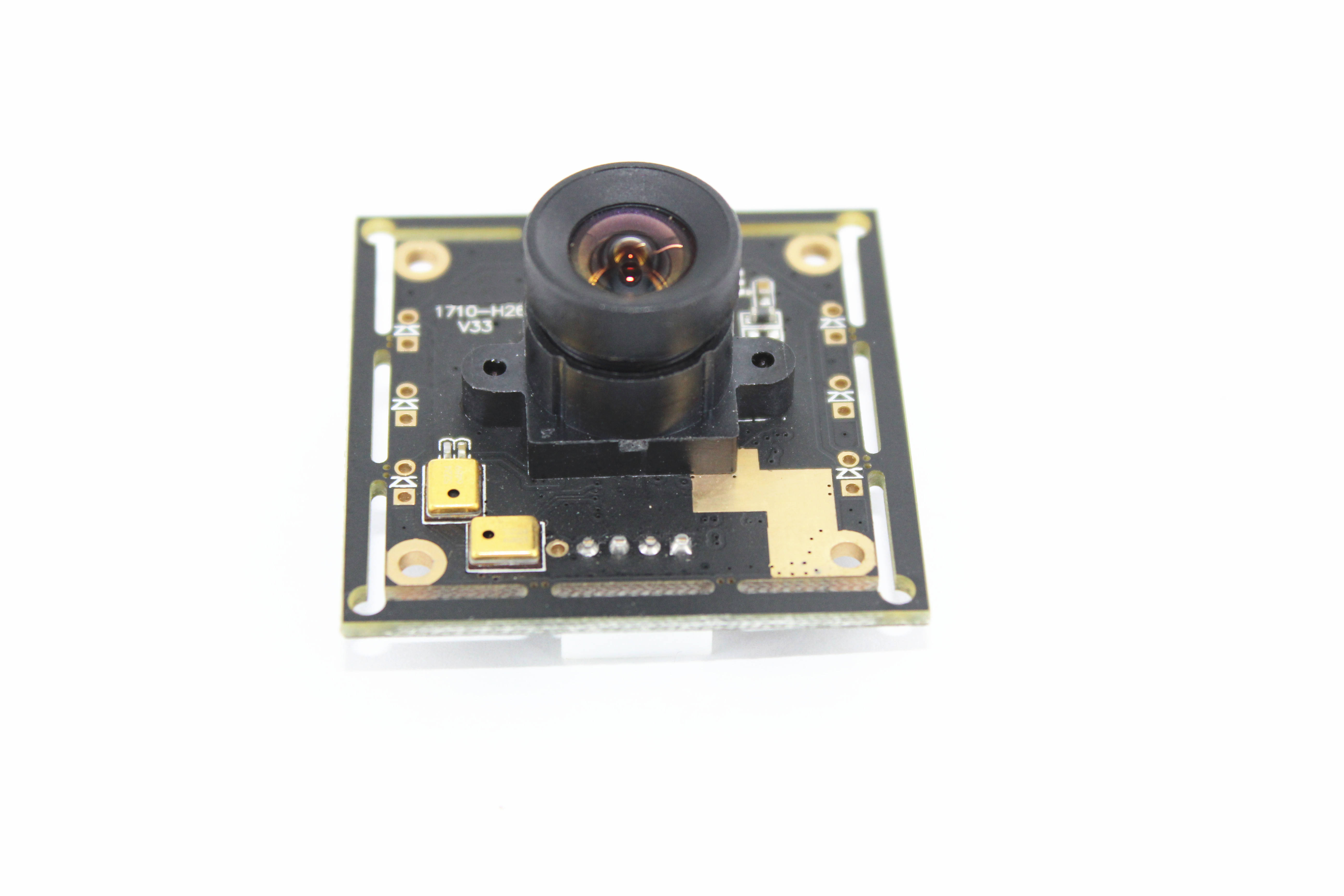

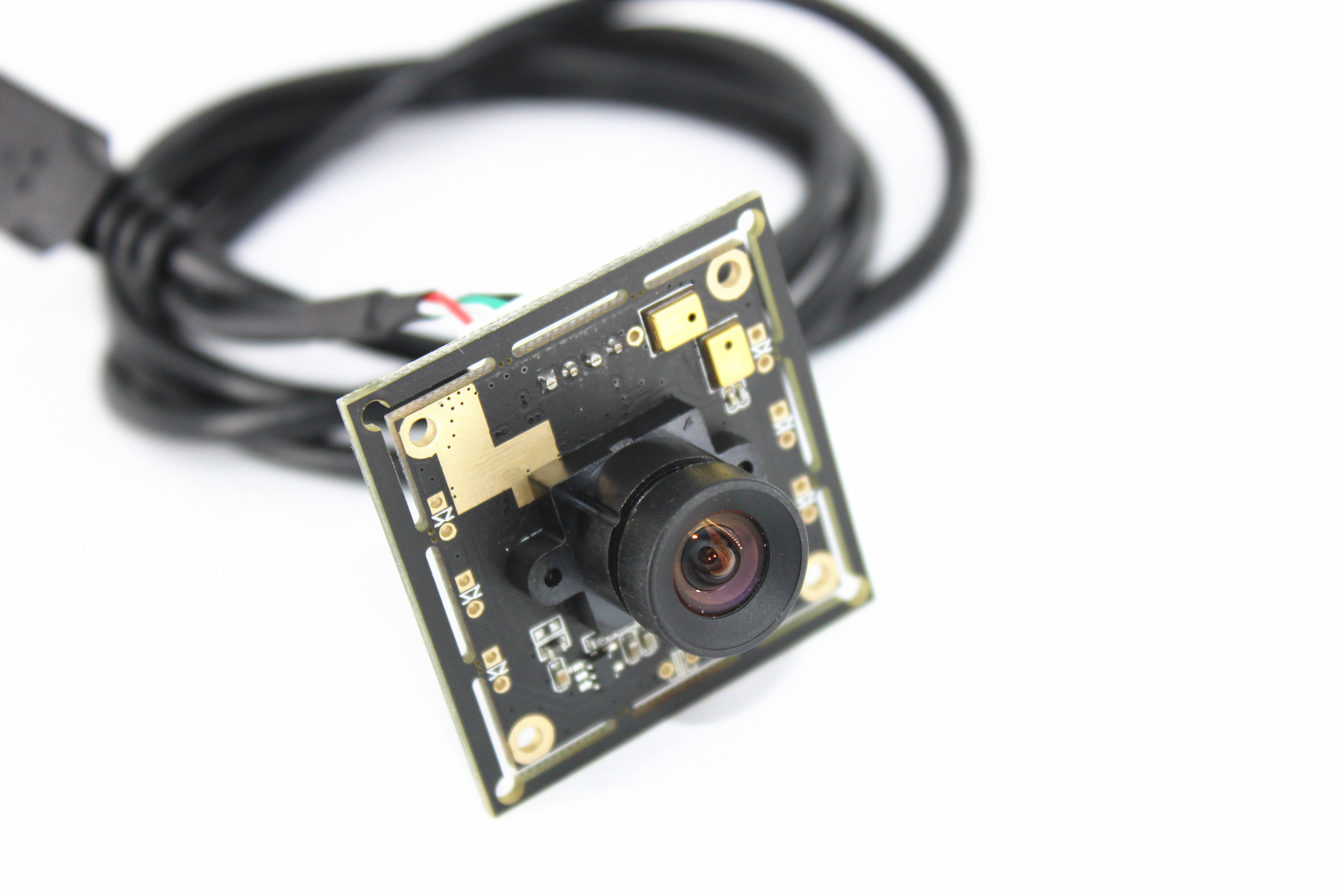

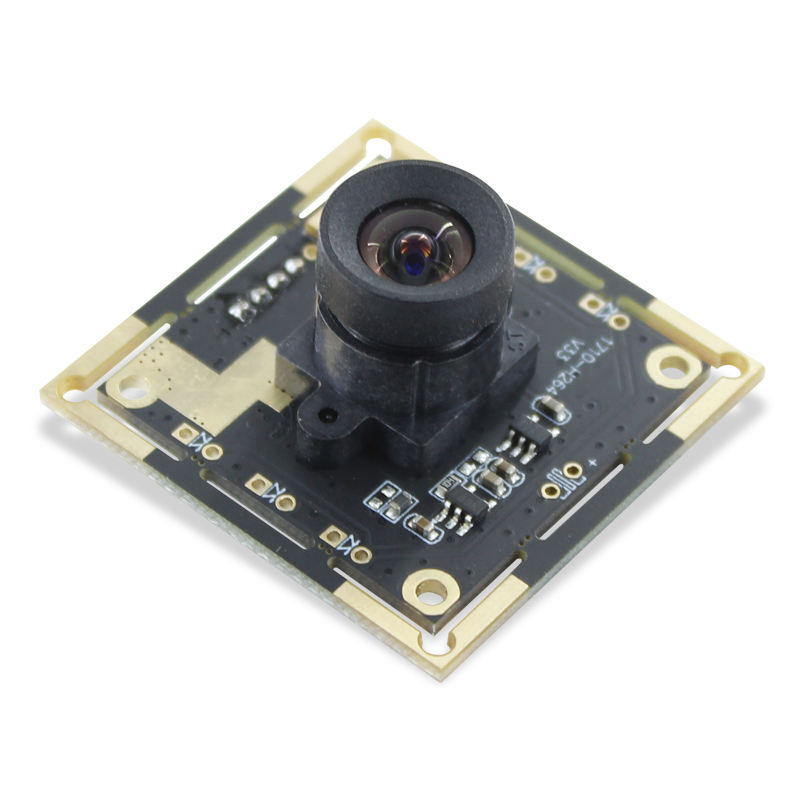

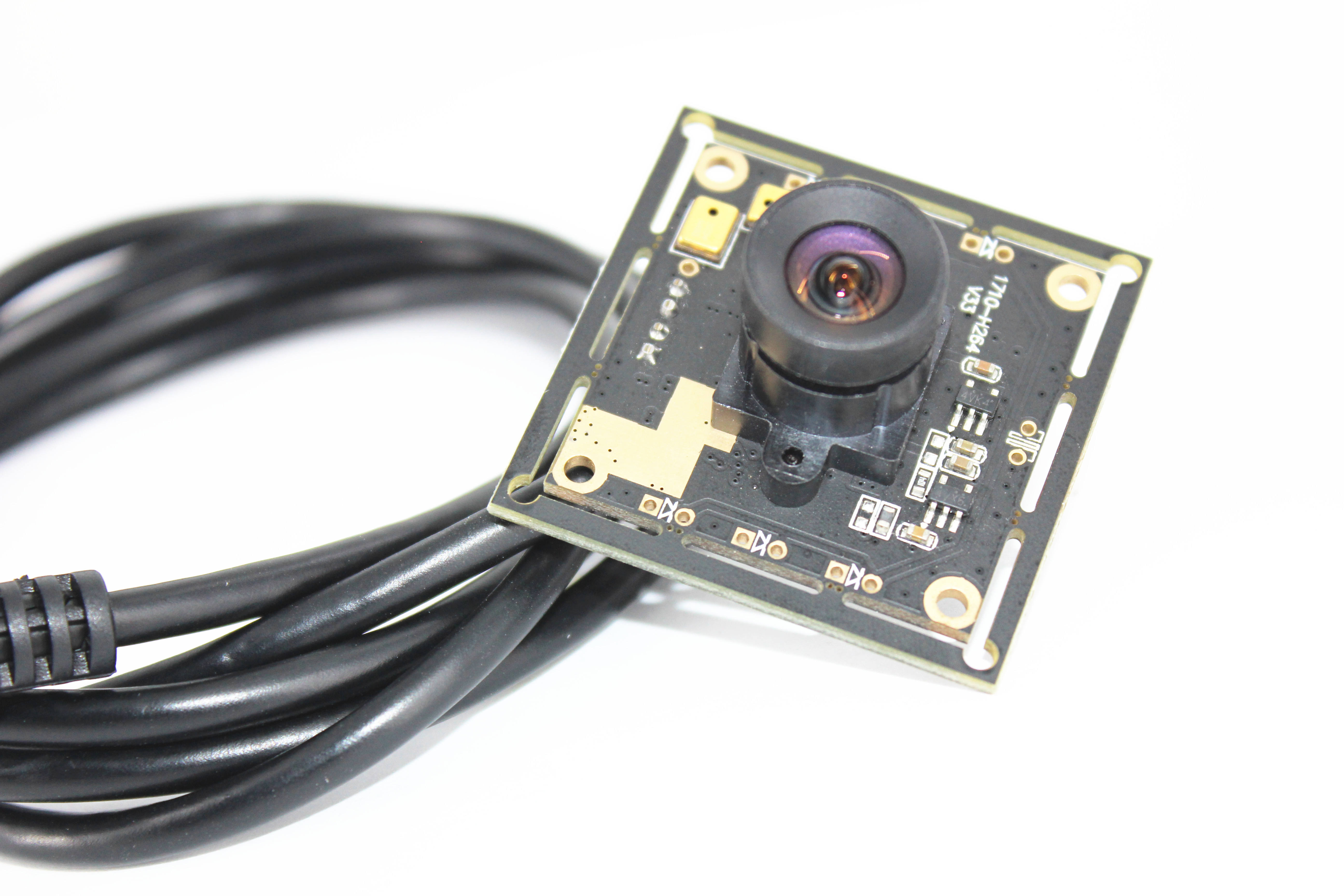

Free Driver 2MP H264 Camera Module with 1080P Camera 85 Degree Indoor IOS Android 1/3" CMOS AR0330 30fps
$33.60
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Description
| Module No. | BM1710-H264 V33 |
| Module Size | 38mm × 38mm × 23.7mm±0.5MM |
| Temperature (Operation) | -20°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 1000mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | AR0330 (1/3" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 2304*1536 |
| Sensitivity | 2.0V /(lux-sec) |
| Pixel Size | 2.2µm x 2.2µm |
| Maximum Image Transfer Rate | |
| MJPEG 640x480 30FPS / YUY2 640x480 30FPS | |
| MJPEG 960x720 30FPS / YUY2 960x720 10FPS | |
| MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS | |
| MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS | |
| S/N Ratio | 39 db |
| Max Dynamic Range | 69.5 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 2G+2P |
| F/No | 2.4 |
| EFL | 2.1 mm |
| FOV | 20° |
| TV Distortion | <1.0% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
Effect Picture
