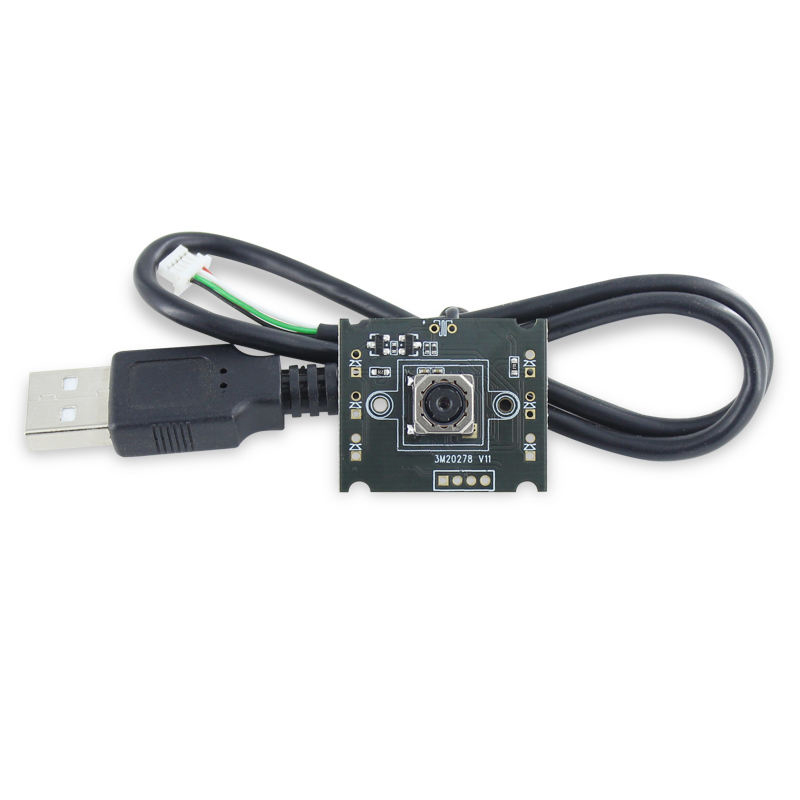

OV3640 Auto Focus Usb Microphone Cmos 3Mp Camera Module For Advertising Equipment
$10.80
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Description
| Module No. | BM3M20278 V11 |

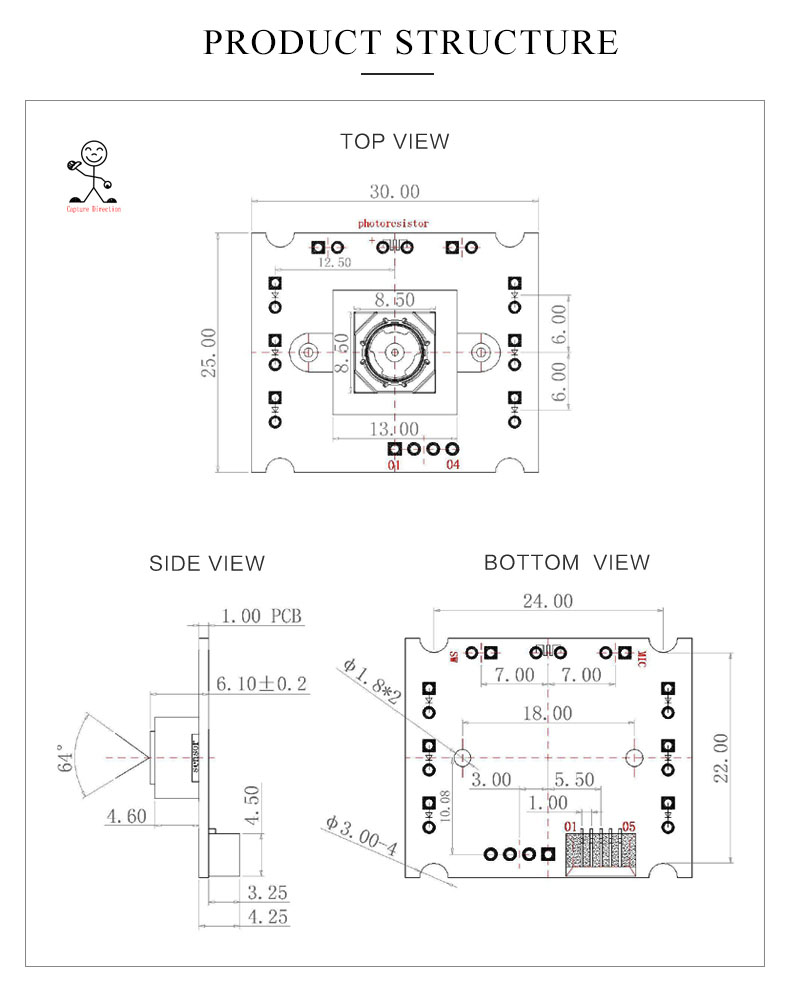

| Module Size | 30mm × 25mm × 6.1mm±0.2MM |
| Temperature (Operation) | -20°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Auto |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 750mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV3640 (1/4" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 2048*1536 |
| Sensitivity | 670mV /(lux-sec) |
| Pixel Size | 1.4µm x 1.4µm |
| Maximum Image Transfer Rate | MJPEG 320x240 15FPS / YUY2 320x240 17FPS |
| MJPEG 352x288 15FPS / YUY2 352x288 17FPS | |
| MJPEG 640x480 15FPS / YUY2 640x480 17FPS | |
| MJPEG 1280x1204 5FPS / YUY2 1280X1204 3FPS | |
| MJPEG 1600x1200 5FPS / YUY2 1600X1200 3FPS | |
| MJPEG 2048x1536 5FPS / YUY2 2048x1536 3FPS | |
| S/N Ratio | 34 db |
| Max Dynamic Range | 70 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 4P |
| F/No | 2.4 |
| EFL | 3.5 mm |
| FOV | 64° |
| TV Distortion | <5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |

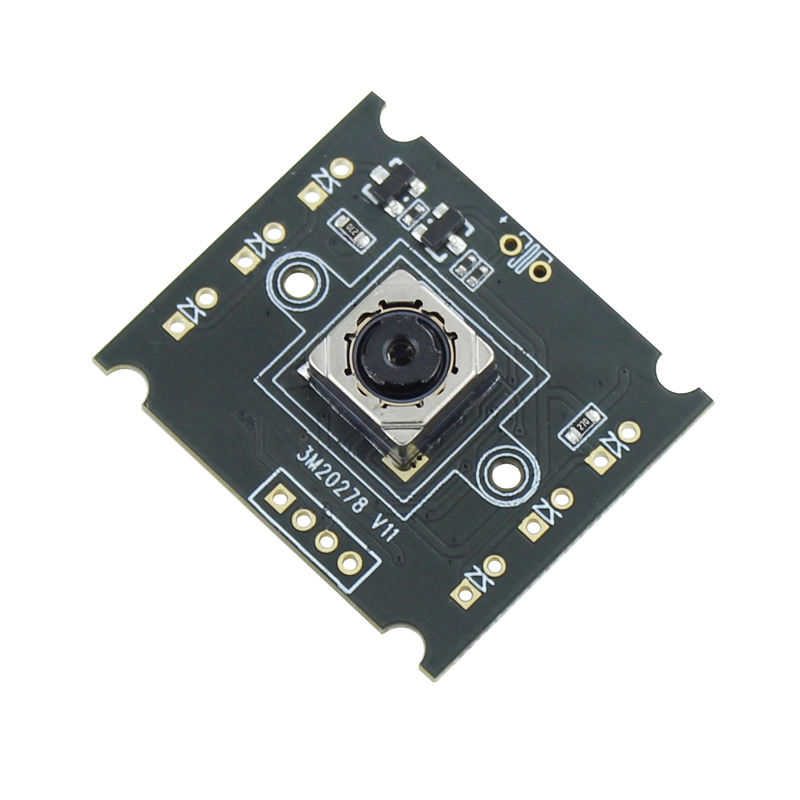

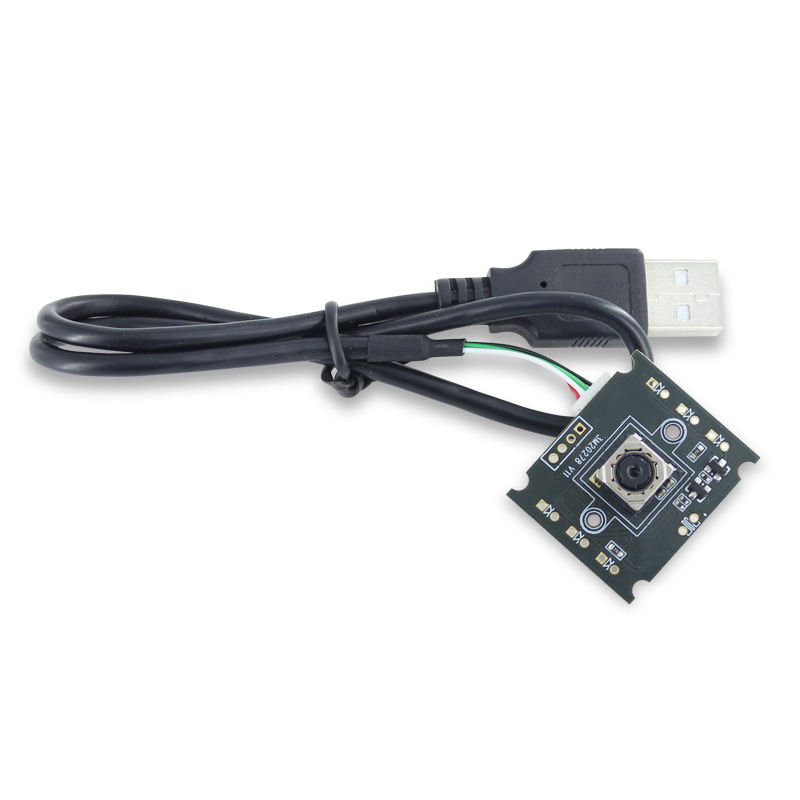

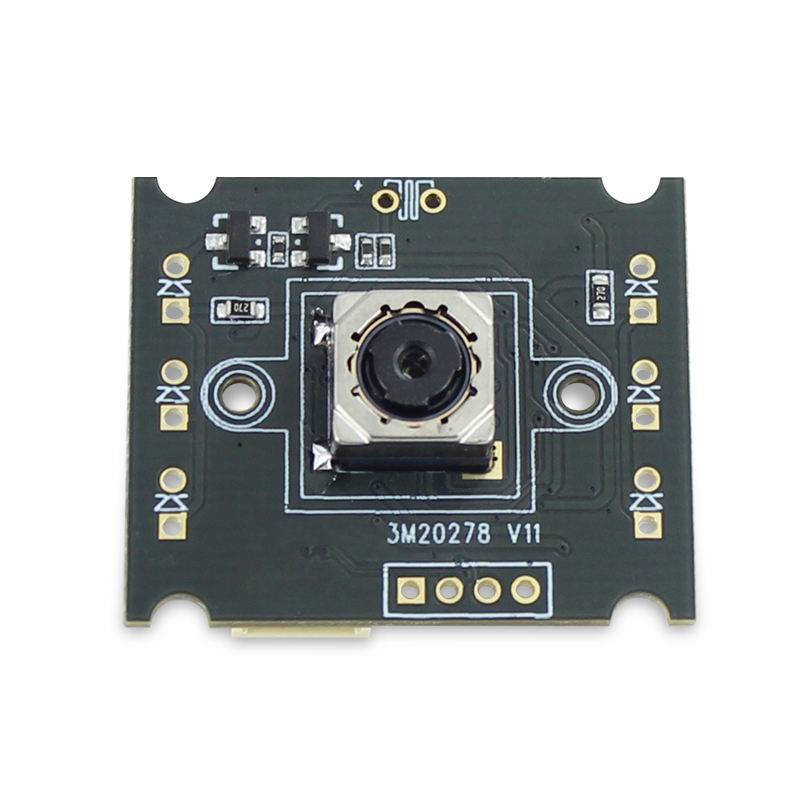

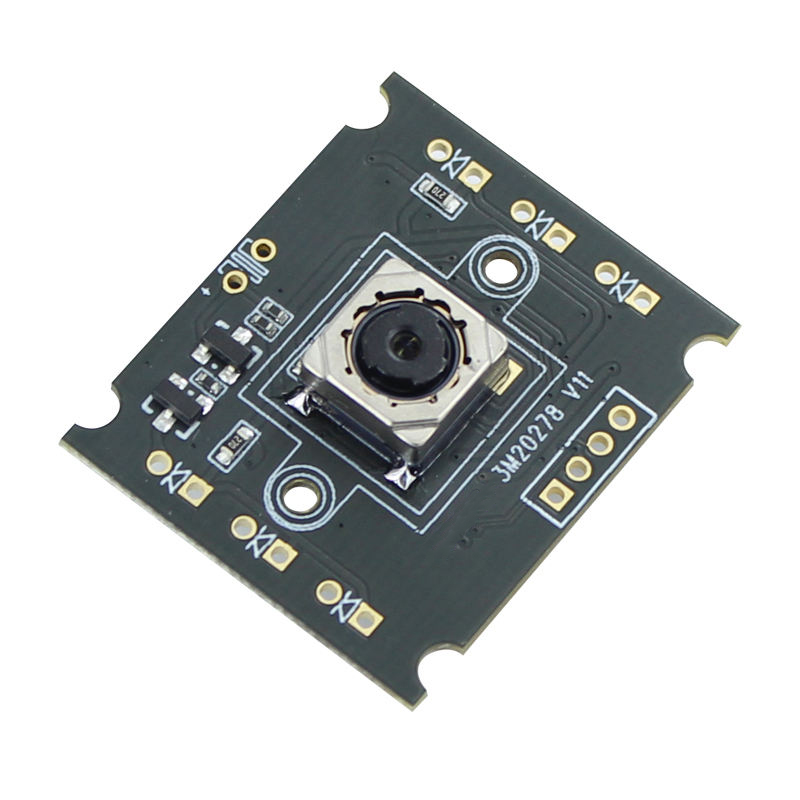

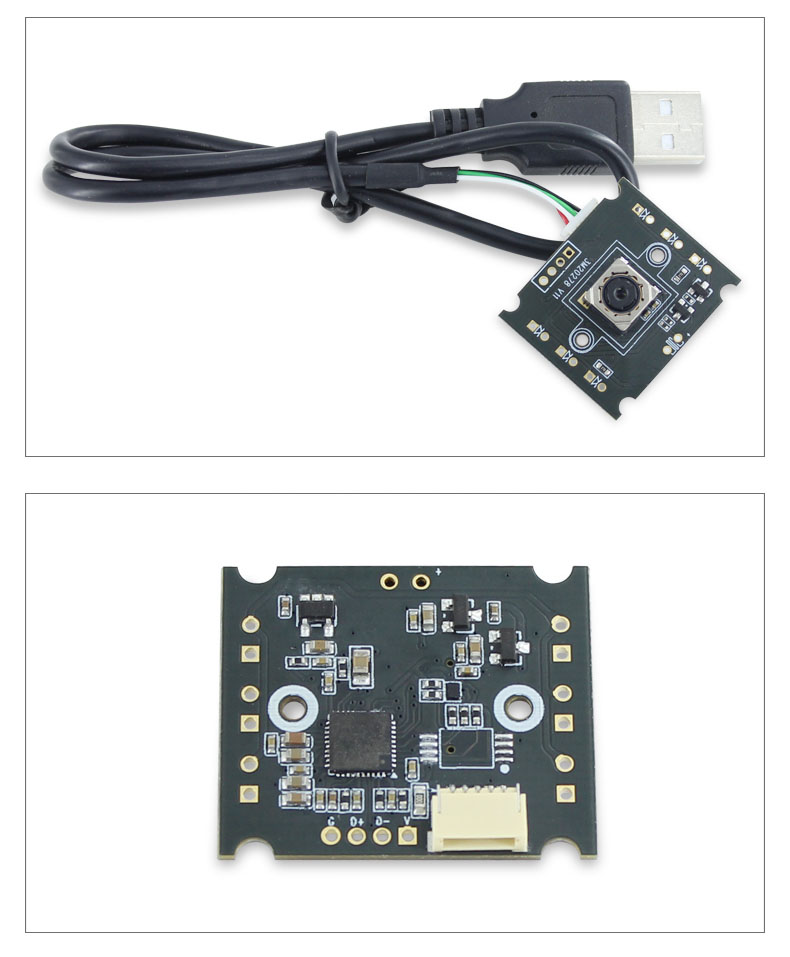

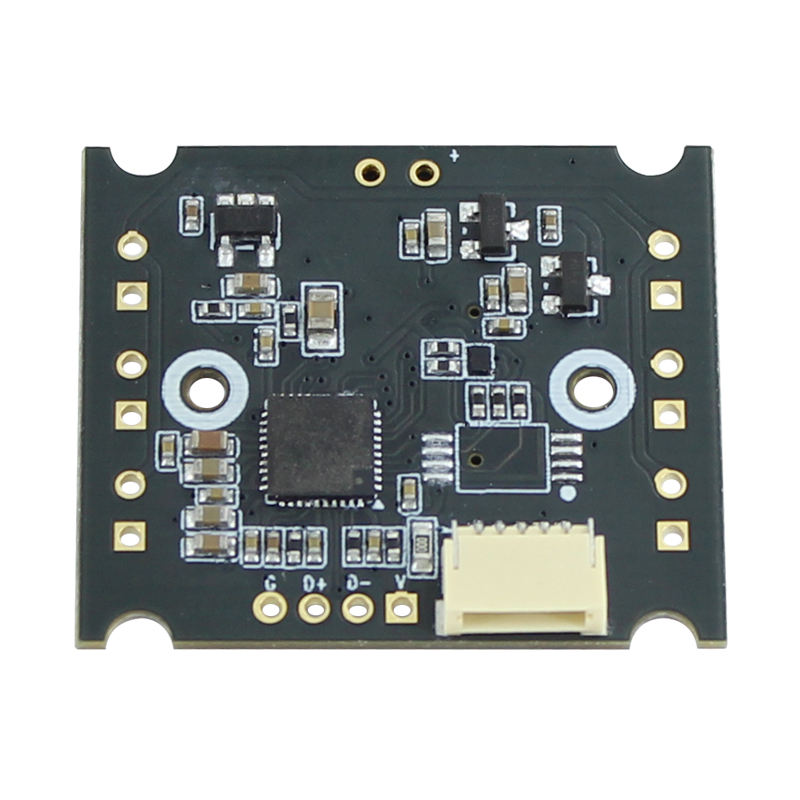

Detailed Images
