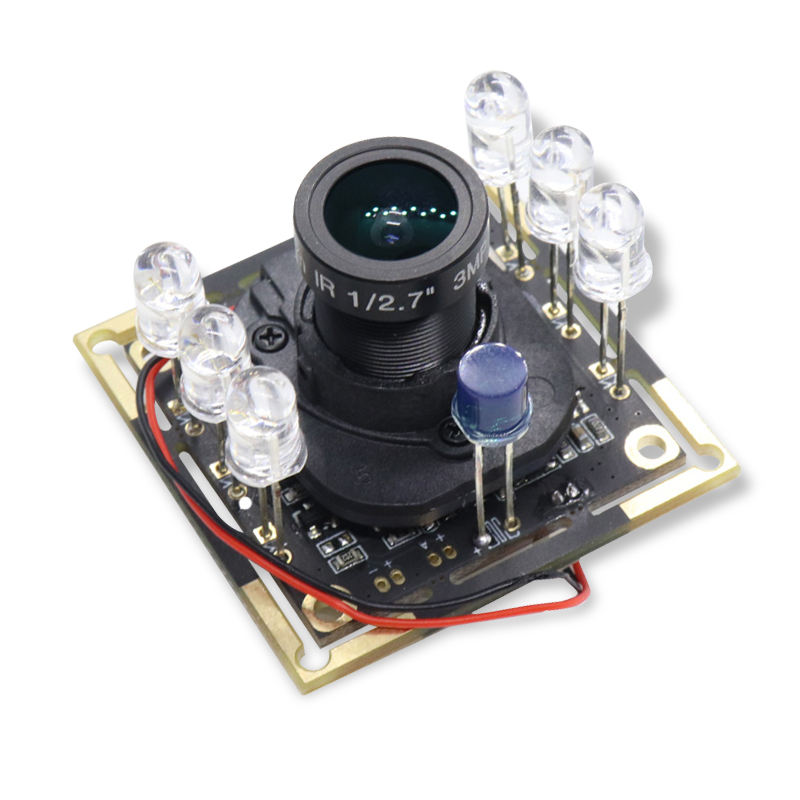

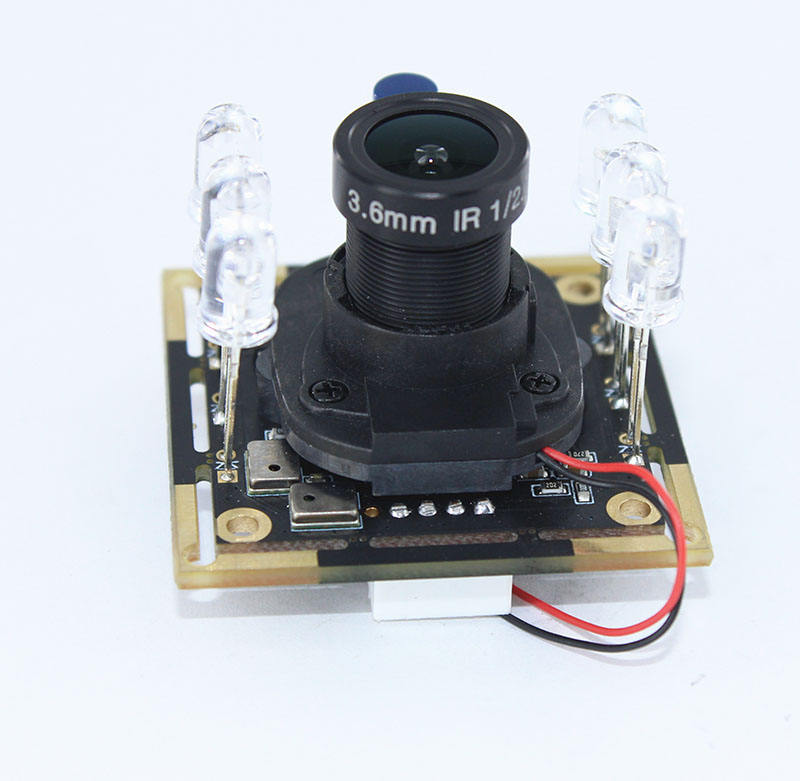

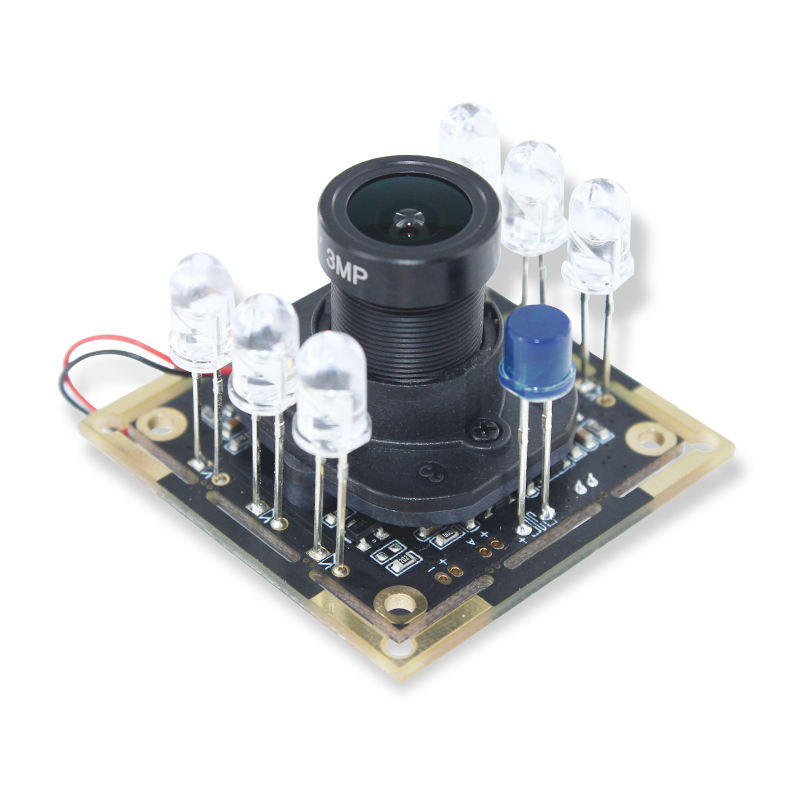

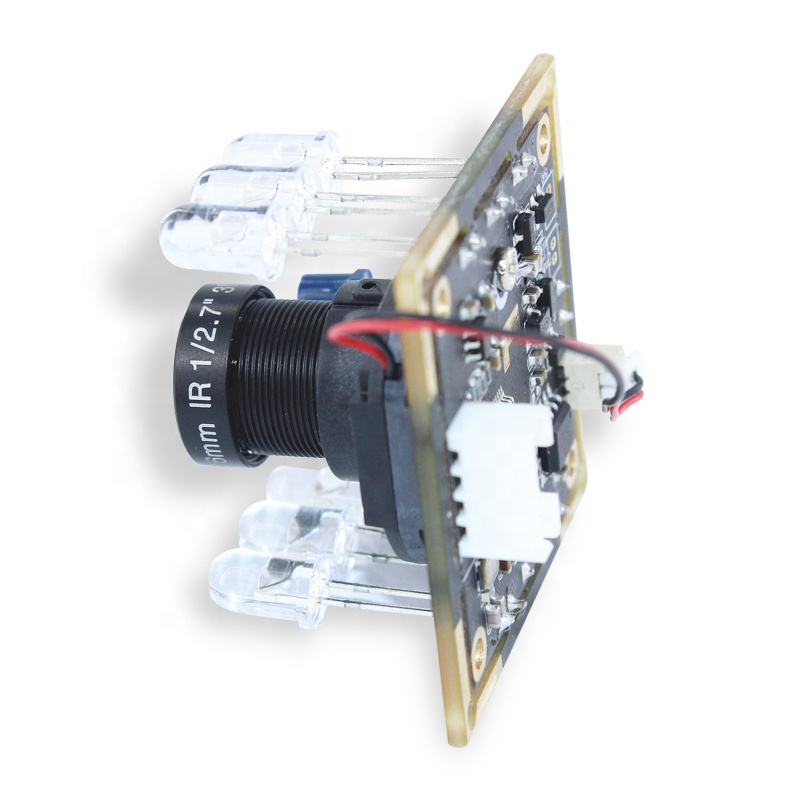

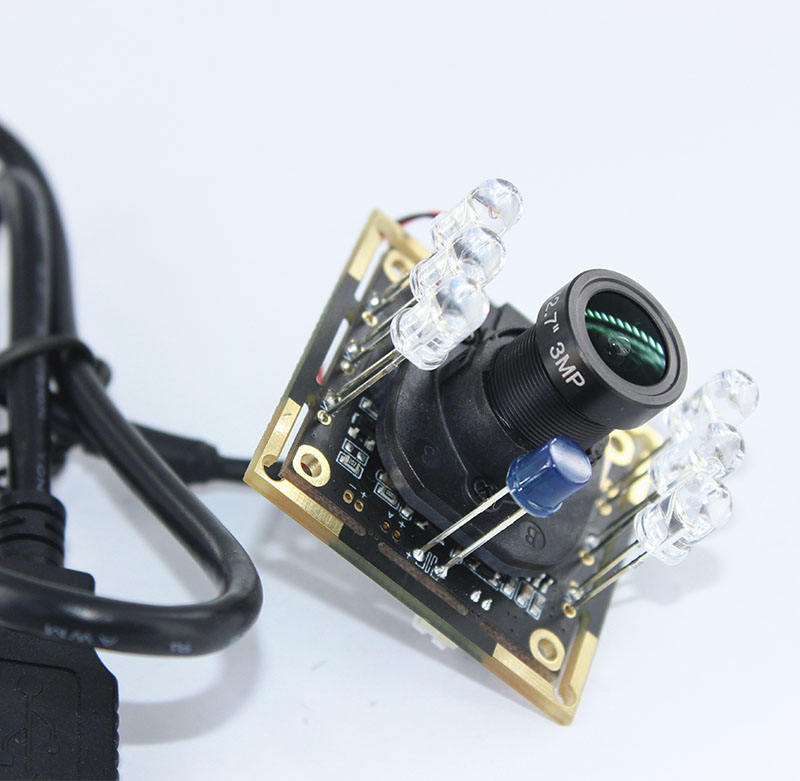

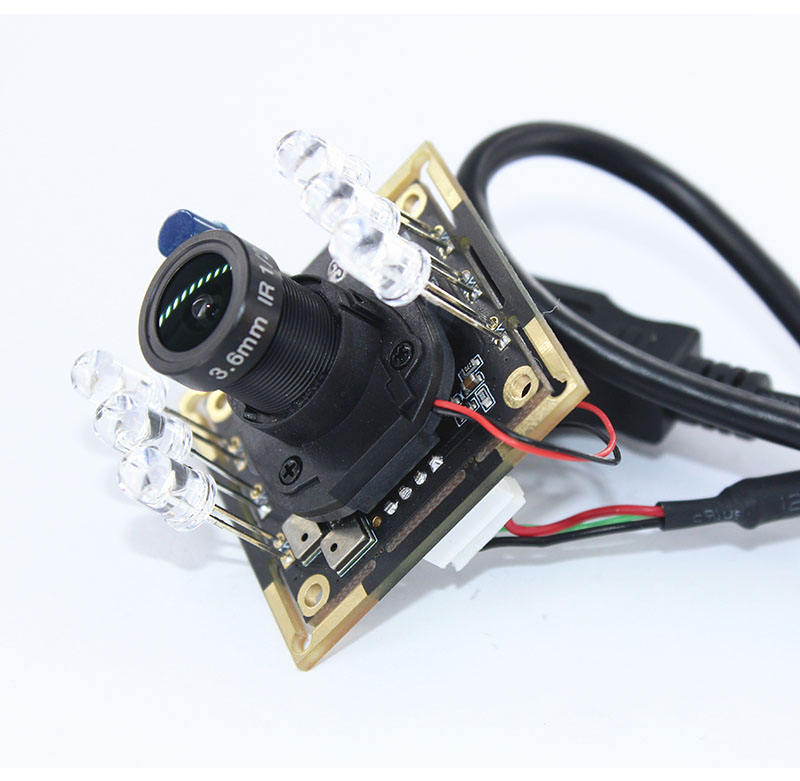

New 2Mp 1080P Hd Plug & Play Usb 2.0 Day And Night Ir Automatic Switch Night Vision Mini Camera Module
$30.00
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
| Module No. | BM1716HD-IR -CUT V33 |

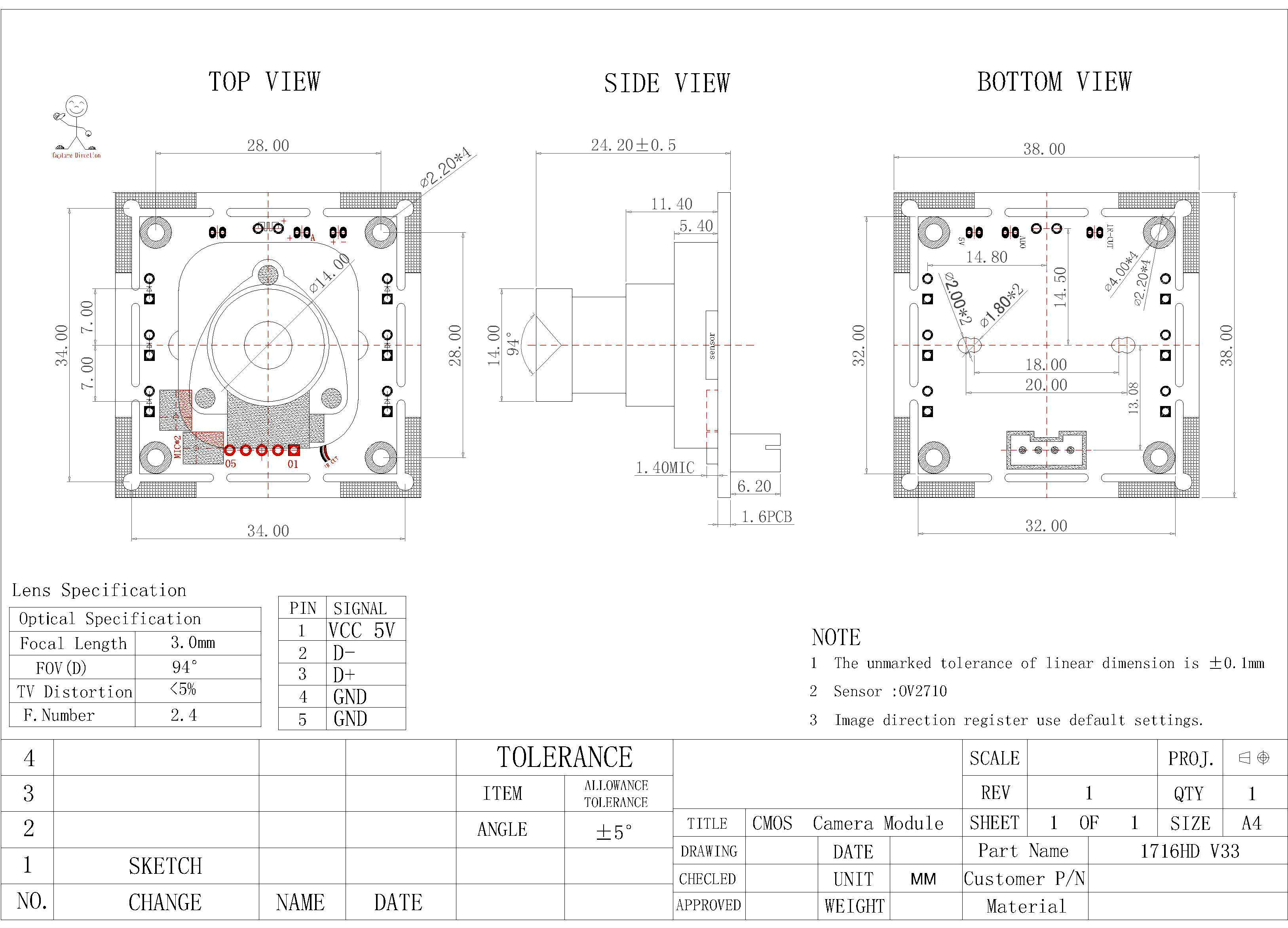

| Module Size | 38mm × 38mm × 24.2mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 1650mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV2710 (1/2.7" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1920*1080 |
| Sensitivity | 10mv /(lux-sec) |
| Pixel Size | 3µm x 3µm |
| Maximum Image Transfer Rate | MJPEG 160x120 30FPS / YUY2 160x120 30FPS |
| MJPEG 320x240 30FPS / YUY2 320x240 30FPS | |
| MJPEG 352x288 30FPS / YUY2 352x288 30FPS | |
| MJPEG 640x480 30FPS / YUY2 640x480 30FPS | |
| MJPEG 1280x720 30FPS / | |
| MJPEG 1920x1080 30FPS / | |
| MJPEG 640x360 60FPS / YUY2 640x480 30FPS | |
| MJPEG 800x600 60FPS / YUY2 800x600 20FPS | |
| MJPEG 1280x720 60FPS / YUY2 1280x720 10FPS | |
| S/N Ratio | 39 db |
| Max Dynamic Range | 69 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 2G2P |
| F/No | 2.4 |
| EFL | 3.0mm |
| FOV | 94° |
| TV Distortion | <1% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
| Package | LQFN-46pin |
