5Mp 2K Hd Free Driver Cmos Sensor OV5648(1/4") Camera Module For Industrial Control Camera
$26.40
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Description
| Product Name | 5 MP 2K industrial control industrial camera, advertising machine, equipment embedded built-in camera module | ||
| Module No. | BM5M202014AF V33 | ||

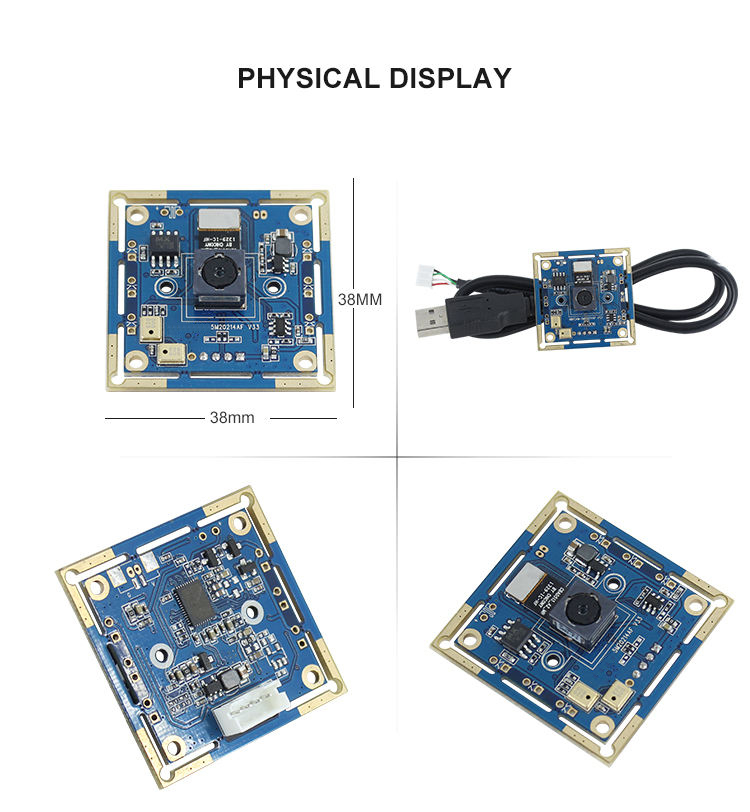

| Module Size | 38mm × 38mm × 7.05mm±0.2MM | ||
| Features | 1. Standard industrial camera 38, 32mm panel structure
| ||
| Temperature (Operation) | -30°C to 70°C | ||
| Temperature (Stable Image) | 0°C to 50°C | ||
| Assembly technique | SMT (ROSH) | ||
| Focus | Auto | ||
| Object distance | 30CM-infinity | ||
| Resolution | 600LW/PH (Center) | ||
| PCB printing ink | Black | ||

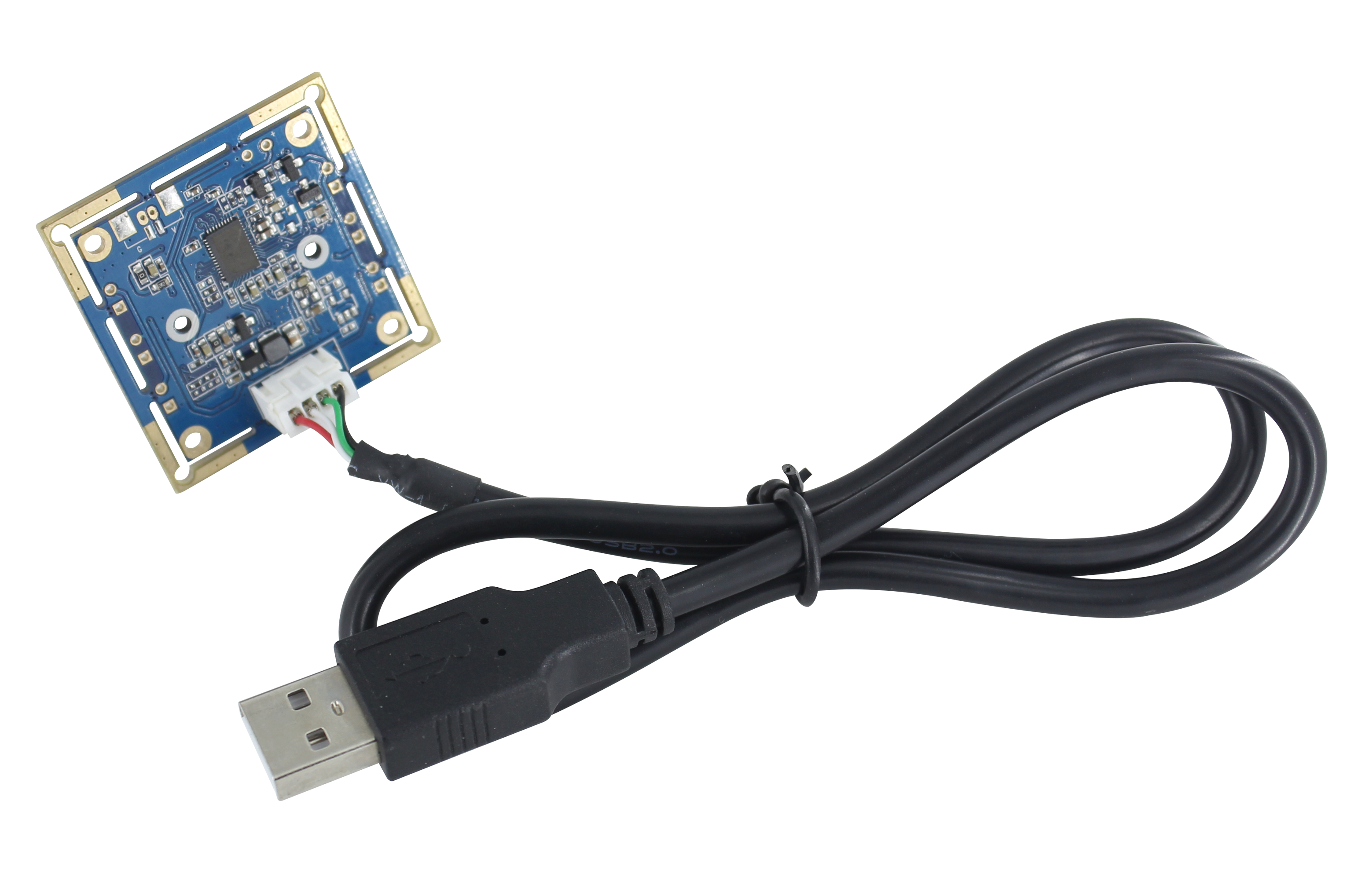

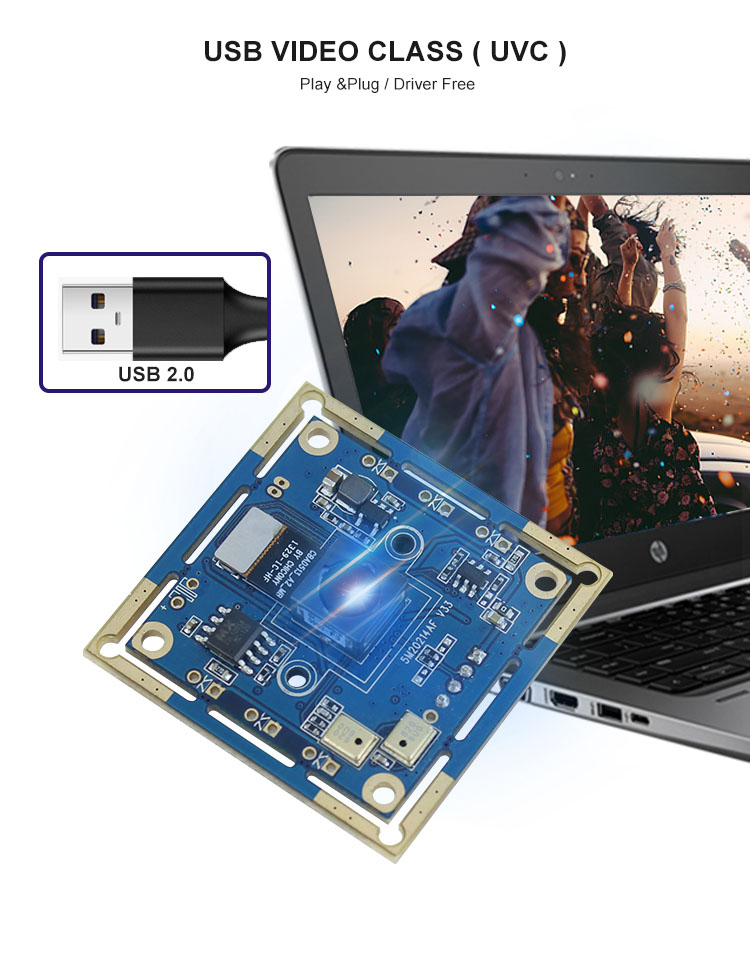

| interface | USB 2.0 | ||
| Power suuply | USB bus power | ||
| supply voltage | DC 5V±5% | ||
| Maximum Power consumption | 1000mW | ||
| Operating system request | Win XP/win 7,8 ,10/ vista /android 4.0/ mac /Linux with uvc | ||
| Sensor | OV5648 (1/4" ) | ||
| Seneor Package | CSP,Bare Die | ||
| Maximum resolution | 2592*1944 | ||
| Sensitivity | 600mV /(lux-sec) | ||
| Pixel Size | 1.4µm x 1.4µm | ||
| Maximum Image Transfer Rate | MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 960x540 30FPS / YUY2 960x540 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 8FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 2FPS | ||
| S/N Ratio | 34 db | ||
| Max Dynamic Range | 67 db | ||
| Shutter type | Electronic rolling shutter | ||
| AGC/AEC/Whiter balance | Auto | ||
| Output Formats | YUY2/MJPEG | ||
| Microphone | Support | ||
| Lens Construction | 4P+IR | ||
| F/No | 2.8 | ||
| EFL | 3.1mm | ||
| FOV | 65.4° | ||
| TV Distortion | <1.0% | ||
| Relative Illumination (Sensor) | 70% | ||
| IR Filter | 650±10nm | ||
| Module Package | Anti-electrostatic tray | ||
| Certifications | FCC/CE/ROSH |
Detailed Images
