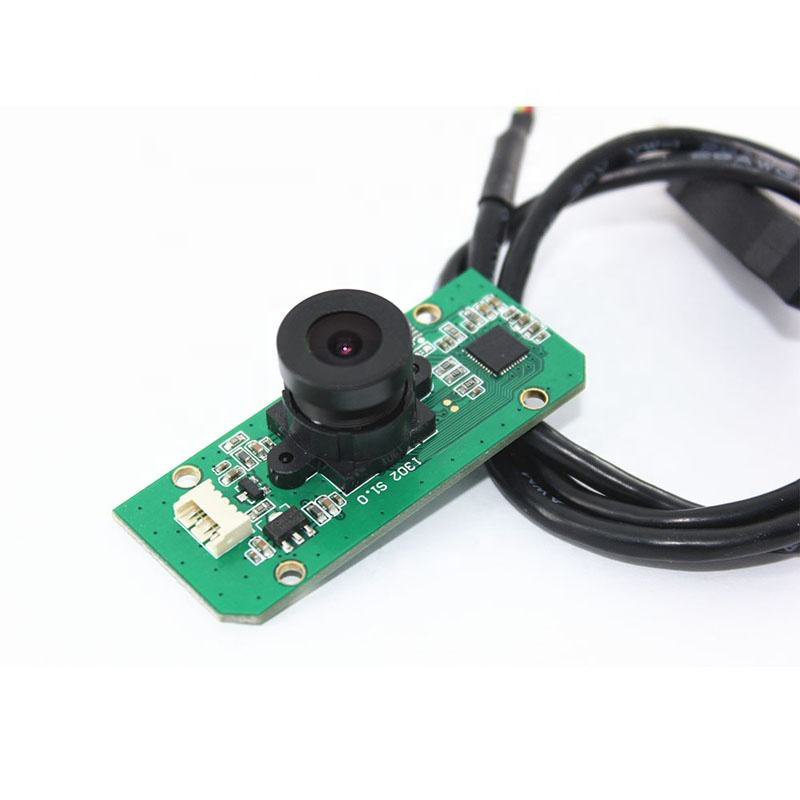

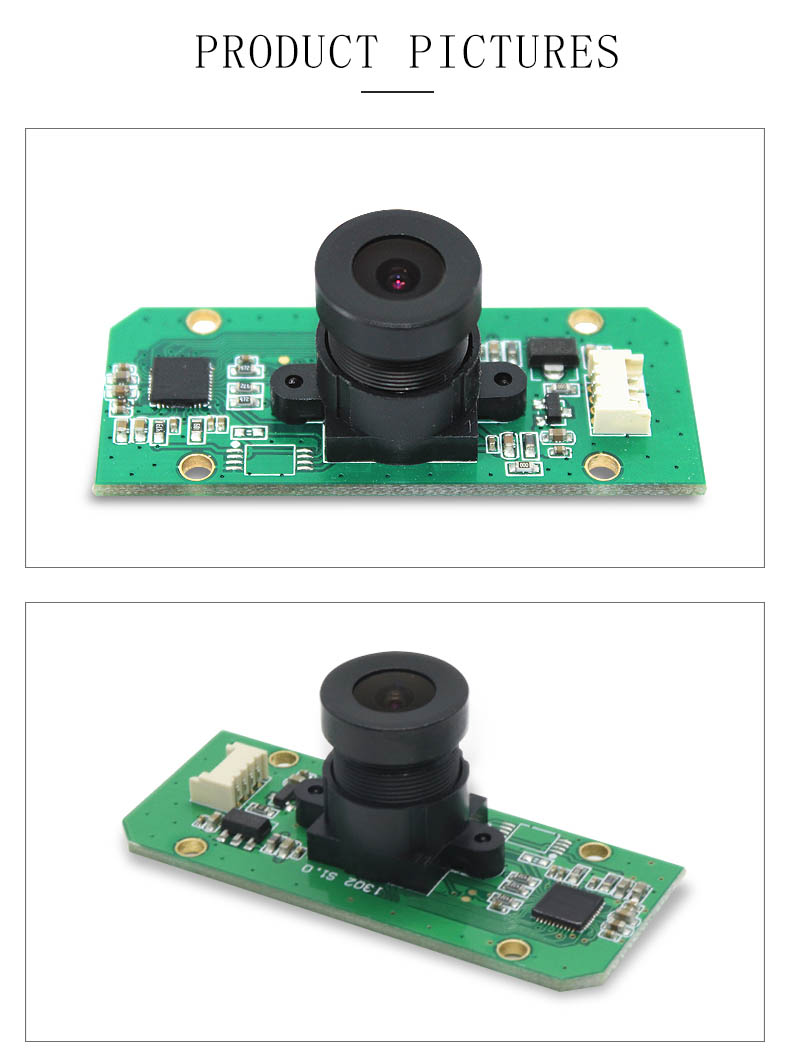

0.3mp Cmos OV7725 Sensor Finger Face Recognition Mini Camera Module
$19.20
Availability:
In stock
Out of stock
Variations
Product Description
Product Descripiton
| Model No. | BM1302 S1.0 |

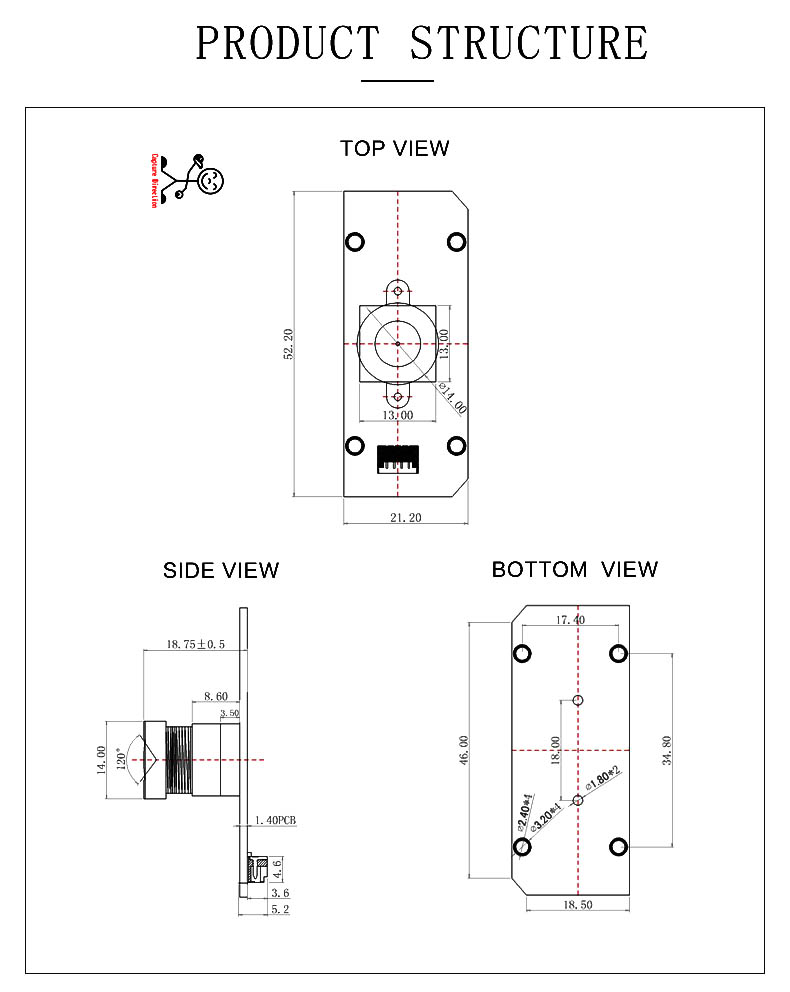

| Model Size | 52MM*21MM*19MM |
| Sensor | OV7725 |
| Resolution | 640*480 |
| Optical Format | 1/4 inch |
| Sensitivity | 3.8V/Lux-sec |
| S/N Ratio | 50dB |
| Dynamic Range | 60dB |
| Pixel Size | 6.0um*6.0um |
| Image Area | 3984um*2952um |
| Object distance | 30-infinity |
| Interface | 5PIN USB2.0 |
| DFOV | 120degree |
| HFOV | 100 degree |
| VFOV | 67degree |
| Operating system | Free driver for Windows 2000\ Windows XP\Windows 7 / Linux and Android system with Standard UVC Protocol |
| Video Format | MJPG |
| Format output and FPS | 648*480(default) 60fps 160*120 60fps 320*240 60fps 352*288 60fps 800*600 30fps |
| Video Format | YUY2 |
| Format output and FPS | 648*480(default)30fps 160*120 60fps 320*240 60fps 352*288 60fps 800*600 15fps |
| Exposure | √ |
| Automatic white balance | √ |
| Focus | Fixed Focus (the lens is adjustable) |
| USB cable | 70cm for default (Also supply 1M 2M 3M) |
| 1The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding | |
