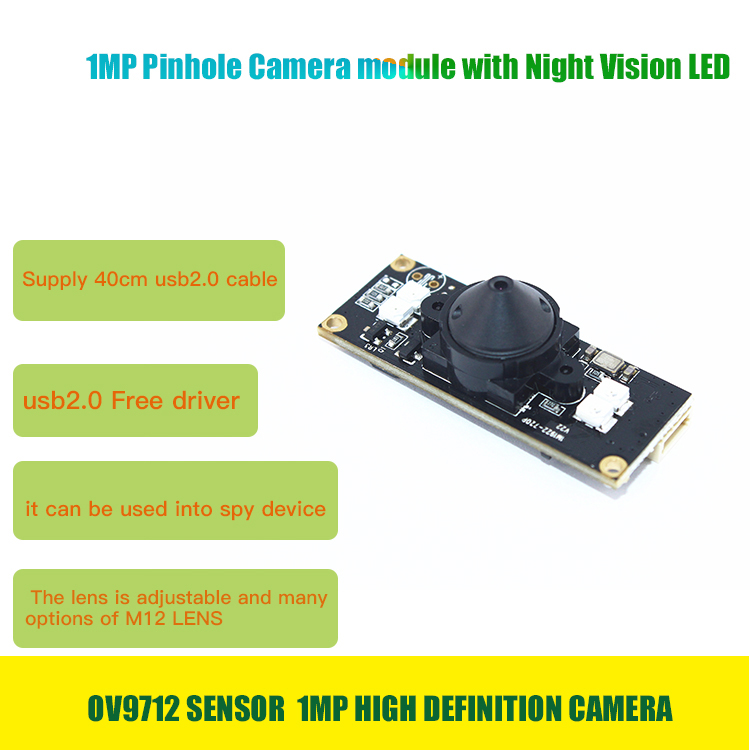

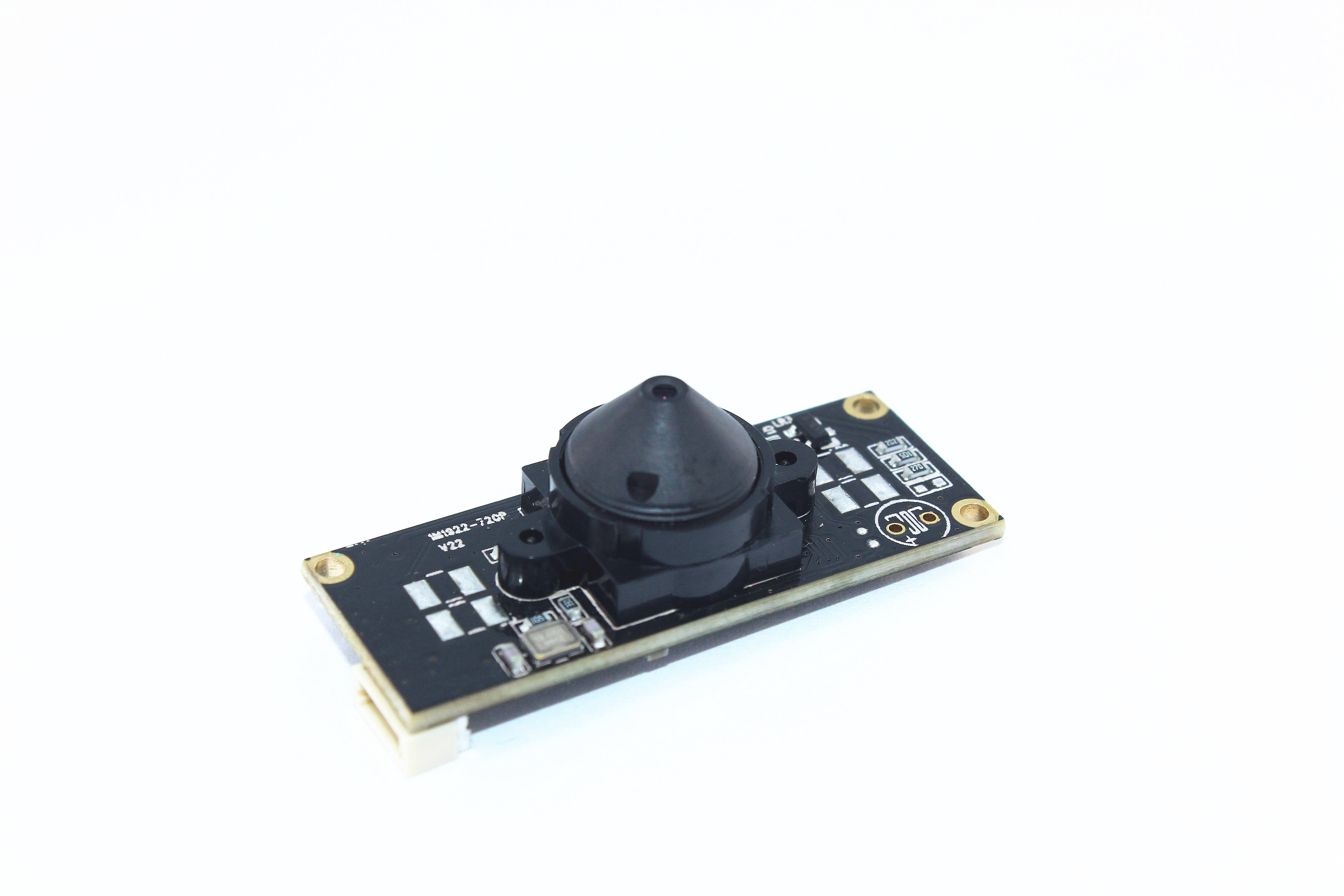

1MP HD 1280*720p OV9712 Sensor Android Micro Mini UVC CMOS Camera Module With Free Driver
$14.40
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Specifications
| Module No. | BM1M1922-720P V22 |
| Module Size | 42mm × 16mm × 13.1mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 1000 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV9712 (1/4" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1280*800 |
| Sensitivity | 3300mV /（lux-sec） |
| Pixel Size | 3µm x 3µm |
Maximum Image Transfer Rate | MJPEG 160x120 30FPS / YUY2 160x120 30FPS MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 352x288 30FPS / YUY2 352x288 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS |
| FOV | 56° |
| Certifications | FCC/CE/ROSH |

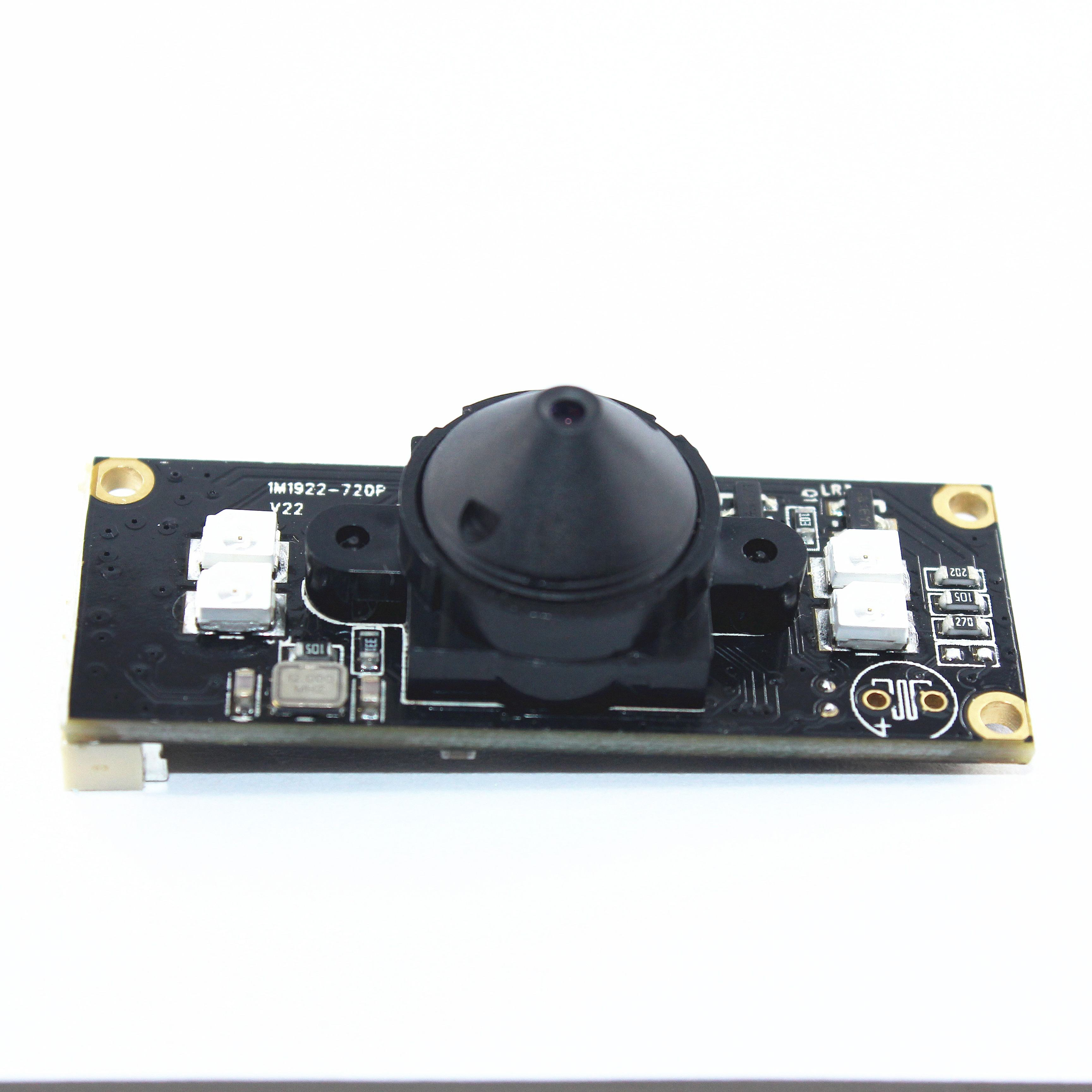

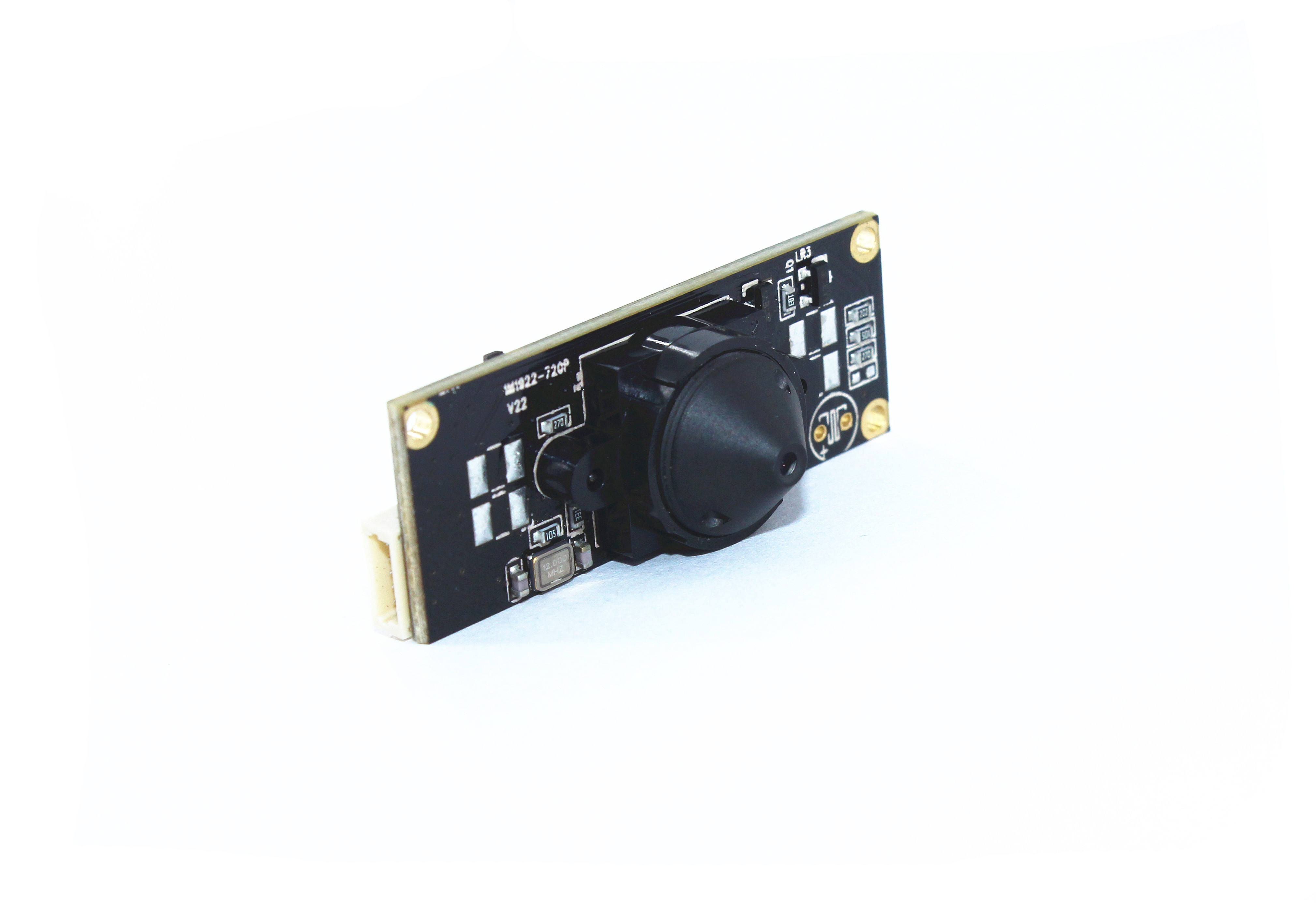

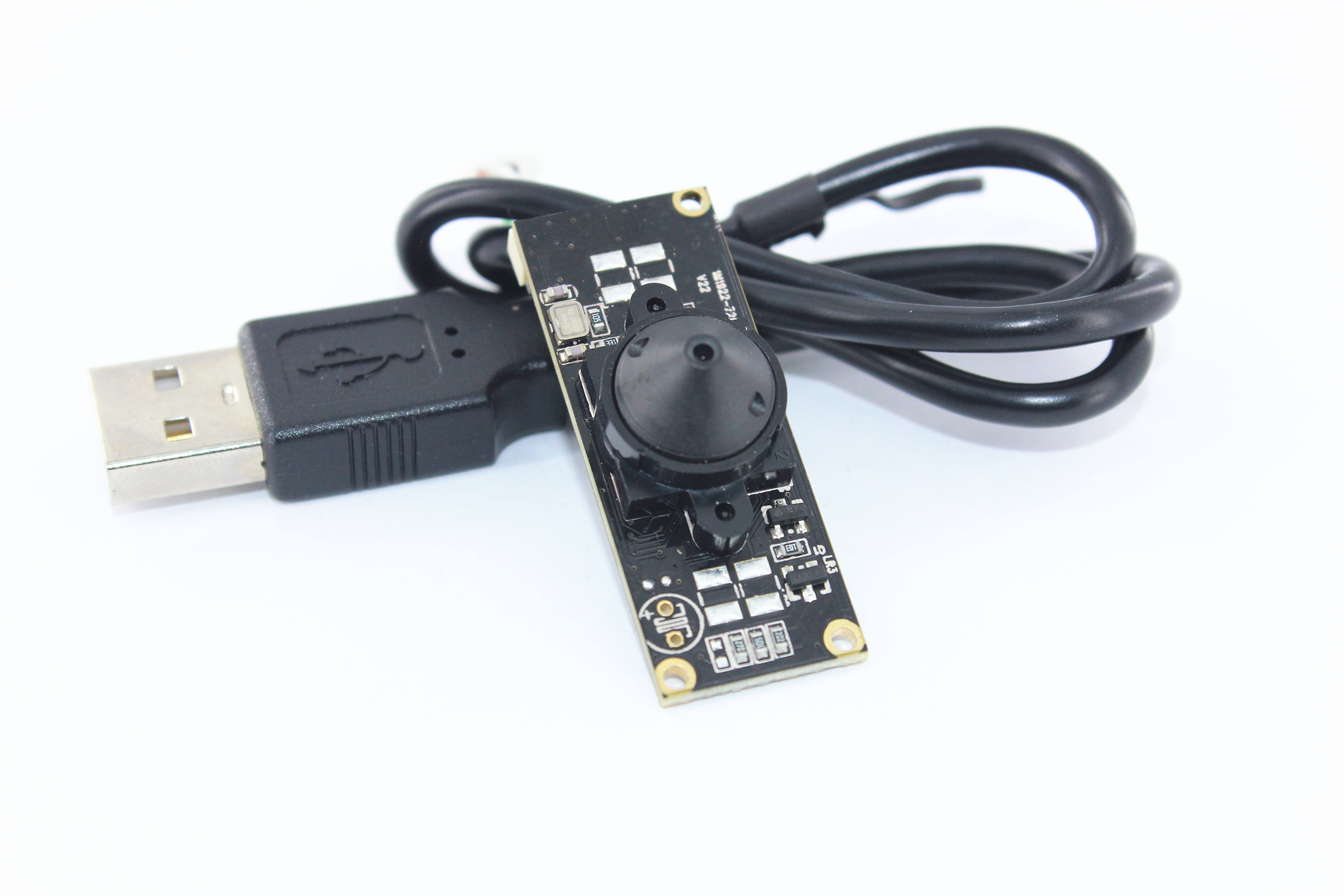

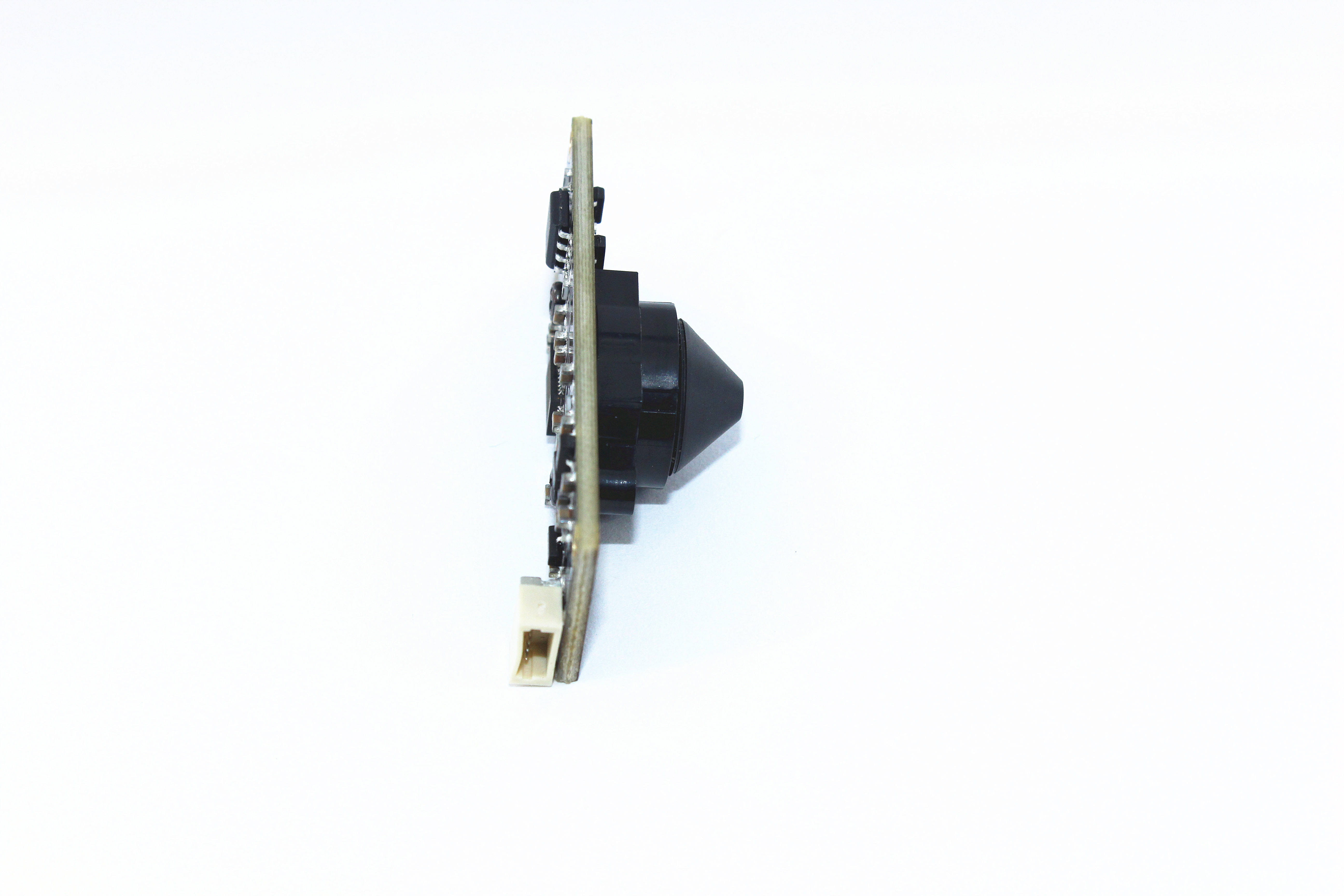

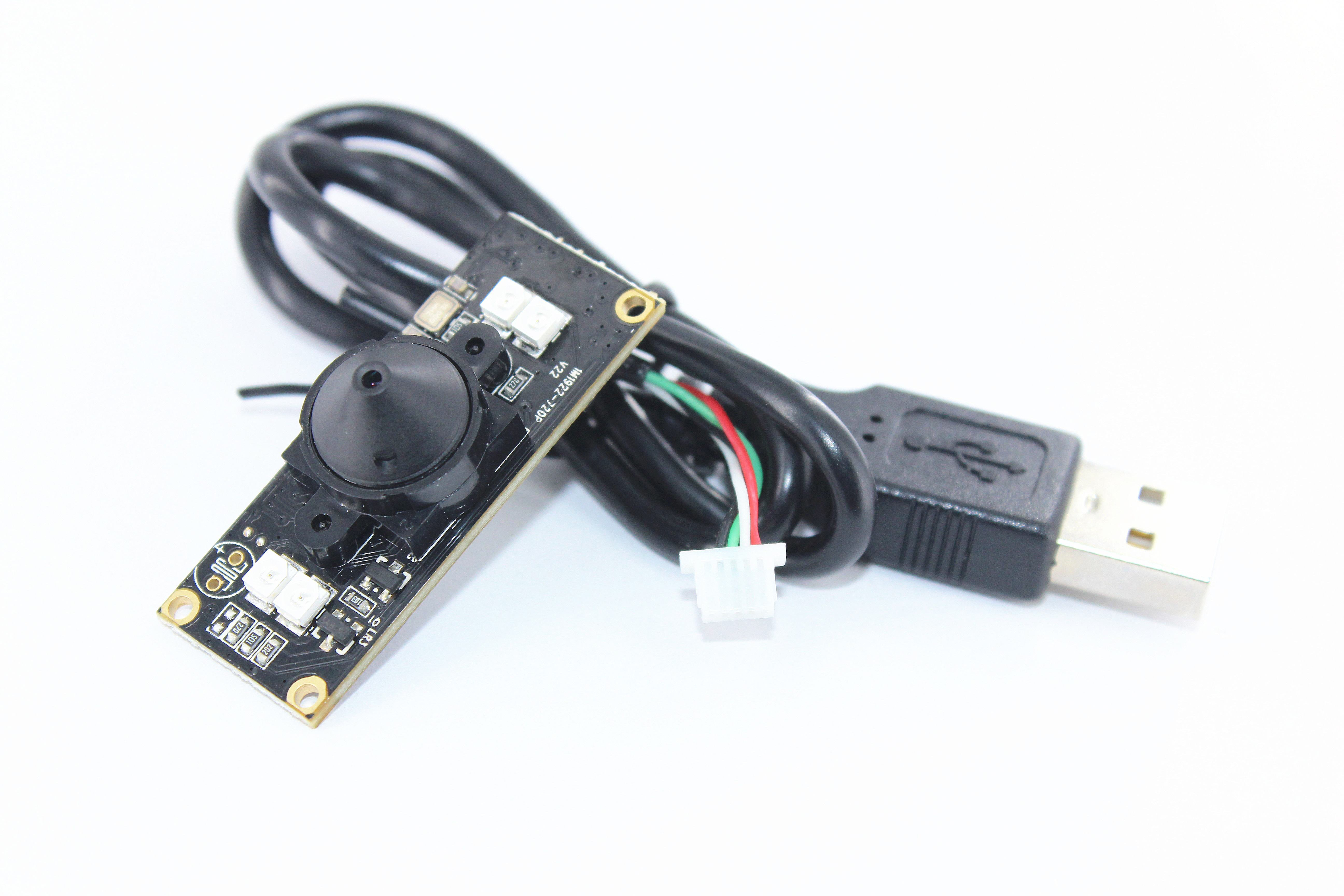

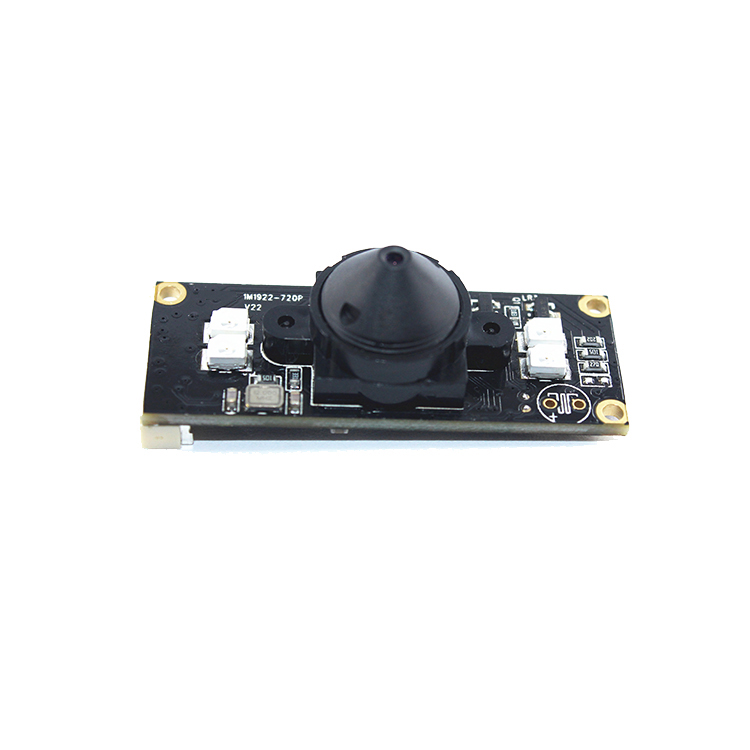

Detail Images

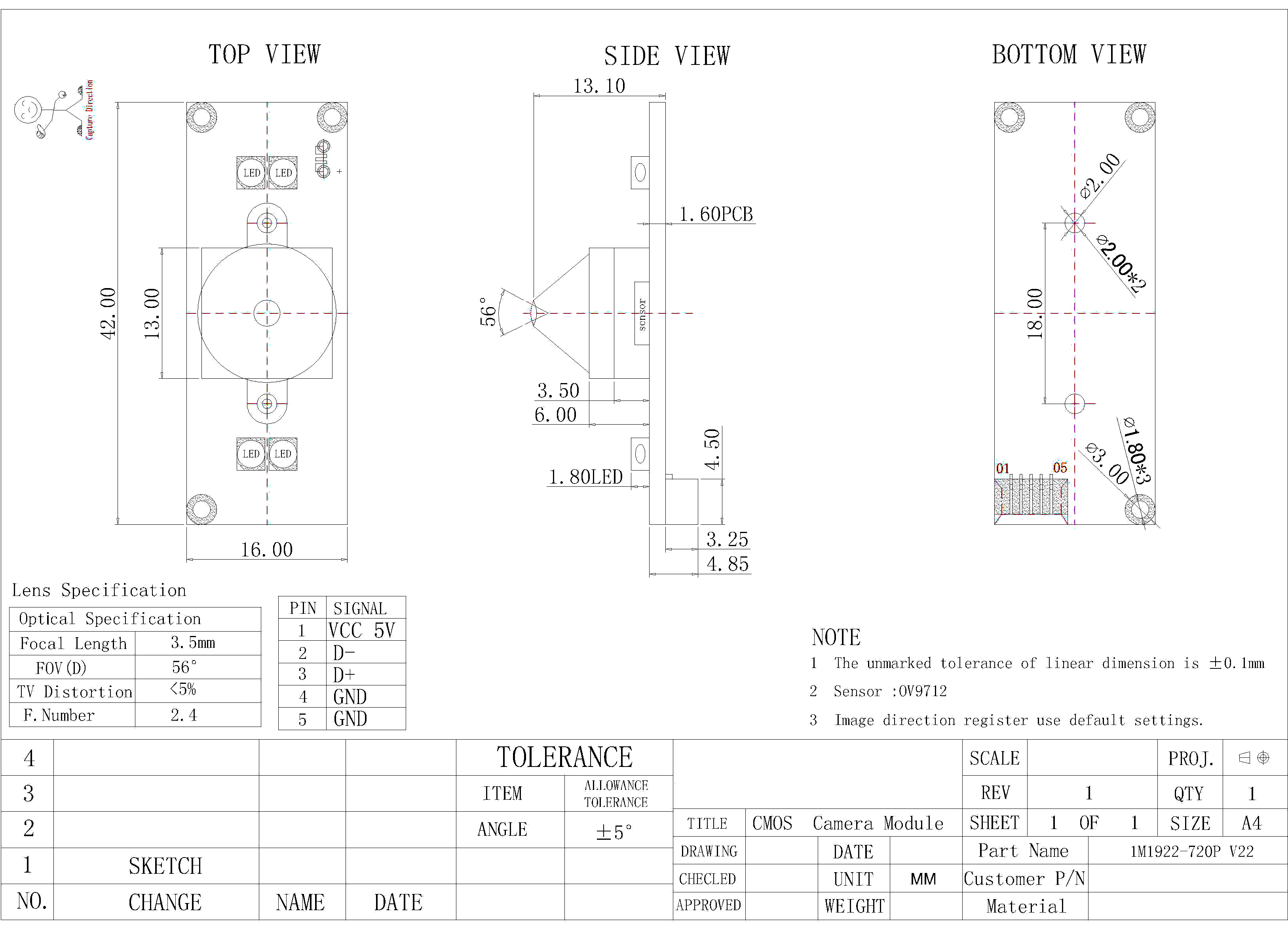

Product drawing
