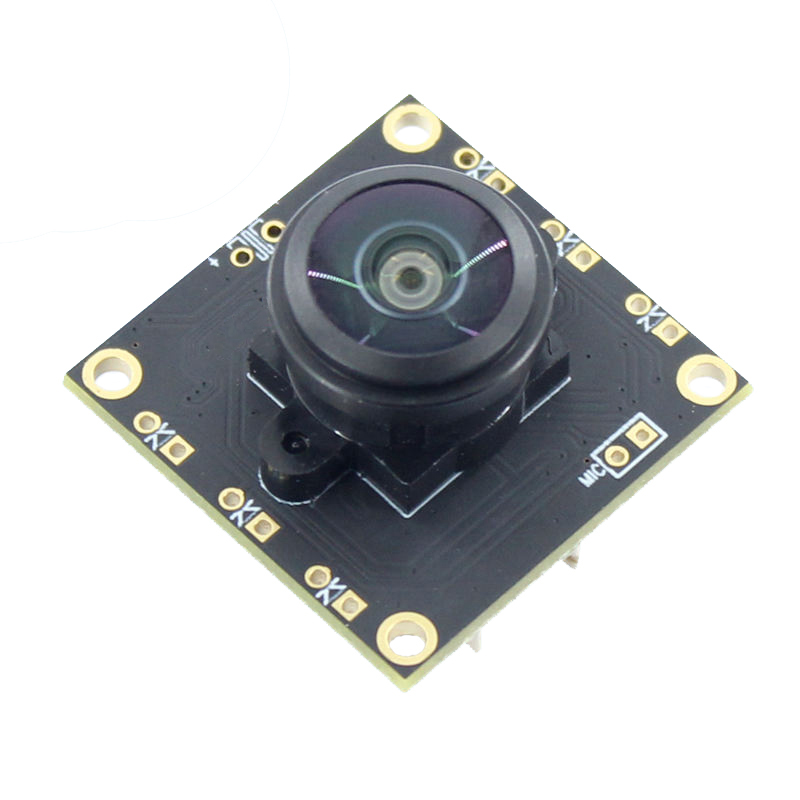

3MP HD OV3660 Wide Angle 160 Degree Resolution 2048*1536 mini USB2.0 Camera Module
$10.80
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Specification

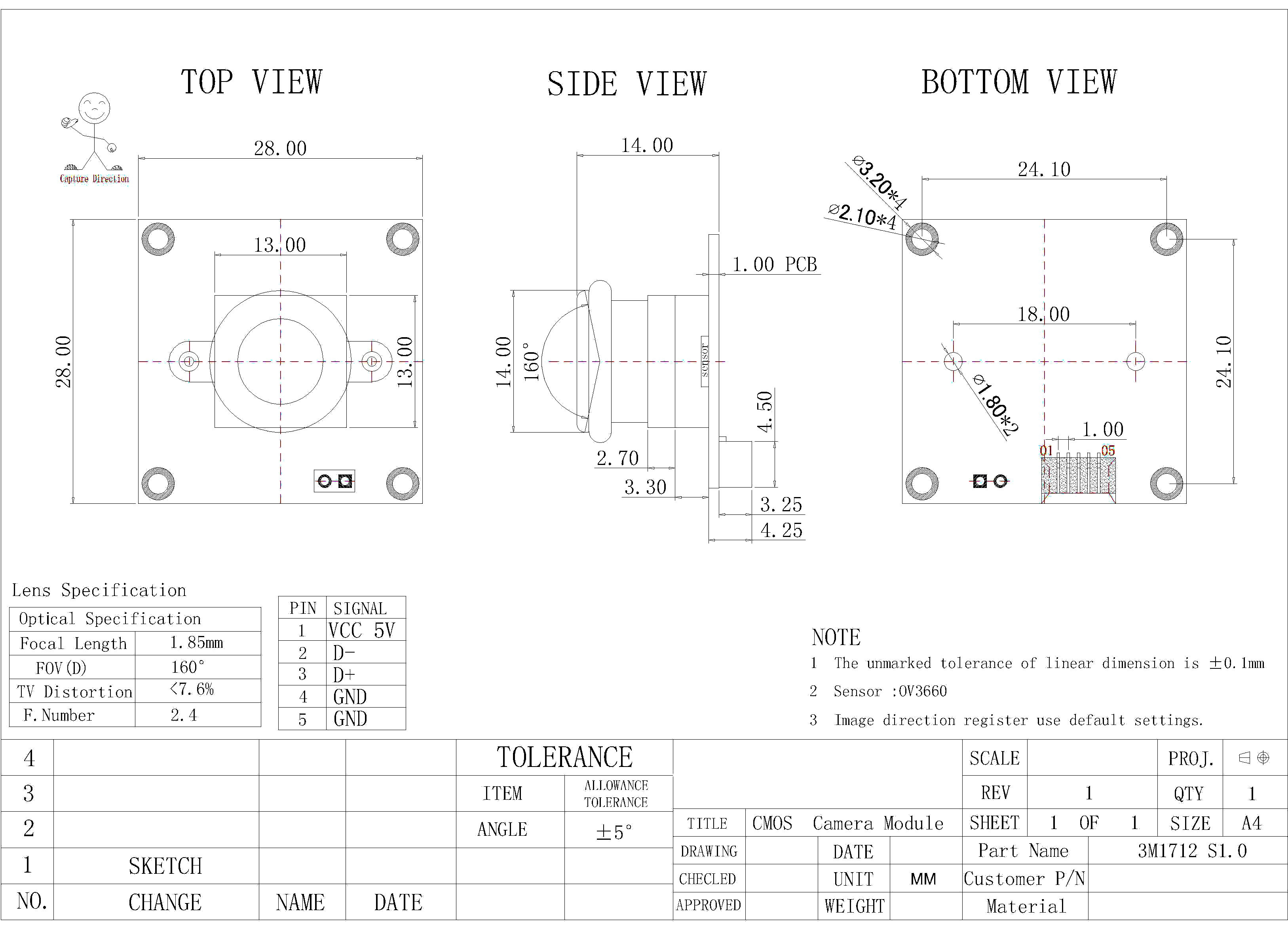

Product drawing
| Module No. | BM3M1712 S1.0 |
| Module Size | 28mm × 28mm × 14mm±0.5MM |
| Temperature (Operation) | -20°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 600mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV3660 (1/5" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 2048*1536 |
| Sensitivity | 670mV /（lux-sec） |
| Pixel Size | 1.4µm x 1.4µm |
Maximum Image Transfer Rate | MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 352x288 30FPS / YUY2 352x288 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 7FPS / YUY2 1280X720 7FPS MJPEG 1920x1080 20FPS / YUY2 1920X1080 4FPS MJPEG 2048x1536 15FPS / YUY2 2048x1536 4FPS |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| F/No | 2.4 |
| EFL | 1.85 mm |
| FOV | 160° |
| Certifications | FCC/CE/ROSH |
