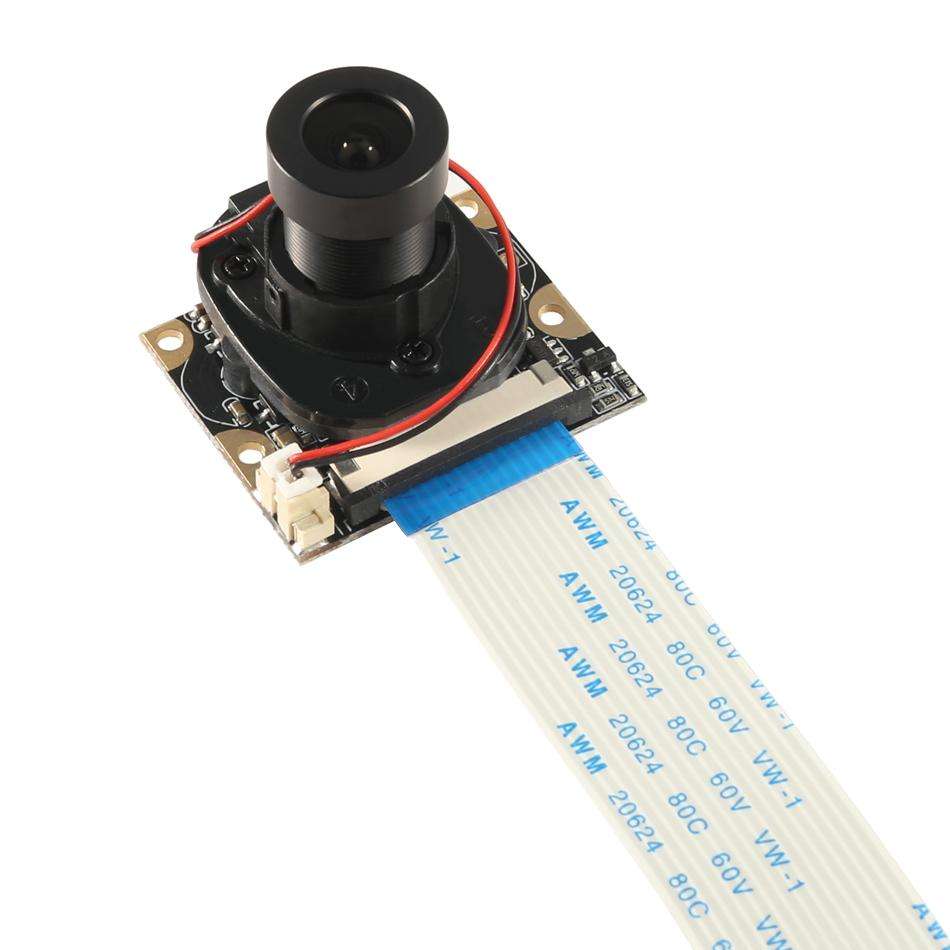

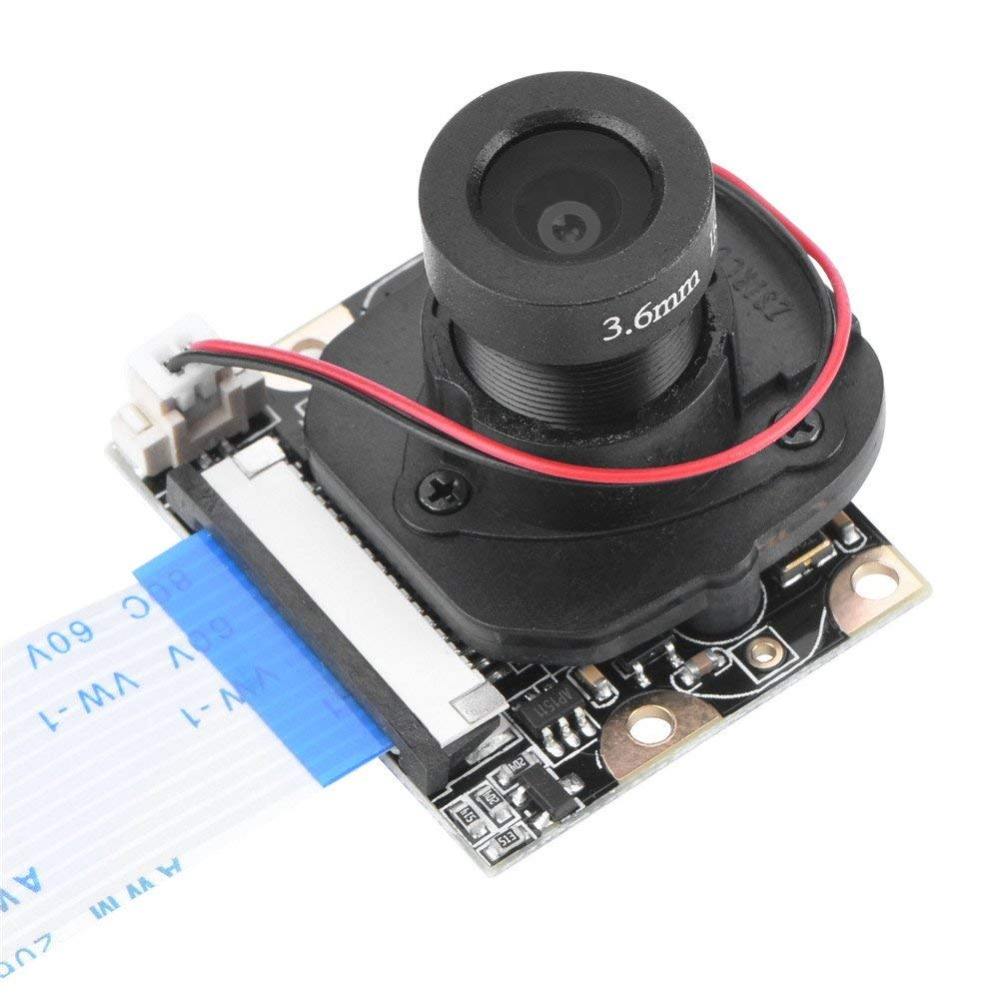

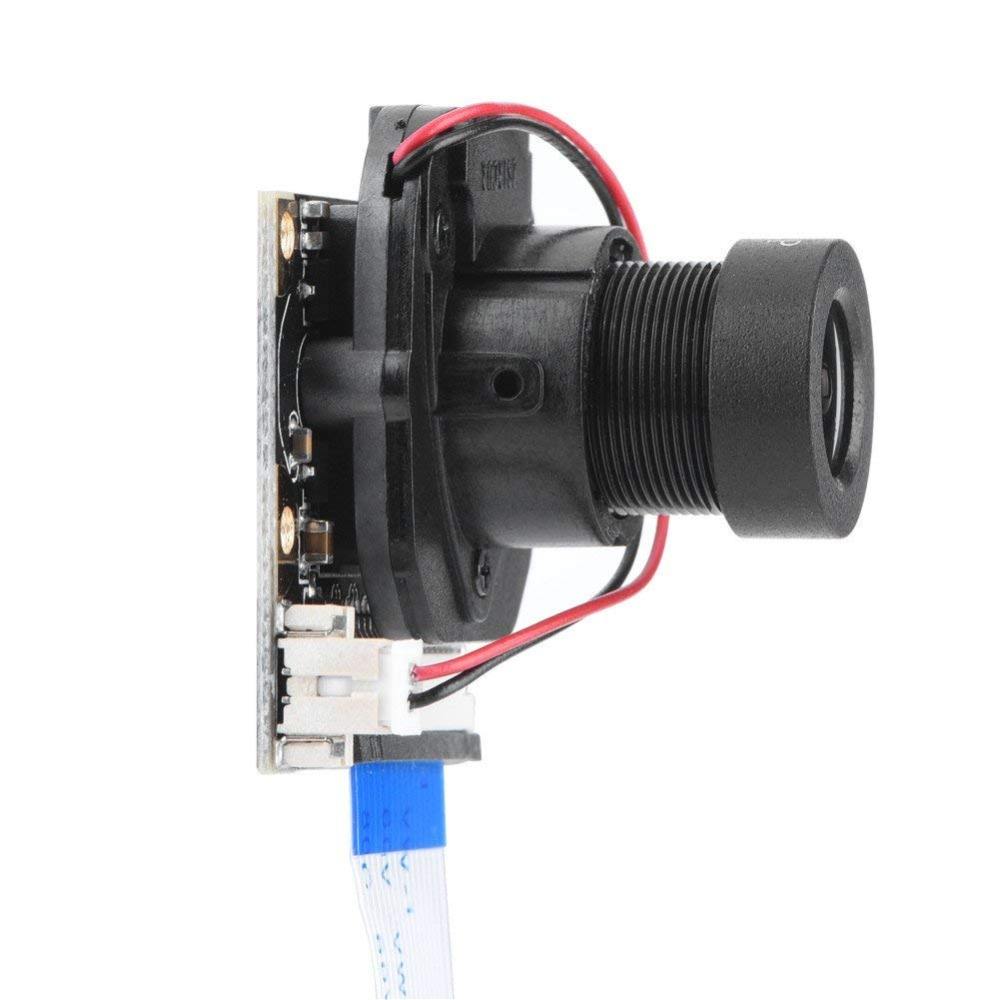

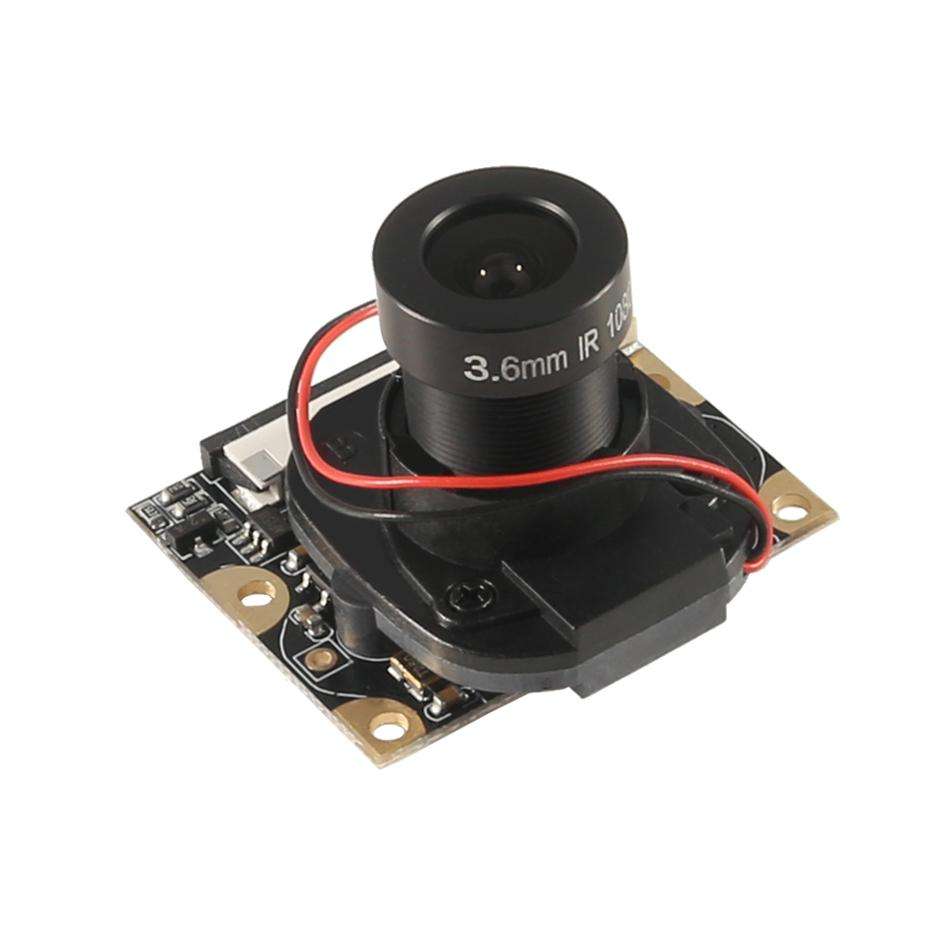

Cmos Sensor OV5647 5MP Manual IR CUT Switch Raspberry Pi 3 Camera Module
$9.00
Availability:
In stock
Out of stock
Variations
Product Description
Product Description
| Module No. | HR-IRCUT-36 S1.0 |

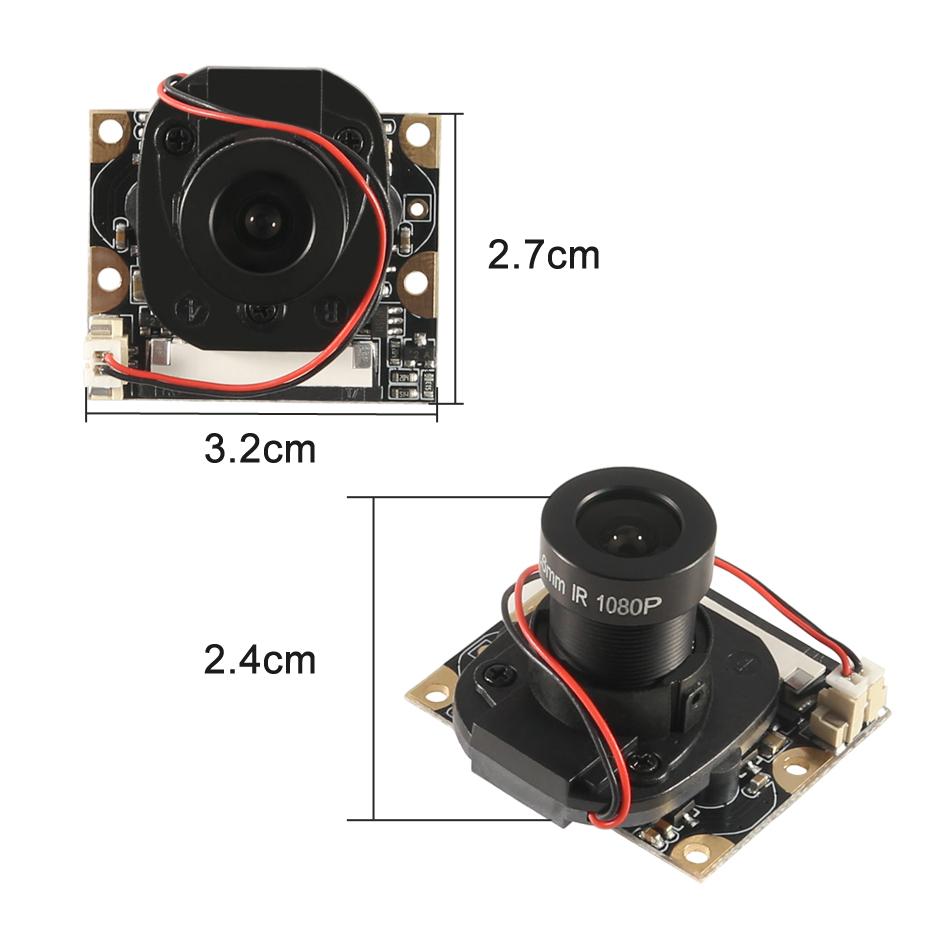

| Module Size | 32mm*26.5mm*24 |
| Temperature (Stable Image) | 0°C to 50°C |
| Temperature | (Operation) -20°C to 70°C |
| Focus Fixed | Fixed (Lens is adjustable) |
| Sensor Type | OV5647 (1/4" ) |
| Pixel Size | 1.4µm x1.4µm |
| Lens | 3.6MM/ 130°/160°/175°/222° lens is optional |
| Sensor type | OV5647 |
| Max Resolution | 2592*1944 |
| FOV | 72.4 degree |
| Focal Length | 3.29 |
| Interface | CSI 15p-1.0 mipi |
| Cable | 15cm fexible cable |
Details Images
Manual IR CUT without IR photodetector

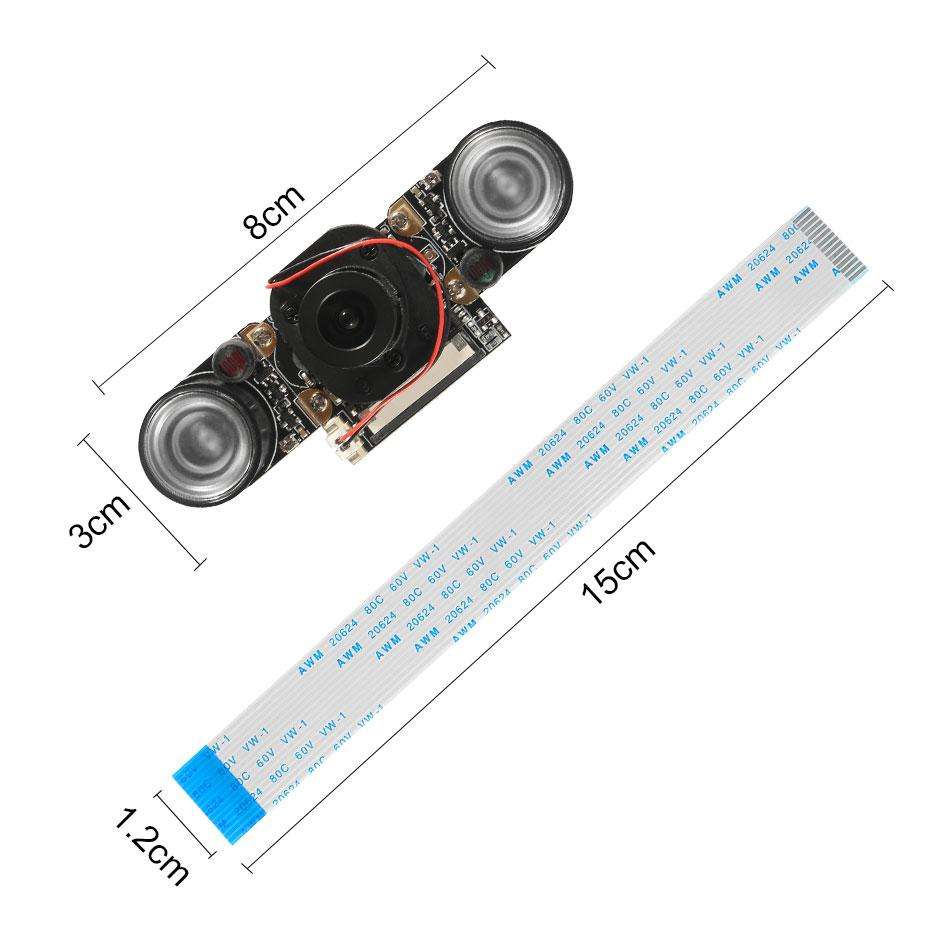

we have 15cm raspberry pi cable fo r this camera
with 2pcs 850IR Light ,screws and nuts
Customer Positive Feedback
Product Usage
1.The Automatic IR CUT switch camera can be used raspberry pi 3 model B board
2. With IR cut switch, it can be used at day and night with good effect
3.Day and night mode
It's built-in IR-CUT camera, automatically switches day and night mode for better and clearer image during the day and night. This
can avoid image color cast, which is easier for beginners to use.
It's built-in IR-CUT camera, automatically switches day and night mode for better and clearer image during the day and night. This
can avoid image color cast, which is easier for beginners to use.
4.CSI Interface
This interface uses the dedicated CSI interface, via the CSI bus, a higher bandwidth link which carries pixel data from the camera
back to the processor.
This interface uses the dedicated CSI interface, via the CSI bus, a higher bandwidth link which carries pixel data from the camera
back to the processor.
