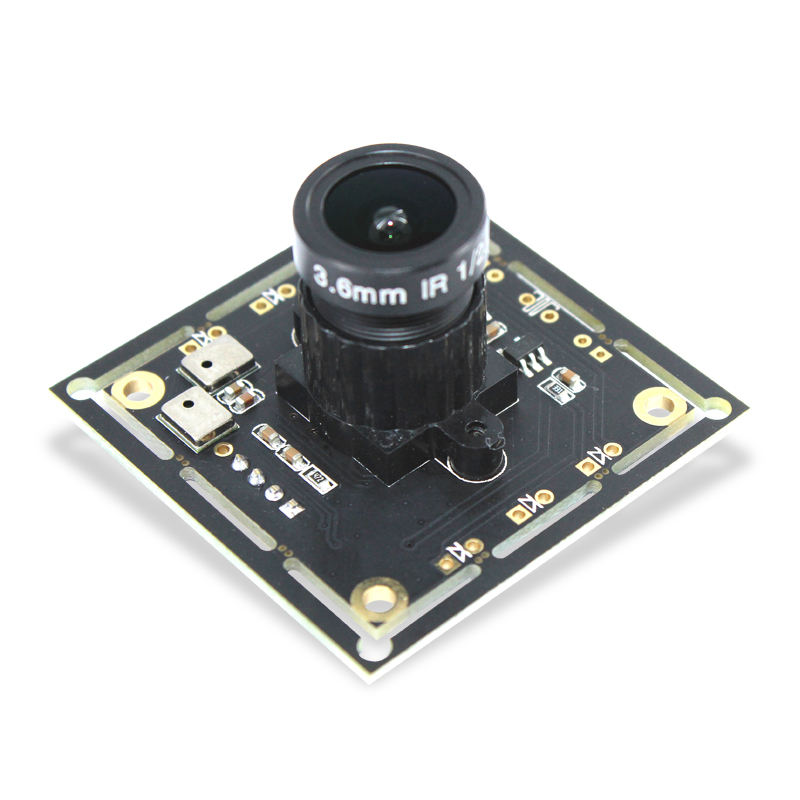

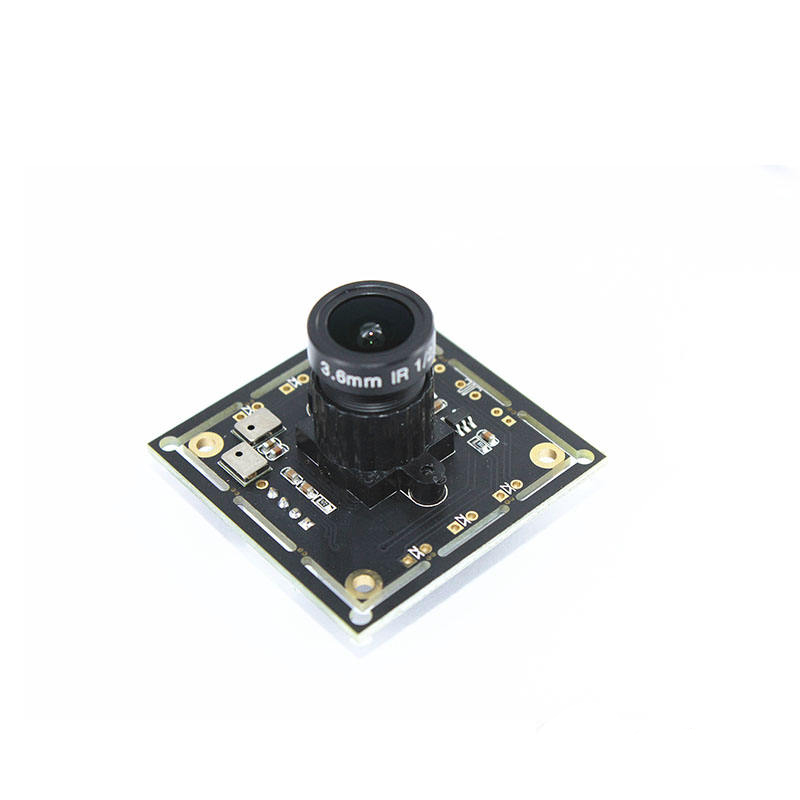

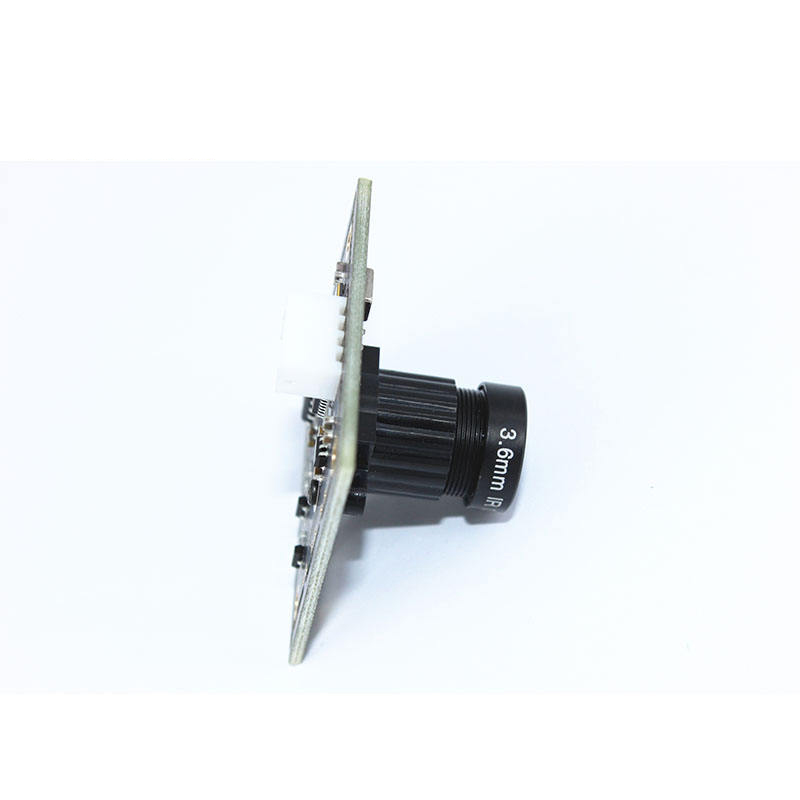

1MP USB2.0 Cmos Sensor OV9732 Scanner Face Recognition Camera Module Support Multi System
$15.60
Availability:
In stock
Out of stock
Variations
Product Description

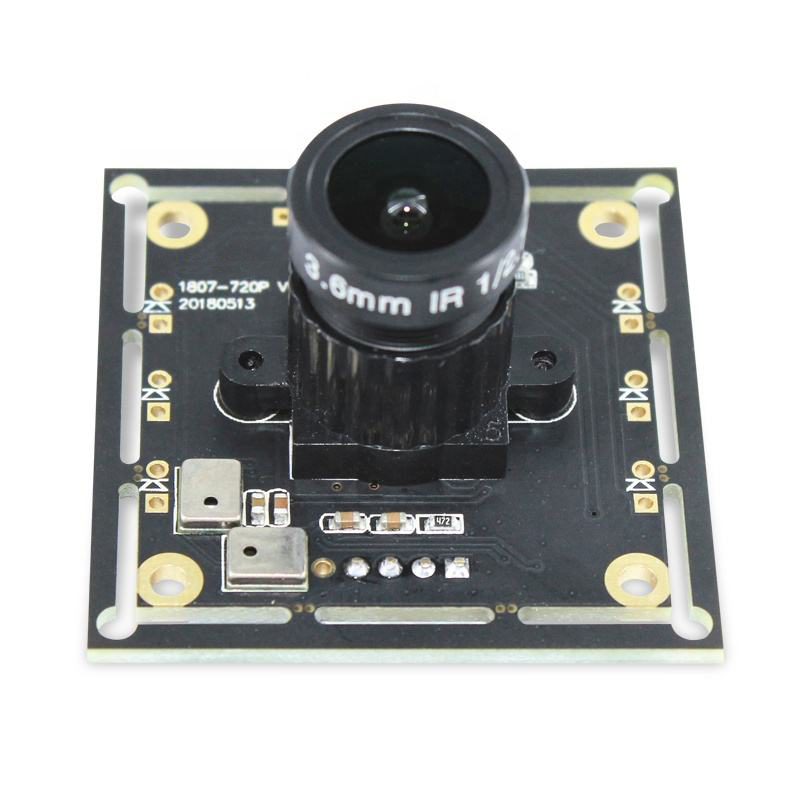

| Model No. | BM1807-720P V11 |

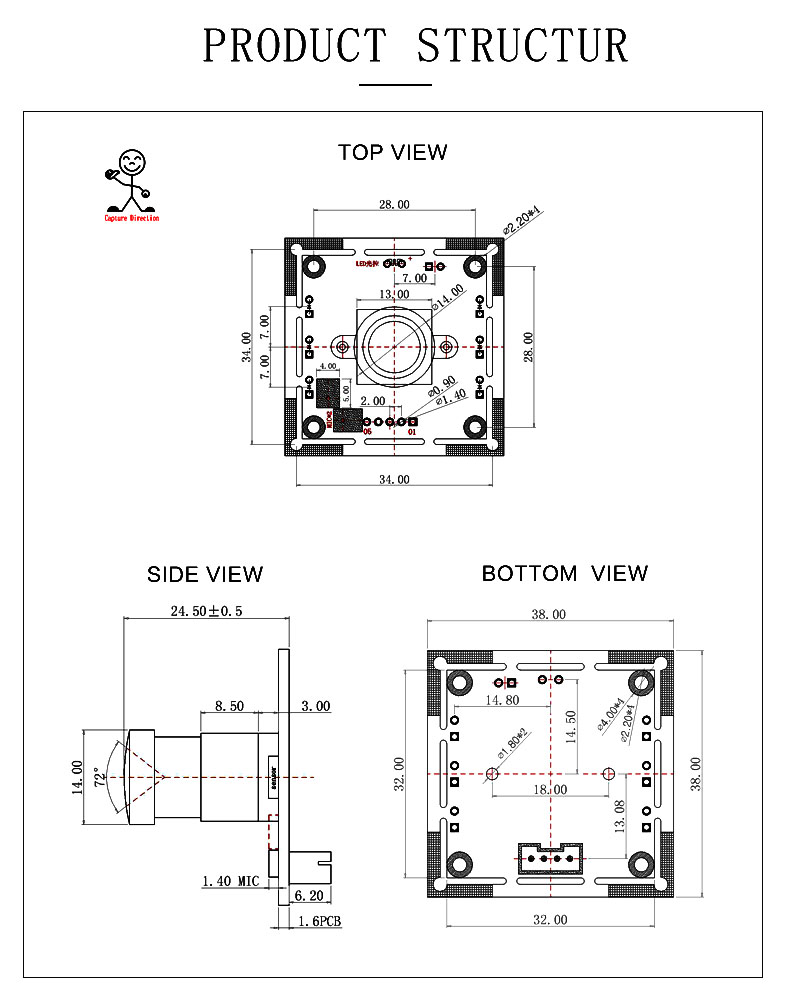

| Model Size | 38MM(L)*38MM(W)*24MM(H) |
| Resolution | 1280*720 |
| Optical Format | 1/4 inch |
| Pixel Size | 3um*3um |
| Image Area | 3888um*2208um |
| Array Size | 1284*724 |
| Object distance | 30-infinity |
| Interface | 4PIN USB2.0 |
| DFOV | 72degree |
| HFOV | 53 degree |
| VFOV | 31degree |
| Operating system | Free driver for Windows 2000\ Windows XP\Windows 7 / Linux and Android system with Standard UVC Protocol |
| Video Format | MJPG |
| Format output and FPS | 640*360(default)30fps 640*480 30fps 800*600 30fps 1280*720 30fps |
| Automatic white balance | √ |
| Exposure | √ |
| Focus | Fixed Focus |

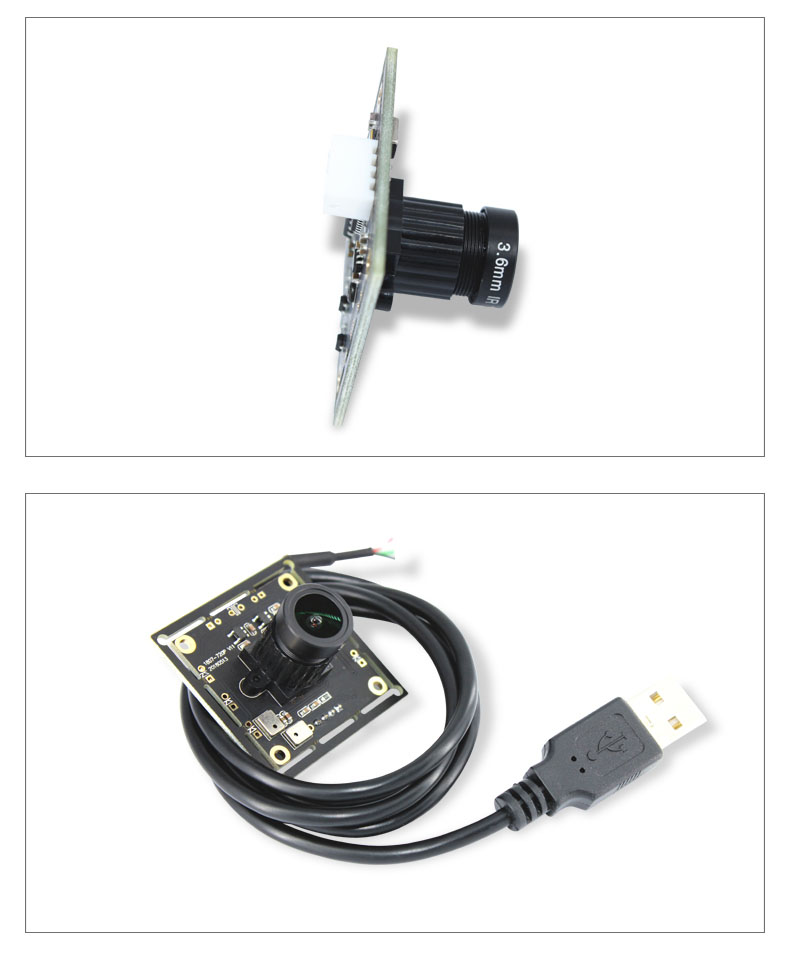

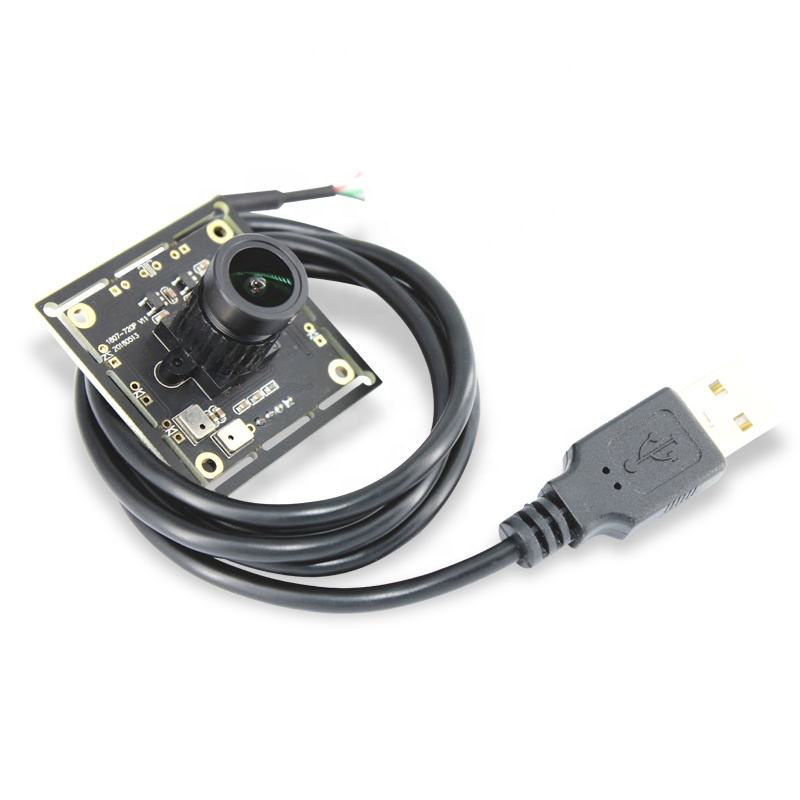

| USB cable | 1M for default (Also supply 2M) |
| 1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding | |
