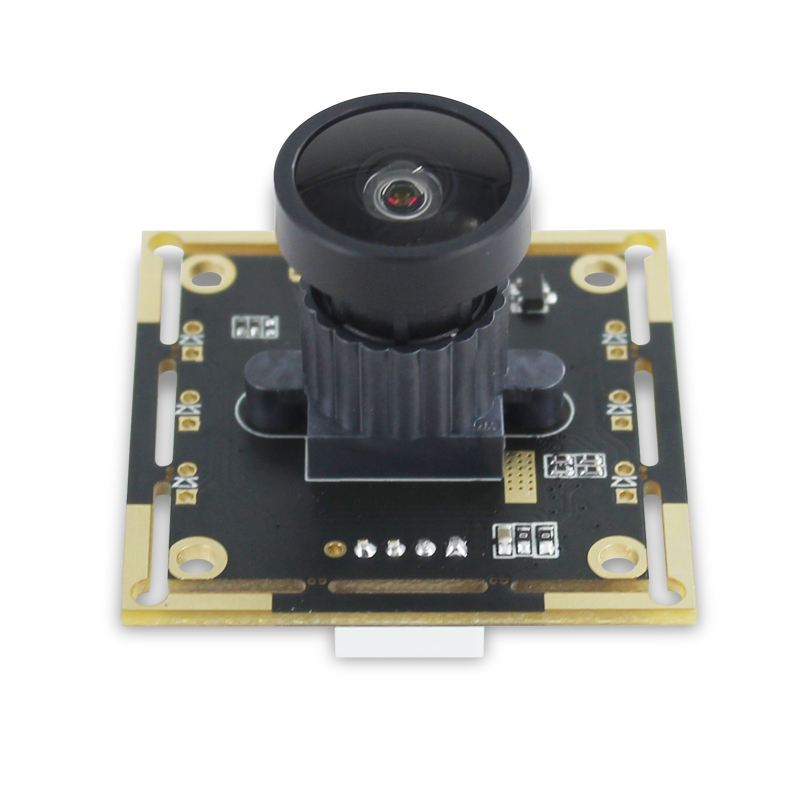

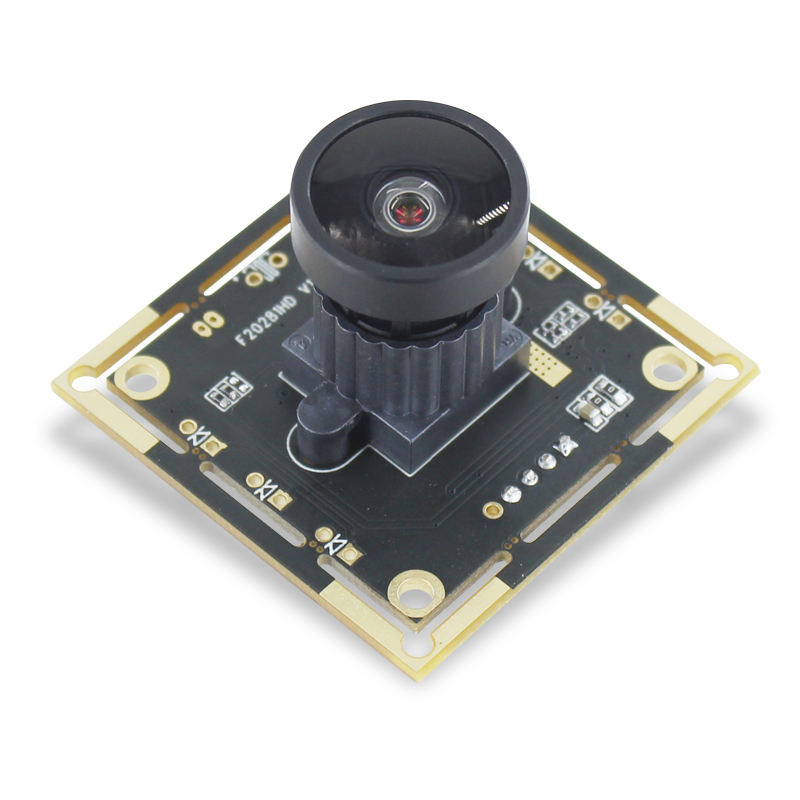

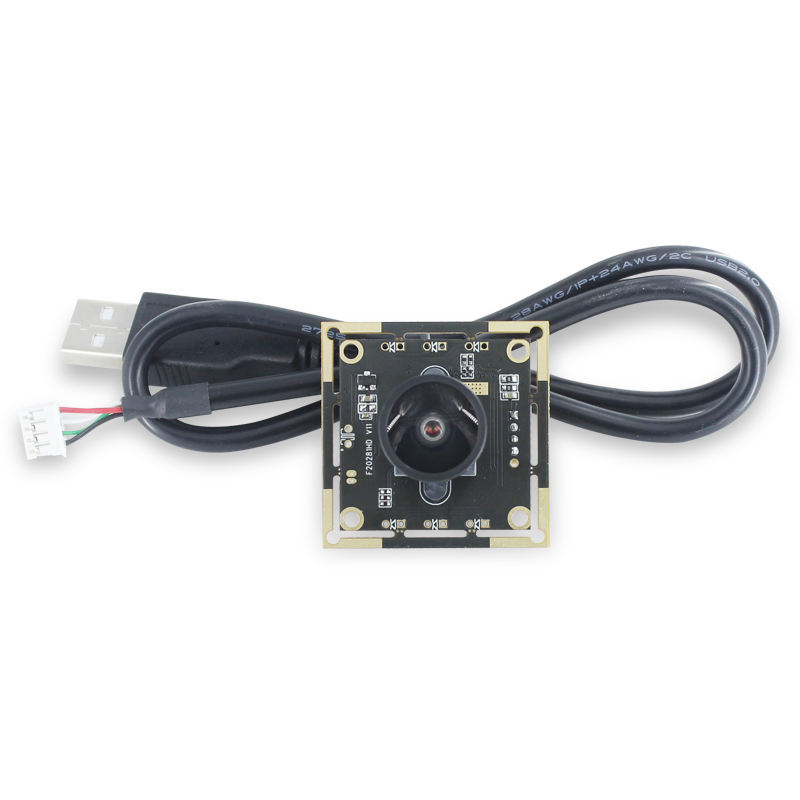

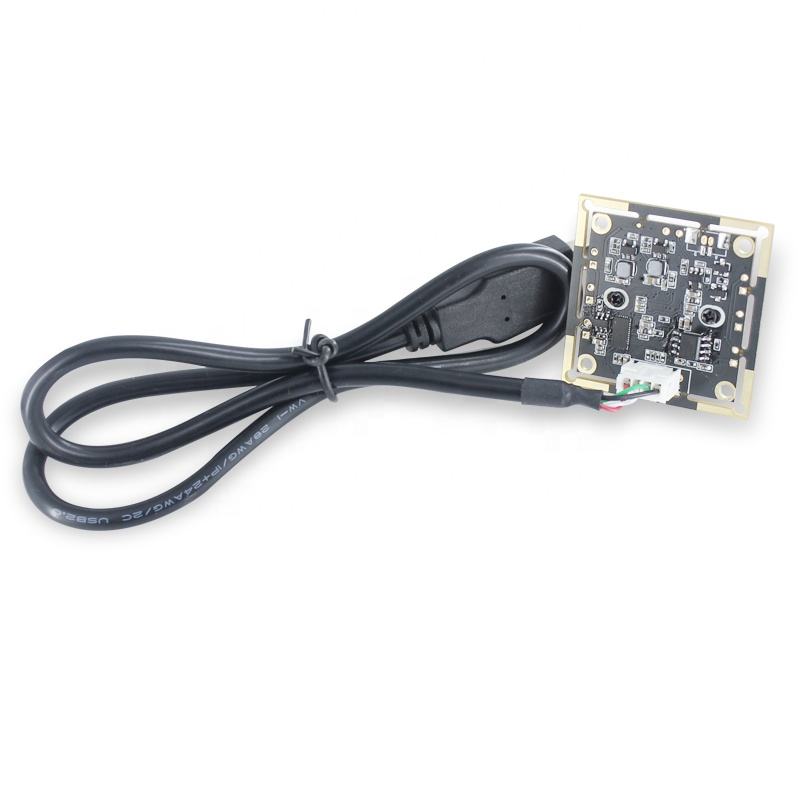

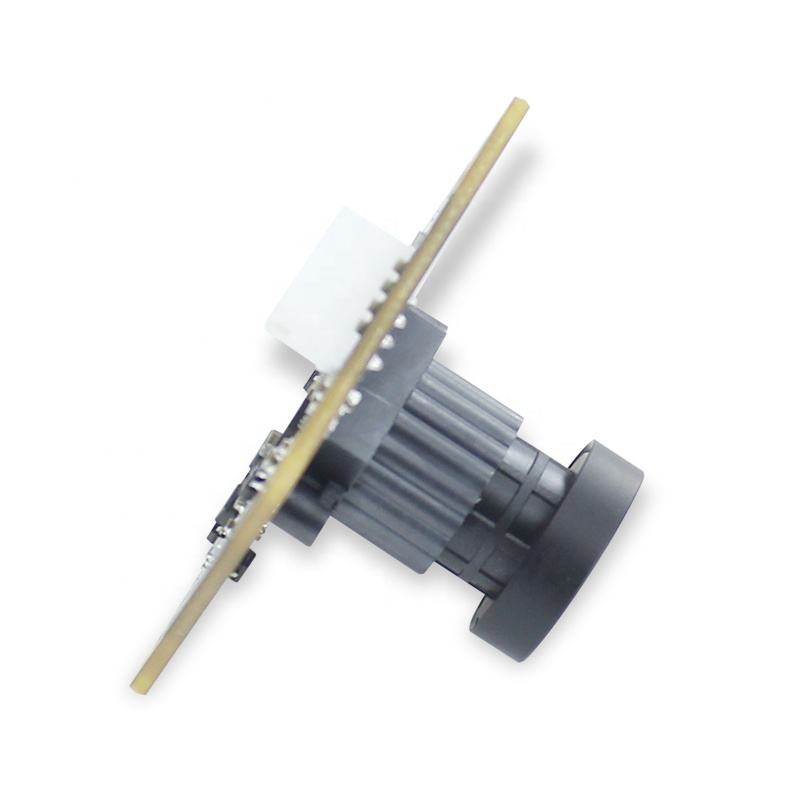

2Mp 1080P Hd Portrait Identification Camera 145Degree Ps5268 Sensor Mini Camera Module
$29.40
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Description
| Product Name | 2 MP industrial computer, advertising machine, equipment embedded built-in camera module | ||
| Module No. | BMF20281HD V22 | ||

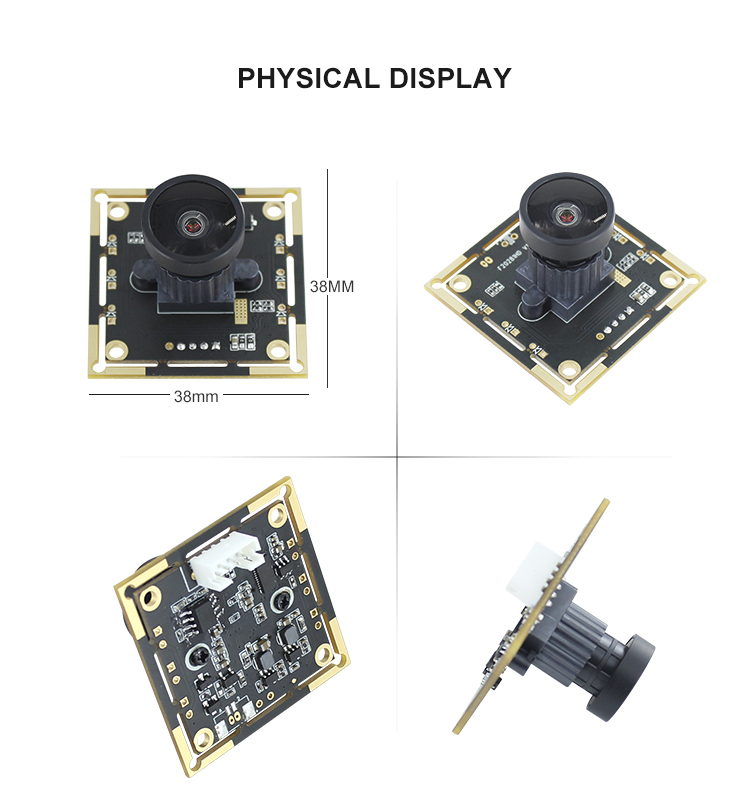

| Module Size | 38mm × 38mm × 24.0mm±0.5MM | ||
| Features | 1. maximum resolution, format, frame rate: 1920*1080 MJPEG 30FPS
| ||
| Temperature (Operation) | -30°C to 70°C | ||
| Temperature (Stable Image) | 0°C to 50°C | ||
| Assembly technique | SMT (ROSH) | ||
| Focus | Fixed | ||
| Object distance | 30CM-infinity | ||
| Resolution | 600LW/PH (Center) | ||
| PCB printing ink | Black | ||
| interface | USB 2.0 | ||
| Power suuply | USB bus power | ||
| supply voltage | DC 5V±5% | ||
| Maximum Power consumption | 600mW | ||
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc | ||
| Sensor | PS5268 (1/2.7" ) | ||
| Seneor Package | CSP,Bare Die | ||
| Maximum resolution | 1920*1080 | ||
| Sensitivity | 5800mV /(lux-sec) | ||
| Pixel Size | 3µm x 3µm | ||
| Maximum Image Transfer Rate | MJPEG 640x360 30FPS / YUY2 640x360 30FPS
| ||
| S/N Ratio | 41 db | ||
| Max Dynamic Range | 85 db | ||
| Shutter type | Electronic rolling shutter | ||
| AGC/AEC/Whiter balance | Auto | ||
| Output Formats | YUY2/MJPEG | ||
| Microphone | NO | ||
| Lens Construction | 2G4P | ||
| F/No | 1.55 | ||
| EFL | 2.966mm | ||
| FOV | 145° | ||
| TV Distortion | <61% | ||
| Relative Illumination (Sensor) | 70% | ||
| IR Filter | 650±10nm | ||
| Module Package | Anti-electrostatic tray | ||
| Certifications | FCC/CE/ROSH |
Detailed Images
