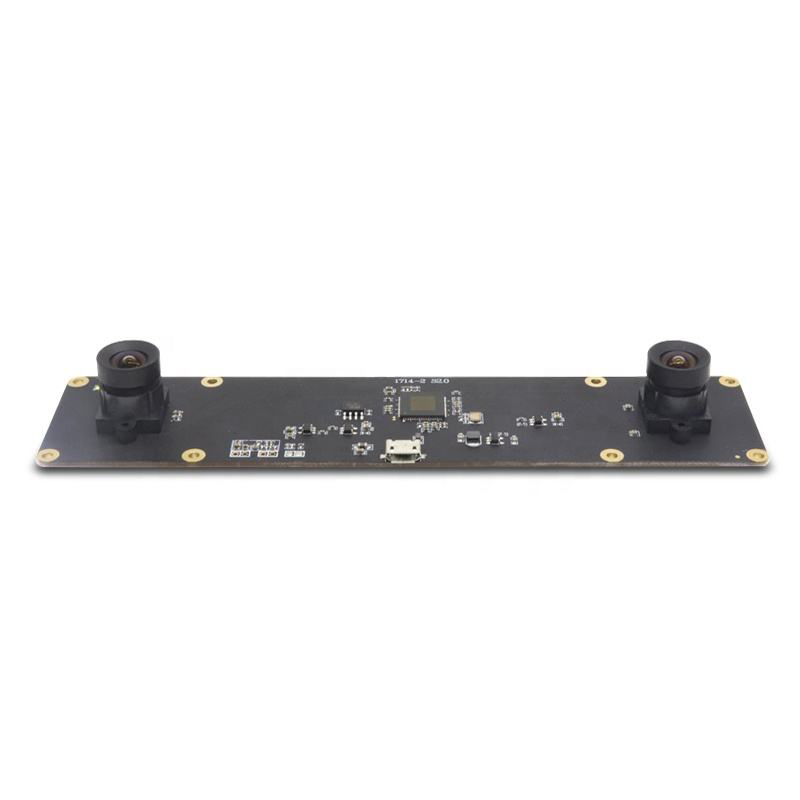

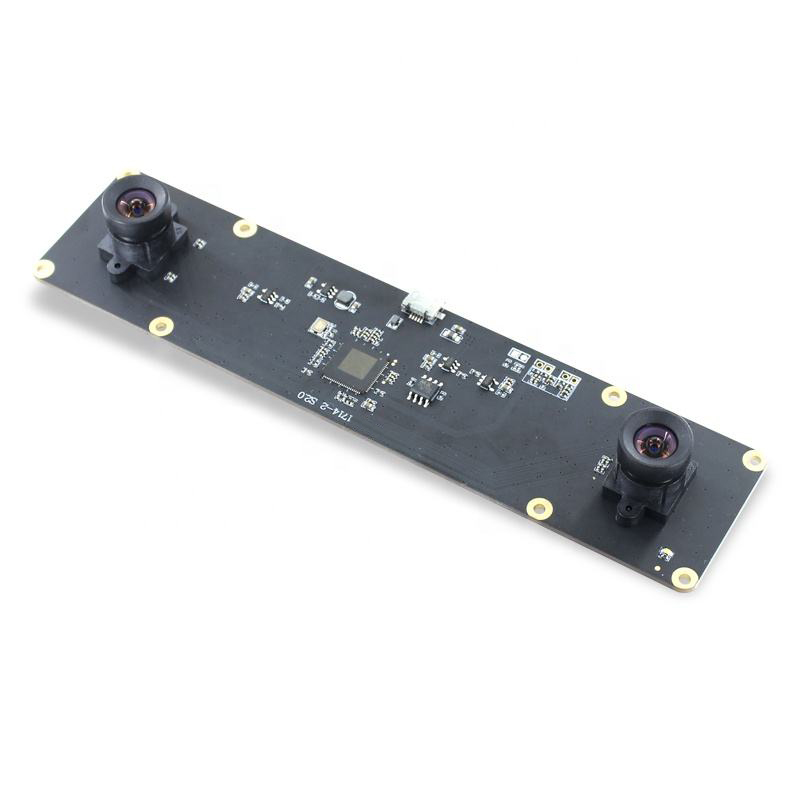

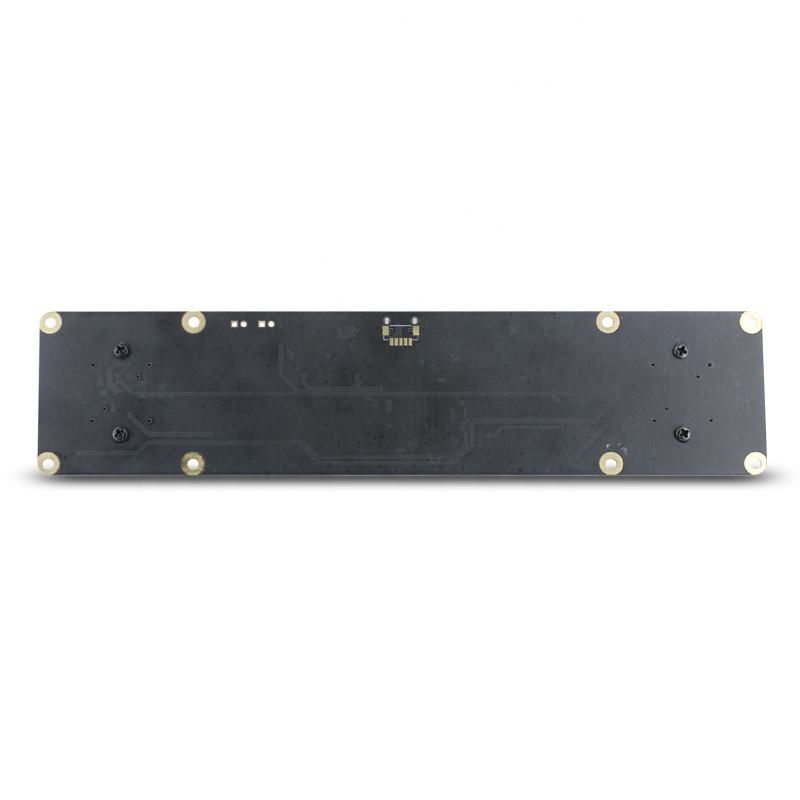

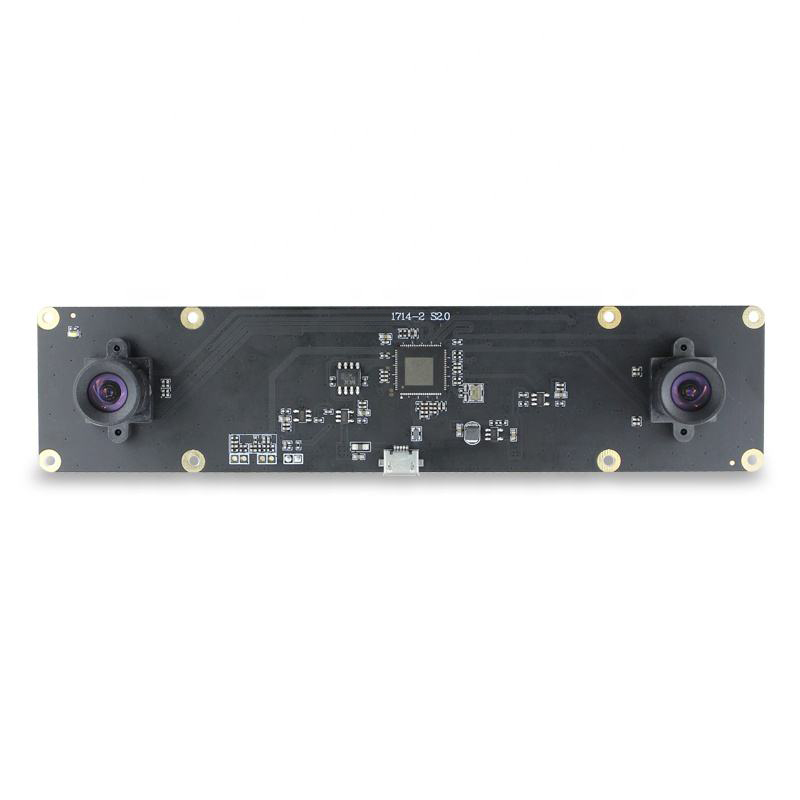

1.3mp Dual Lens ov9750 2560 *960 60fps 3D Synchronous camera module
$49.20
Availability:
In stock
Out of stock
Variations
Product Description

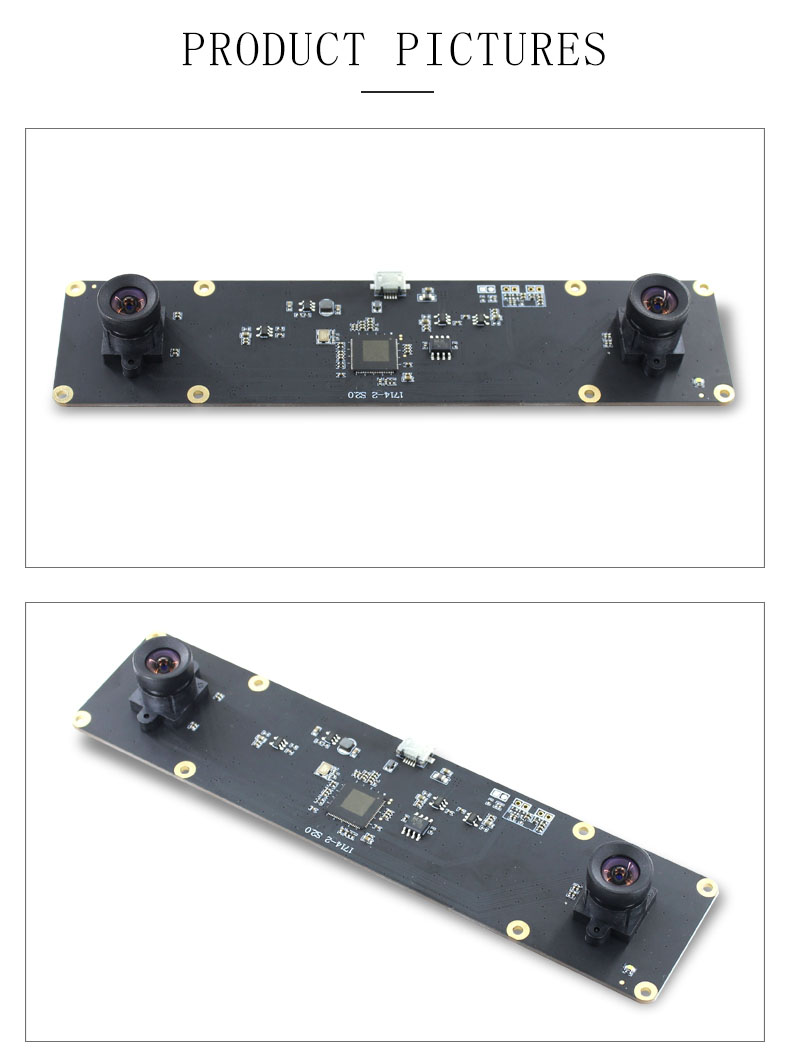

1.3mp Dual Lens ov9750 2560 *960 60fps 3D Synchronous camera module
| Model No. | 1714-2 S2.0 |

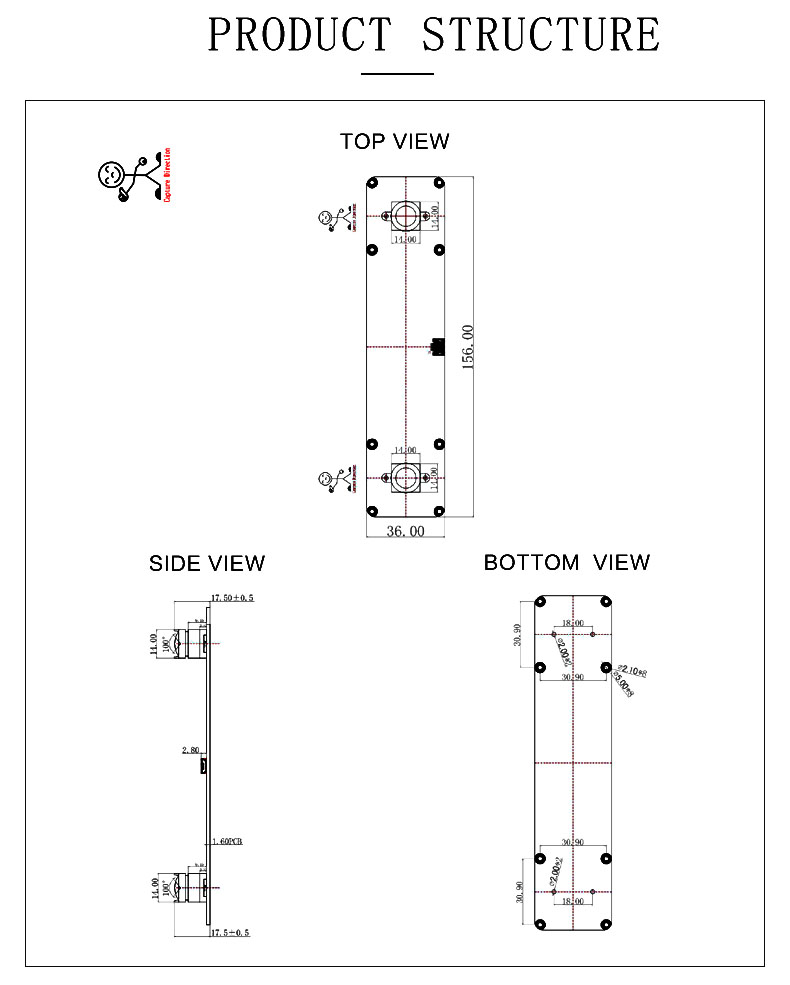

| Model Size | 156mm × 36mm × 17.5mm±0.3MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power supply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 1460 mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV9750 (1/3" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1280*960 |
| Sensitivity | 1900mV /(lux-sec) |
| Pixel Size | 3.75µm x 3.75µm |
| Maximum Image Transfer Rate | MJPEG 960x960 60FPS / YUY2 960x960 10FPS MJPEG 1280x480 60FPS / YUY2 1280x480 10FPS MJPEG 1280x720 60FPS / YUV2 1280x720 5FPS MJPEG 1280x960 60FPS / YUV2 1280x960 10FPS MJPEG 2560x720 60FPS / YUV2 2560x720 5FPS MJPEG 2560x960 60FPS / YUV2 2560x960 5FPS |
| S/N Ratio | 39B |
| Max Dynamic Range | 72B |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 1G3P |
| F/No | 2.4 |
| EFL | 3.7mm |
| FOV | 100° |
| TV Distortion | <5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
| USB cable | 50CM 1M 2M 3M |
| 1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding | |
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function.
Most of our usb cameras support OTG function.
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
♦Can you supply the USB cable together with camera?
Yes, we supply 40cm/1M usb cable for sample testing. if you need longer usb cable, we can customize it for you. welcome to contact us in advance.
