Fixed focus 2mp free driver 5 pin usb 2.0 webcam with Standard UVC Protocol
$10.80
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description

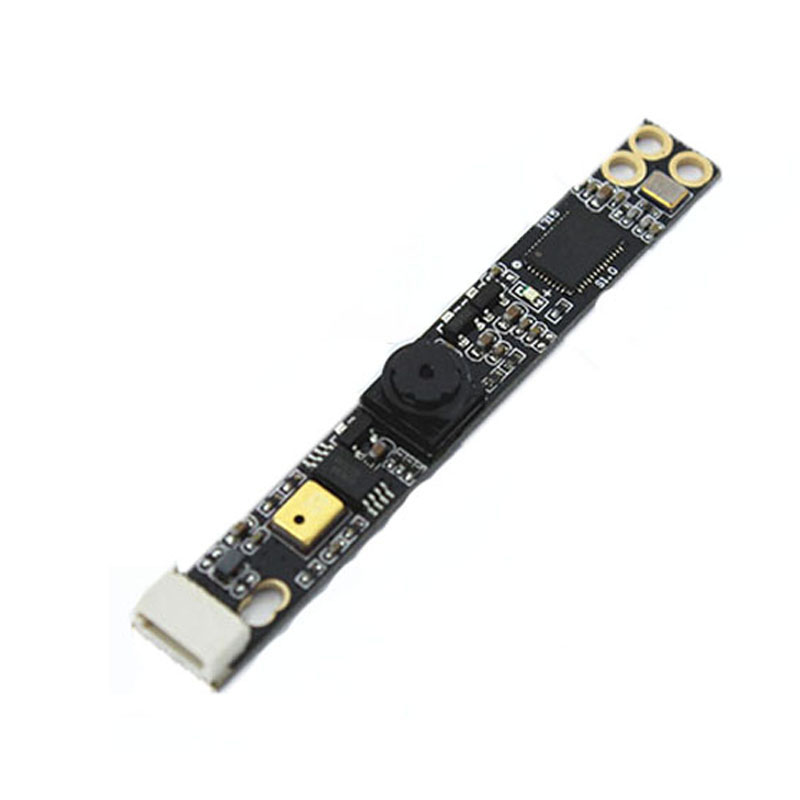

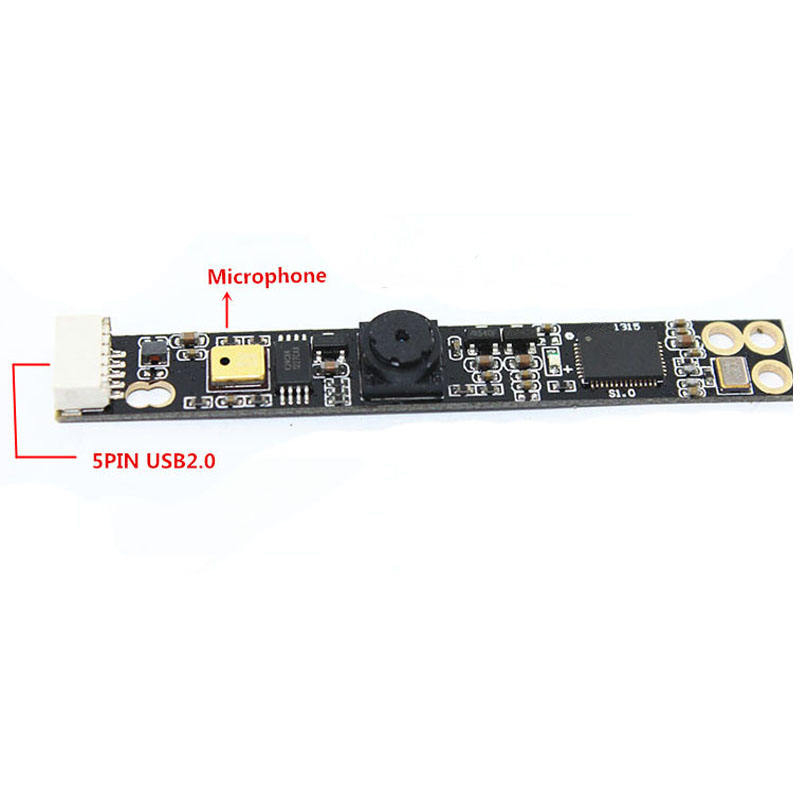

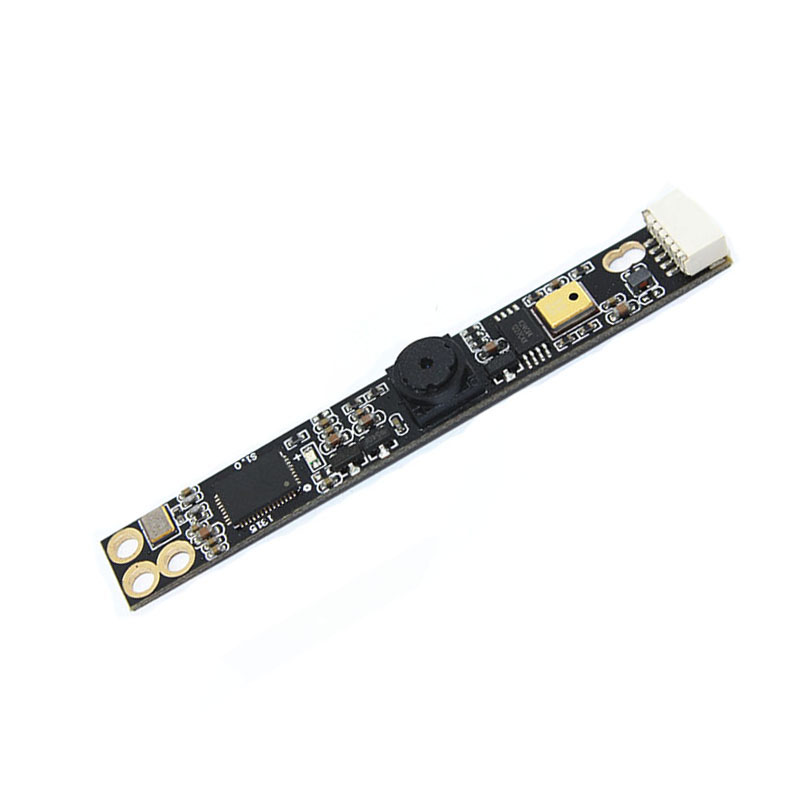

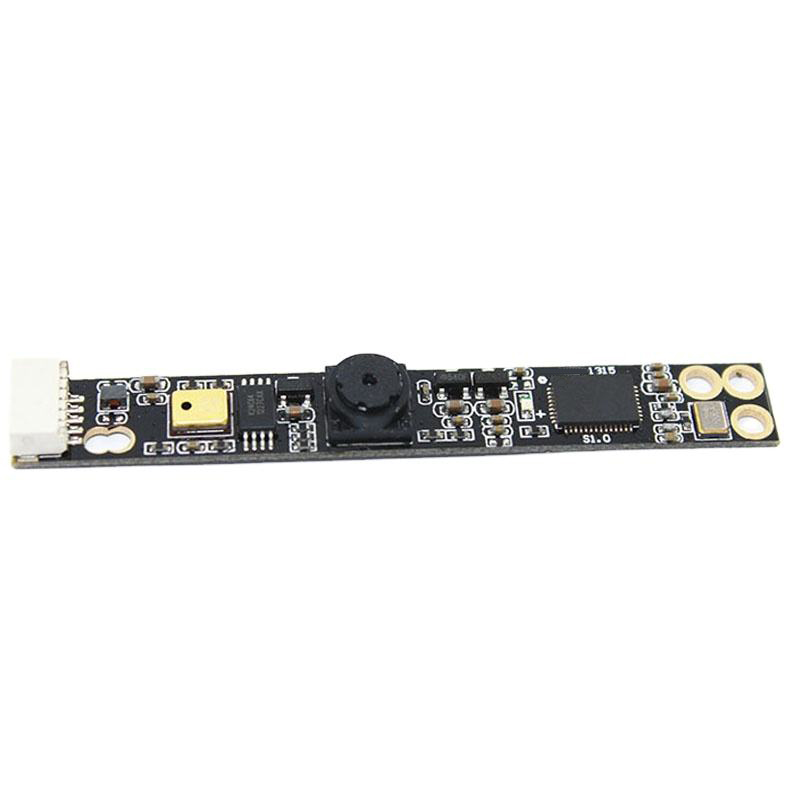

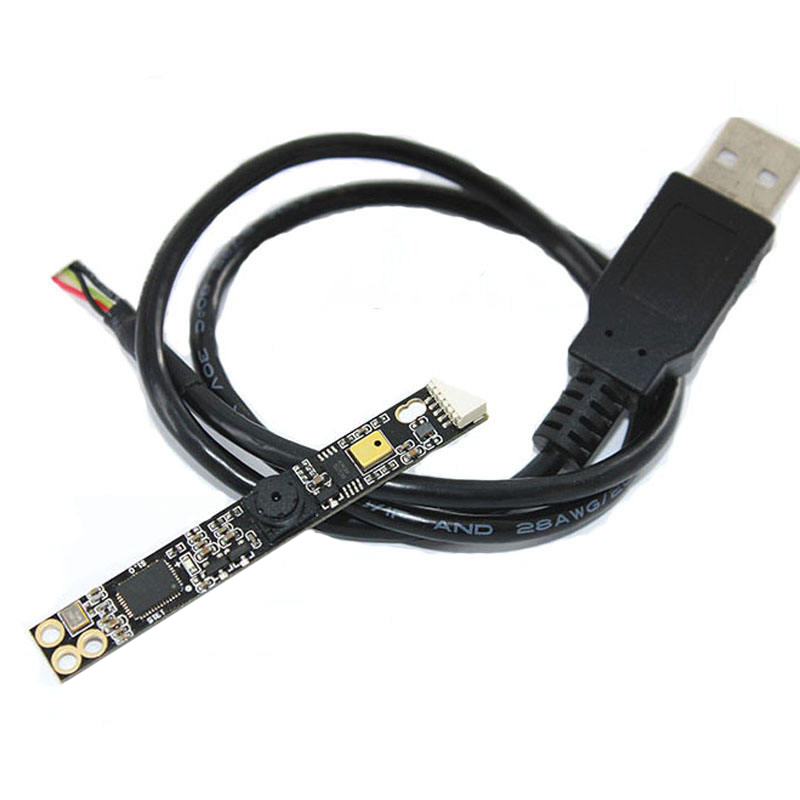

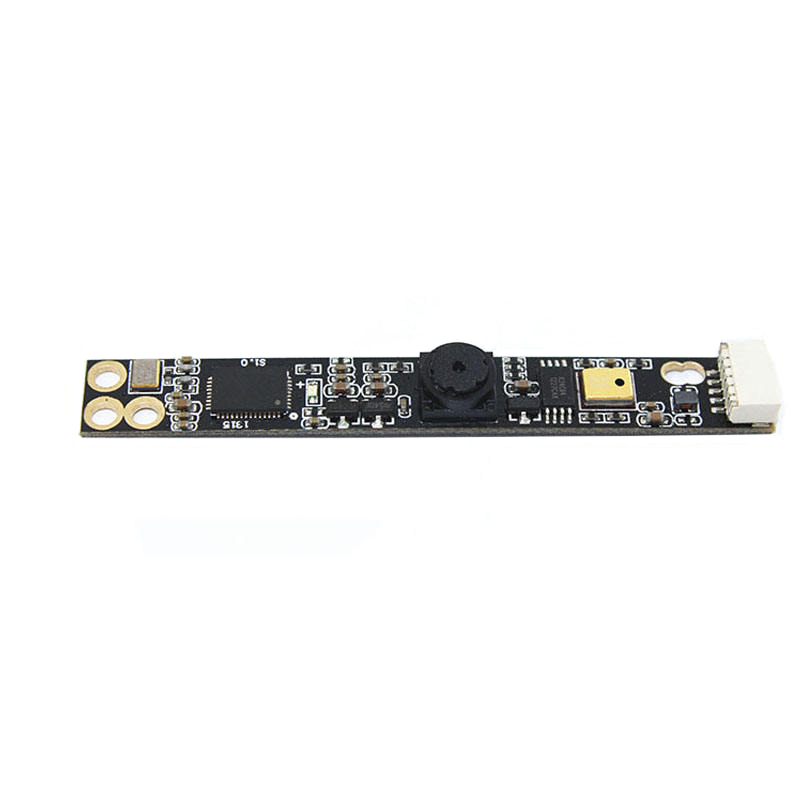

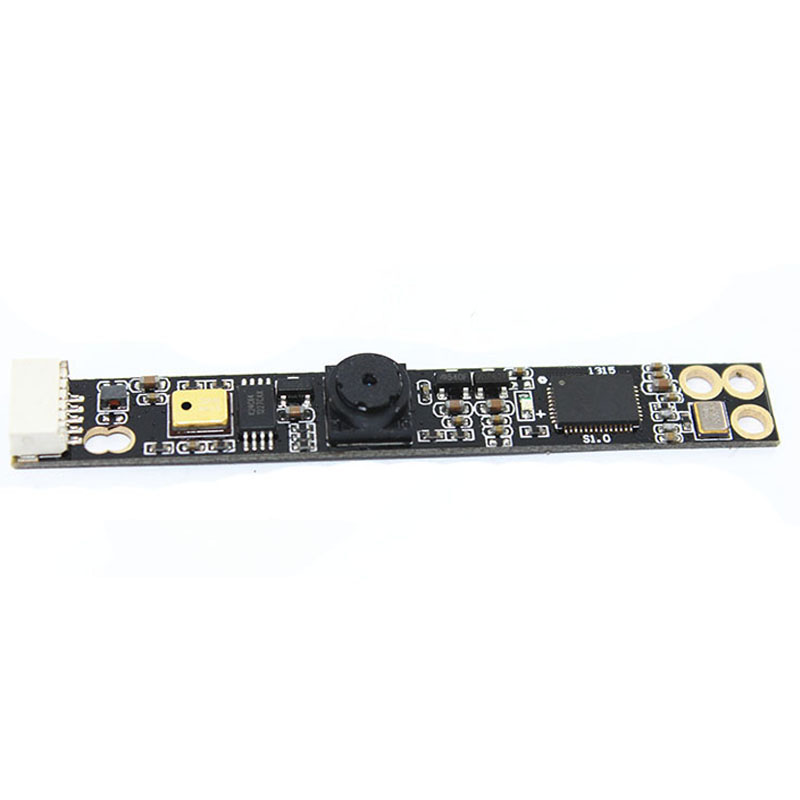

Fixed focus 2mp free driver 5 pin usb 2.0 webcam with Standard UVC Protocol
| Model No. | BM1315-S1.0 |
| Model Size | 60mm × 8mm × 4.5mm±0.2MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power supply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 500mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | HM2057 (1/5" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1600*1200 |
| Sensitivity | 1200mv /(lux-sec) |
| Pixel Size | 1.75μm x 1.75μm |
| Maximum Image Transfer Rate | MJPEG 160x120 30FPS / YUY2 320x240 30FPS MJPEG 320x240 30FPS / YUY2 640x480 30FPS MJPEG 640x480 30FPS / YUY2 800x600 15FPS MJPEG 800x600 30FPS / YUY2 1280x720 10FPS MJPEG 1280x720 30FPS / YUY2 1280x1024 5FPS MJPEG 1280x1024 30FPS YUY2 1600x1200 5FPS |
| S/N Ratio | 36B |
| Max Dynamic Range | 70B |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 2P |
| F/No | 2.8 |
| EFL | 2.8mm |
| FOV | 60° |
| TV Distortion | <1% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
| USB cable | 50CM 1M 2M 3M |
| 1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding | |
Product Descripiton
