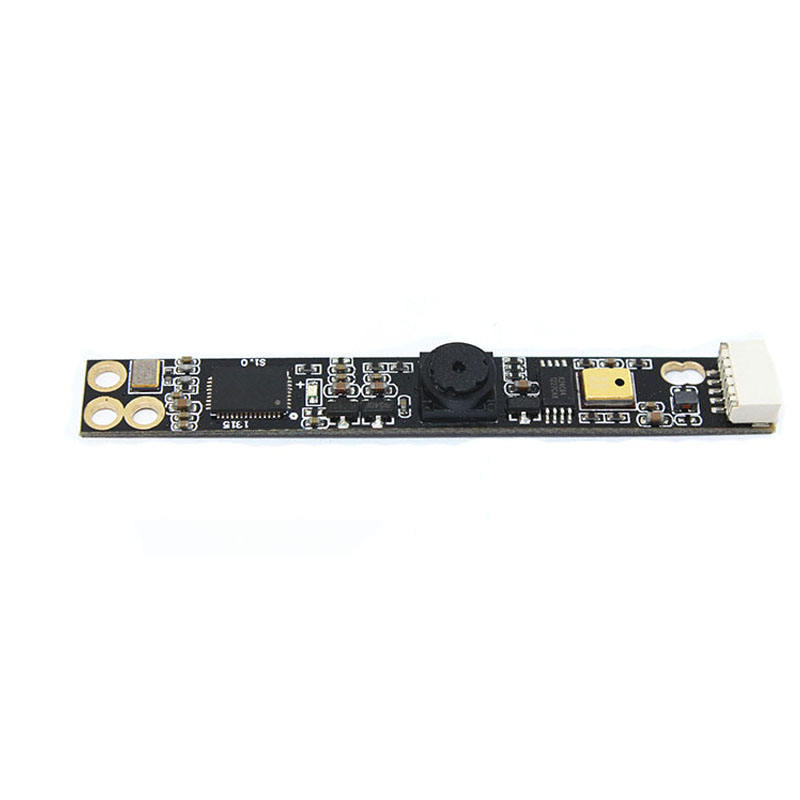

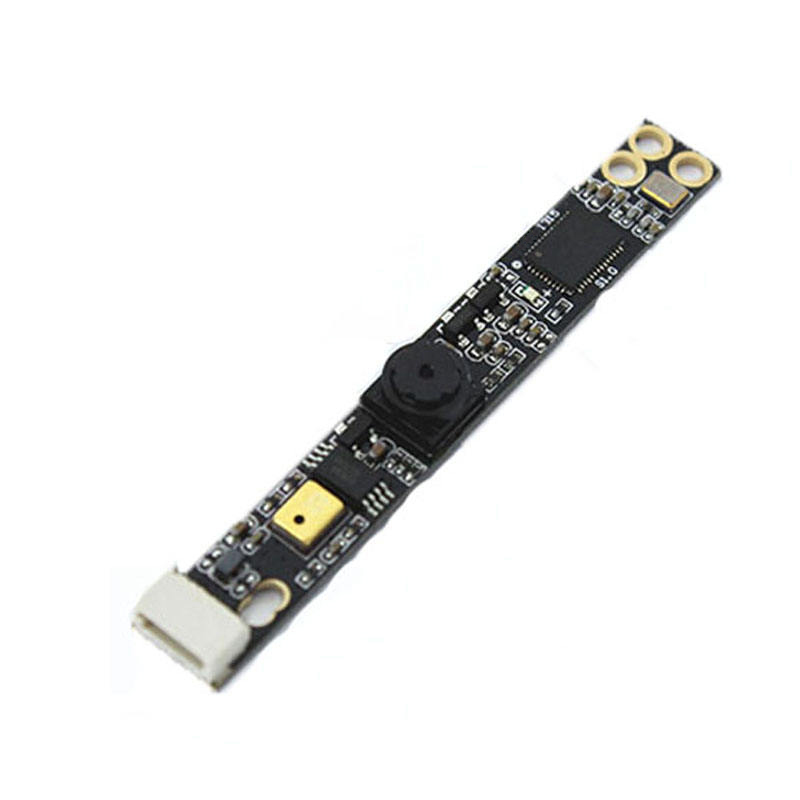

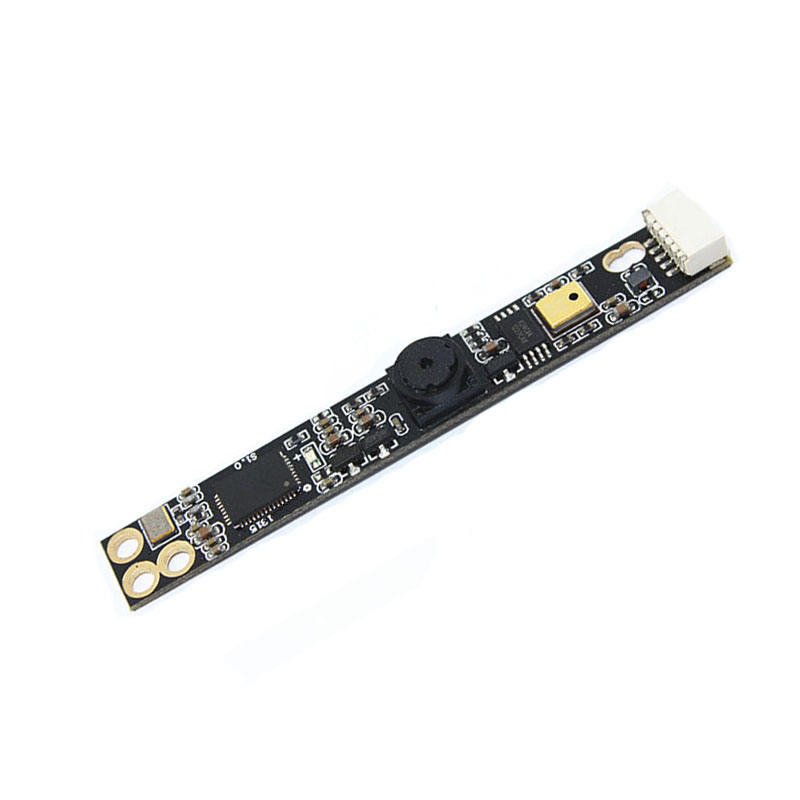

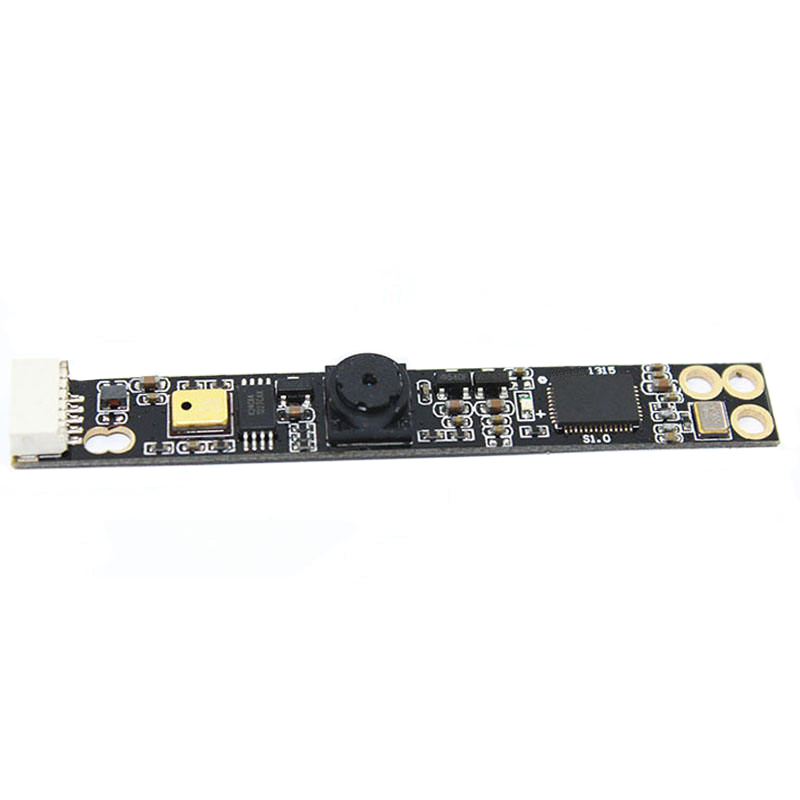

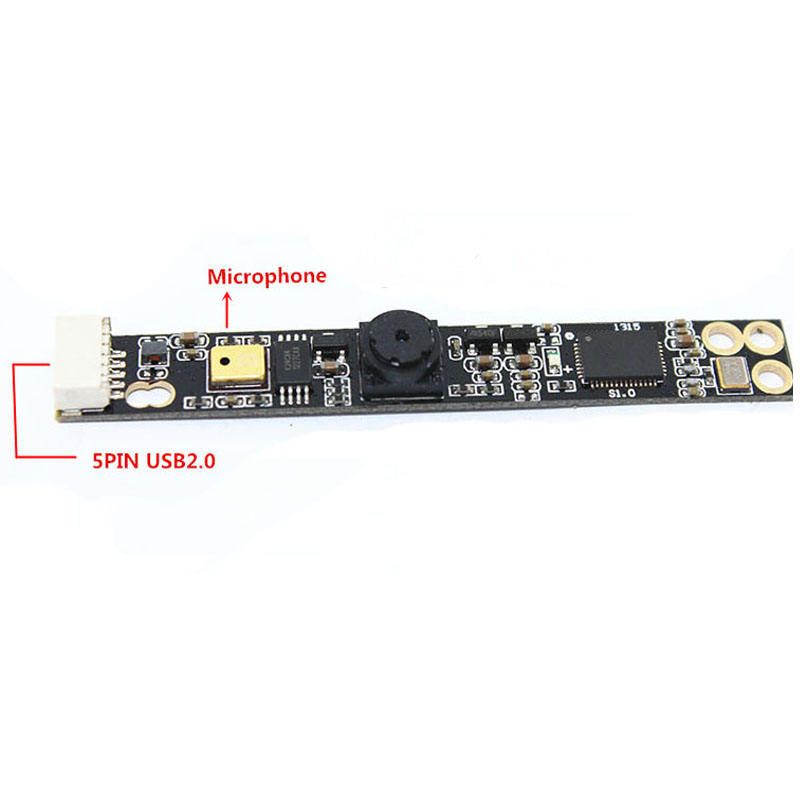

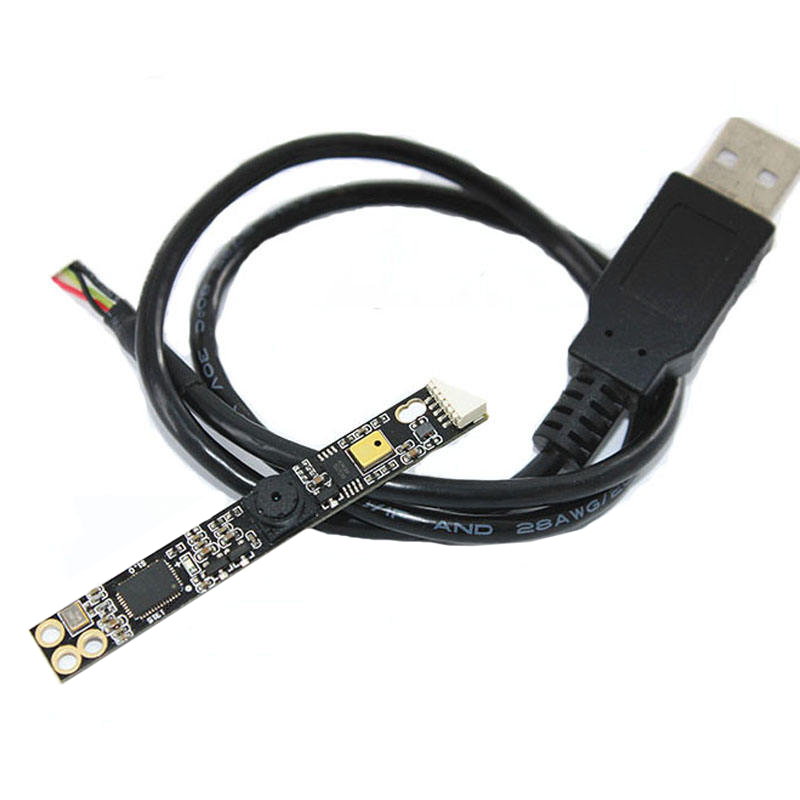

USB 2.O smart phone camera module mobile for Windows 2000 XPWindows 7
$12.00
Availability:
In stock
Out of stock
Variations
Product Description
Product Descripiton
cmos camera module 720p
| Model No. | 1315 S1.0 |
| Model Size | 60mm × 8mm × 4.6mm |
| Temperature (Operation) | -20°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Image Area | 3888um*2208um |
| Object distance | 15CM-130CM |
| Resolution | 600LW/PH (Center) |
| Interface | USB 2.0 |
| Power | USB bus power |
| Power consumption | 110mW (VGA); 130 mW (UXGA); |
| Package | Anti-electrostatic tray |
| Operating system request | Windows 2000\ Windows XP\Windows 7 |
| Certifications | FCC and CE |
| Active Array Size | 1200*1600 |
| Sensitivity | TBD |
| Pixel Size | 1.75μm x 1.75μm |
| Maximum Image Transfer Rate | 15 fps for UXGA; |
| S/N Ratio | TBD |
| Dynamic Range | TBD |
| Package | CSP,Bare Die |
| Lens Type | |
| Lens Construction | 3P+IR |
| F/No | 2.8 |
| EFL | 3.28 mm |
| BFL(Optical) | 2.7mm |
| FOV | 60° |
| TV Distortion | <0.24% |
| Relative Illumination (Sensor) | 70% |
| R Filter | 650 ± 10nm |
| DSP Type | 1313 |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | USB suspend out |
| Fixed Pattern Noise | < 0.03% of V PEAK-TO-PEAK |
| Package | LQFN-40pin |
