Low price GC0308(1/6.5") Cmos Sensor HD 0.3 Megapixel Camera Module Fixed Focus For intelligent equipment
$9.60
Availability:
In stock
Out of stock
Variations
Product Description
Product Specifications
| Module No. | BM1914S V44 |
| Module Size | 25mm × 12mm × 6mm±0.2MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 500mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | GC0308 (1/6.5" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 640*480 |
| Sensitivity | 3.0mv /（lux-sec） |
| Pixel Size | 3.4µm x 3.4µm |
Maximum Image Transfer Rate | MJPEG160x120 30FPS / YUY2 160x120 30FPS MJPEG 320x240 128FPS / YUY2 320x240 128FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS |
| FOV | 46° |
| Certifications | FCC/CE/ROSH |

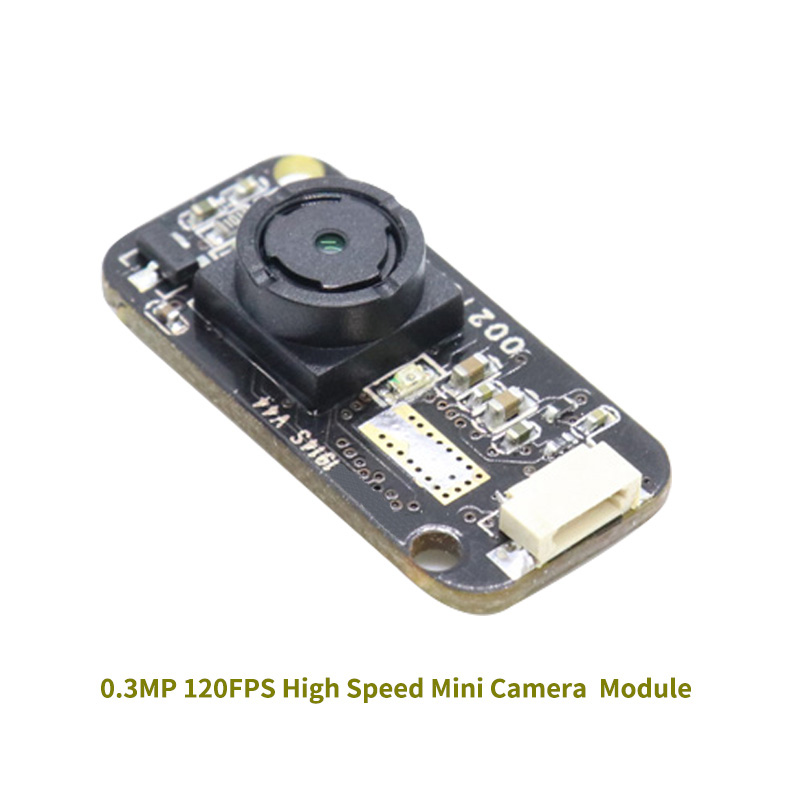

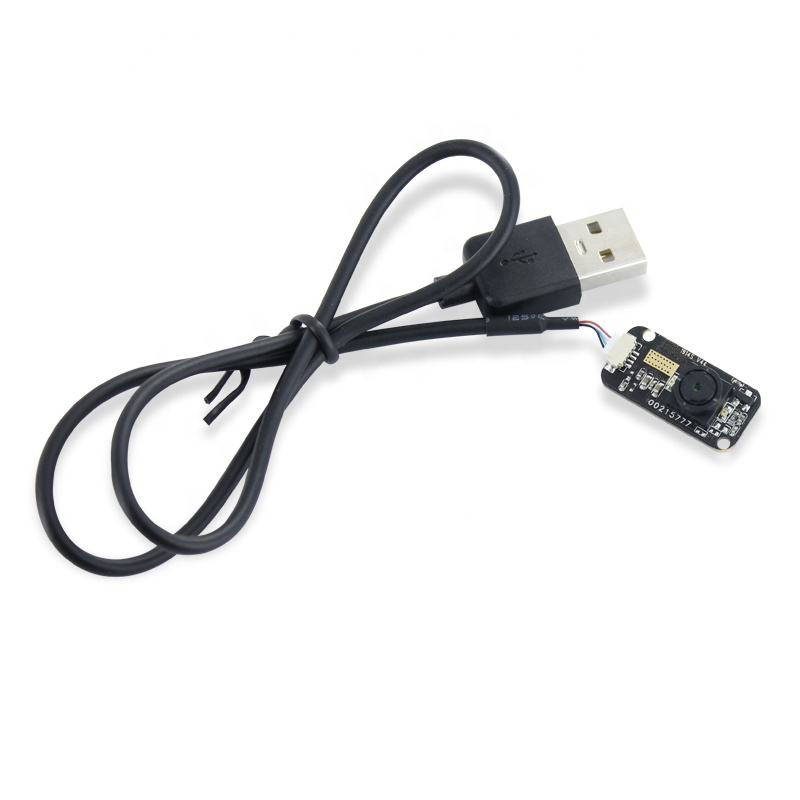

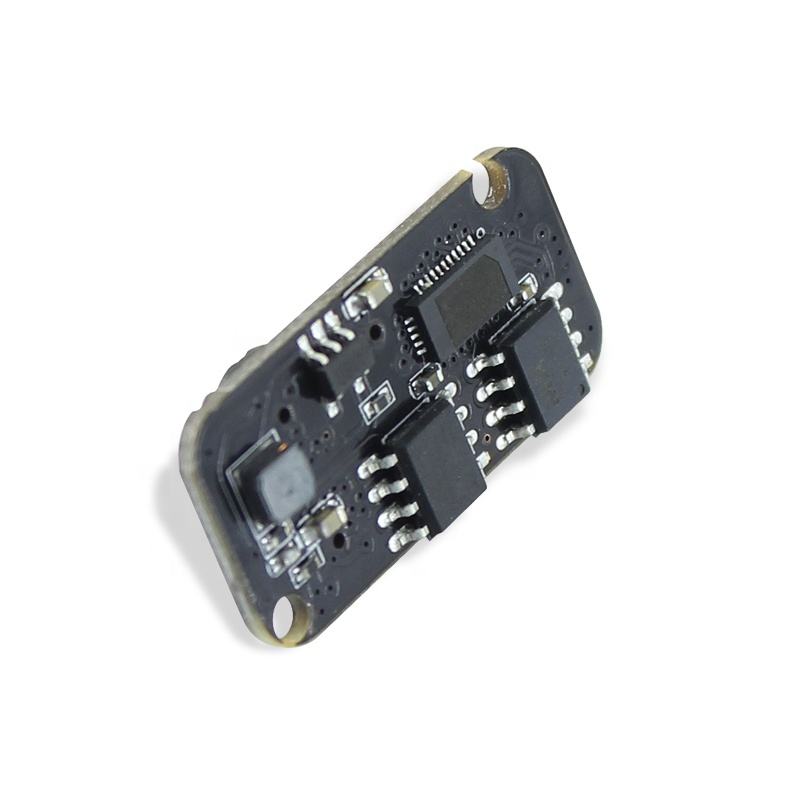

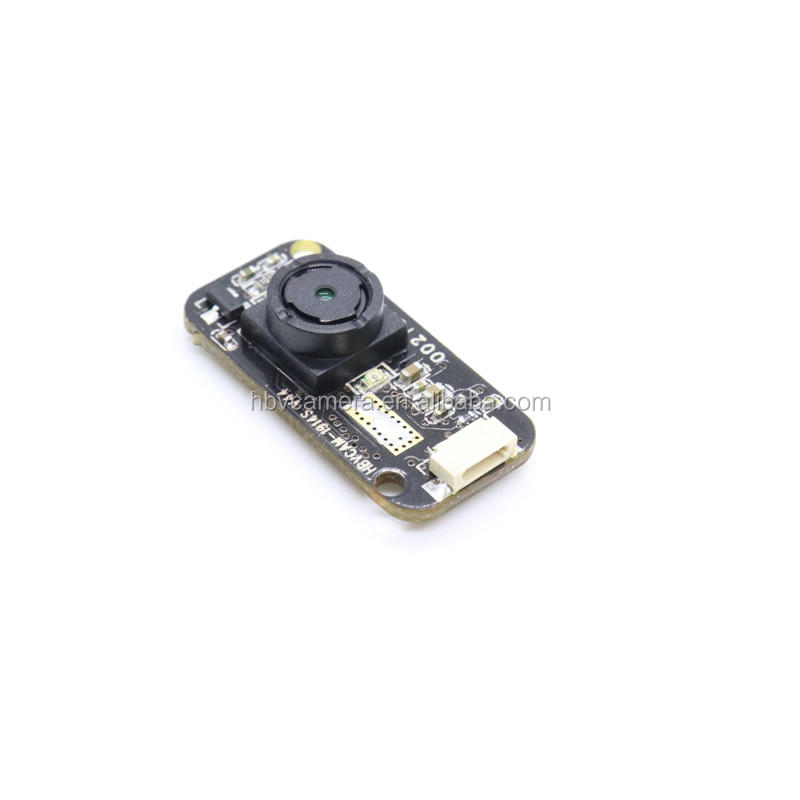

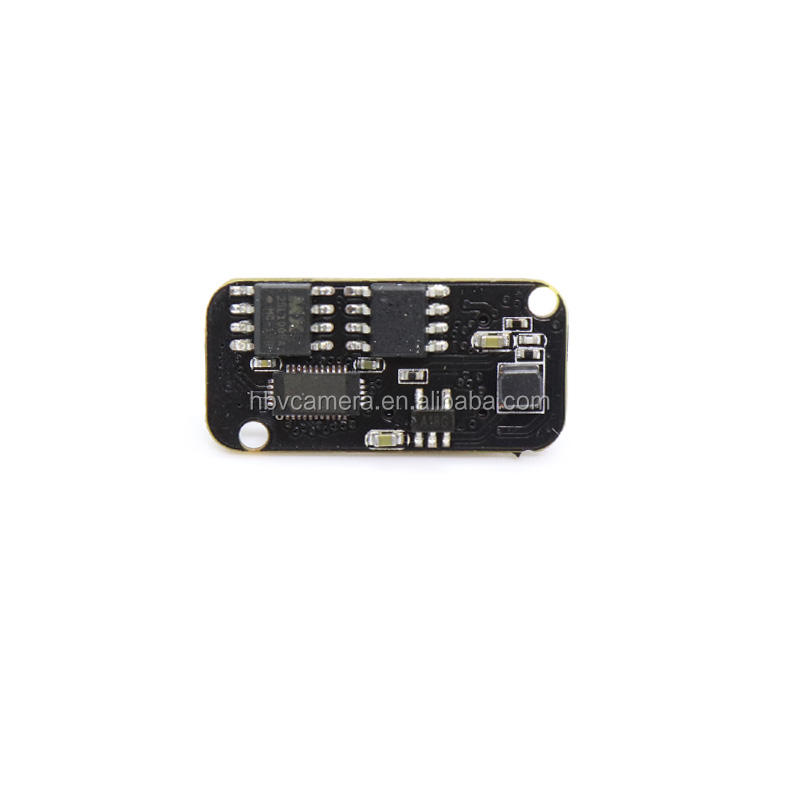

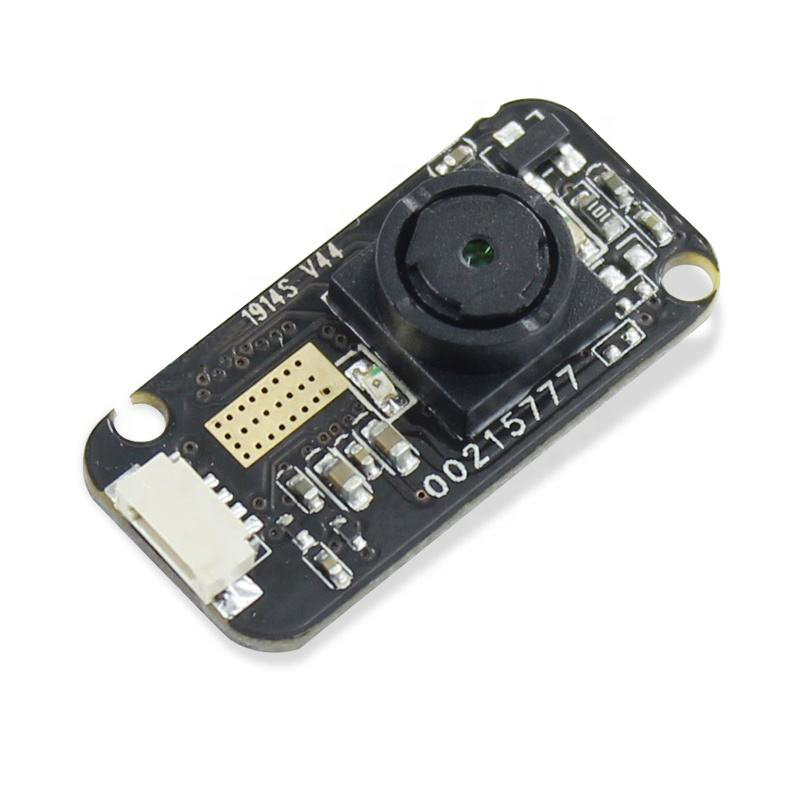

Detail Images

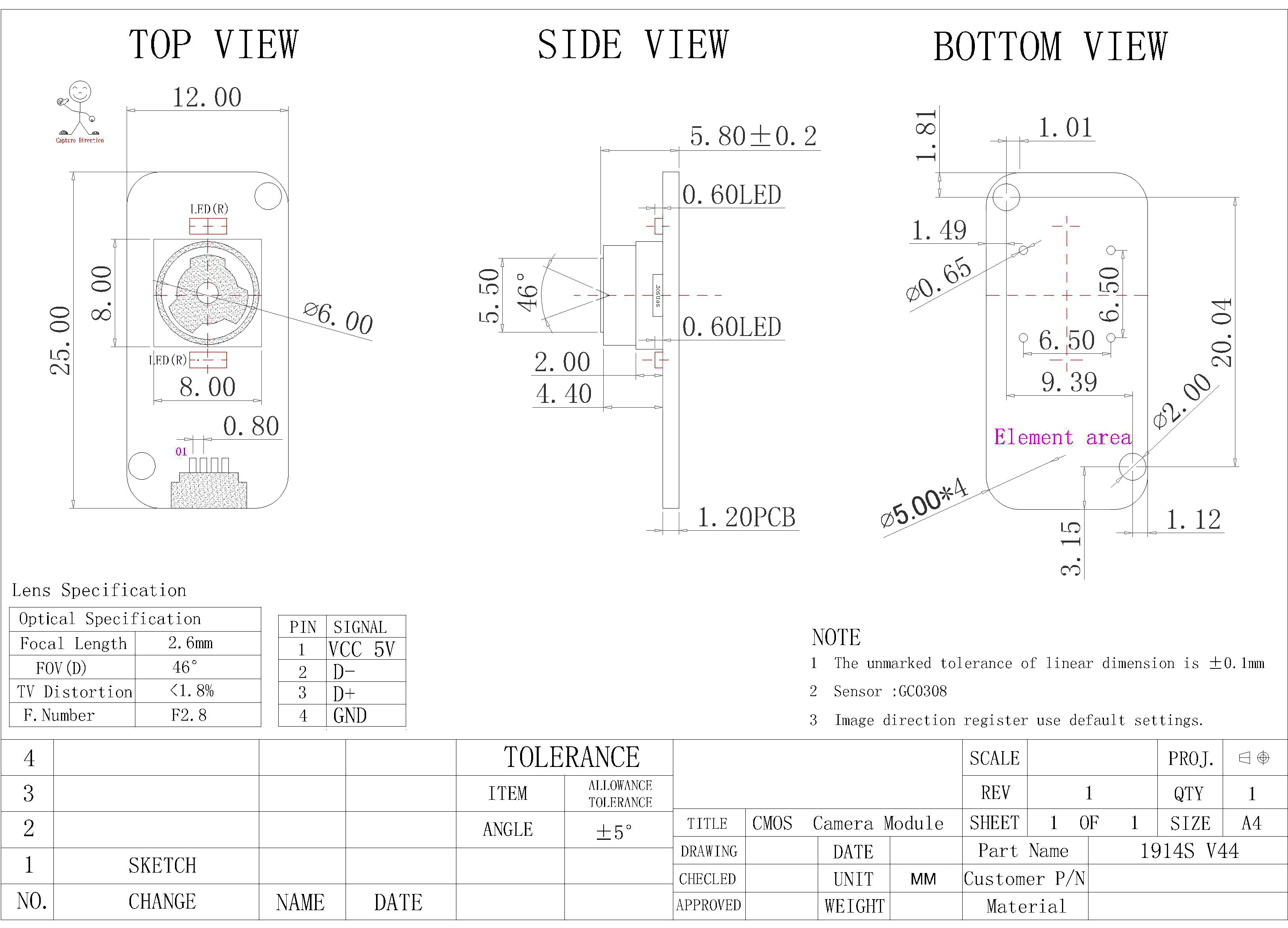

Product drawing
