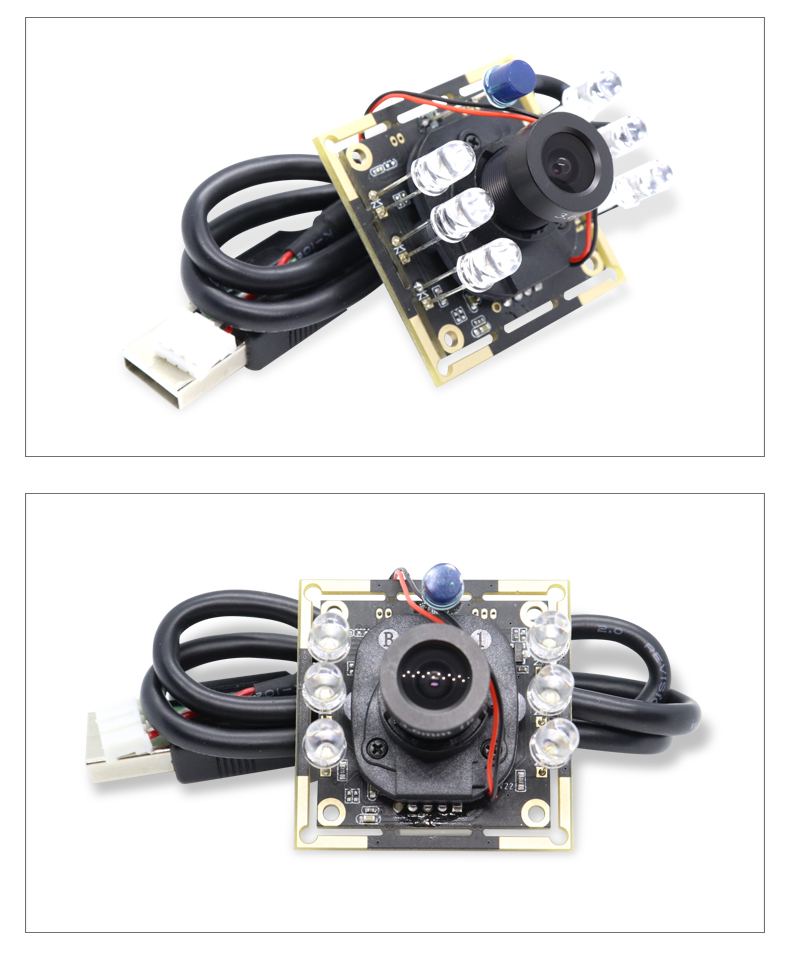

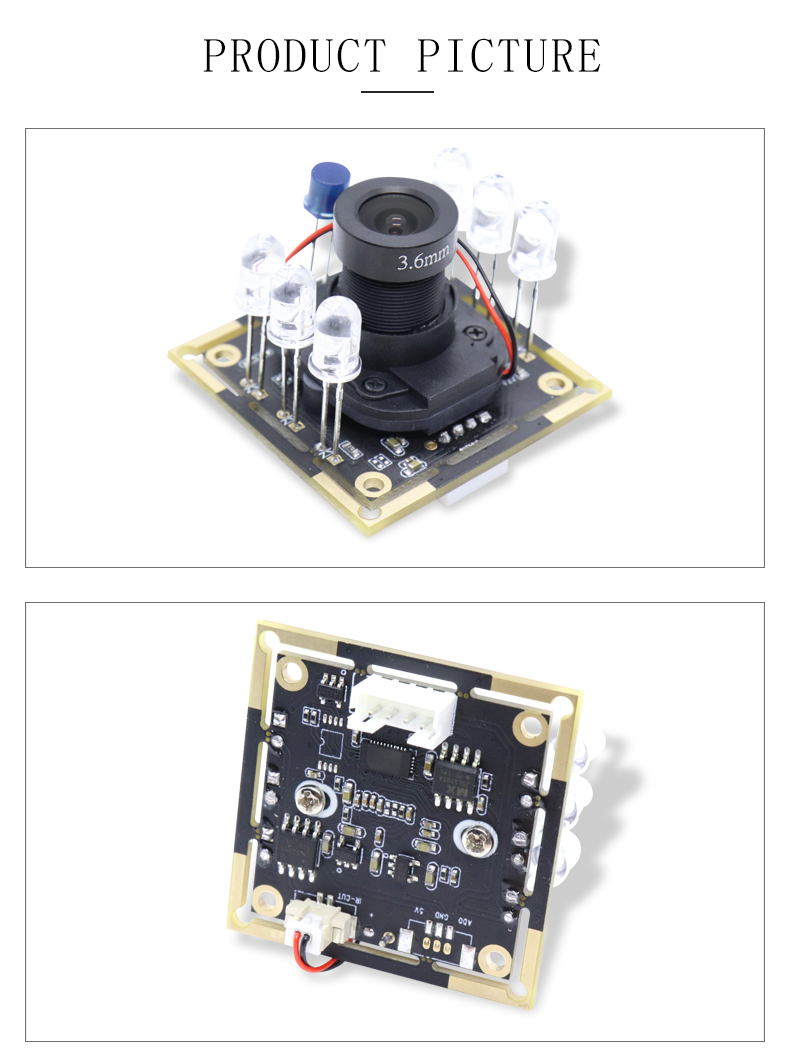

1280*720 Hd 30Fps Cmos Sensor OV9732(1/4) Hd Ir -Cut Infrared Cmos Camera Module
$24.00
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
| Model No. | BM1920IR-CUT V22 |

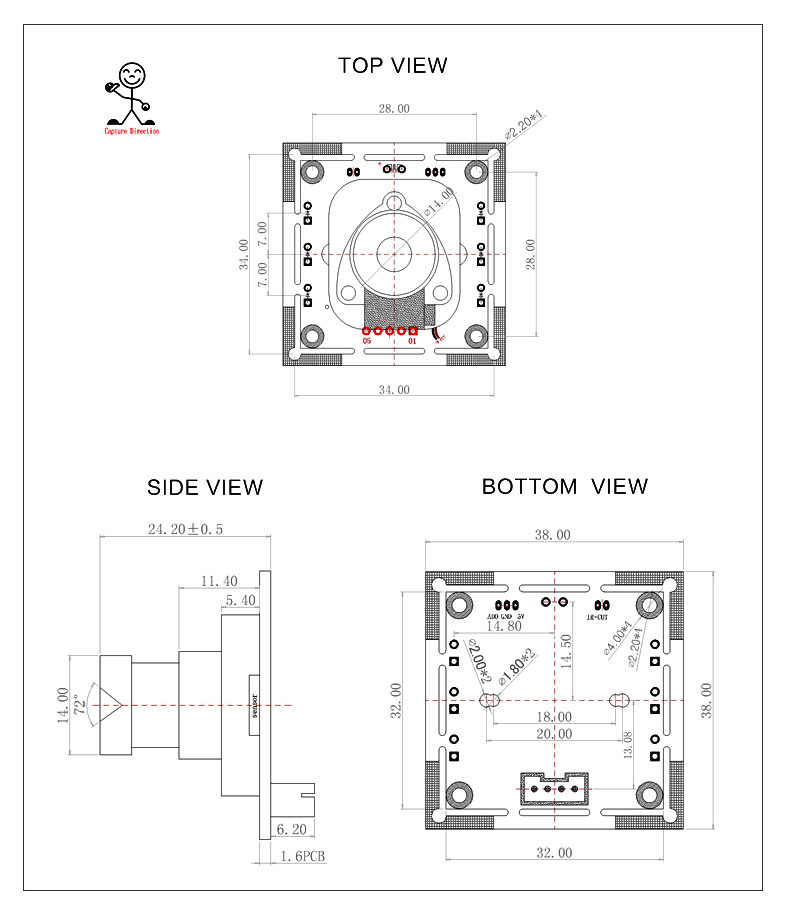

| Model Size | 38mm × 38mm × 24.2mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power supply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 840mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV9732 (1/4" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1280*720 |
| Sensitivity | 2066mV /(lux-sec) |
| Pixel Size | 3μm x 3μm |
| Maximum Image Transfer Rate | MJPEG 320x180 30FPS YUY2 320x240 20FPS MJPEG 320x240 30FPS / YUY2 320x240 20FPS MJPEG 640x480 30FPS / YUY2 640x480 20FPS MJPEG 800x600 30FPS / YUY2 800x600 20FPS MJPEG 960x540 30FPS / YUY2 960x540 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS |
| S/N Ratio | 39B |
| Max Dynamic Range | 72B |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 2G2P |
| F/No | 2.4 |
| EFL | 3.6mm |
| FOV | 72° |
| TV Distortion | <1% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
| USB cable | 50CM 1M 2M 3M |
| 1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding | |
