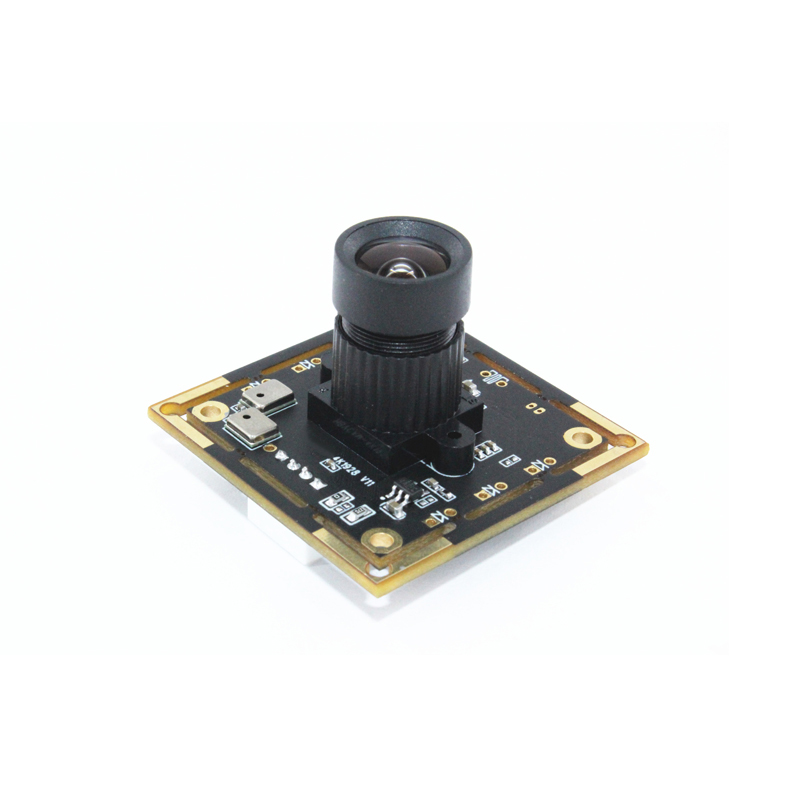

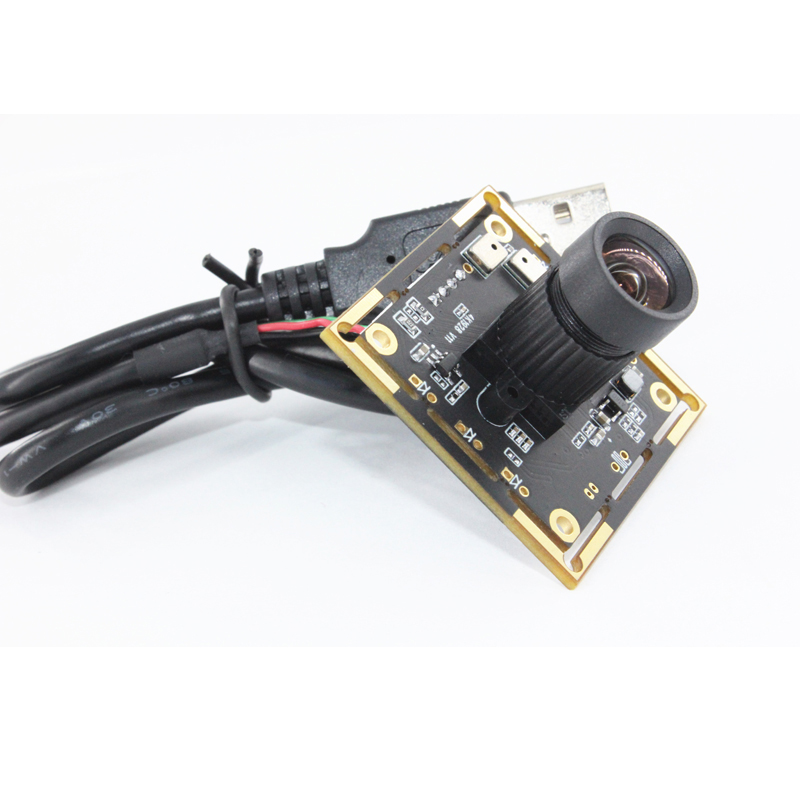

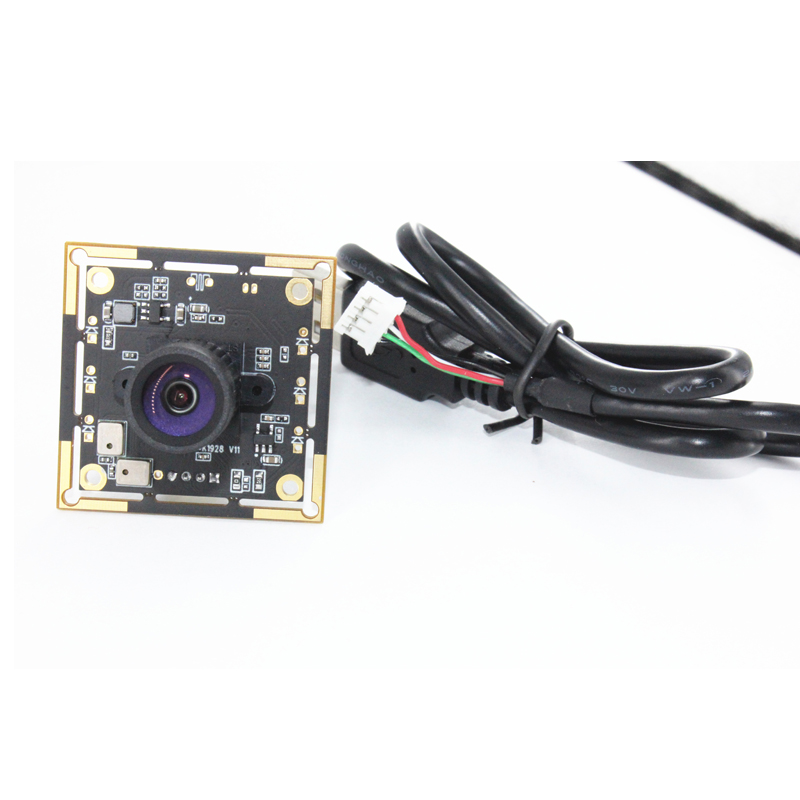

Plug & Play 8Mp Imx317 (1/2.5) 4K Cmos Sensor Camera Module Vision Camera Module With Microphone
$68.40
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
| Model No. | BM4K1928 V11 |
| Model Size | 38mm × 38mm × 24.5mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 800LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power supply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 940 mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linuxwith uvc |
| Sensor | IMX317 (1/2.5" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 3840*2160 |
| Sensitivity | 760mv /(lux-sec) |
| Pixel Size | 1.62μm x 1.62μm |
| Maximum Image Transfer Rate | MJPEG 1600x1200 30FPS / YUY2 1600x1200 5FPS |
| S/N Ratio | 44db |
| Max Dynamic Range | 82db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| Lens Construction | 2G2P |
| F/No | 2.4 |
| EFL | 4.2 mm |
| FOV | 85 |
| TV Distortion | <5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
| USB cable | 50CM 1M 2M 3M |
| 1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding | |
