8MP Auto Focus IMX179 Sensor CMOS Camera Module Resolution 3264*2448 Small USB Camera Module
$36.00
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Specifications
| Module No. | BM8M1822 V22 |
| Module Size | 38mm × 38mm × 6.75mm±0.2MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | AUTO |
| Object distance | 30CM-infinity |
| Resolution | 800LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 1000 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | IMX179 (1/3.2" ) |
| Seneor Package | PLCC,Bare Die |
| Maximum resolution | 3264*2448 |
| Sensitivity | 700mV /（lux-sec） |
| Pixel Size | 1.4µm x 1.4µm |
Maximum Image Transfer Rate | MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 8FPS MJPEG 1600x1200 30FPS / YUY2 1600x1200 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 4FPS MJPEG 2048x1536 20FPS / - MJPEG 2592x1944 20FPS / - MJPEG 3264x2448 15FPS / - |
| Output Formats | YUY2/MJPEG |
| Microphone | Support |
| EFL | 3.5mm |
| FOV | 77.2° |
| Certifications | FCC/CE/ROSH |

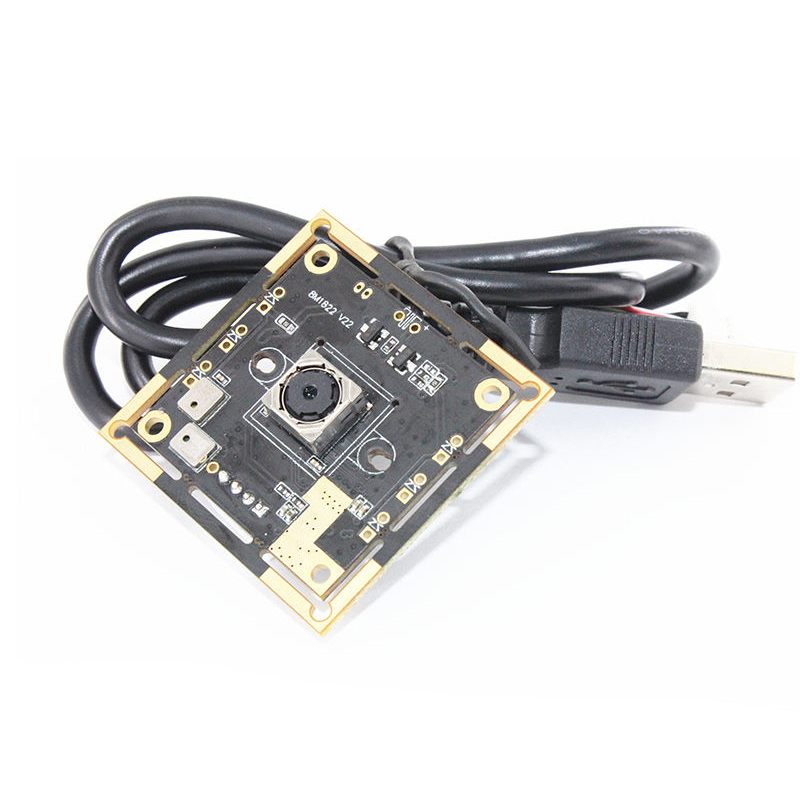

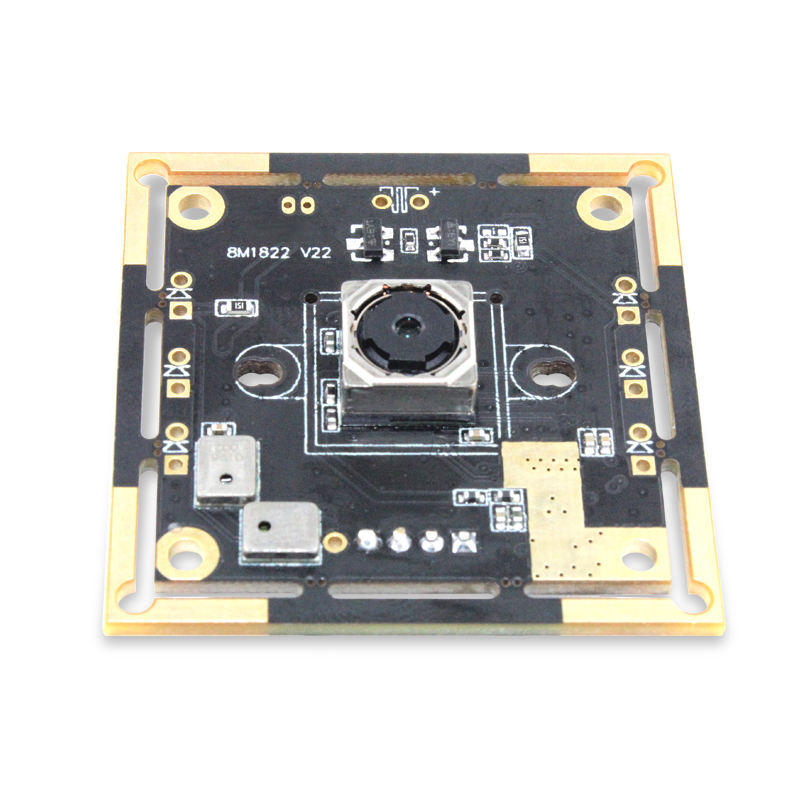

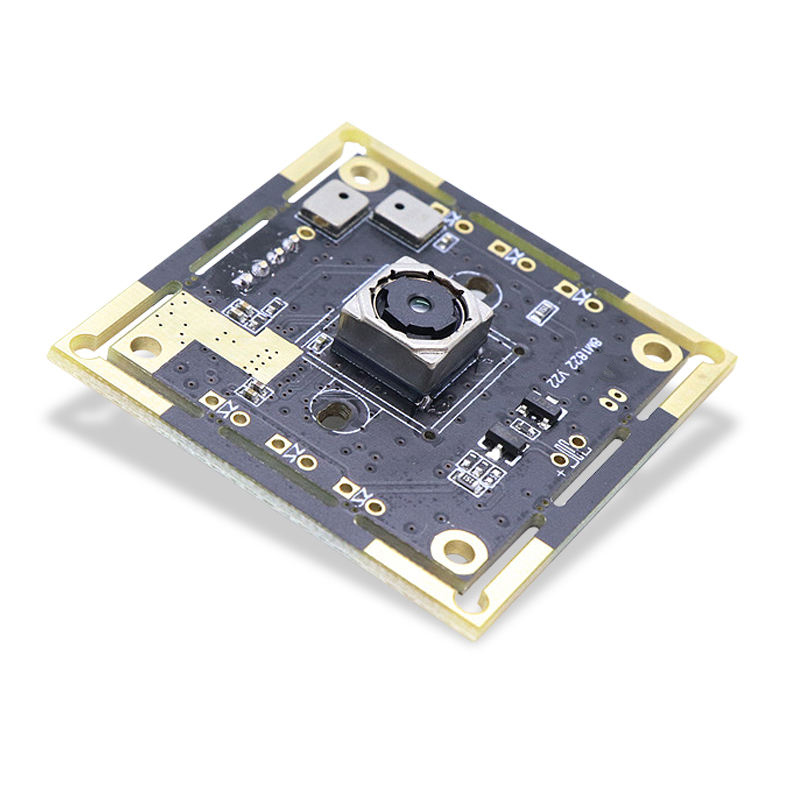

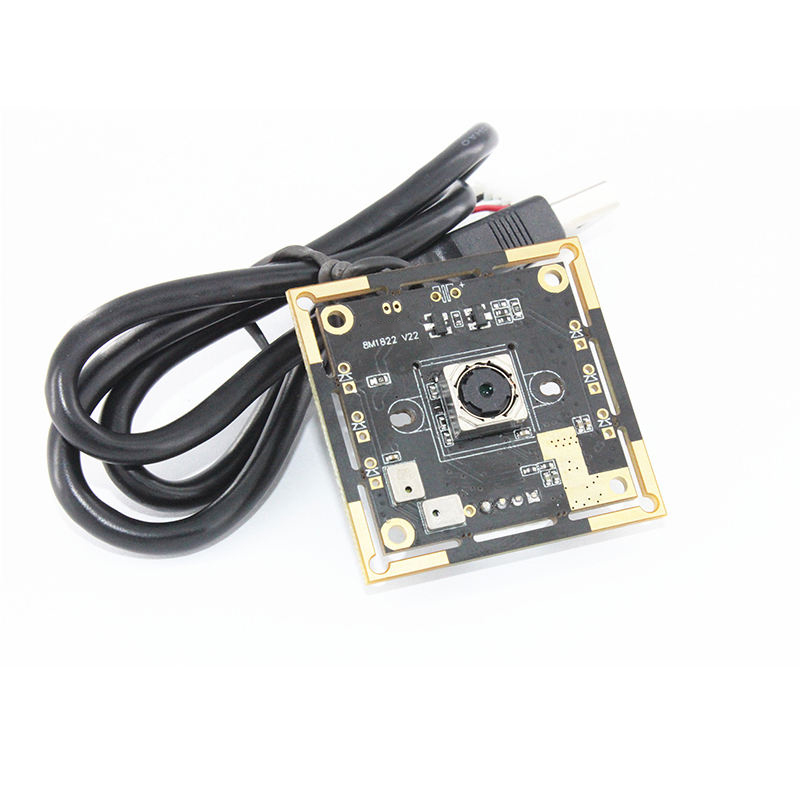

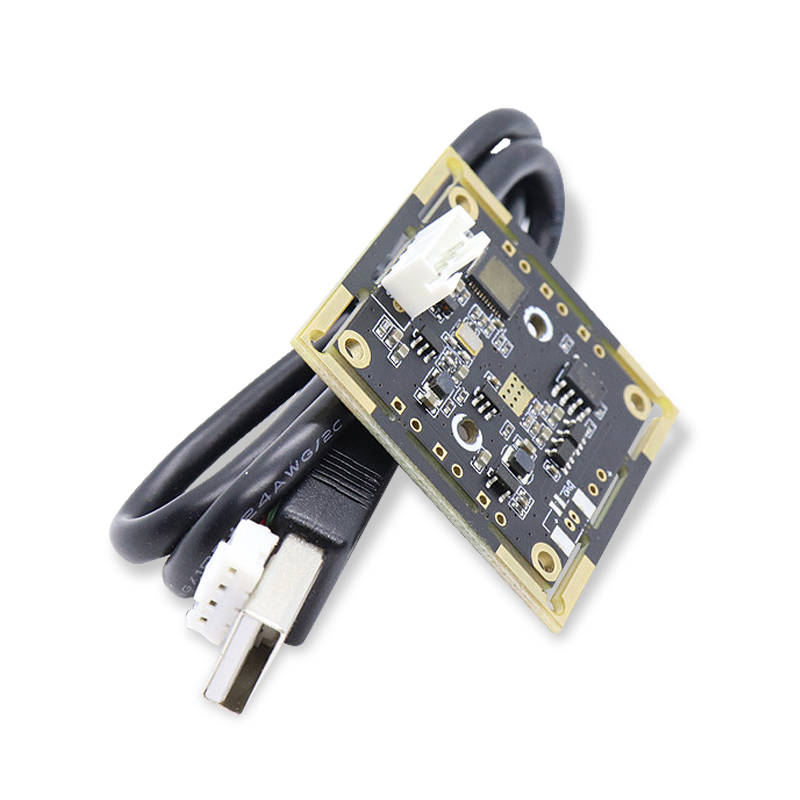

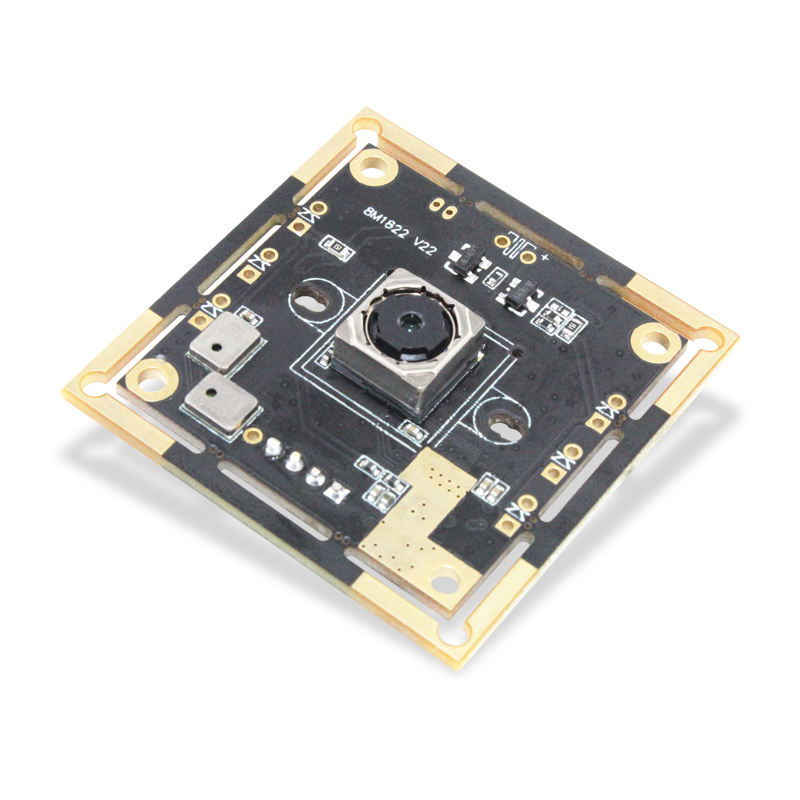

Detail Images

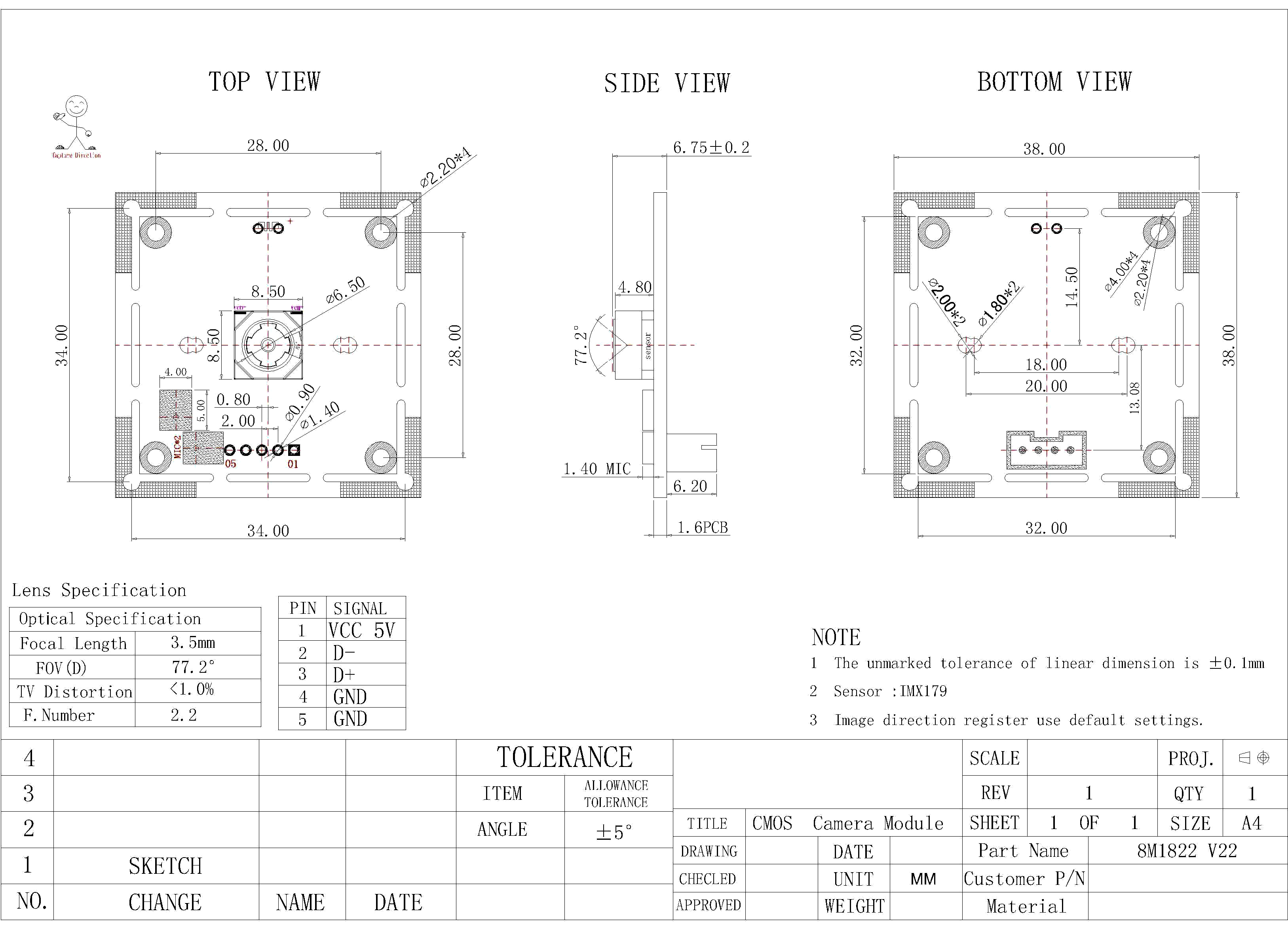

Product drawing
