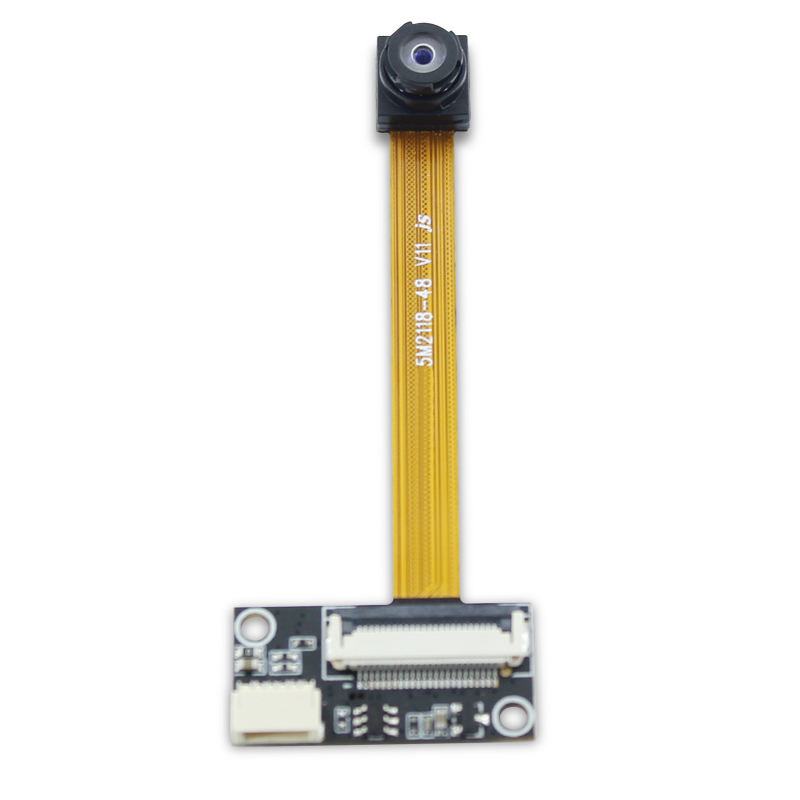

Digital mini mipi smallest camera module 5MP for console game
$21.60
Availability:
In stock
Out of stock
Variations
Product Attributes
Product Description
Product Description
| Module No. | 1466AF S1.0 |
| Module Size | 68.3mm × 26mm × 5.0mm±0.2MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | AUTO |
| Object distance | 30CM-infinity |
| Resolution | 800LW/PH (Center) |
| PCB printing ink | black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 800 mW |
| Operating system request | Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV5693 (1/4" ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 2592*1944 |
| Sensitivity | 7500e /（lux-sec） |
| Pixel Size | 1.4µm x 1.4µm |
| Maximum Image Transfer Rate | MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 960x540 30FPS / YUY2 960x540 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 8FPS MJPEG1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 2FPS |
| S/N Ratio | 38 db |
| Max Dynamic Range | 66 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 4P |
| F/No | 2.8 |
| EFL | 2.7 mm |
| FOV | 68° 180° |
| TV Distortion | <0.24% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |

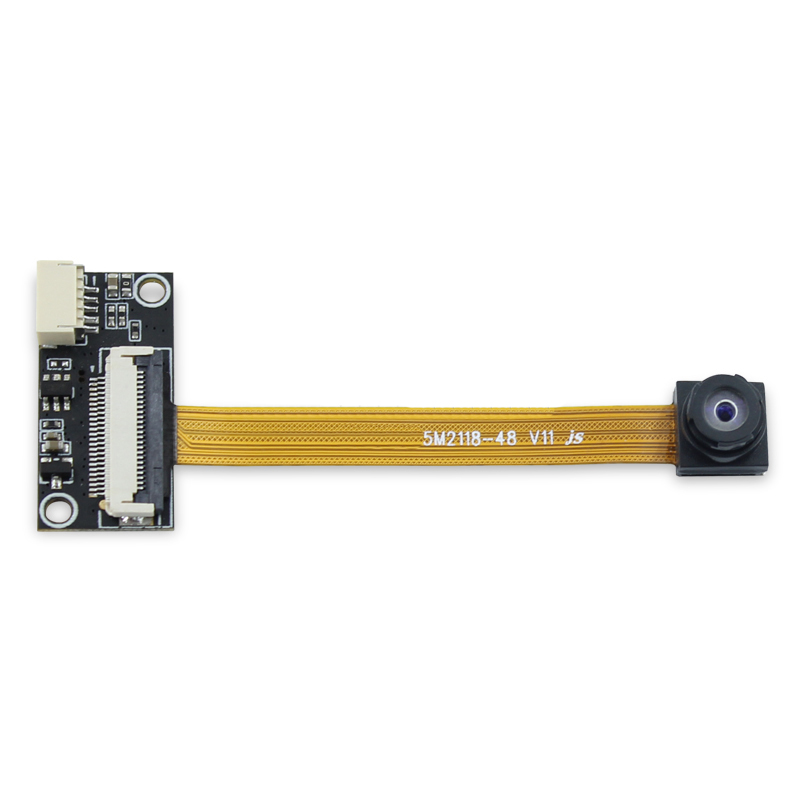

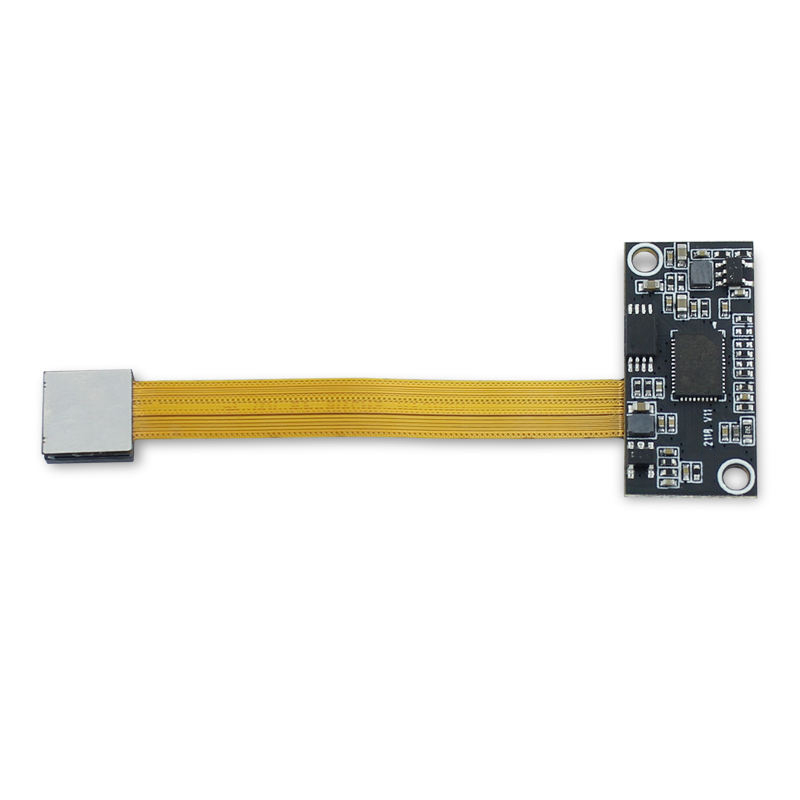

5MP FPC+PCB camera with Fixed focus lens
1. FPC+PCB camera, it can be installed in many type of machine

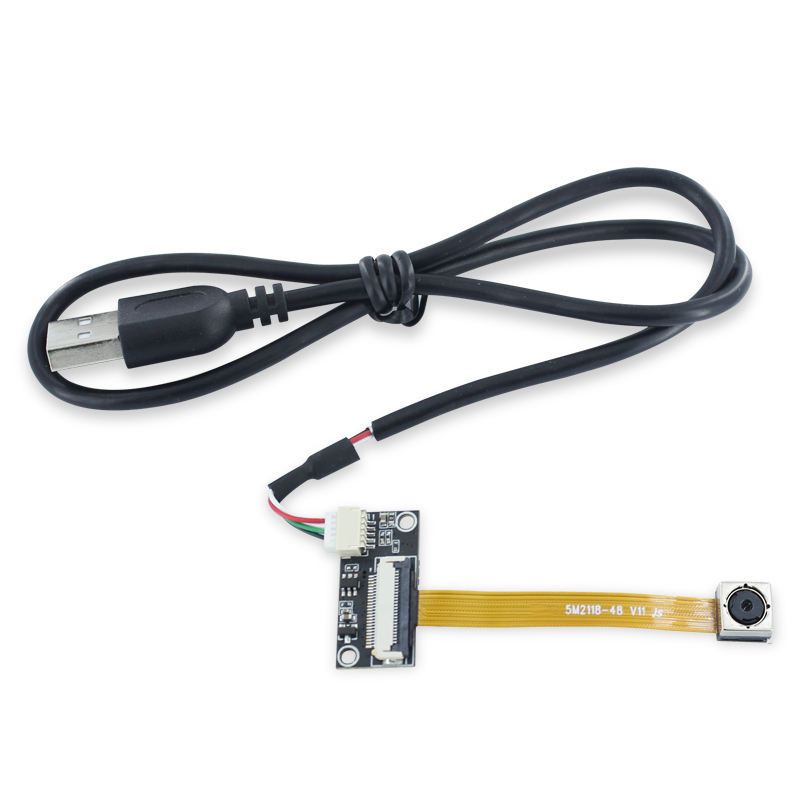

Details Images

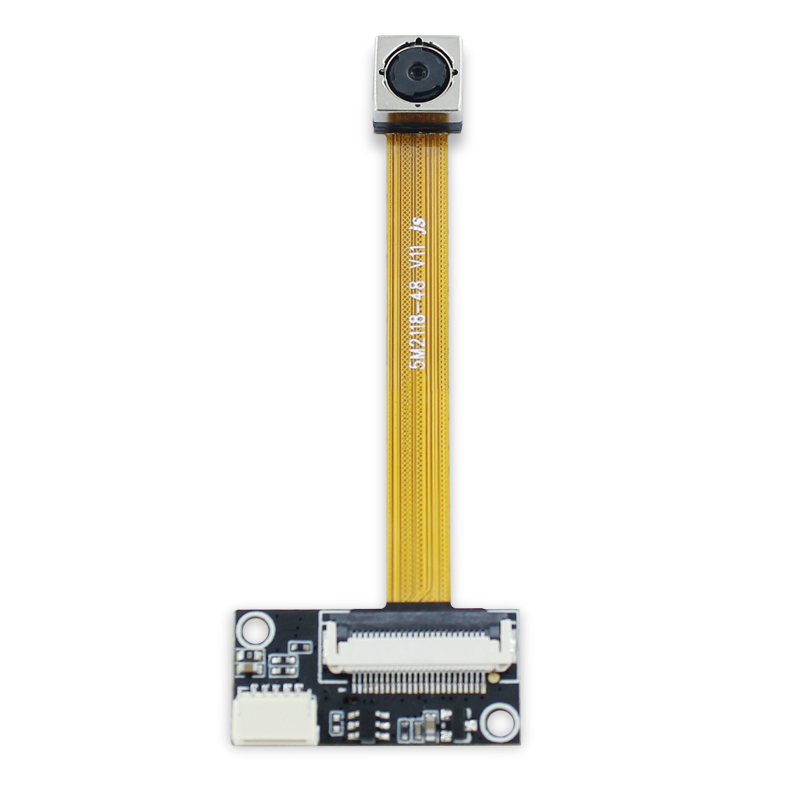

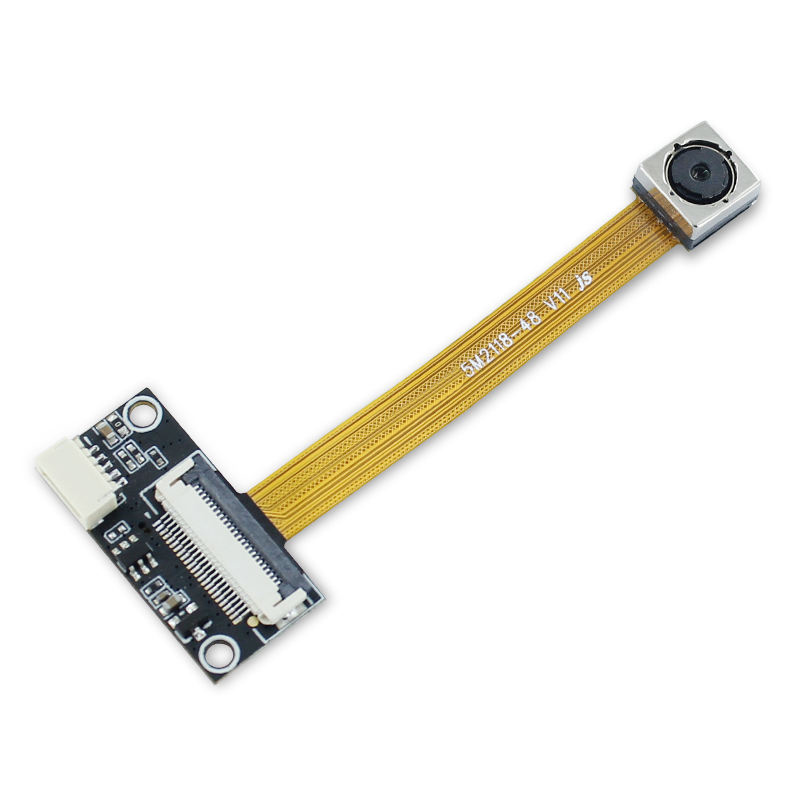

5MP Auto Focus Camera Module

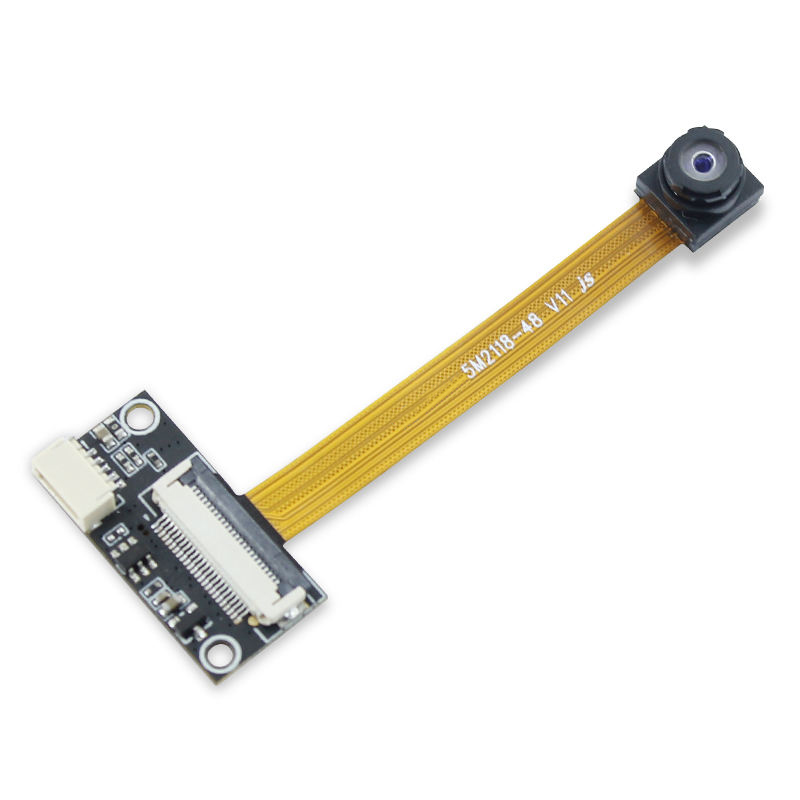

5MP Camera Module with 180° lens

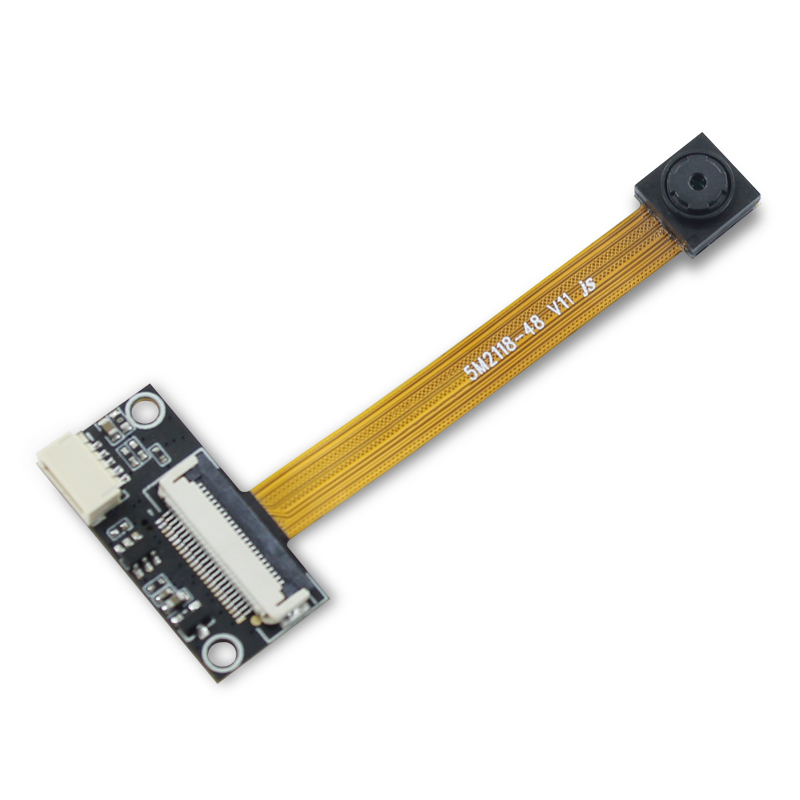

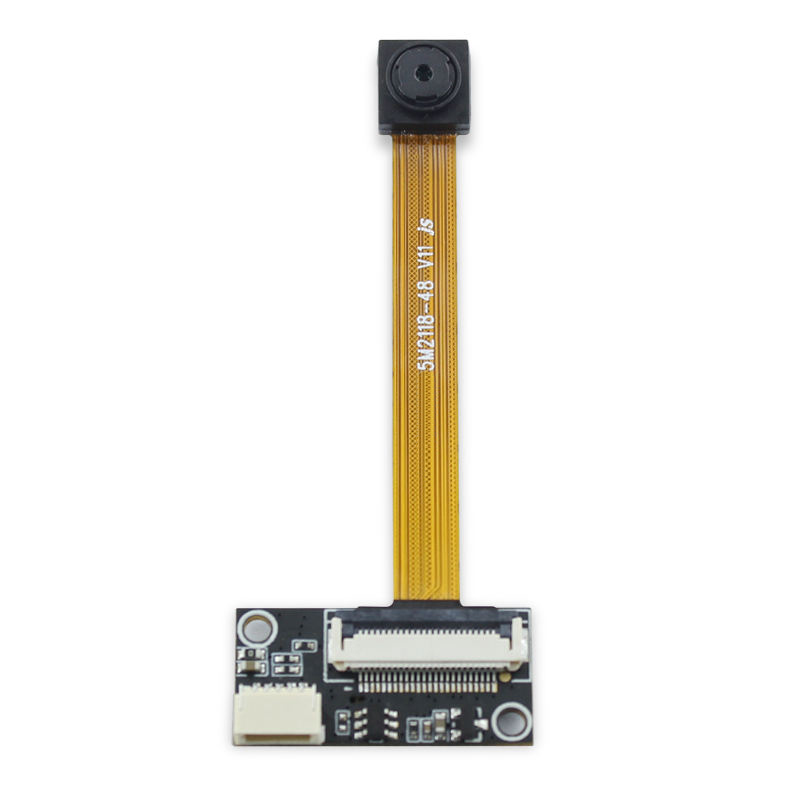

5MP Fixed Focus Camera Module
Product Usage
Product usage introduction
1.this camera can be installed in ATM Machine, High speed document scanner, Gate machine and so on
Description of product use effect
with good effect image
